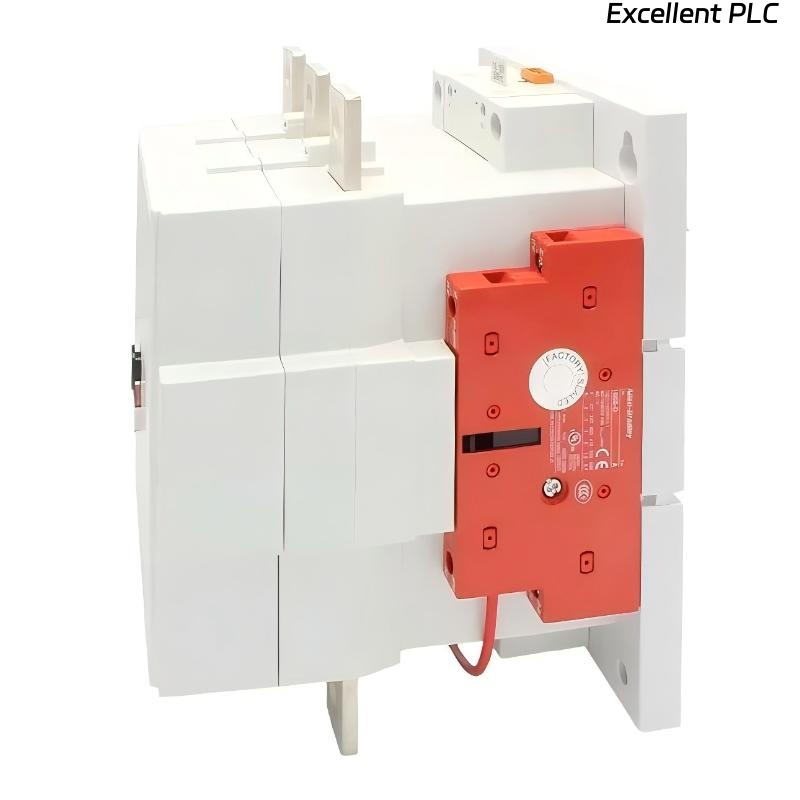

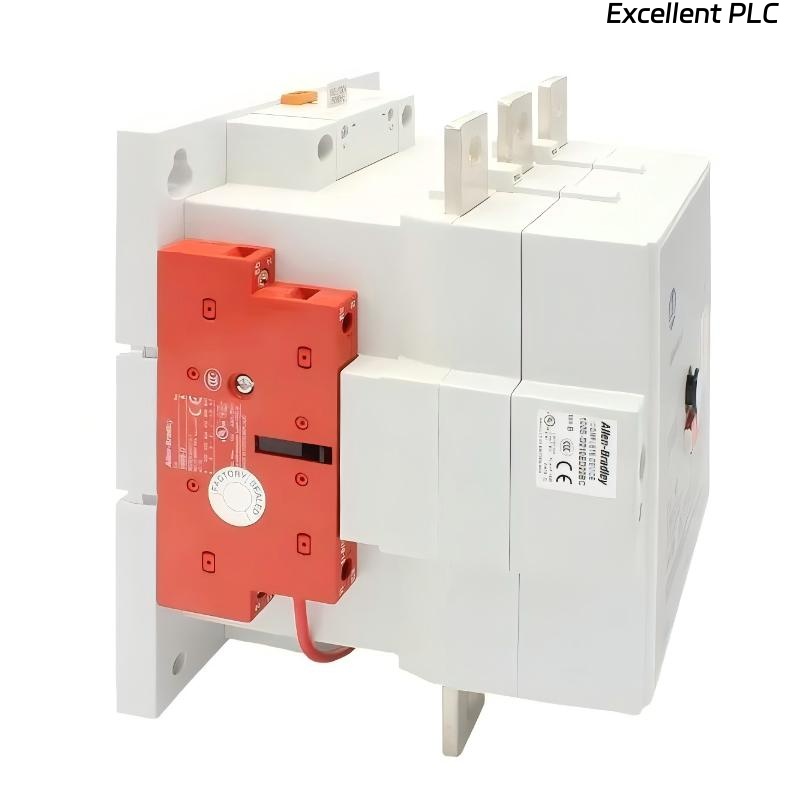

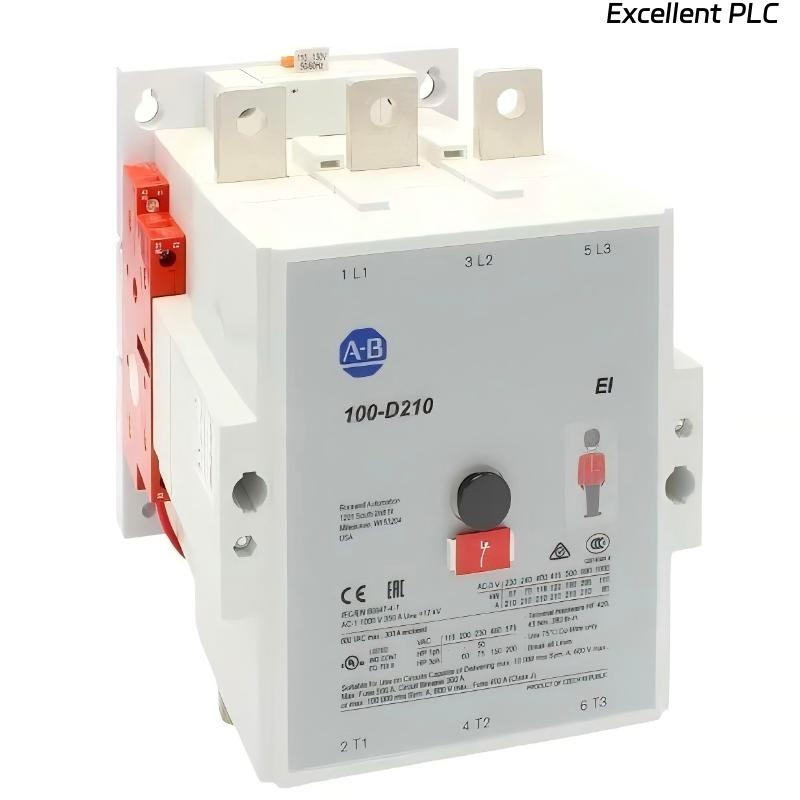

Allen Bradley 100S-D210EA22BC Safety Contactor
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

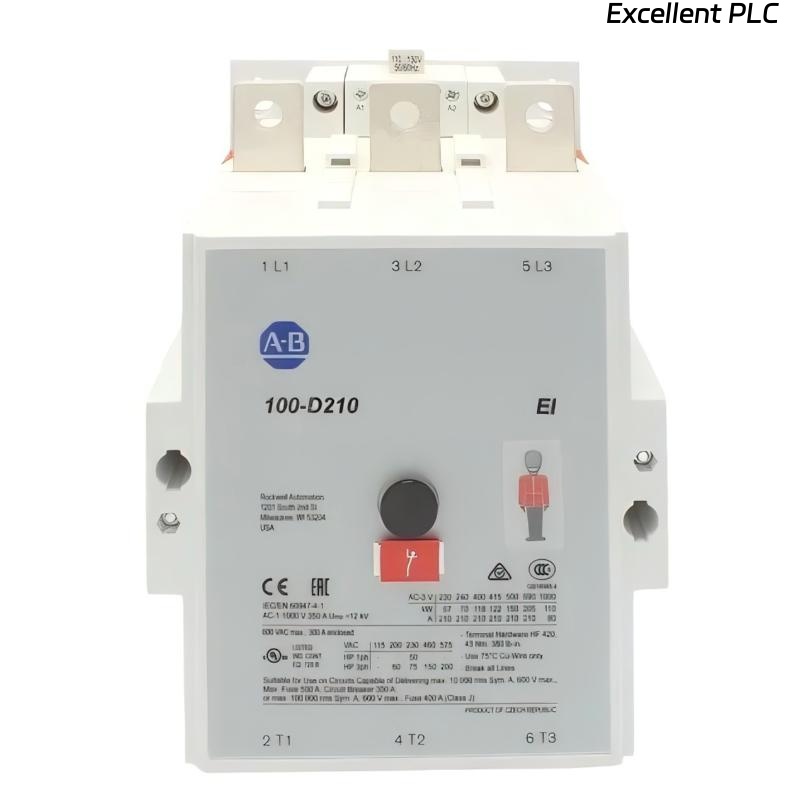

The Allen Bradley 100S-D210EA22BC Safety Contactor is a high-capacity safety contactor designed for critical industrial applications where reliable isolation and safe switching are essential. As part of the 100S series, this model is engineered to meet stringent safety standards, making it suitable for use in machinery safety circuits and emergency stop systems.
With a rated current of 210 A, this contactor is capable of handling high-power loads in demanding environments. It features an electronic coil operating at 220V DC, ensuring stable and efficient control performance. The device supports a wide control voltage range of 208–277V AC (50/60 Hz) and 200–255V DC, offering flexibility for integration into various control systems.
The contact configuration includes 2 normally open (NO) and 2 normally closed (NC) bifurcated contacts, providing reliable switching and enhanced signal integrity, especially in low-current safety circuits. Its open-style design allows for easy inspection and maintenance, making it a practical choice for industrial installations.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 100S-D210EA22BC |
| Series | 100S Safety Contactor |
| Rated Current | 210 A |
| Coil Type | Electronic Coil |
| Coil Voltage | 220 V DC |
| Control Voltage Range | 208–277 V AC (50/60 Hz) / 200–255 V DC |
| Contact Configuration | 2 NO + 2 NC (Bifurcated) |
| Standards | IEC |
| Design Type | Open Style |
| Dimensions | 205 × 155 × 180 mm |
| Weight | 4.54 kg |
Applications
● Machinery Safety Circuits
Reliable isolation capability ensures safe shutdown of equipment during emergency conditions.
● Emergency Stop Systems
Fast and dependable switching enhances operator and equipment safety.
● Industrial Motor Control
High current capacity supports heavy-duty motor switching applications.
● Power Distribution Systems
Stable contact performance ensures reliable control of electrical loads.
● Automation and Control Panels
Flexible voltage compatibility allows integration into various industrial systems.
Advantages
● High Current Handling
210 A capacity supports demanding industrial applications.
● Wide Voltage Compatibility
Flexible AC/DC control range enables easy integration into different systems.
● Enhanced Contact Reliability
Bifurcated contacts improve performance in low-level signal switching.
● Electronic Coil Design
Stable and efficient operation reduces energy consumption and improves reliability.
● Safety-Oriented Design
Designed to meet IEC safety standards for critical applications.
● Easy Maintenance
Open-style construction allows quick inspection and servicing.
FAQ
- What is the advantage of bifurcated contacts in this contactor?
Bifurcated contacts improve reliability in low-current applications by providing redundant contact points, ensuring consistent signal transmission. - What type of applications is this safety contactor designed for?
It is mainly used in machinery safety circuits, emergency stop systems, and high-power motor control applications. - How does the electronic coil benefit performance?
It provides stable operation, reduces power consumption, and supports a wider voltage range compared to traditional coils. - What is the significance of the 210 A rating?
It allows the contactor to handle high electrical loads, making it suitable for heavy-duty industrial applications. - Can this contactor be used with both AC and DC control systems?
Yes, it supports a wide control voltage range including both AC and DC inputs. - What does the open-style design mean?
It allows easier inspection, maintenance, and heat dissipation but may require installation in a protected enclosure. - Is this contactor suitable for safety-critical applications?
Yes, it is designed to meet IEC safety standards and is suitable for critical safety systems. - What should be considered when selecting this contactor?
Consider current requirements, control voltage compatibility, and the type of safety circuit involved. - How is durability ensured in this model?
Through robust construction, high-quality contact materials, and compliance with industrial standards. - Can this contactor be integrated into existing control panels?
Yes, its standard design and voltage compatibility make it suitable for integration into most industrial control systems.
Related Models
| Model | Description |
|---|---|
| 100S-D180EA22BC | Lower current variant |
| 100S-D300EA22BC | Higher current model |
| 100S-C85EA22BC | Compact version |
| 100S-D210EA11BC | Different contact configuration |
| 100S-D210EA00BC | Basic configuration model |
| 100S-D150EA22BC | Mid-range current option |
