Product Introduction

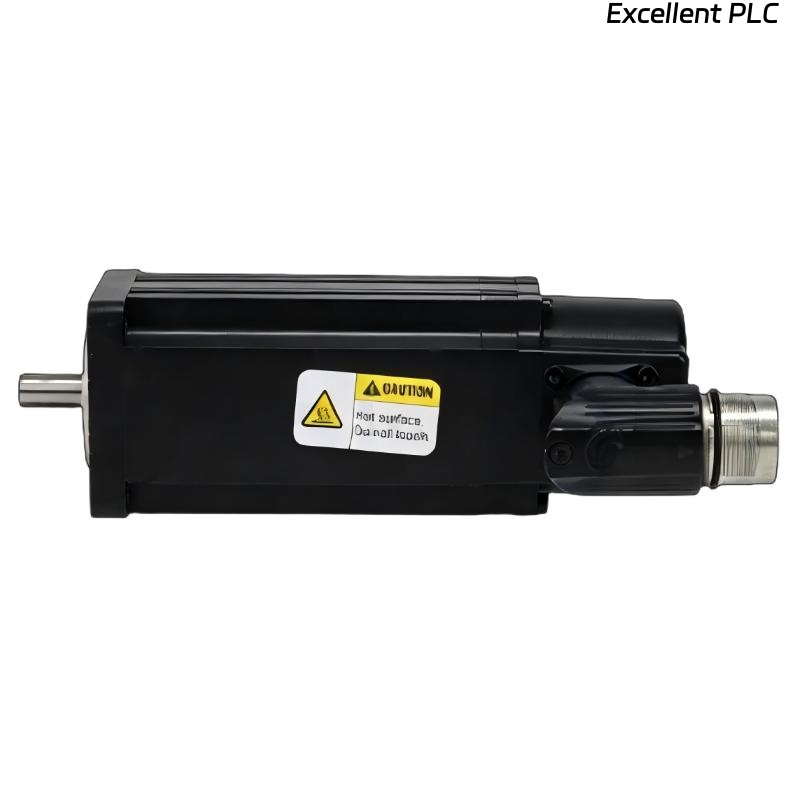

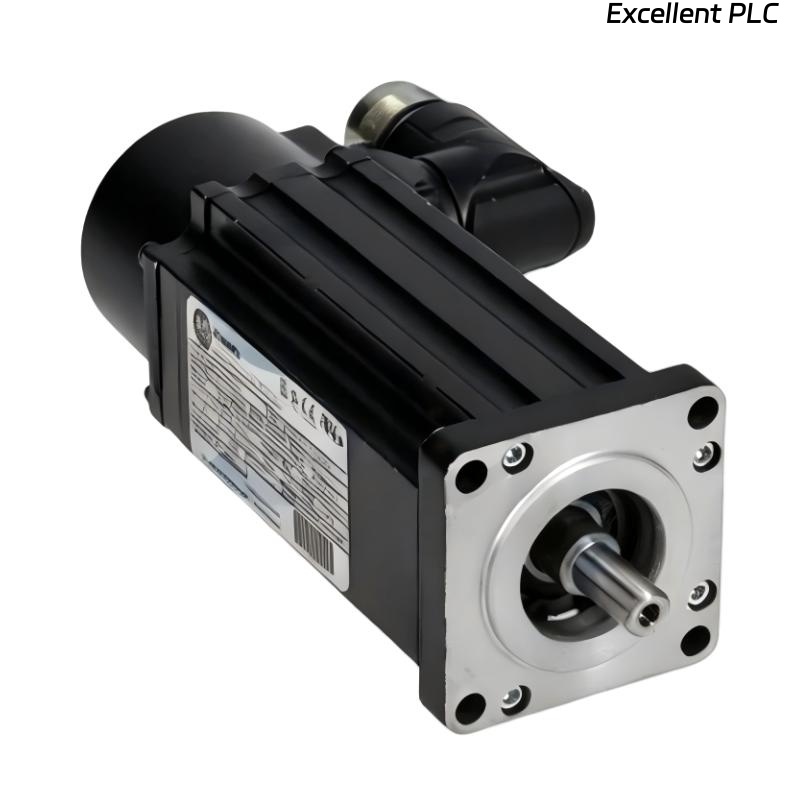

The Allen Bradley VPL-B0632T-CJ12AA Servo Motor is a high-speed, low-inertia servo motor designed for advanced motion control applications requiring exceptional responsiveness and precision. As part of the VPL series, this model is engineered to deliver superior dynamic performance while maintaining compact dimensions.

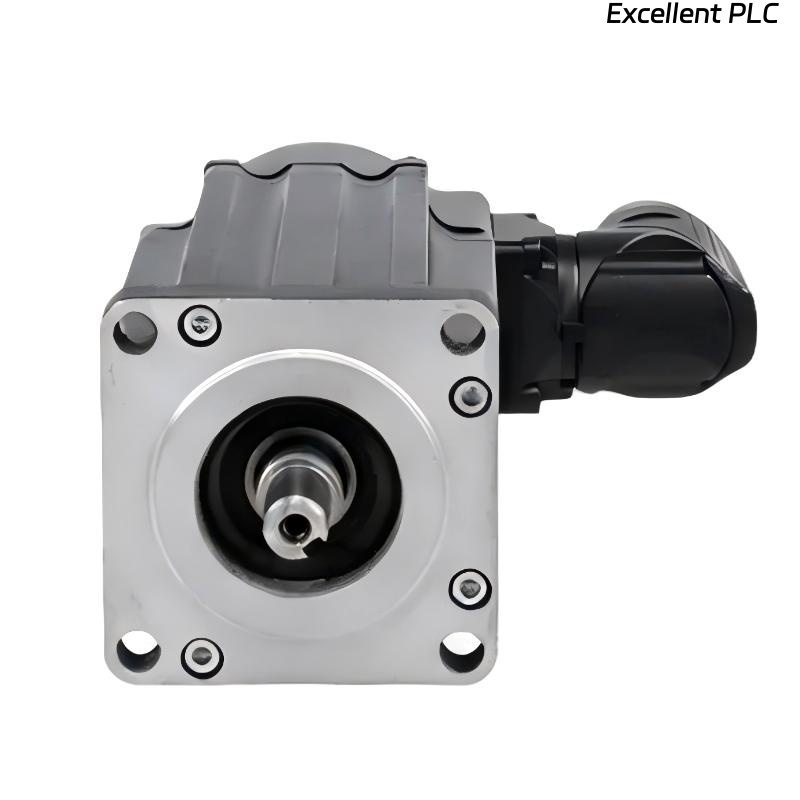

With a 63 mm frame size and IEC metric mounting flange (Type FF), the motor offers flexible installation options for a wide range of industrial systems. Its low inertia design enables rapid acceleration and deceleration, making it ideal for high-speed automation processes. Operating at a rated speed of 6750 rpm under a 400 V voltage class, this motor is well-suited for applications demanding both speed and efficiency.

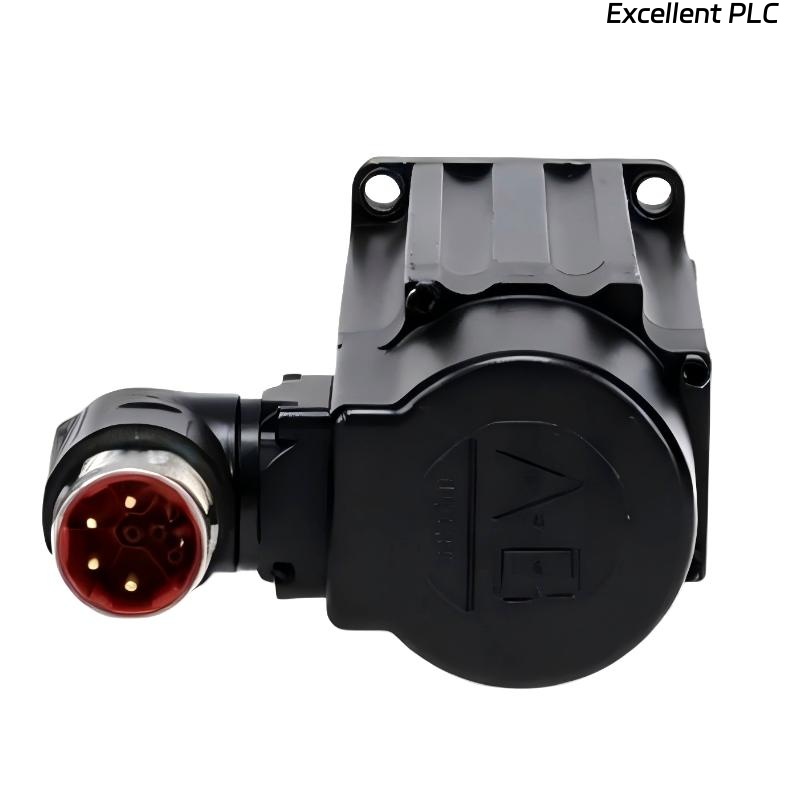

The motor features a single SpeedTec DIN connector for simplified and secure connections, along with a standard factory configuration. The absence of a brake makes it suitable for applications where holding torque is not required or is handled externally.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | VPL-B0632T-CJ12AA |
| Series | VPL Servo Motor |
| Series Type | Low Inertia |
| Frame Size | 63 mm |
| Voltage Class | 400 V |
| Rated Speed | 6750 rpm |
| Magnet Stack Length | 2 Stack |
| Connector Type | Single SpeedTec DIN Connector |
| Mounting Flange | IEC Metric, Free Mounting Holes (Type FF) |
| Brake | No Brake |
| Factory Options | Standard |
| Cooling Method | Natural Cooling |
| Weight | 1.36 kg |
Applications
● High-Speed Automation Equipment
Ultra-fast rotational speed enables rapid cycle times and improved productivity.
● Electronics and Semiconductor Manufacturing
Precise and responsive motion control supports delicate and high-accuracy processes.
● Packaging Machinery
Quick acceleration and deceleration improve throughput and operational efficiency.
● Robotics Systems
Low inertia characteristics enhance dynamic motion and positioning accuracy.
● Material Handling Systems
Smooth and efficient motion control optimizes conveyor and transfer operations.
Advantages
● Ultra-High Speed Capability
6750 rpm rated speed supports demanding high-speed applications.
● Low Inertia Design
Fast dynamic response improves system performance and reduces cycle times.
● Flexible Mounting Options
IEC metric flange (Type FF) allows easy integration into various systems.
● Simplified Connectivity
Single SpeedTec connector ensures quick, secure, and reliable installation.
● Efficient Operation
400 V voltage class enables higher power efficiency in industrial environments.
● Compact and Lightweight
Optimized size and weight facilitate installation in space-constrained setups.
