Product Introduction

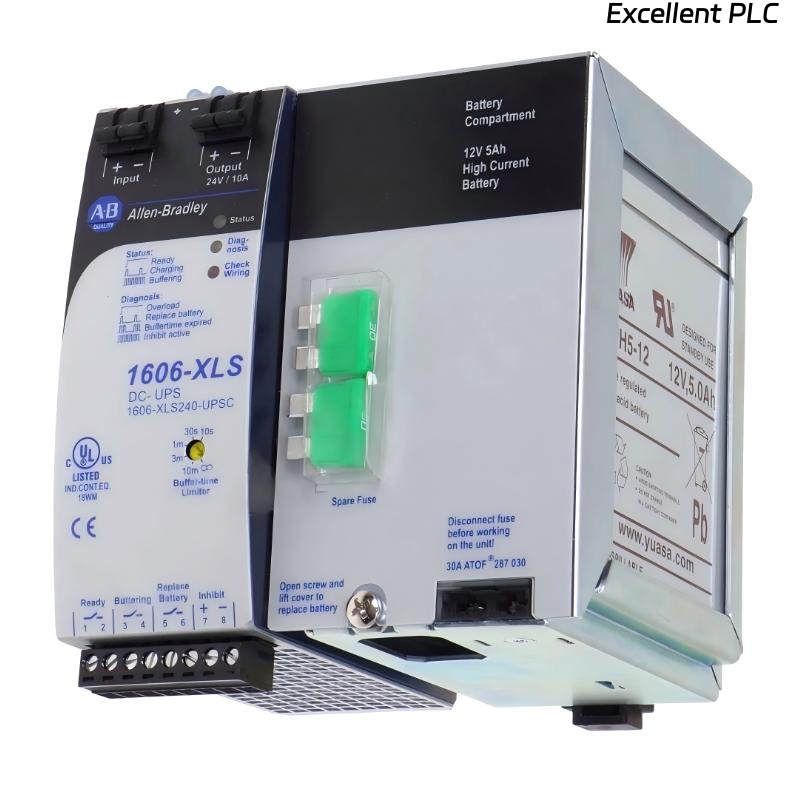

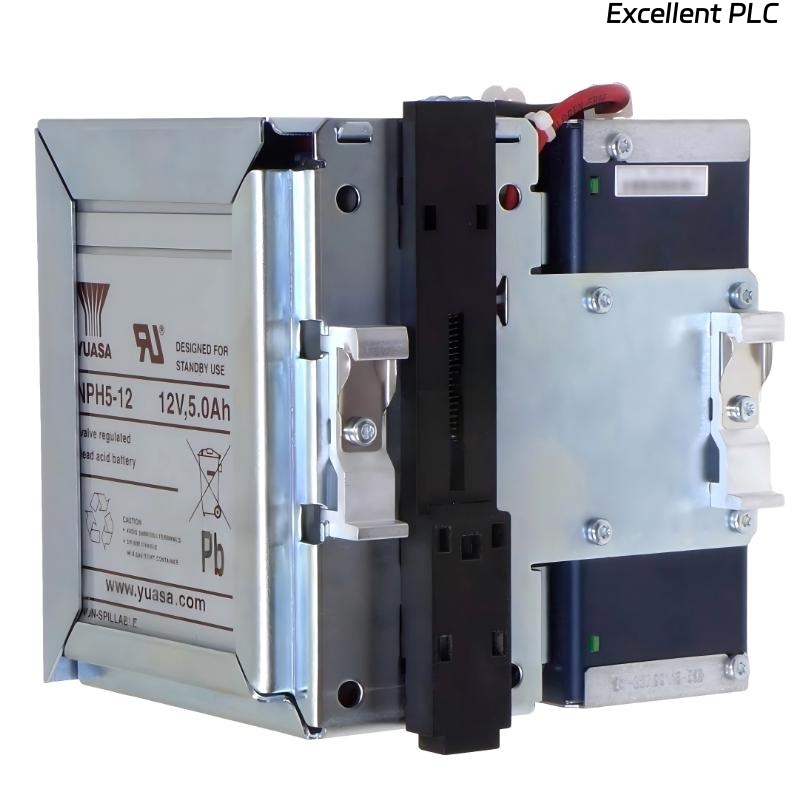

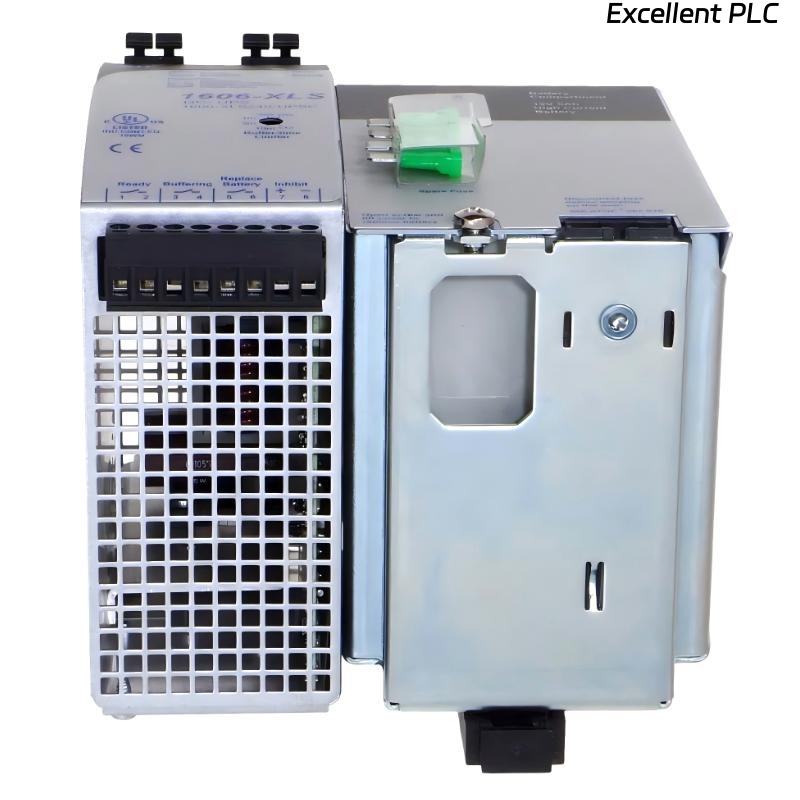

The Allen-Bradley 1606-XLS240-UPSC/A is a DC-UPS (uninterruptible power supply) module from the 1606-XLS series, designed to maintain continuous 24 V DC power in industrial automation systems during input power interruptions. With a rated power of 240 W and output current up to 10 A, it ensures reliable backup power for critical control equipment.
This unit operates with a 24 V DC input and delivers a regulated 22.25 V DC output during backup mode. It is designed to work in conjunction with external battery modules, automatically switching to backup supply in the event of a primary power failure. As part of the XLS performance family, it provides fast switchover, stable output, and high system reliability in demanding industrial environments.
The compact DIN rail design allows seamless integration into control panels, while the robust construction ensures dependable operation in continuous-duty industrial applications where downtime must be minimized.
Product Specifications
| Parameter | Value |
|---|---|
| Series | 1606-XLS |
| Version | Series A |
| Type | DC-UPS (Uninterruptible Power Supply) |
| Input Voltage | 24 V DC |
| Output Voltage (Backup Mode) | 22.25 V DC |
| Rated Output Power | 240 W |
| Output Current | Up to 10 A |
| Battery Type | External battery module (required) |
| Switching Time | Near-zero transfer time |
| Protection Features | Overload / Short Circuit / Deep Discharge Protection |
| Mounting Type | DIN Rail |
| Dimensions | 124 × 119 × 123 mm |
| Weight | 2.85 kg |
Applications
● Industrial automation systems
Maintains continuous power for PLCs, controllers, and I/O systems during power interruptions.
● Process control systems
Prevents system shutdowns and data loss in critical process environments.
● Machine and production lines
Ensures safe operation and controlled shutdown of automated machinery during outages.
● Energy and infrastructure systems
Provides backup power for monitoring, protection, and communication equipment.
● Critical control applications
Ideal for systems where power continuity is essential to avoid downtime or damage.
Advantages
● Reliable DC backup power
Ensures uninterrupted operation of critical 24 V DC systems during supply failures.
● Fast automatic switchover
Provides near-zero transfer time to battery mode, preventing system interruptions.
● High power capacity
Supports up to 240 W / 10 A, suitable for medium-load industrial systems.
● Flexible battery integration
Works with external battery modules for scalable backup duration.
● Industrial-grade protection
Includes overload, short circuit, and deep discharge protection.
● DIN rail mounting design
Allows easy installation in standard industrial control cabinets.
