Product Introduction

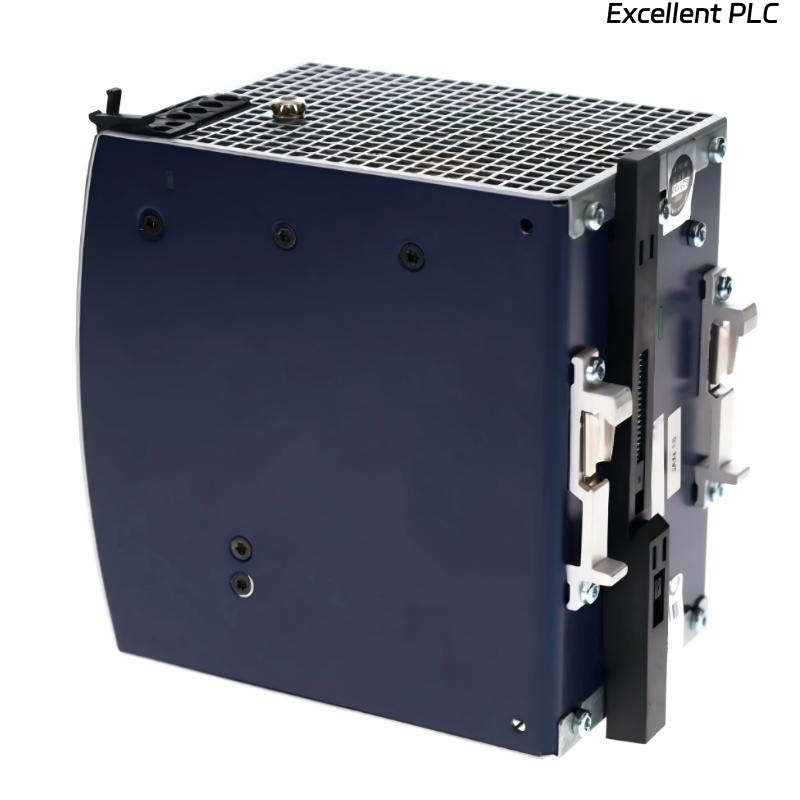

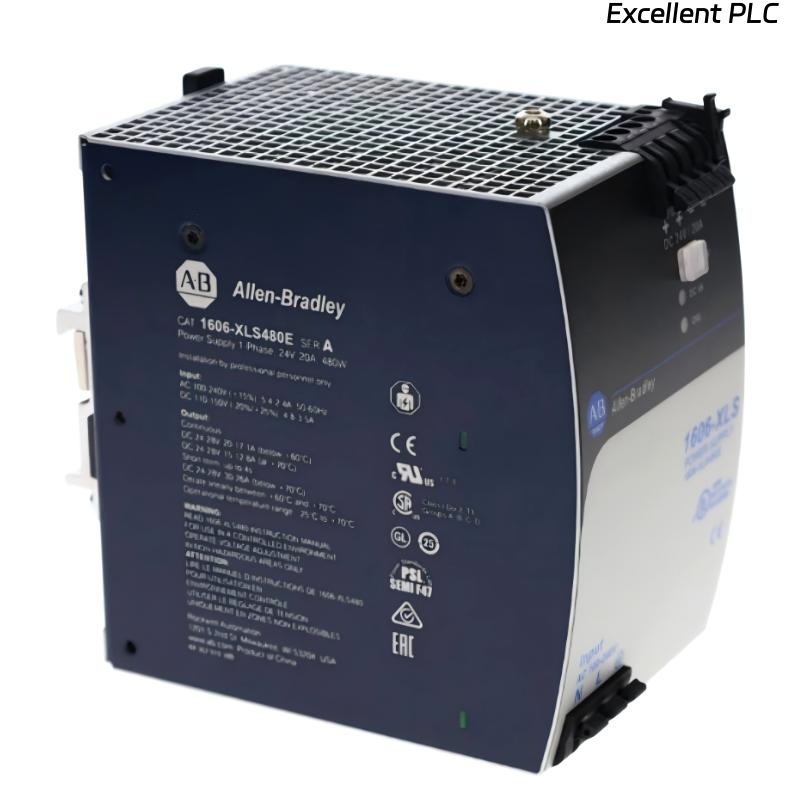

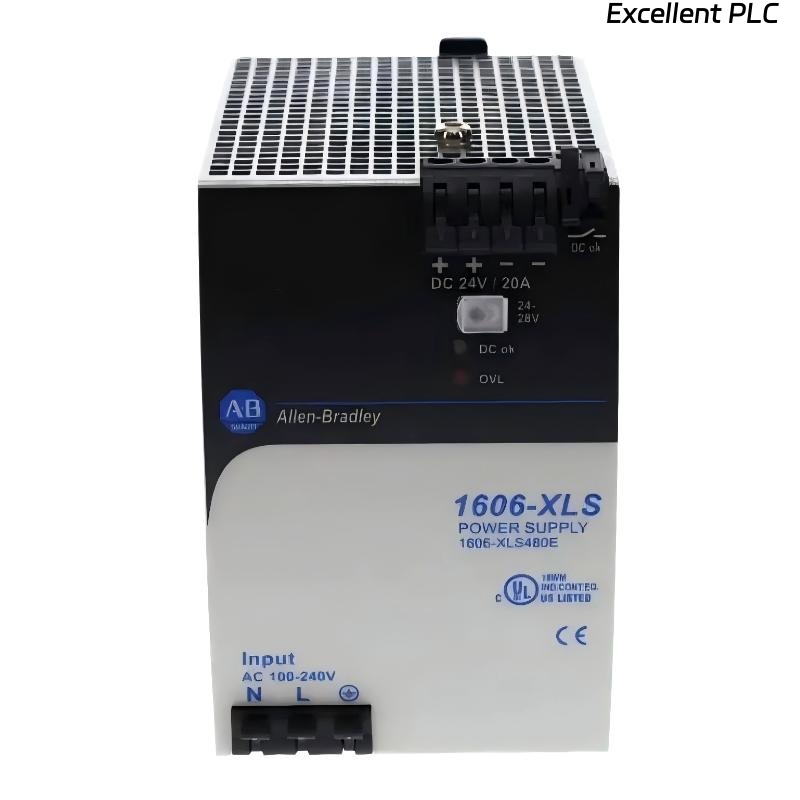

The Allen-Bradley 1606-XLS480E/A is a high-capacity performance switched mode power supply from the 1606-XLS series, engineered for demanding industrial automation applications requiring reliable and stable 24 V DC power. With a rated output of 480 W and up to 20 A output current, it is well-suited for systems with higher power consumption and multiple connected loads.
This model supports a wide input range of 100–240 V AC or 110–300 V DC, providing excellent flexibility for global and hybrid power environments. As part of the XLS performance series, it delivers high efficiency, strong dynamic response, and precise voltage regulation, ensuring stable operation even under fluctuating load conditions.
The Series A design ensures standardized industrial compatibility, while the robust construction and DIN rail mounting make it easy to integrate into control cabinets. It is designed for continuous operation in harsh industrial environments where reliability and performance are critical.
Product Specifications
| Parameter | Value |
|---|---|
| Series | 1606-XLS |
| Version | Series A |
| Type | AC/DC Performance Power Supply |
| Input Voltage | 100–240 V AC / 110–300 V DC |
| Frequency | 50–60 Hz |
| Output Voltage | 24 V DC |
| Output Adjustment Range | 24–28 V DC |
| Rated Output Power | 480 W |
| Output Current | Up to 20 A |
| Efficiency | High efficiency industrial design |
| Protection Features | Overload / Short Circuit / Thermal Protection |
| Mounting Type | DIN Rail |
| Module Type | Standard Module |
| Dimensions | 127 × 82 × 124 mm |
| Weight | 1.2 kg |
Applications
● Industrial automation systems
Provides high-capacity DC power for PLCs, I/O systems, and control networks.
● Process control industries
Ensures stable operation of instrumentation and control systems in continuous processes.
● Machine building and heavy equipment
Supports high-power machinery and multi-load systems requiring reliable DC supply.
● Energy and infrastructure systems
Used in power distribution panels and auxiliary control circuits.
● OEM equipment integration
Suitable for custom-built industrial systems with higher power demands.
Advantages
● High output capacity
Delivers 480 W / 20 A, ideal for high-load industrial applications.
● Wide AC and DC input range
Supports both AC and DC input, increasing flexibility in different power environments.
● Stable voltage regulation
Maintains consistent 24 V DC output under varying load conditions.
● High efficiency design
Reduces energy consumption and heat generation, improving system reliability.
● Comprehensive protection features
Includes overload, short circuit, and thermal protection.
● DIN rail installation
Allows quick and secure mounting in industrial control cabinets.
