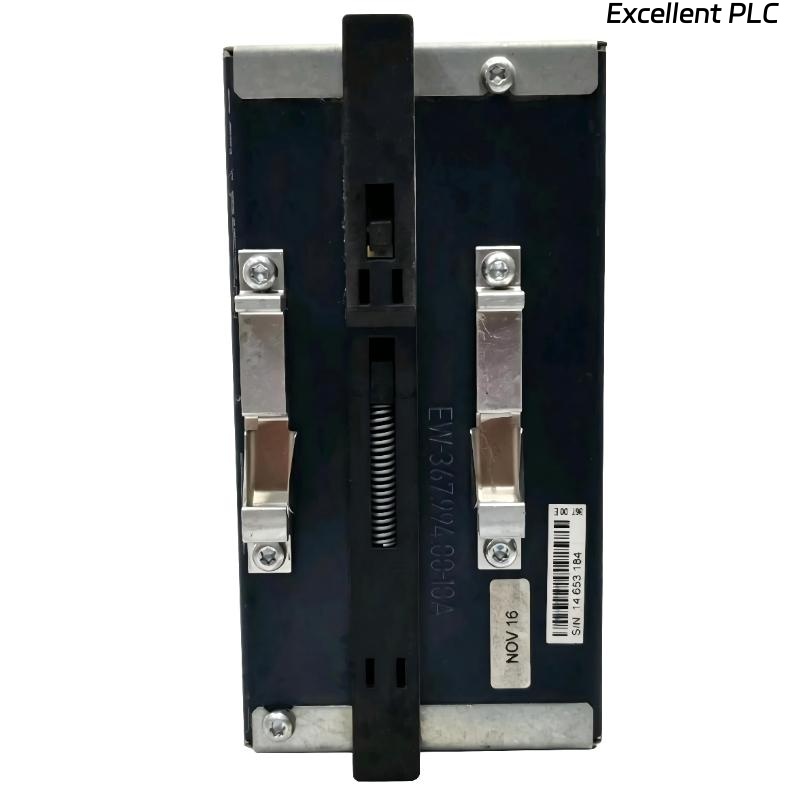

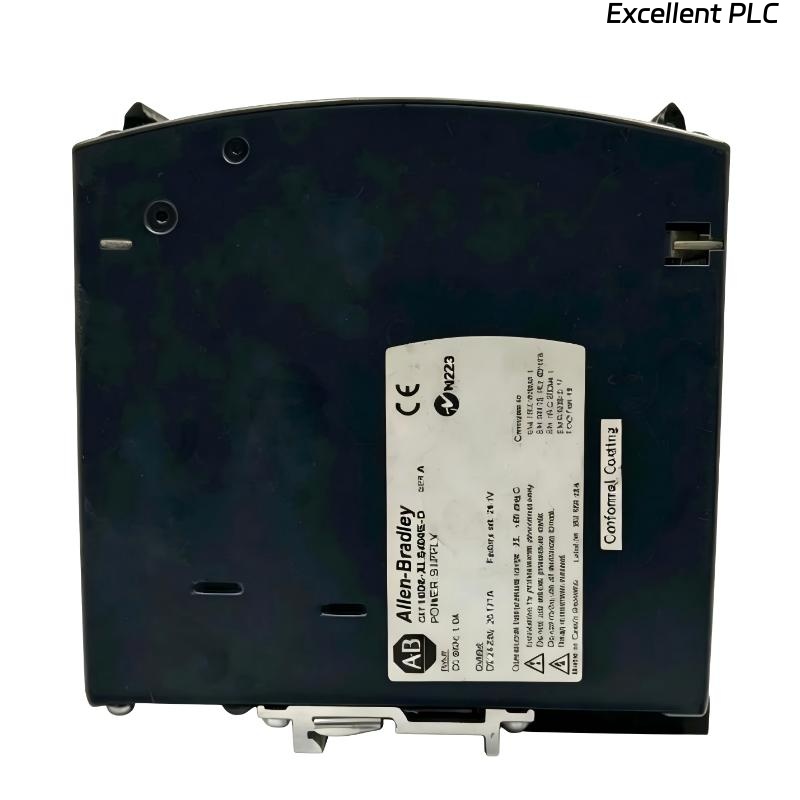

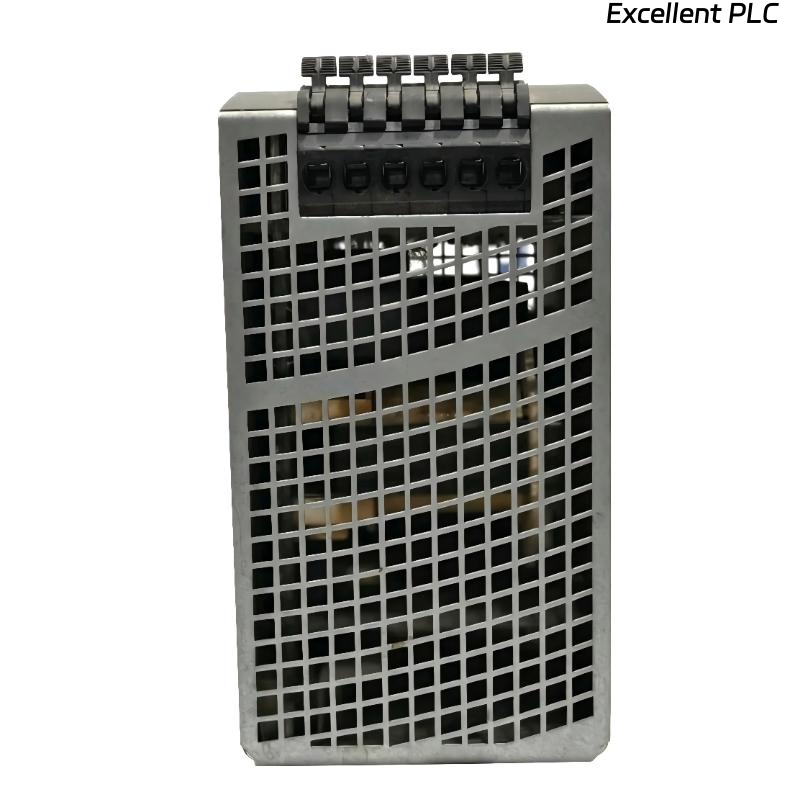

Allen Bradley 1606-XLS480E-D Power Supply

Product Introduction

The Allen Bradley 1606-XLS480E-D Power Supply is a high-performance industrial switched-mode power supply designed for demanding automation environments. As part of the 1606-XLS Series Performance Power range from Allen-Bradley, this unit is engineered to deliver stable and efficient DC power in systems where reliability and compact design are critical.

Built with a focus on high efficiency and robust operation, the 1606-XLS480E-D supports a wide DC input range and provides a regulated 24–28V DC output, making it suitable for a variety of industrial control systems. Its DIN rail mounting capability simplifies installation in control cabinets, while the compact housing ensures space-saving integration.

The power supply is optimized for continuous operation under harsh industrial conditions, including fluctuating input voltages and varying load demands. With a rated output of 480W and 20A current capacity, it is particularly well-suited for automation systems requiring consistent and reliable power delivery.

---

Product Specifications

---

Applications

• Industrial automation systems where stable DC power is required for PLCs, I/O modules, and control circuits

• Process control environments including chemical, oil & gas, and manufacturing lines with high reliability requirements

• Power distribution panels in control cabinets using DIN rail mounting systems

• Renewable energy and DC infrastructure where wide DC input range compatibility is essential

• Machine building applications requiring compact, high-output power supplies

---

Advantages

• Wide DC input range (360–900V DC) allows flexible integration into various high-voltage DC systems

• High efficiency performance reduces heat generation and improves overall system energy savings

• Compact and space-saving design makes it ideal for dense control cabinet installations

• Robust protection mechanisms including overload, overvoltage, and thermal shutdown ensure long-term operational safety

• Stable 24–28V DC output supports sensitive industrial electronics and automation equipment

• DIN rail mounting enables quick installation and maintenance in standard industrial setups

FAQ

1. What type of input power does this power supply support?
   This model is designed exclusively for DC input, supporting a wide range from 360V to 900V DC, making it suitable for high-voltage DC systems rather than traditional AC-powered setups.
2. Can the output voltage be adjusted within the specified range?
   Yes, the output voltage can be fine-tuned between 24V and 28V DC to match specific application requirements or compensate for voltage drops in wiring.
3. How does the unit handle overload conditions?
   The power supply includes built-in overload protection that limits output current and prevents damage by automatically reducing or shutting down output when limits are exceeded.
4. Is the unit suitable for continuous operation in industrial environments?
   It is designed for continuous duty operation and can maintain stable performance under demanding industrial conditions, including fluctuating loads and temperatures.
5. What cooling method is used in this power supply?
   The unit uses passive convection cooling, eliminating the need for internal fans and reducing maintenance requirements and potential points of failure.
6. Does it support parallel operation for increased power output?
   Yes, multiple units can typically be connected in parallel with proper configuration to increase total system output capacity and redundancy.
7. What kind of protection features are integrated?
   The device includes overvoltage protection, overload protection, and thermal shutdown to safeguard both the power supply and connected equipment.
8. How stable is the output under varying load conditions?
   The output remains highly stable due to advanced regulation circuitry, ensuring minimal voltage fluctuation even under dynamic load changes.
9. Is it compatible with sensitive electronic equipment?
   Yes, the regulated DC output with low ripple and noise makes it suitable for sensitive industrial electronics such as PLCs and communication modules.
10. What installation considerations should be taken into account?
    Proper spacing for heat dissipation and correct DIN rail mounting orientation should be ensured to maintain optimal thermal performance and reliability.
