Product Introduction

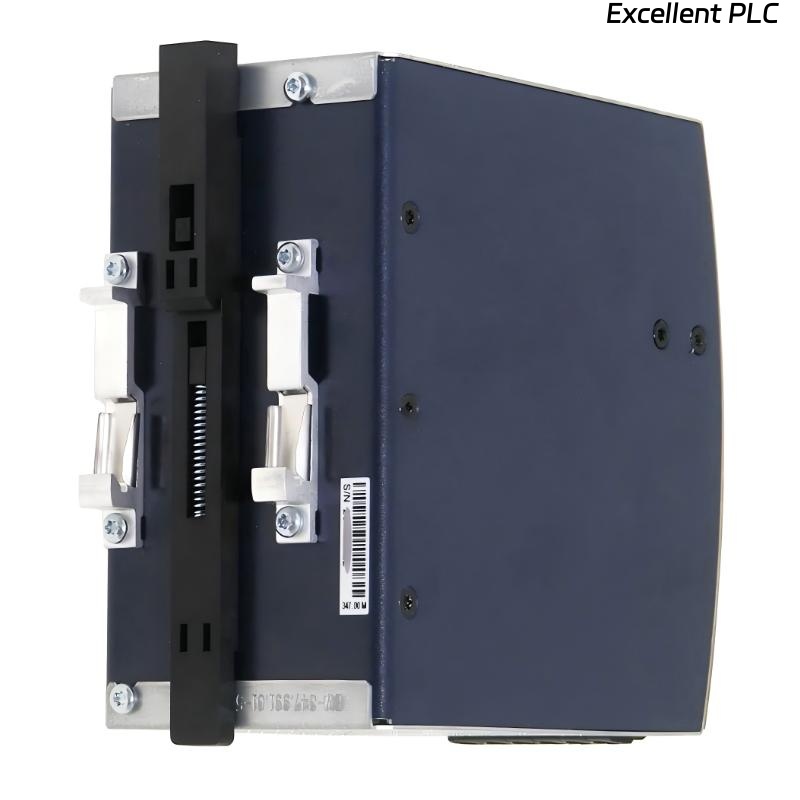

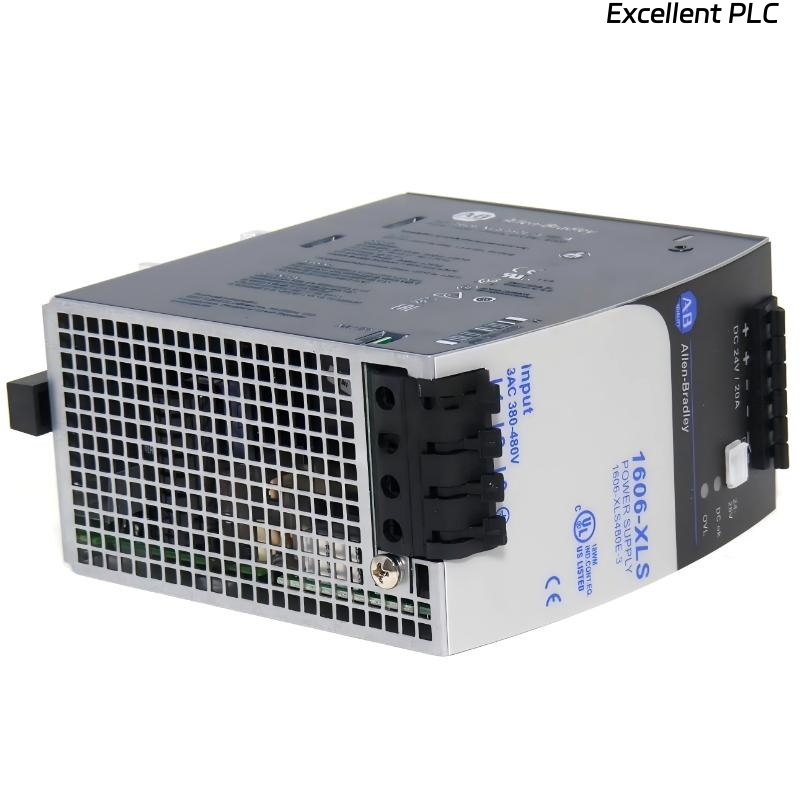

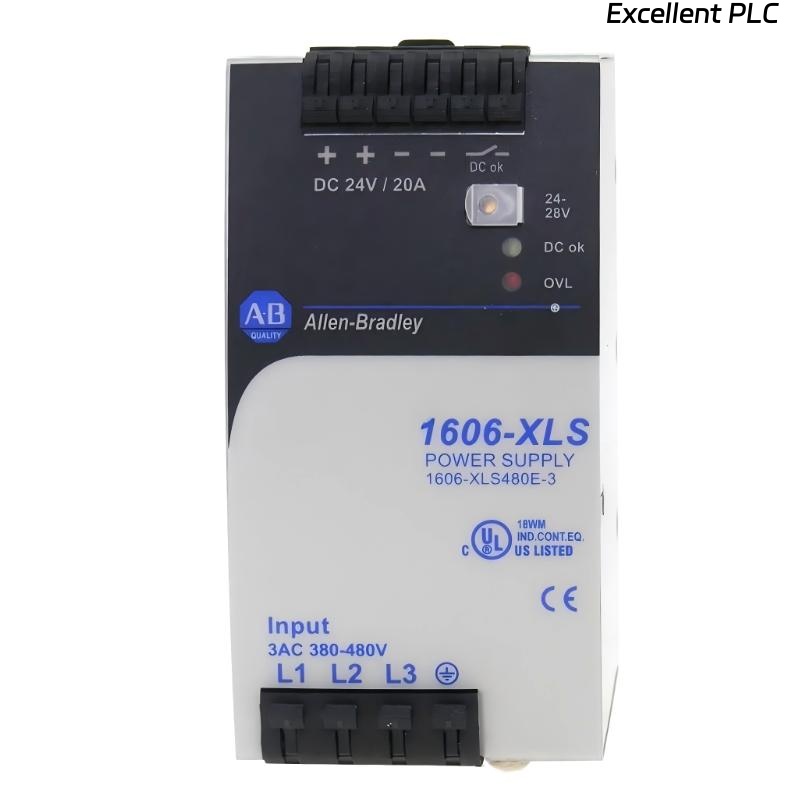

The Allen-Bradley 1606-XLS480E-3/A is a high-performance three-phase switched mode power supply from the 1606-XLS series, designed for industrial systems requiring stable and high-capacity 24–28 V DC power. With a rated output of 480 W, it is ideal for applications with higher power demands and centralized power distribution.
This model operates with a three-phase 480 V AC input, making it especially suitable for heavy industrial environments where three-phase power is standard. It delivers a regulated 24–28 V DC output with excellent stability, even under fluctuating loads. As part of the XLS performance series, it offers high efficiency, strong dynamic response, and reliable long-term operation.
The Series A version ensures consistent industrial design standards and compatibility. Its compact DIN rail mounting design allows easy installation in control cabinets, while the robust construction supports operation in demanding industrial conditions.
Product Specifications
| Parameter | Value |
|---|---|
| Series | 1606-XLS |
| Version | Series A |
| Type | AC/DC Performance Power Supply (3-Phase) |
| Input Voltage | 3-Phase 480 V AC |
| Frequency | 50–60 Hz |
| Output Voltage | 24–28 V DC |
| Rated Output Power | 480 W |
| Output Current | Up to 20 A |
| Efficiency | High efficiency industrial design |
| Protection Features | Overload / Short Circuit / Thermal Protection |
| Mounting Type | DIN Rail |
| Module Type | Standard Module |
| Dimensions | 127 × 65 × 124 mm |
| Weight | 0.87 kg |
Applications
● Heavy industrial automation systems
Provides stable high-power DC supply for PLCs, drives, and large control systems.
● Manufacturing and production lines
Supports multi-load equipment and centralized control panels in high-demand environments.
● Process industries
Ensures continuous operation of instrumentation and distributed control systems (DCS).
● Energy and infrastructure systems
Used in power distribution and industrial control cabinets requiring three-phase input compatibility.
● OEM heavy machinery
Ideal for large-scale machines requiring reliable 24 V DC power from three-phase sources.
Advantages
● Three-phase input design
Optimized for 480 V AC industrial power systems, improving efficiency and load balance.
● High output capacity
Delivers 480 W / 20 A, suitable for demanding industrial applications.
● Stable voltage regulation
Maintains consistent 24–28 V DC output under varying load conditions.
● High efficiency operation
Reduces energy loss and heat generation in high-power applications.
● Comprehensive protection features
Includes overload, short circuit, and thermal protection.
● Compact DIN rail mounting
Allows easy installation in standard industrial control cabinets.
