Product Introduction

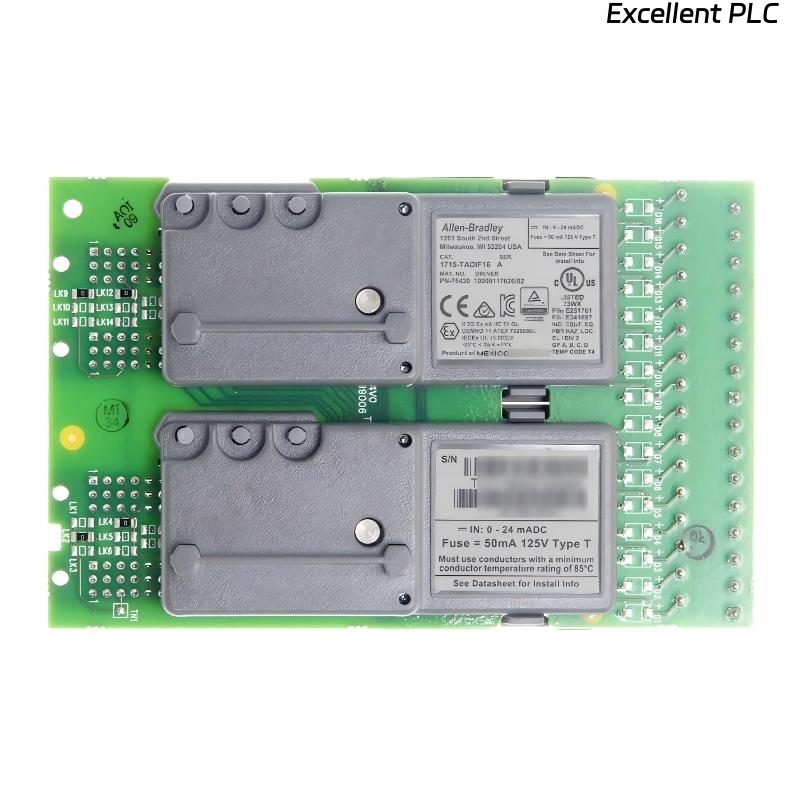

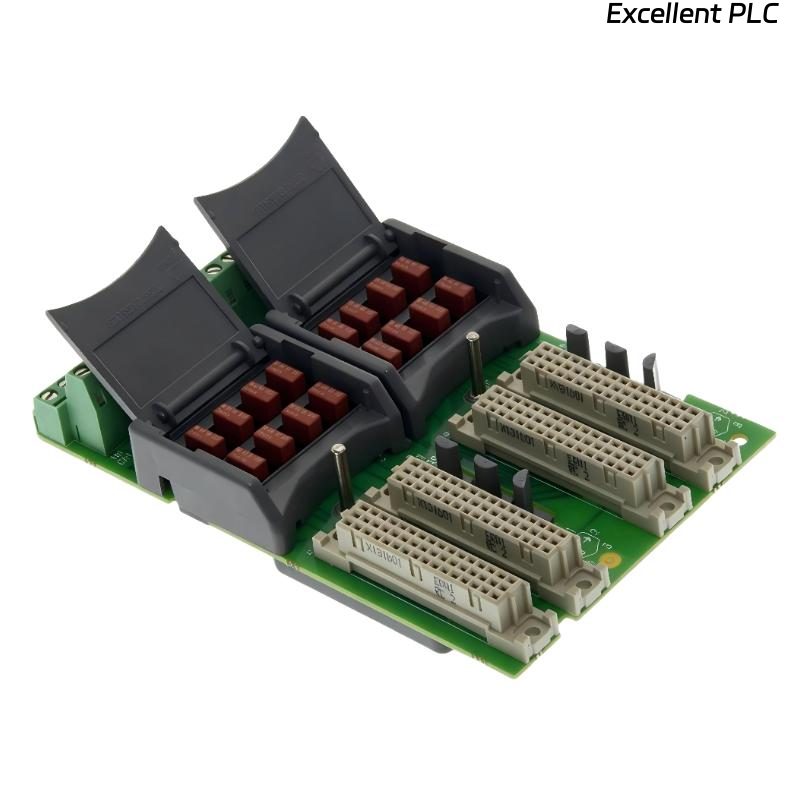

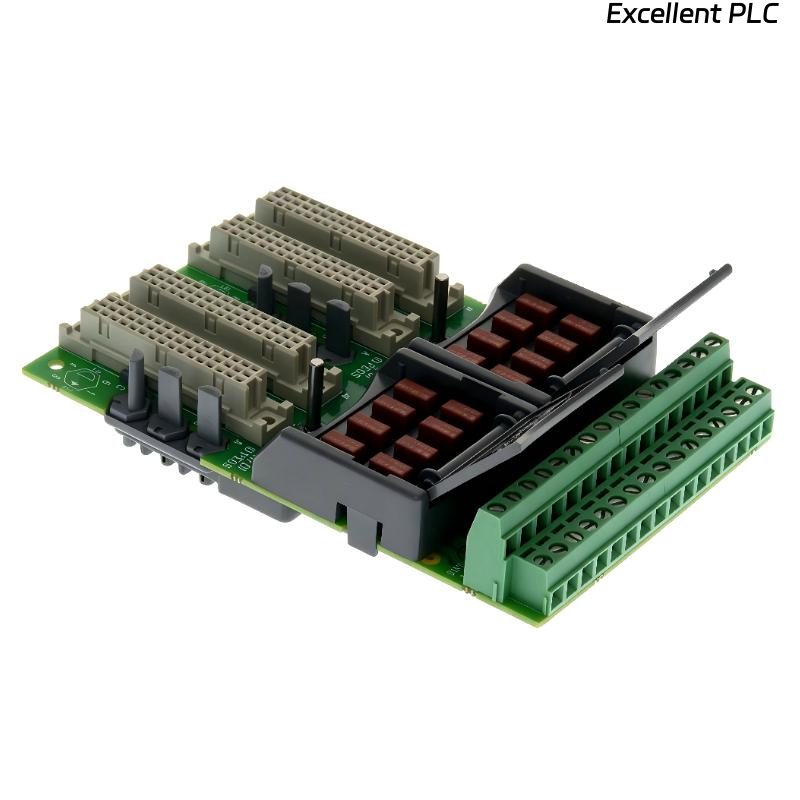

The Allen Bradley 1715-TADIF16 Redundant I/O Termination Assembly is a duplex analog input termination unit designed for use within the Bulletin 1715 Redundant I/O system. It provides a reliable field wiring interface for analog input signals while supporting redundant architectures that enhance system availability and process continuity.
Featuring 16 analog input points and a DIN rail-mounted design, the 1715-TADIF16 simplifies field device connections and maintenance activities. Its duplex configuration supports high-availability control systems by enabling redundant signal paths, making it suitable for critical industrial applications where downtime must be minimized.
Designed for harsh industrial environments, the module operates over an extended temperature range and provides IP20 protection for installation within industrial control cabinets.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1715-TADIF16 |
| Product Type | Redundant I/O Termination Assembly |
| Manufacturer | Allen Bradley |
| Series | Bulletin 1715 Redundant I/O |
| Signal Type | Analog Input |
| Number of Input Points | 16 Points |
| Configuration | Duplex (Redundant) |
| Mounting Type | DIN Rail Mount |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +70°C (-13°F to +158°F) |
| Dimensions | 132 × 84 mm |
| Weight | 0.26 kg |
Applications
• Process Control Systems – Provides redundant analog input termination for critical processes.
• Oil & Gas Facilities – Supports high-availability instrumentation systems.
• Power Generation Plants – Ensures reliable signal connections for monitoring applications.
• Petrochemical Facilities – Enhances system reliability in continuous operations.
• Water & Wastewater Treatment Plants – Interfaces field instruments with control systems.
• Chemical Processing Plants – Supports critical analog measurement signals.
• Industrial Manufacturing – Provides dependable I/O termination for automation systems.
• Safety-Critical Applications – Supports redundant control architectures.
• Distributed Control Systems – Facilitates reliable field wiring connections.
• Infrastructure Automation – Improves operational continuity and maintainability.
Advantages
• 16 Analog Input Channels – Supports multiple field instruments within a compact assembly.
• Duplex Architecture – Enables redundant signal paths for increased system availability.
• DIN Rail Mounting – Simplifies installation and cabinet integration.
• Extended Temperature Range – Operates reliably from -25°C to +70°C.
• IP20 Protection – Suitable for industrial control cabinet installations.
• Improved System Availability – Supports continuous operation in critical applications.
• Simplified Field Wiring – Provides organized and accessible termination points.
• Reduced Downtime – Enhances maintainability and fault tolerance.
• Industrial-Grade Construction – Designed for demanding automation environments.
• Compatible with 1715 Redundant I/O Systems – Integrates seamlessly into redundant architectures.
