Product Introduction

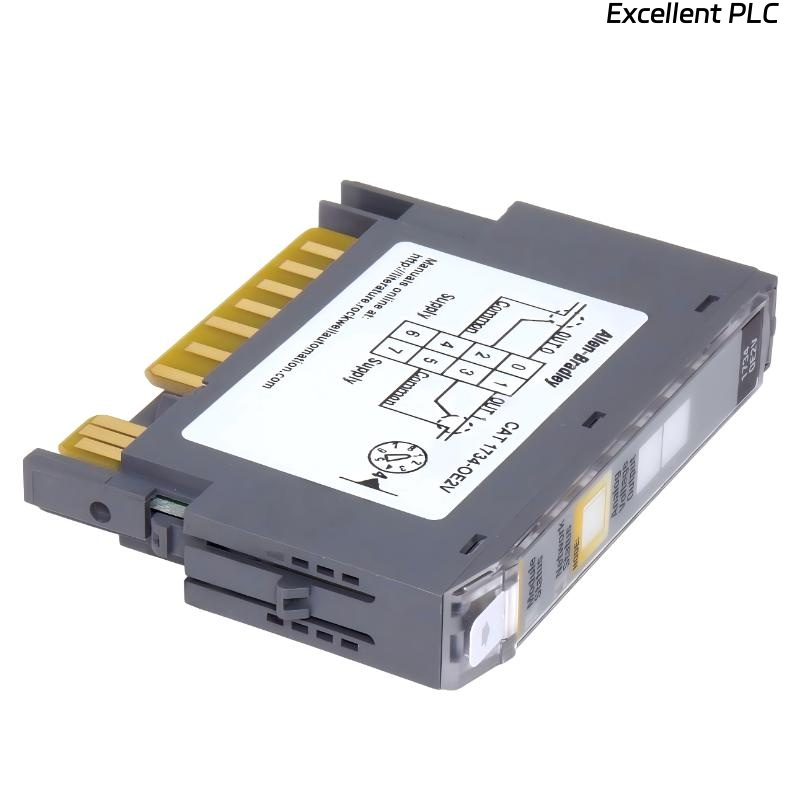

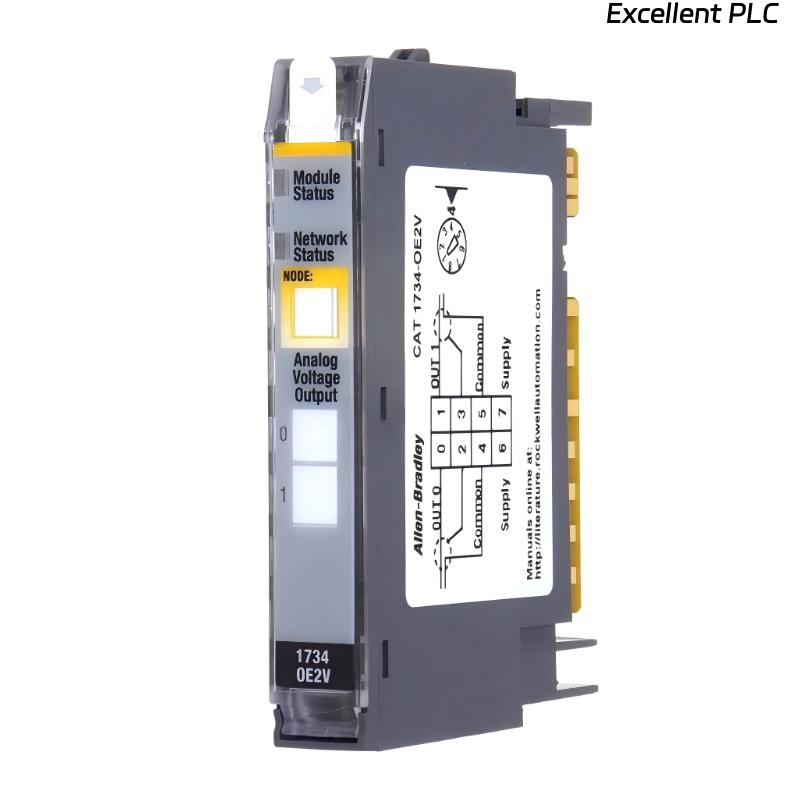

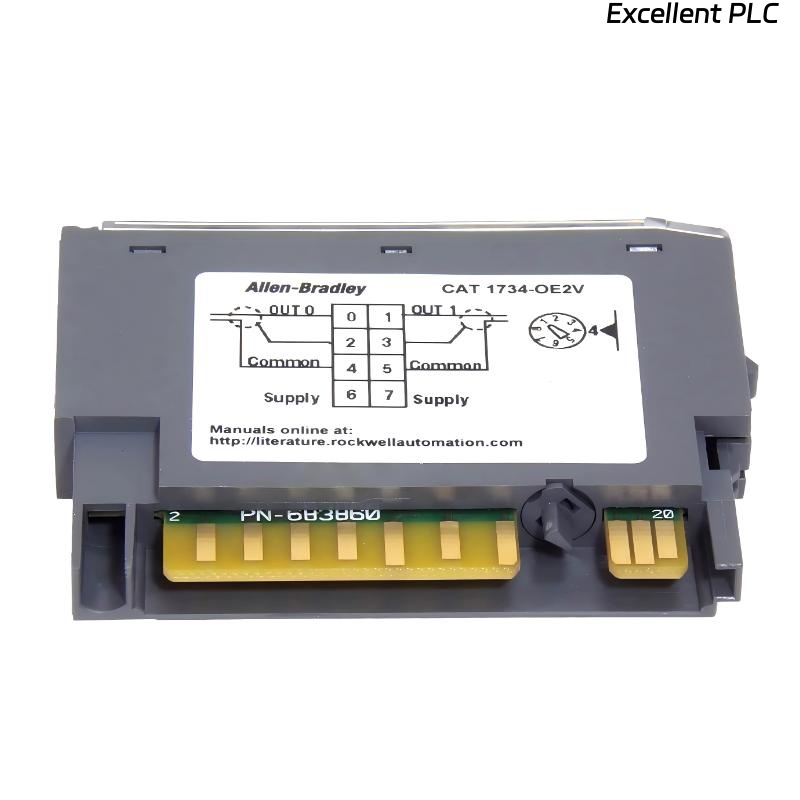

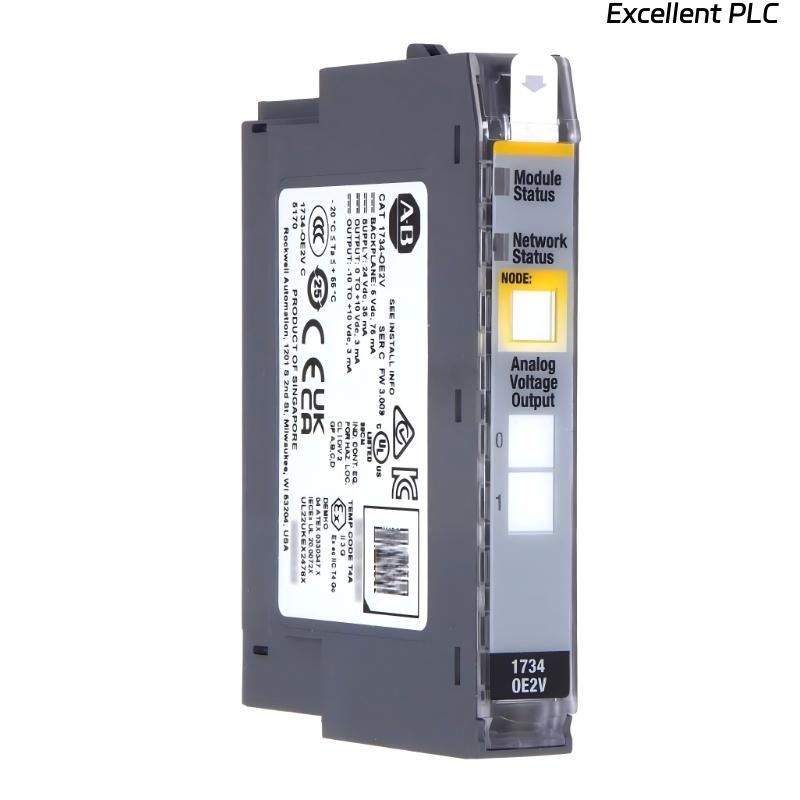

The Allen-Bradley 1734-OE2V Analog Output Module is a compact, high-precision module designed for Point I/O fieldbus systems. It provides two analog voltage outputs for controlling industrial devices, with selectable ranges for versatile applications.
The module supports seamless integration into distributed control networks, enabling precise control of actuators, valves, and other devices requiring voltage inputs. Its small footprint makes it ideal for dense control panel installations while maintaining high reliability in industrial environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Series | Point I/O (Bul. 1734) |
| Component Type | Analog Output Module |
| Number of Analog Outputs | 2 |
| Analog Output Type(s) | Voltage, Single-Ended |
| Analog Output Range(s) | 0–10 V DC, -10–+10 V DC |
| Analog Resolution, Output | 14 bit (signed) |
| Power Supply | 24V DC |
| Operating Temperature, Max | 55 °C |
| Operating Temperature, Min | -20 °C |
| Storage Temperature, Max | 85 °C |
| Storage Temperature, Min | -40 °C |
| Relative Humidity, Max | 95 %RH |
| Dimensions | 56 × 12 × 75.5 mm |
| Weight | 0.036 kg |
Applications
• Industrial Automation: Provides precise analog voltage outputs for controlling process equipment.
• Actuator and Valve Control: Drives voltage-operated actuators and proportional devices.
• Fieldbus I/O Integration: Works seamlessly with Point I/O networks for distributed control.
• Process Monitoring: Enables accurate signal output for feedback and measurement loops.
• Diagnostics Support: Allows monitoring of output status for troubleshooting and maintenance.
Advantages
• High Accuracy: 14-bit resolution ensures precise voltage control.
• Compact Design: Small footprint ideal for tight panel spaces.
• Reliable Operation: Industrial-grade components maintain stability under varying conditions.
• Flexible Output Ranges: Supports both unipolar 0–10 V and bipolar -10 to +10 V outputs.
• Wide Compatibility: Integrates with Point I/O and Allen-Bradley control systems.
• Environmental Resistance: Operates in wide temperature and humidity ranges.
