Product Introduction

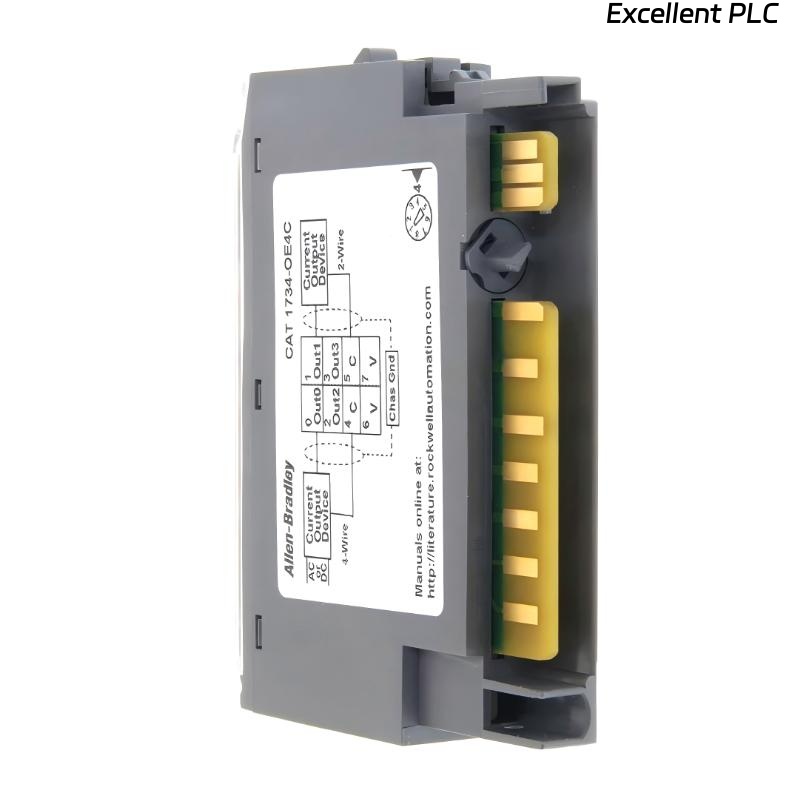

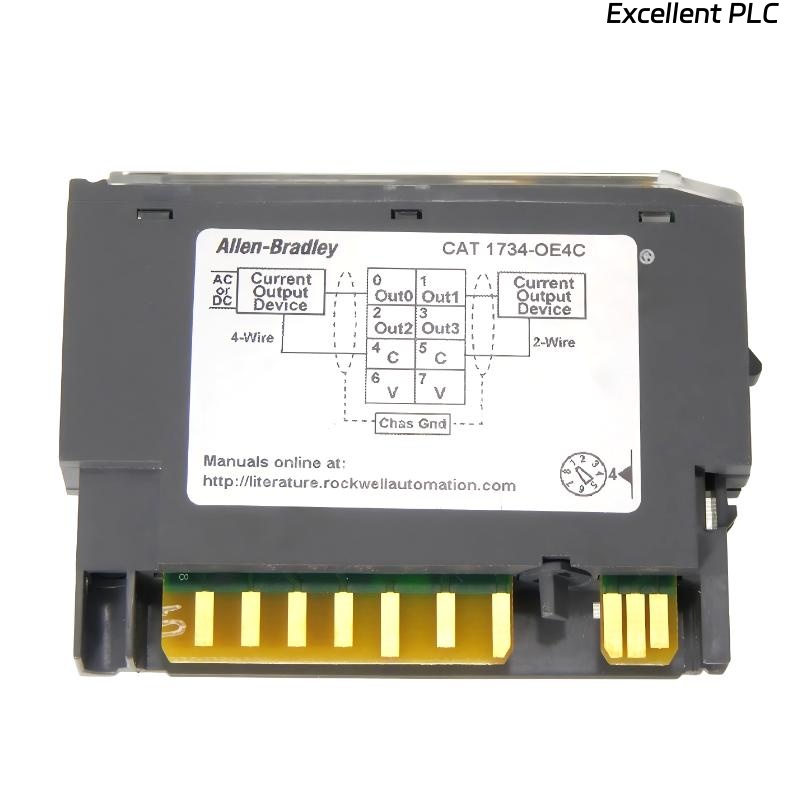

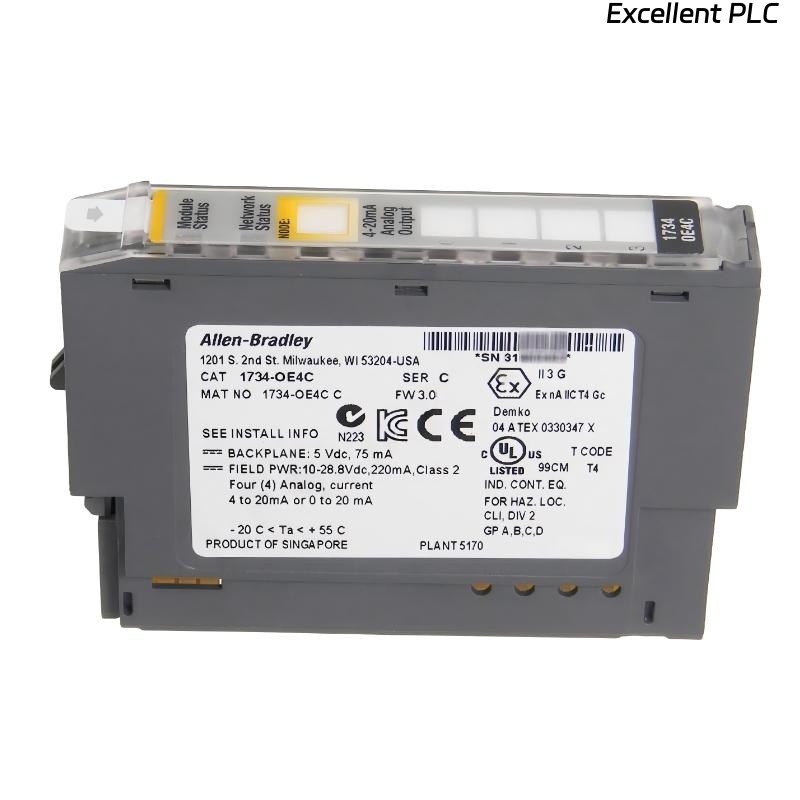

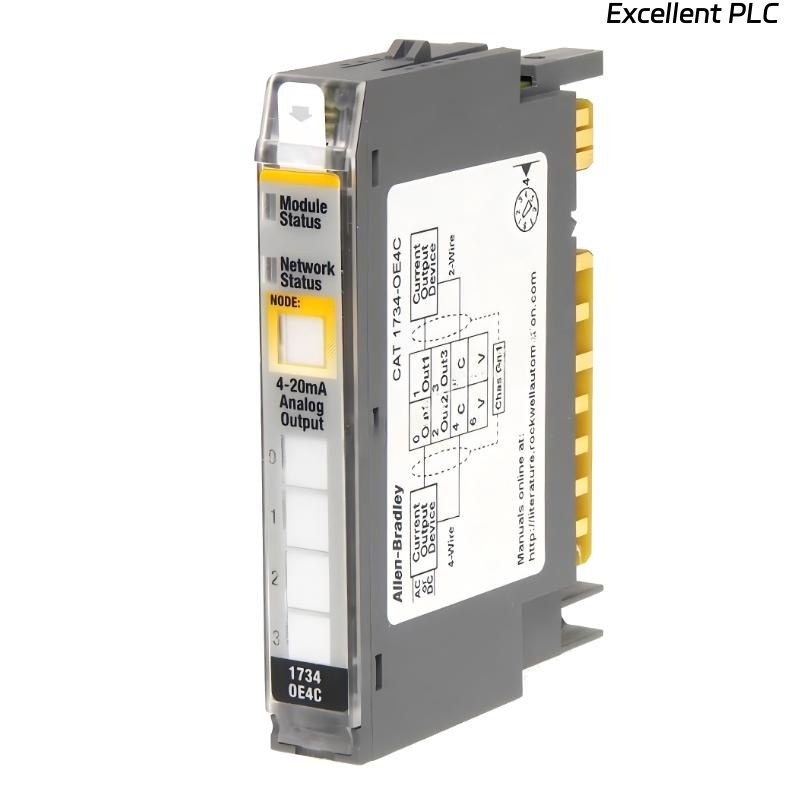

The Allen-Bradley 1734-OE4C Analog Output Module is a high-precision, compact module designed for Point I/O fieldbus systems. It provides four analog current outputs for controlling industrial devices such as actuators, valves, and other equipment requiring current input.
This module allows seamless integration into distributed control networks, delivering reliable and accurate output signals for process control and automation applications. Its small footprint makes it ideal for dense control panel installations.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Series | Point I/O (Bul. 1734) |
| Component Type | Analog Output Module |
| Number of Analog Outputs | 4 |
| Analog Output Type(s) | Current, Single-Ended |
| Analog Output Range(s) | 0–20 mA, 4–20 mA |
| Analog Resolution, Output | 13 bit (signed) |
| Power Supply | 24V DC |
| Operating Temperature, Max | 55 °C |
| Operating Temperature, Min | -20 °C |
| Storage Temperature, Max | 85 °C |
| Storage Temperature, Min | -40 °C |
| Relative Humidity, Max | 95 %RH |
| Dimensions | 56 × 12 × 75.5 mm |
| Weight | 0.037 kg |
Applications
• Industrial Automation: Provides precise current outputs for process control and automation systems.
• Actuator and Valve Control: Drives industrial actuators, proportional valves, and other current-input devices.
• Fieldbus I/O Integration: Supports Point I/O networks for distributed control systems.
• Process Monitoring: Enables accurate current signals for feedback loops and measurement devices.
• Diagnostics Support: Allows monitoring of output channels for maintenance and troubleshooting.
Advantages
• High Accuracy: 13-bit resolution ensures precise and stable current output.
• Compact Design: Small footprint ideal for dense control panels.
• Reliable Operation: Industrial-grade components maintain performance in harsh environments.
• Flexible Output Ranges: Supports both 0–20 mA and 4–20 mA for versatile applications.
• Wide Compatibility: Integrates with Point I/O and Allen-Bradley control systems.
• Environmental Resistance: Operates reliably over wide temperature and humidity ranges.
