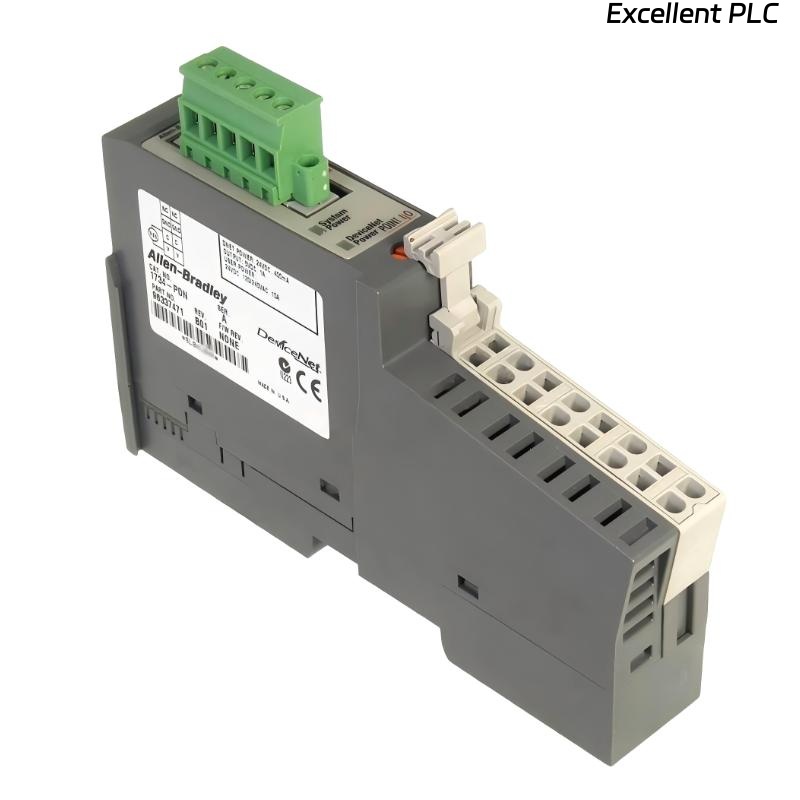

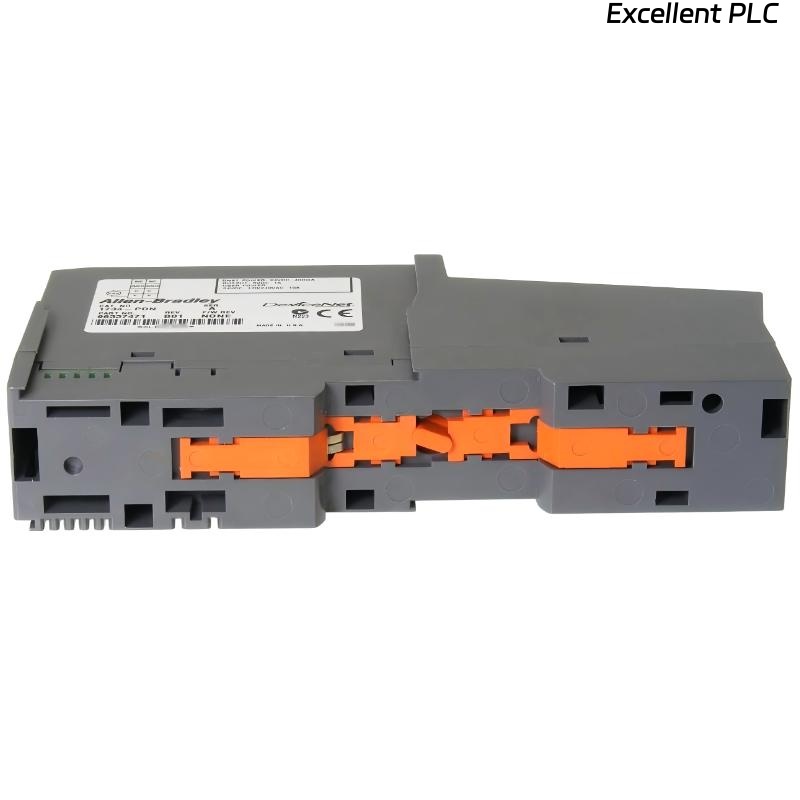

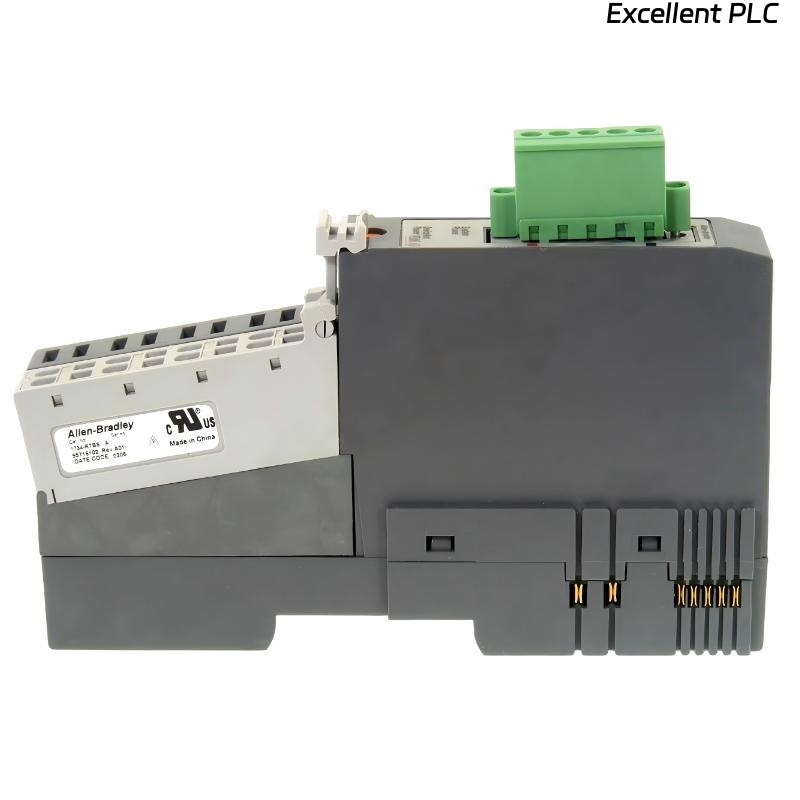

Allen Bradley 1734-PDN Point I/O DeviceNet Interface Module

Product Introduction

The Allen Bradley 1734-PDN Point I/O DeviceNet Interface Module is a communication interface module designed to connect POINT I/O systems to a DeviceNet network. Developed by Rockwell Automation, this module enables seamless data exchange between field I/O devices and higher-level control systems such as PLCs and distributed controllers.

In a typical industrial setup, the 1734-PDN acts as the gateway between the POINT I/O rack and the DeviceNet network, handling both data communication and power distribution for connected modules. It supports efficient real-time data transfer and allows multiple I/O modules to operate as a unified node within the network architecture.

With its compact structure and DIN rail mounting capability, the module is well suited for space-constrained control panels. It simplifies wiring, reduces installation time, and provides a reliable communication backbone for distributed automation systems.

---

Product Specifications

---

Applications

● Used in DeviceNet-based distributed I/O systems for real-time communication between controllers and field devices

● Suitable for manufacturing automation lines, including assembly, packaging, and material handling systems

● Applied in machine control systems where multiple I/O modules need to be integrated into a single network node

● Ideal for process control environments requiring stable and deterministic fieldbus communication

● Common in retrofit projects, enabling legacy DeviceNet systems to integrate with modern POINT I/O modules

● Used in remote I/O installations, reducing wiring complexity and improving system flexibility

---

Advantages

● Provides reliable DeviceNet communication, ensuring stable and deterministic data exchange

● Supports up to 136 I/O points and 17 modules, enabling flexible and scalable system design

● Reduces wiring complexity through network-based architecture, improving installation efficiency

● Ensures consistent performance at multiple baud rates (125–500 Kbit/s), adapting to different network requirements

● Compact and DIN rail mountable, making it suitable for tight control panel spaces

● Enhances system integration capability, allowing seamless connection between field devices and controllers

FAQ

1. What is the primary role of the 1734-PDN module in a system?
   It functions as a communication interface, linking POINT I/O modules to a DeviceNet network and managing data exchange between field devices and the controller.
2. How many I/O modules can be connected to this interface?
   The module supports up to 17 POINT I/O modules, depending on system power and configuration limits.
3. What determines the selectable data rate?
   The data rate (125, 250, or 500 Kbit/s) is typically set based on network length, device count, and required communication speed.
4. Does the module supply power to connected I/O modules?
   It provides backplane communication power, but additional field power supplies may be required depending on system load.
5. Can it be used in high-speed industrial applications?
   Yes, especially at 500 Kbit/s, it supports fast and reliable communication suitable for time-sensitive operations.
6. Is DeviceNet still suitable for modern systems?
   While newer protocols exist, DeviceNet remains widely used in legacy systems and many stable industrial environments.
7. What happens if the network communication is interrupted?
   The module will stop data exchange, and system behavior will depend on the controller’s fault handling configuration.
8. Does it require special configuration software?
   Yes, configuration is typically done using Rockwell Automation tools such as RSNetWorx for DeviceNet.
9. How does it improve system wiring?
   By using a network-based structure, it significantly reduces point-to-point wiring between devices and controllers.
10. What is the benefit of supporting multiple baud rates?
    It allows the module to adapt to different network sizes and layouts, balancing speed and communication stability.
