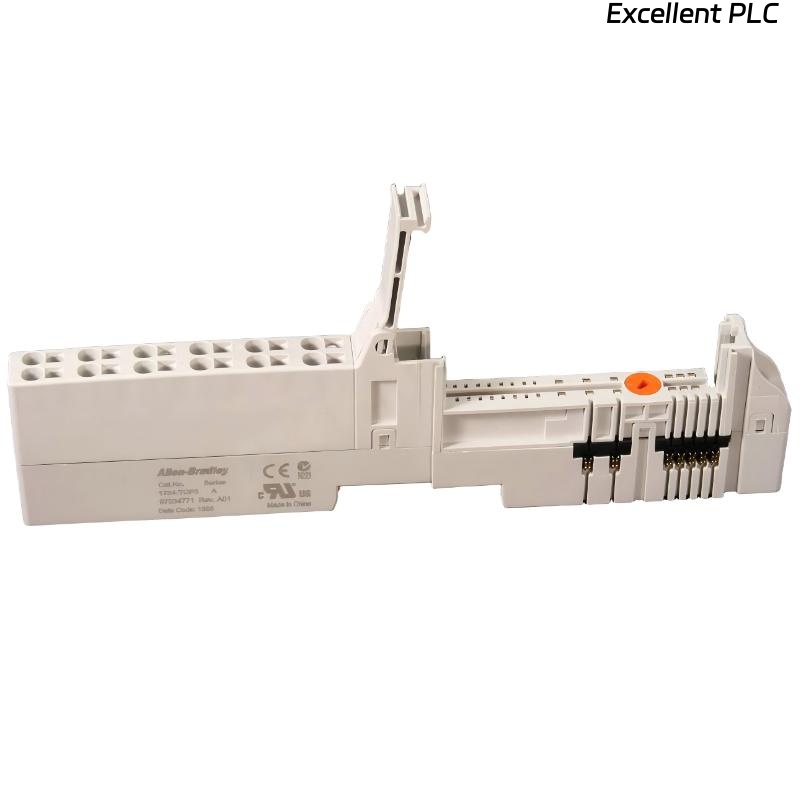

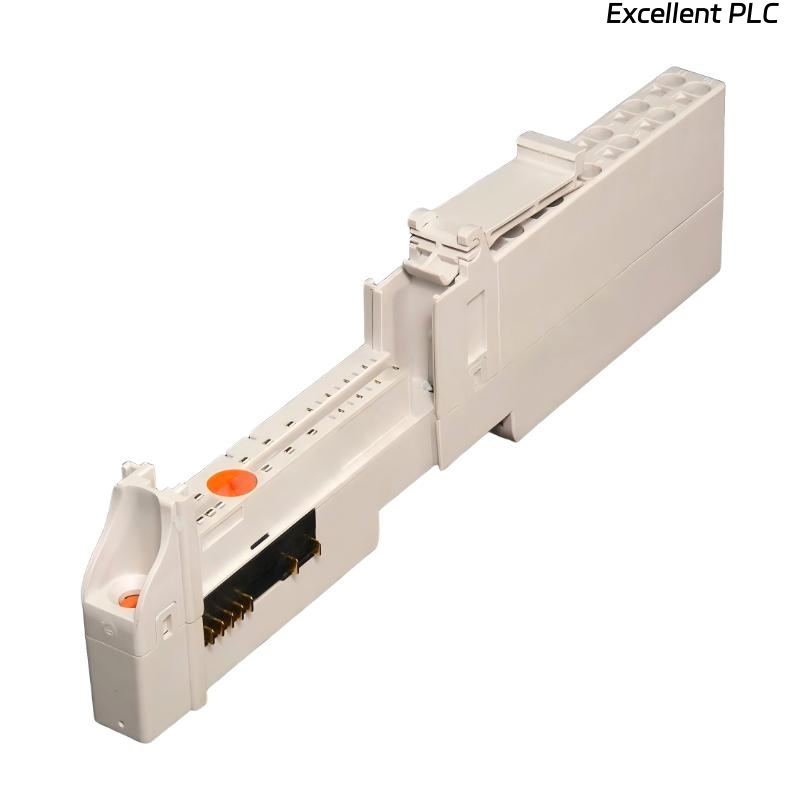

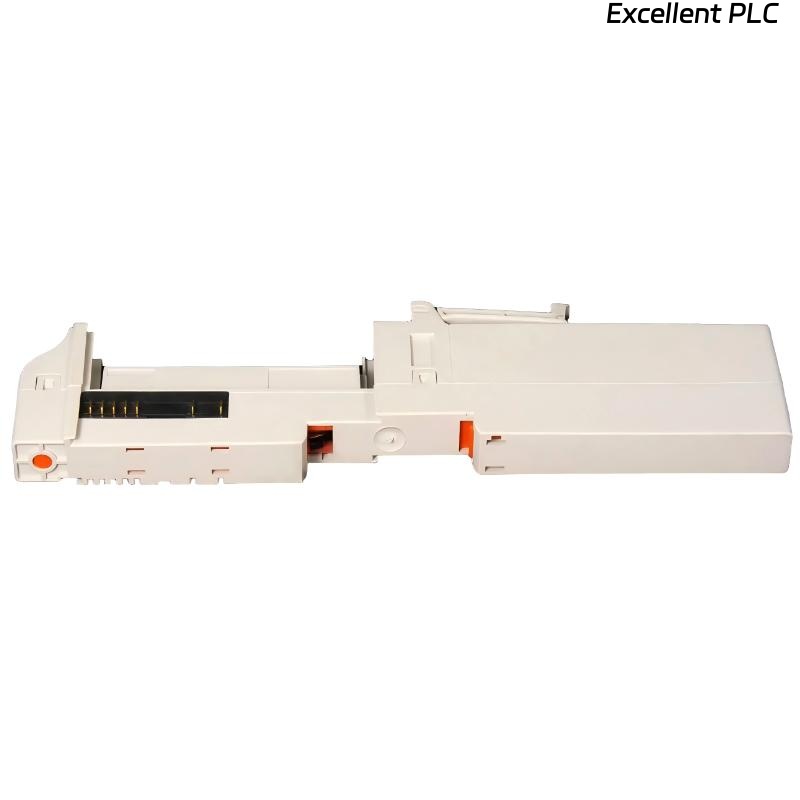

Allen Bradley 1734-TOP3 Point I/O Terminal Base
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1734-TOP3 Point I/O Terminal Base is a one-piece terminal base designed for use within the POINT I/O system from Rockwell Automation. It serves as the physical and electrical interface between field wiring and I/O modules, providing a secure and organized connection point for signal and power distribution.
This terminal base is specifically engineered with a screw clamp connection mechanism, ensuring reliable wiring in industrial environments where vibration and electrical stability are critical. Its one-piece construction simplifies installation, reduces assembly time, and minimizes the risk of wiring errors compared to multi-part terminal designs.
The 1734-TOP3 is commonly used in systems handling both AC and DC signals, offering flexibility across a wide range of applications. Its slim profile and DIN rail mounting capability make it ideal for compact control panels where space optimization is essential.
Product Specifications
| Parameter | Value |
|---|---|
| Module Type | One-piece Terminal Base |
| Number of Terminations | 12 Points |
| Connection Type | Screw Clamp |
| Rated Current | 8 A |
| Voltage Range | 120–240 VAC / 24 VDC |
| Compatibility | POINT I/O Modules |
| Wiring Type | Field Wiring Interface |
| Mounting Type | DIN Rail Mounted |
| Design Structure | One-piece |
| Insulation | Industrial-grade insulation |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions | 168 x 12 x 49 mm |
| Weight | 0.079 kg |
Applications
● Used as a wiring interface base for POINT I/O modules in distributed control systems
● Suitable for industrial control panels requiring secure and stable screw clamp connections
● Applied in manufacturing automation systems, including assembly lines and material handling
● Ideal for mixed signal environments, supporting both AC and DC wiring configurations
● Common in machine control systems where compact and reliable terminal solutions are needed
● Used in process automation applications requiring consistent electrical connections under vibration conditions
Advantages
● One-piece design provides simplified installation and reduces assembly errors
● Screw clamp terminals ensure strong and vibration-resistant connections
● Supports both AC and DC voltage ranges, increasing application flexibility
● Compact structure helps optimize panel space in dense installations
● High current capacity of 8 A, suitable for a wide range of industrial signals
● Fully compatible with POINT I/O modules, ensuring seamless integration
FAQ
- What is the primary function of the 1734-TOP3 terminal base?
It provides a secure interface between field wiring and POINT I/O modules, ensuring reliable electrical connections and signal transmission. - How does the screw clamp connection improve reliability?
Screw clamp terminals create firm mechanical contact, reducing the risk of loose connections caused by vibration or thermal expansion. - Can this terminal base handle both AC and DC signals?
Yes, it is designed to support both 120–240 VAC and 24 VDC applications, making it suitable for mixed environments. - Is this module compatible with all POINT I/O modules?
It is compatible with many POINT I/O modules, but compatibility should always be verified based on the specific module type. - What is the advantage of a one-piece design?
It reduces installation complexity, eliminates assembly steps, and minimizes the risk of incorrect wiring. - Does it require special tools for installation?
Standard screwdrivers are sufficient for wiring, making installation straightforward for technicians. - How does it perform in high-vibration environments?
The screw clamp design maintains stable connections even in environments with continuous mechanical vibration. - Is it suitable for high-current applications?
With an 8 A rating, it can handle moderate current loads typical in industrial control systems. - Can it be easily replaced without disturbing other modules?
Yes, its modular design allows replacement with minimal impact on adjacent components. - What is the benefit of using terminal bases in modular I/O systems?
They provide organized wiring, improve maintenance efficiency, and ensure consistent electrical connectivity across the system.
Related Models
| Model | Description | Connection Type | Points |
|---|---|---|---|
| 1734-TOP | Terminal Base | Screw Clamp | Standard |
| 1734-TOP1 | Terminal Base | Screw Clamp | 8 Points |
| 1734-TOP2 | Terminal Base | Screw Clamp | 16 Points |
| 1734-TB | Terminal Base | Cage Clamp | Standard |
| 1734-TB3 | Terminal Base | Cage Clamp | 12 Points |
| 1734-TB6 | Terminal Base | Cage Clamp | Extended |
Popular Models
| Model | Description | Voltage | Key Feature |
|---|---|---|---|
| 1734-AENTR | Ethernet Adapter | 24 VDC | Dual Port Communication |
| 1734-IB8 | Digital Input Module | 24 VDC | 8 Inputs |
| 1734-OB8 | Digital Output Module | 24 VDC | 8 Outputs |
| 1734-IE2C | Analog Input Module | 24 VDC | High Accuracy |
| 1734-OE2C | Analog Output Module | 24 VDC | Precision Control |
| 1734-EP24DC | Expansion Power Supply | 24 VDC | Power Distribution |
