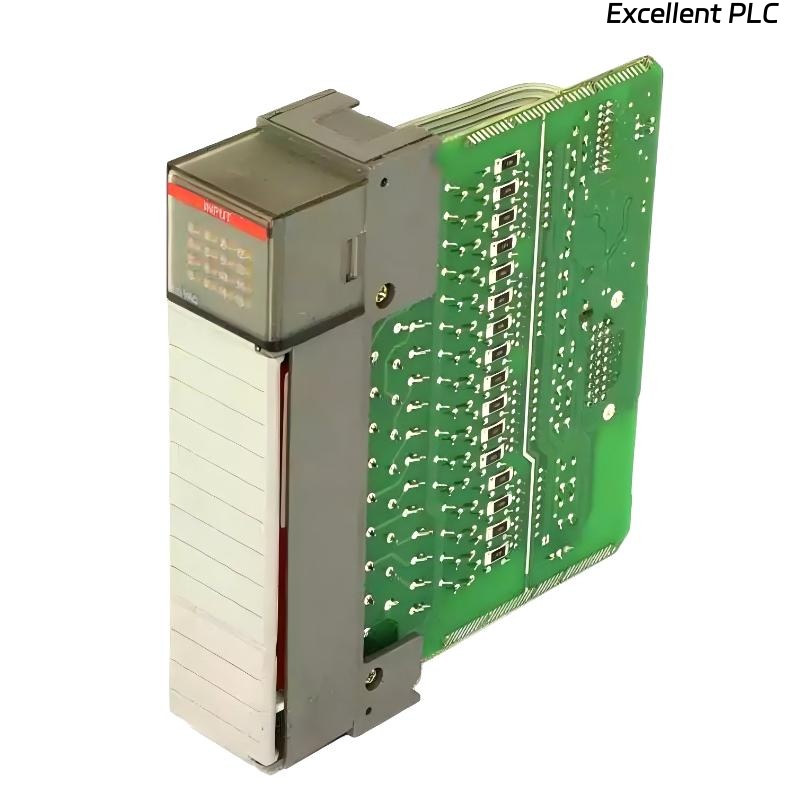

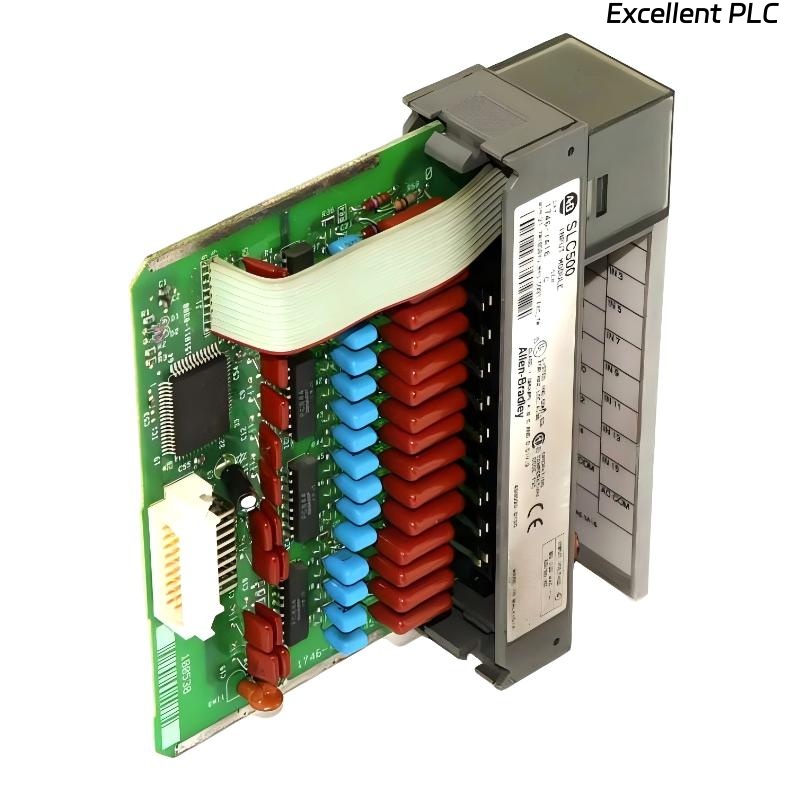

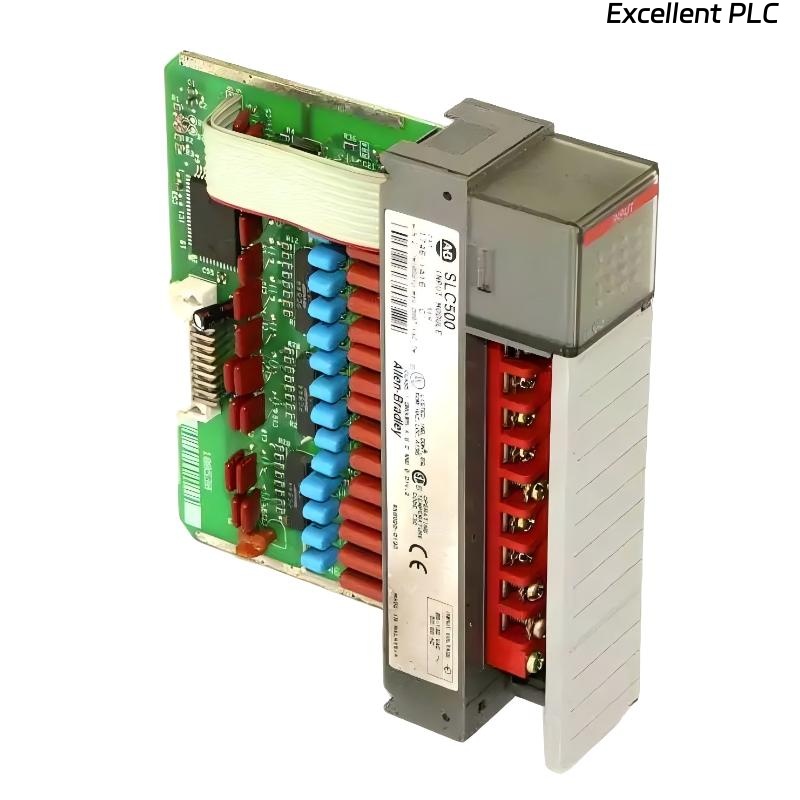

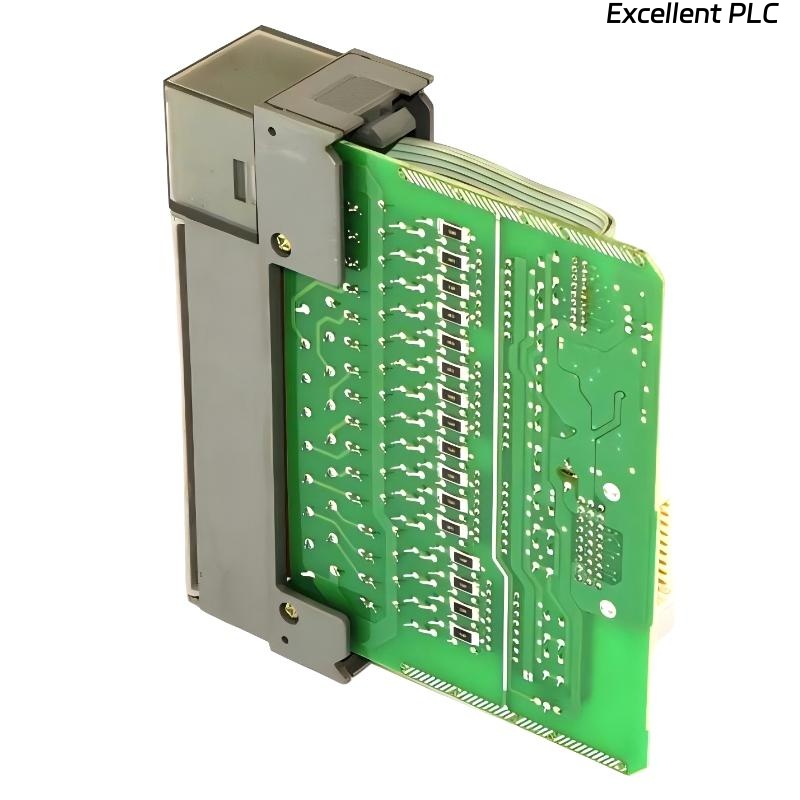

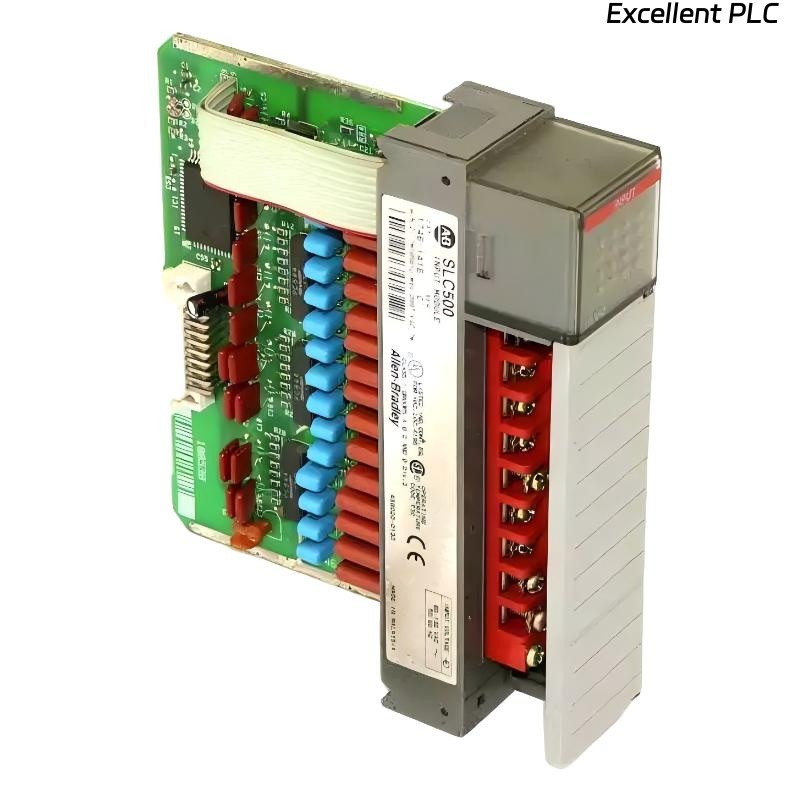

Allen Bradley 1746-1A16 SLC 500 AC Digital Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1746-IA16 Digital Input Module is an AC digital input module designed for the SLC 500 PLC platform. It provides 16 discrete AC input channels, enabling reliable monitoring of field-level signals operating in the 85–132V AC range.
This module is engineered to interface directly with industrial AC devices such as switches, sensors, and control contacts. Its open-style chassis construction allows seamless installation into SLC 500 racks while maintaining consistent electrical connectivity and dependable signal processing under demanding operating conditions.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Digital Input Module |
| Product Series | SLC 500 (Bulletin 1746 / 1747) |
| Component Type | PLC & I/O |
| Model Number | 1746-IA16 |
| Signal Type | Digital |
| Number of Digital Inputs | 16 |
| Digital Input Type | AC |
| Rated Input Voltage | 120V AC |
| Digital Input Range | 85–132V AC |
| Operating Temperature (Min) | 0 °C |
| Operating Temperature (Max) | 60 °C |
| Storage Temperature (Min) | -40 °C |
| Storage Temperature (Max) | 85 °C |
| Maximum Relative Humidity | 95% RH (non-condensing) |
| Chassis Style | Open Style Chassis |
| Mounting Method | SLC 500 backplane |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.181 kg |
Applications
• AC signal monitoring for pushbuttons, selector switches, and limit switches
• Industrial control panels using SLC 500 PLC systems
• Machine automation systems requiring high-voltage AC input detection
• Process control environments with standardized 120V AC field signals
• Discrete status feedback for interlocks and safety-related logic
• Factory automation systems requiring stable and noise-tolerant AC inputs
Advantages
• Wide AC input range, supporting standard industrial control voltages
• 16-channel input density, reducing overall rack space requirements
• Robust AC input circuitry, improving noise immunity in harsh environments
• Direct SLC 500 compatibility, ensuring simple system integration
• Open-style chassis design, enabling secure mechanical and electrical installation
• Industrial-grade thermal tolerance, supporting reliable operation across temperature variations
FAQ
-
What type of signals does the 1746-IA16 detect?
It detects discrete AC voltage signals within the specified input range. -
Why is an AC input module required instead of a DC input module?
AC input modules are specifically designed to handle higher-voltage alternating current signals safely and reliably. -
How are input states processed by the PLC?
Input signals are converted into logic-level states and communicated to the SLC 500 processor via the backplane. -
How does the module handle electrical noise from AC sources?
Internal filtering and isolation help maintain stable signal detection in noisy environments. -
Can all 16 input channels operate simultaneously?
Yes, all input channels can be monitored concurrently without performance degradation. -
What role does isolation play in this module?
Isolation protects the PLC backplane and processor from high-voltage field signals. -
How does the module ensure accurate input state recognition?
Defined voltage thresholds and internal conditioning circuits ensure consistent detection. -
Is the module suitable for continuous-duty industrial applications?
Yes, it is designed for continuous monitoring in industrial automation systems. -
How are input signals physically connected to the module?
Field wiring connects to the module’s terminal interface integrated with the chassis. -
Why is this module commonly used in control panels?
Its ability to directly interface with standard 120V AC devices simplifies panel design.
Related Models
| Model | Description |
|---|---|
| 1746-IA8 | AC Digital Input Module, 8 Channels |
| 1746-IB16 | DC Digital Input Module |
| 1746-IV16 | AC/DC Digital Input Module |
| 1746-OB16 | DC Digital Output Module |
| 1746-OV8 | DC Digital Output Module |
| 1746-NI8 | Analog Input Module |
Popular Models
| Model | Description |
|---|---|
| 1746-IA16 | AC Digital Input Module |
| 1746-IB16 | DC Digital Input Module |
| 1746-OB16 | DC Digital Output Module |
| 1746-NO4I | Analog Output Module |
| 1746-A7 | SLC 500 Chassis |
| 1747-L553 | SLC 500 Processor |
