Allen Bradley 1746-IM8/A SLC 500 AC Digital Input Module

Product Introduction

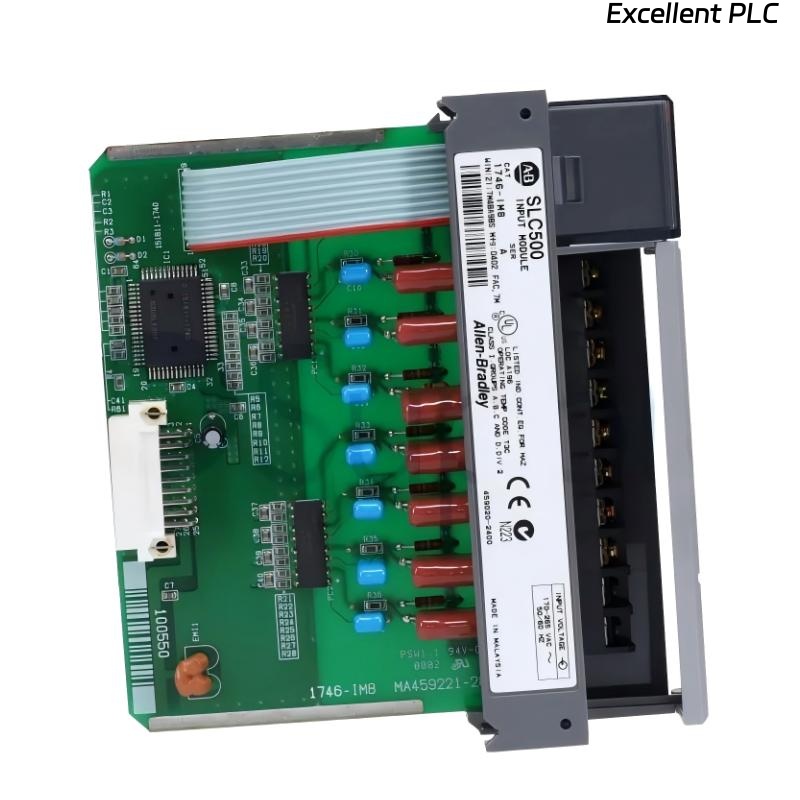

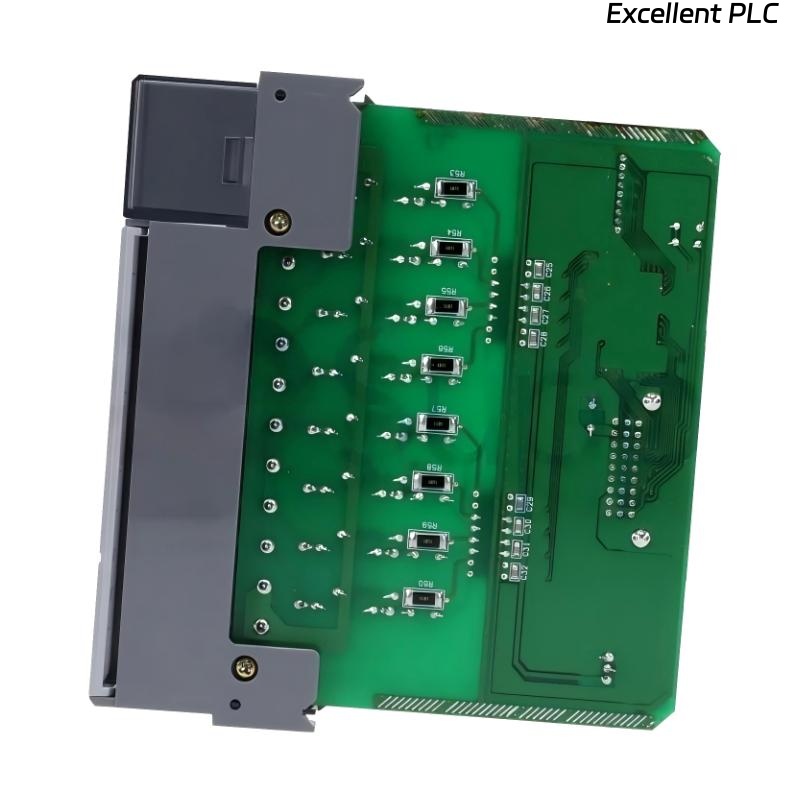

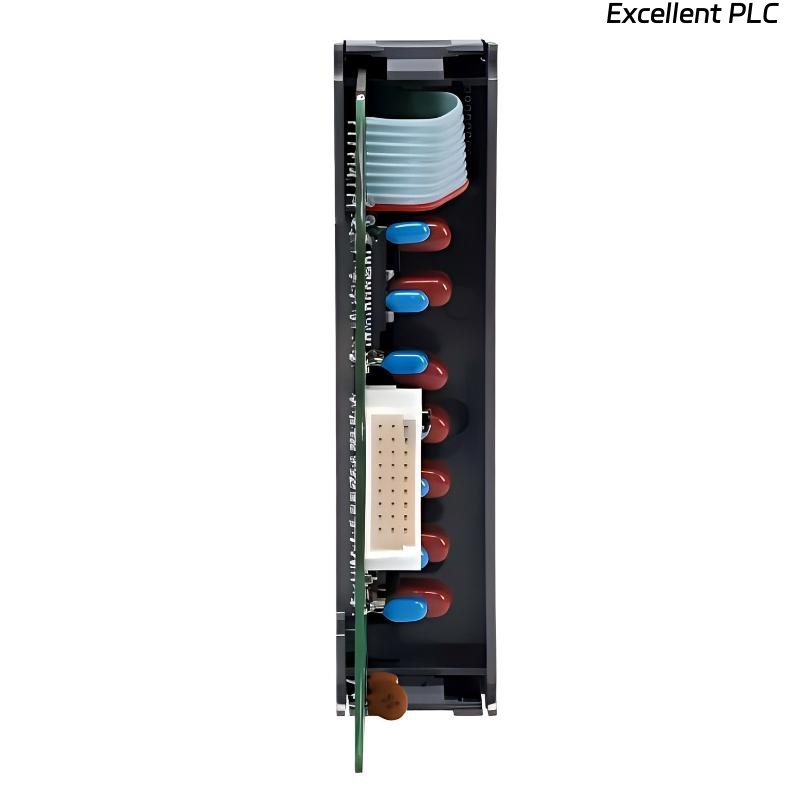

The Allen-Bradley 1746-IM8/A is an AC digital input module designed for the SLC 500 programmable controller platform, specifically intended for higher voltage input applications. As a Series A module, it provides stable and reliable acquisition of 200–250V AC field signals, making it suitable for industrial environments where higher voltage control systems are used.

This module features 8 input channels, allowing it to monitor multiple field devices simultaneously. It is commonly used to interface with high-voltage AC devices such as industrial switches, relays, and contactors. The module converts these field signals into logic-level inputs that can be processed by the PLC for control and monitoring tasks.

Engineered for seamless integration into SLC 500 chassis systems, the 1746-IM8/A maintains compatibility with existing infrastructure while delivering consistent performance. Its design emphasizes electrical robustness, ensuring reliable operation even in environments with voltage fluctuations and electrical noise.

Product Specifications

Applications

● High-Voltage Control Panels
Used for monitoring 200–250V AC signals from industrial control devices such as selector switches and relay contacts.

● Heavy Industrial Equipment
Suitable for applications involving high-voltage machinery where standard 120V modules are not applicable.

● Process Automation Systems
Applied in industries such as power generation, metallurgy, and chemical processing where higher AC voltage signals are common.

● Motor Control Systems
Detects status signals from motor starters, contactors, and protection devices operating at higher AC voltage levels.

● System Upgrades and Expansion
Provides a direct solution for integrating high-voltage input signals into existing SLC 500 systems without additional conversion hardware.

Advantages

● Designed for 200–250V AC Inputs
Optimized for higher voltage ranges, eliminating the need for external step-down interfaces in many applications.

● Strong Electrical Isolation
Ensures protection between field wiring and PLC backplane, improving overall system safety.

● Noise-Resistant Operation
Internal filtering minimizes false triggering caused by electrical disturbances.

● Compact Rack-Mounted Design
Integrates directly into SLC 500 chassis, simplifying installation and maintenance.

● Consistent Signal Processing
Provides stable input recognition even under fluctuating voltage conditions.

● Reliable Industrial Performance
Proven durability in demanding environments with continuous operation requirements.
