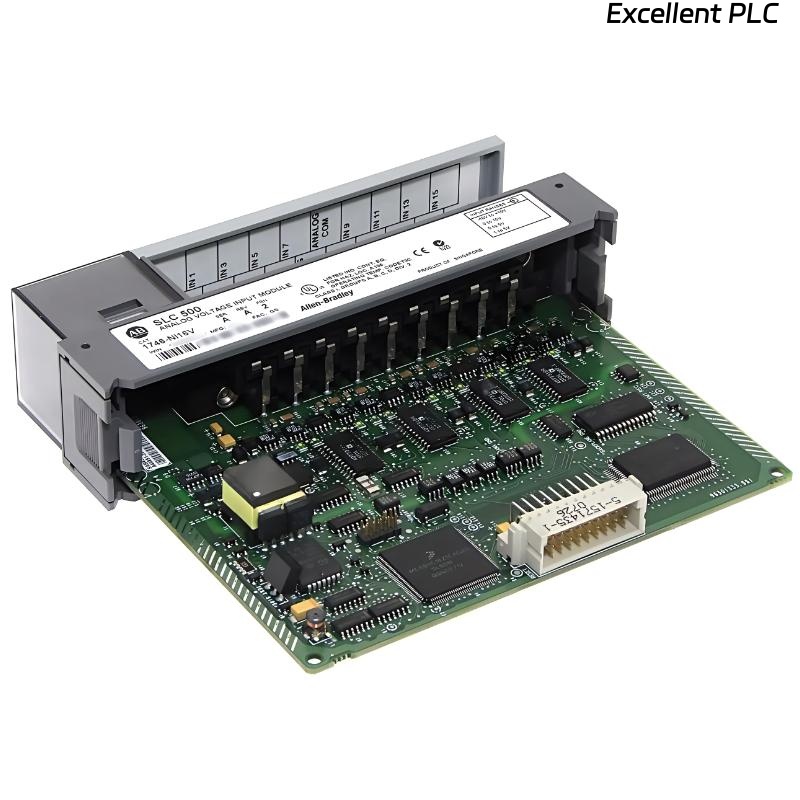

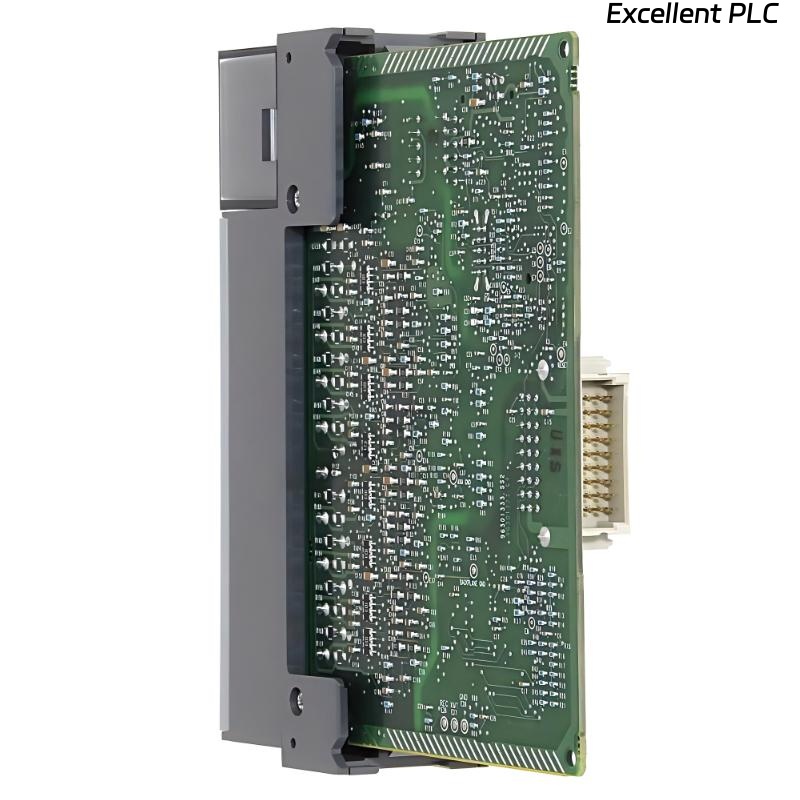

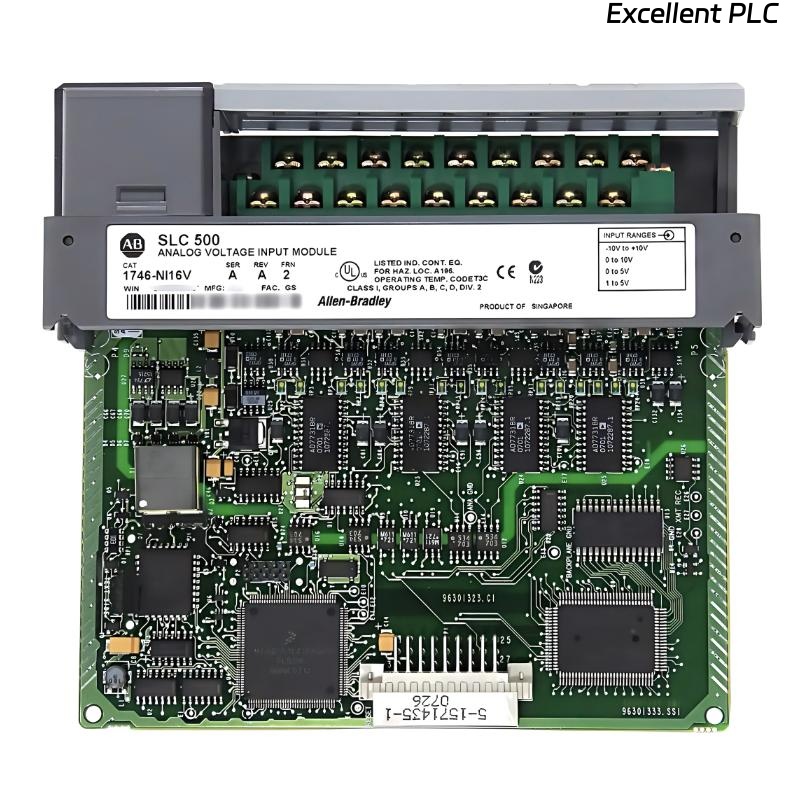

Allen Bradley 1746-NI16V SLC 500 Analog Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1746-NI16V is a high-density analog input module designed for the SLC 500 programmable controller system. It provides precise acquisition of voltage-based analog signals and converts them into digital data for processing within the PLC, making it suitable for applications requiring accurate measurement and control.
This module supports 16 single-ended analog input channels, allowing efficient integration of multiple field signals within a compact footprint. It is specifically designed for ±10V DC input ranges, making it ideal for interfacing with transmitters, sensors, and instrumentation devices that output voltage signals.
A key feature of the 1746-NI16V is its software configurability, enabling flexible channel configuration and scaling directly through the PLC program. This reduces the need for external signal conditioning and enhances system adaptability. The module is widely used in industrial automation systems where high channel density and reliable analog performance are required.
Product Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Allen-Bradley |
| Series | SLC 500 |
| Module Type | Analog Input Module |
| Catalog Number | 1746-NI16V |
| Module Classification | High-Density Analog Input |
| Number of Channels | 16 Channels (Single-ended) |
| Input Type | Voltage |
| Input Range | ±10V DC |
| Resolution | 16-bit |
| Input Impedance | High impedance (typical >1 MΩ) |
| Conversion Method | Sigma-Delta Conversion |
| Update Time | Approx. 8–10 ms (all channels) |
| Accuracy | ±0.3% of full scale (typical) |
| Non-linearity | ±0.01% |
| Backplane Current Consumption | Approx. 0.135 A |
| Isolation | No channel-to-channel isolation |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Installation | SLC 500 Chassis |
| Wiring Category | Category 1 |
| Configuration | Software configurable |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.38 kg |
Applications
● Process Variable Monitoring
Used for acquiring voltage signals from sensors such as pressure, flow, temperature, and level transmitters in industrial processes.
● Data Acquisition Systems
Enables high-density signal collection in systems where multiple analog inputs must be monitored simultaneously.
● Energy and Power Systems
Suitable for voltage monitoring in power distribution and energy management applications.
● Test and Measurement Equipment
Used in industrial testing environments where precise voltage signal acquisition is required.
● Machine Automation Systems
Provides real-time analog feedback for control loops, improving system accuracy and responsiveness.
Advantages
● High Channel Density
Supports 16 analog inputs in a single module, reducing rack space requirements and system cost.
● Wide Voltage Input Range
Handles ±10V DC signals, making it compatible with a wide range of industrial sensors and transmitters.
● High Measurement Accuracy
Offers precise signal conversion with stable performance suitable for critical monitoring applications.
● Software Configurable Operation
Allows flexible configuration and scaling through programming, eliminating the need for hardware adjustments.
● Efficient Signal Processing
Provides fast update times for multiple channels, ensuring timely data acquisition.
● Seamless System Integration
Fully compatible with SLC 500 systems, enabling easy installation and expansion.
FAQ
- What type of signals can the 1746-NI16V module process?
The module is designed to process voltage signals within the ±10V DC range. It is not suitable for direct current loop inputs such as 4–20 mA without external signal conversion. - How are the channels configured in this module?
All channels are software configurable through the PLC program, allowing users to define scaling, filtering, and data handling without physical adjustments. - Does the module provide channel-to-channel isolation?
No, the channels are not individually isolated. All inputs share a common reference, so proper grounding and wiring practices are important to avoid interference. - What is the significance of 16-bit resolution?
The 16-bit resolution provides a high level of precision, allowing the module to detect small changes in input voltage and improve measurement accuracy. - Can this module be used for current input signals?
Not directly. Current signals such as 4–20 mA require external resistors or signal conditioners to convert them into voltage signals within the ±10V range. - How does the module handle noise in analog signals?
It uses internal filtering and a sigma-delta conversion method to reduce noise and improve signal stability, especially in industrial environments. - What is the update time and how does it affect performance?
The module updates all 16 channels in approximately 8–10 ms, which is suitable for most industrial monitoring and control applications. - Is calibration required for accurate operation?
The module is factory calibrated, but periodic system-level calibration may be performed if high-precision measurements are required. - What wiring practices should be followed for best performance?
Shielded cables, proper grounding, and separation from high-voltage wiring are recommended to minimize noise and ensure accurate readings. - Can the module be used in control loop applications?
Yes, it is suitable for control loops where analog feedback is required, provided the system response time matches the module update rate.
Related Models
| Model | Description |
|---|---|
| 1746-NI8 | 8-Channel Analog Input Module |
| 1746-NI4 | 4-Channel Analog Input Module |
| 1746-NIO4I | 2 In / 2 Out Analog Combo Module |
| 1746-NO4I | 4-Channel Analog Output Module |
| 1746-NO8I | 8-Channel Analog Output Module |
| 1746-NT4 | Thermocouple Input Module |
Popular Models
| Model | Description |
|---|---|
| 1747-L541 | SLC 5/04 Processor |
| 1747-L552 | SLC 5/05 Ethernet Processor |
| 1746-IA16 | 16-Channel AC Input Module |
| 1746-IB16 | 16-Channel DC Input Module |
| 1746-OW16 | 16-Channel Relay Output Module |
| 1746-P2 | Power Supply Module |
