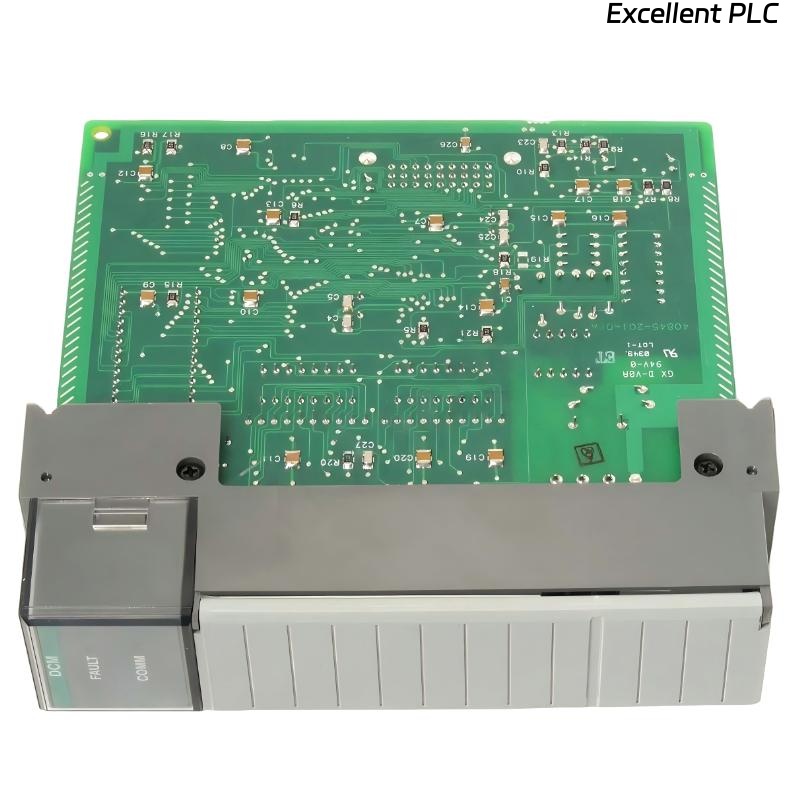

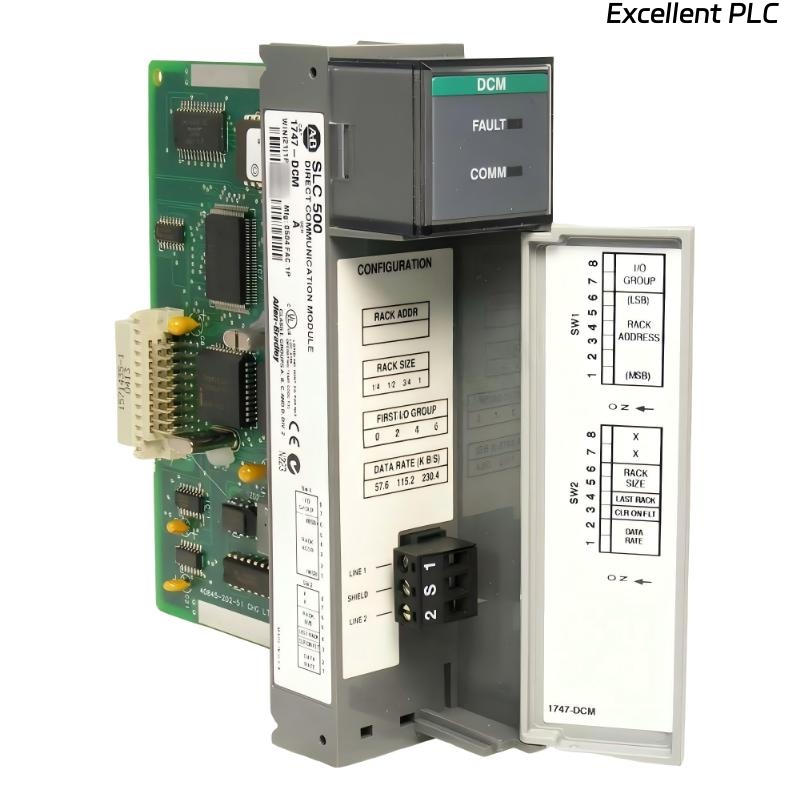

Allen Bradley 1747-DCM SLC 500 Direct Communication Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1747-DCM Direct Communication Module is a specialized communication interface designed for SLC 500 control systems to support Remote I/O (RIO) communication link transfer. Its primary function is to manage and coordinate RIO data exchange between scanners, adapters, and control processors, enabling stable and deterministic communication across distributed I/O networks.
This module plays a key role in systems that require reliable Remote I/O data handling, link management, and communication continuity. Installed directly in the SLC 500 chassis, the 1747-DCM interfaces with the system backplane to ensure accurate and timely data transfer without impacting control logic execution.
Built for industrial environments, the 1747-DCM delivers dependable performance, robust electrical characteristics, and consistent communication behavior required in long-running automation systems.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Direct Communication Module |
| System Series | Allen-Bradley SLC 500 |
| Primary Function | Remote I/O communication link transfer |
| Communication Protocol | Remote I/O (RIO) |
| Network Role | RIO communication coordination and management |
| System Interface | SLC 500 backplane |
| Backplane Current | 360 mA @ 5 VDC |
| Terminating Resistor | 82 Ω; 150 Ω |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Installation Method | SLC 500 rack-mounted module |
| Industrial Rating | Continuous-duty industrial operation |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.45 kg |
Applications
• Remote I/O communication management, ensuring reliable data transfer across RIO networks.
• SLC 500 automation systems, supporting deterministic I/O data exchange.
• Distributed control architectures, coordinating communication between scanners and adapters.
• Industrial process control, maintaining stable communication in continuous-operation environments.
• Legacy system support and upgrades, extending the service life of existing Remote I/O installations.
Advantages
• Reliable RIO link handling, ensuring stable and predictable communication behavior.
• Direct backplane integration, minimizing system complexity and configuration effort.
• Industrial-grade electrical design, supporting continuous-duty operation.
• Flexible termination support, accommodating different RIO network configurations.
• Enhanced system stability, reducing communication-related faults and interruptions.
• Seamless SLC 500 compatibility, designed specifically for established Allen-Bradley architectures.
FAQ
-
What is the primary role of the 1747-DCM module?
It manages and transfers Remote I/O communication links within SLC 500 control systems. -
Does the module execute control logic?
No, it is dedicated to communication handling and does not process control logic. -
Which communication protocol does it support?
It supports Allen-Bradley Remote I/O (RIO) communication. -
How does the module interface with the PLC system?
It connects directly to the SLC 500 backplane for data exchange and power. -
What terminating resistors are supported?
The module supports 82 Ω and 150 Ω terminating resistors for RIO networks. -
Is the module suitable for continuous industrial operation?
Yes, it is designed for stable operation in industrial environments from 0 °C to 60 °C. -
Does it improve communication reliability?
Yes, it helps maintain consistent and deterministic RIO communication. -
Can it be used in system retrofit projects?
Yes, it is commonly used to support or restore Remote I/O communication in existing systems. -
How does the module affect overall system performance?
By stabilizing communication links, it ensures reliable I/O updates without burdening the processor. -
Is it compatible with standard SLC 500 racks?
Yes, it is fully compatible with standard Allen-Bradley SLC 500 chassis.
Related Models
| Model | Description |
|---|---|
| 1747-SN | Remote I/O Scanner Module |
| 1747-BSN | Backup Scanner Module |
| 1747-ASB | Remote I/O Adapter Module |
| 1747-L553 | SLC 5/05 Processor |
| 1746-ASB | Remote I/O Adapter |
| 1746-A4 | SLC 500 I/O Chassis |
Popular Models
| Model | Application Focus |
|---|---|
| 1747-L553 | SLC 5/05 PLC Processor |
| 1747-L552 | SLC 5/04 PLC Processor |
| 1747-SN | Remote I/O Scanner |
| 1746-IB16 | Digital Input Module |
| 1746-OB16 | Digital Output Module |
| 1746-NI4 | Analog Input Module |
