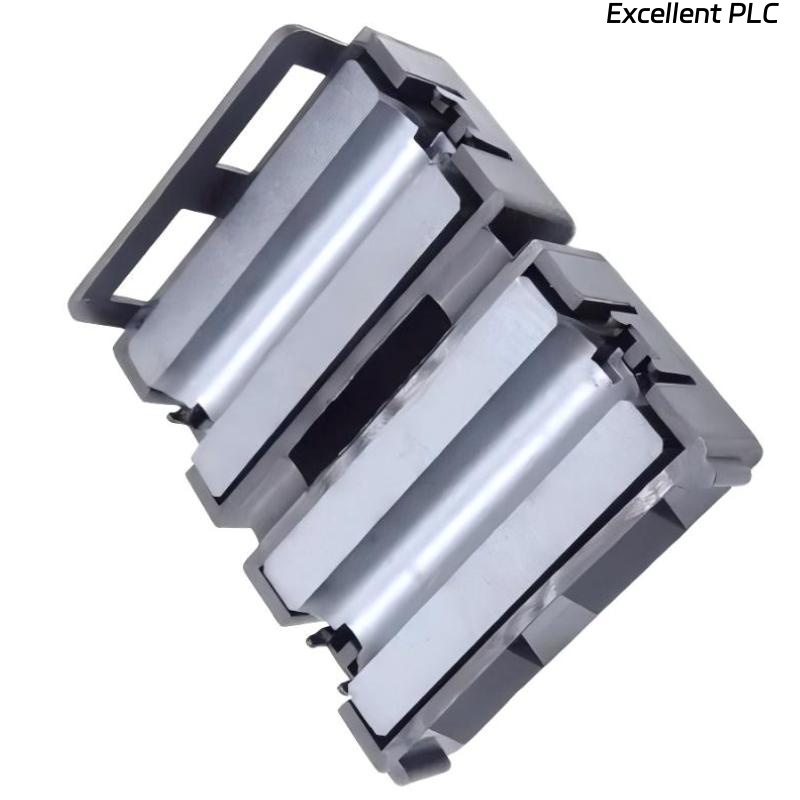

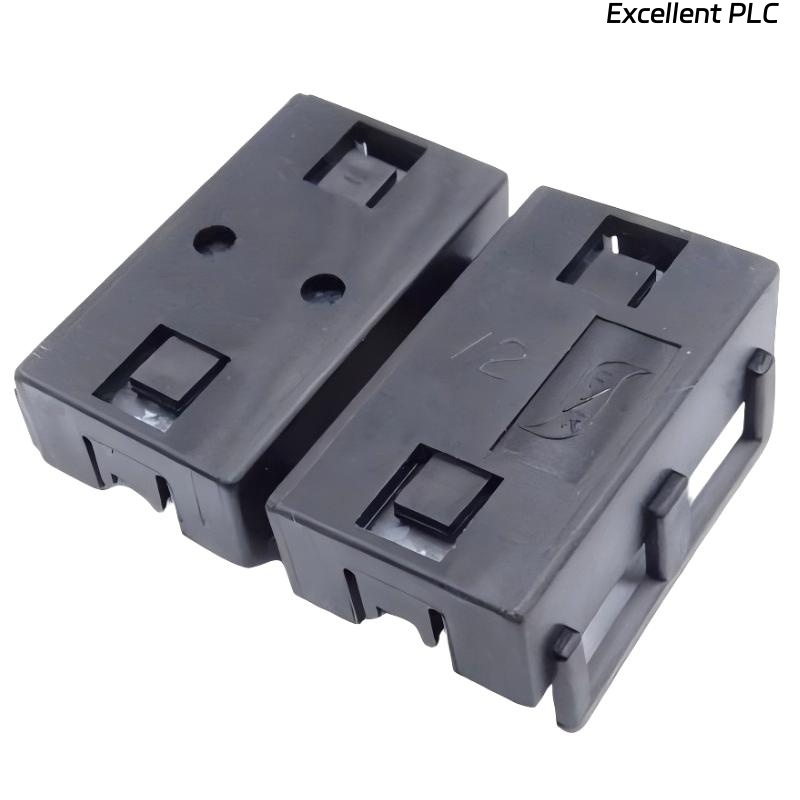

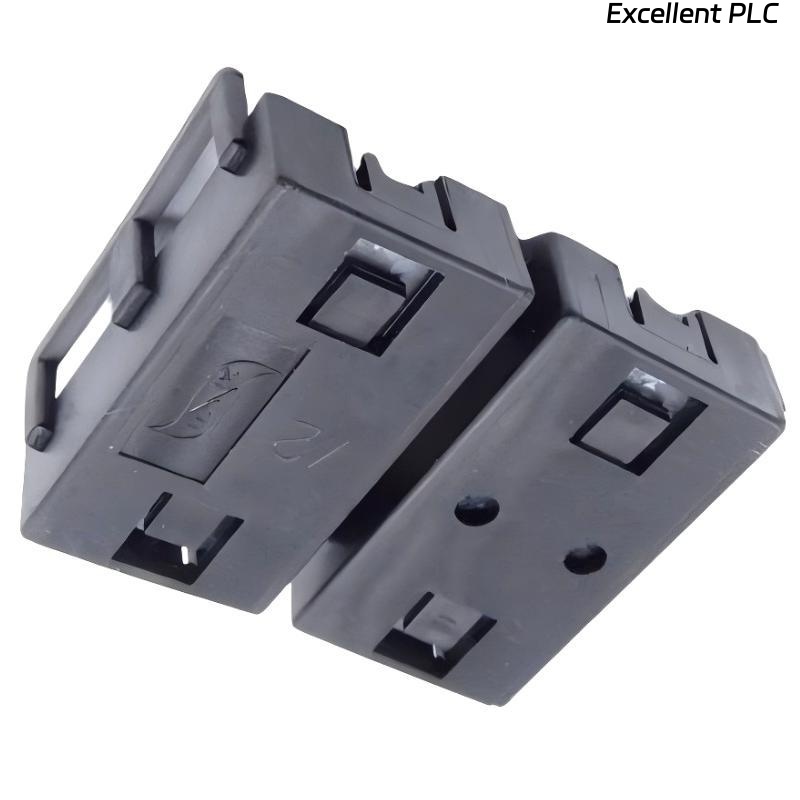

Allen Bradley 1747-FC Ferrite Collar
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1747-FC Ferrite Collar is an electromagnetic noise suppression accessory specifically designed for programmable controller systems, particularly within the SLC 500 platform. It is primarily used on RS-232 communication cables to minimize the impact of high-frequency electrical noise that can interfere with data transmission and controller operation.
In industrial environments where variable frequency drives, contactors, relays, and high-power equipment operate nearby, communication lines are often exposed to EMI and RFI disturbances. The 1747-FC ferrite collar addresses this challenge by attenuating unwanted high-frequency signals while allowing normal data communication to pass unaffected.
The device is non-intrusive, requires no configuration, and can be installed quickly by clamping it around the target cable. Its passive design ensures long-term reliability with zero maintenance, making it an effective safeguard for communication stability in automation systems.
Product Specifications
| Parameter | Description |
| Product Type | Ferrite Noise Suppression Collar |
| Controller Compatibility | SLC 500 Programmable Controllers |
| Intended Use | Electromagnetic and radio-frequency noise suppression |
| Supported Cable Type | RS-232 communication cable |
| Installation Method | External clamp-on mounting |
| Operating Principle | High-frequency noise attenuation through ferrite impedance |
| Material | Industrial-grade ferrite core |
| System Integration | Passive accessory, no configuration required |
| Dimensions | 80 × 50 × 20 mm |
| Weight | 0.068 kg |
Applications
• Used to suppress EMI/RFI on RS-232 communication lines in PLC systems
• Applied in SLC 500 controller cabinets operating in electrically noisy environments
• Installed on Remote I/O and communication cables to prevent data corruption
• Suitable for industrial automation panels, motor control centers, and drive systems
• Enhances communication reliability in factory automation, process control, and power systems
Advantages
• Improves communication stability without modifying controller configuration
• Passive and maintenance-free design ensures long-term reliability
• Non-intrusive installation, no cutting or rewiring of cables required
• Effectively reduces high-frequency noise caused by switching devices
• Compact and lightweight, ideal for space-constrained control cabinets
• Supports system EMC performance and reduces intermittent faults
FAQ
-
What type of interference does the 1747-FC ferrite collar suppress?
It suppresses high-frequency electromagnetic and radio-frequency interference that can couple into communication cables and disrupt data transmission. -
Is the 1747-FC limited to use with SLC 500 systems only?
While optimized for SLC 500 controllers, it can be applied to other programmable controller systems using RS-232 communication. -
Does installing the ferrite collar affect signal quality or speed?
No, it selectively attenuates unwanted high-frequency noise without impacting normal signal transmission. -
Where should the ferrite collar be installed on the cable?
It is typically installed close to the controller or communication module where noise sensitivity is highest. -
Can multiple ferrite collars be used on a single cable?
Yes, in high-noise environments multiple collars may be installed to enhance noise suppression effectiveness. -
Is any configuration or programming required after installation?
No configuration or software changes are required, as the device operates passively. -
Does the ferrite collar require grounding?
No grounding connection is required for proper operation. -
Can it be used in systems with variable frequency drives nearby?
Yes, it is especially effective in environments with VFDs, contactors, and high-power switching devices. -
Is the ferrite collar reusable after removal?
Yes, it can be removed and reinstalled on another cable if needed. -
Does the ferrite collar introduce any latency or delay in data transmission?
No, it does not introduce measurable latency or affect communication timing.
Related Models
| Model | Description |
|---|---|
| 1747-ASB | Remote I/O Adapter Module |
| 1747-BSN | Backup Scanner Module |
| 1747-DCM | Direct Communication Module |
| 1747-SN | Scanner Module |
| 1747-KE | DH-485 Communication Interface |
| 1747-AIC | Advanced Interface Converter |
Popular Models
| Model | Description |
|---|---|
| 1746-L553 | SLC 5/05 Processor |
| 1746-IB16 | 16-Point Digital Input Module |
| 1746-OB16 | 16-Point Digital Output Module |
| 1746-NI4 | 4-Channel Analog Input Module |
| 1746-NO4I | 4-Channel Analog Output Module |
| 1747-P1 | Power Supply Module |
