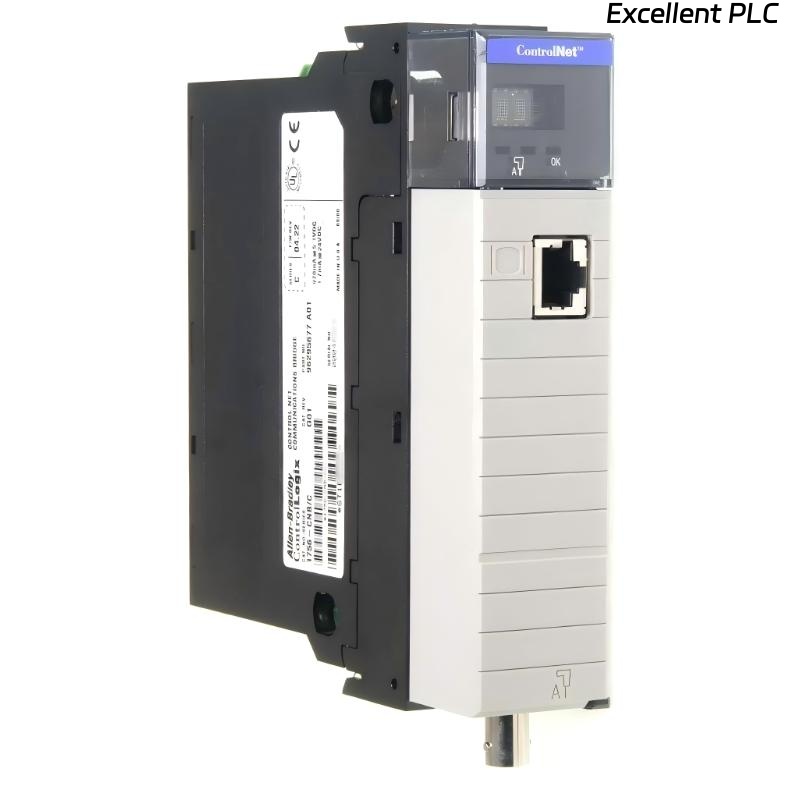

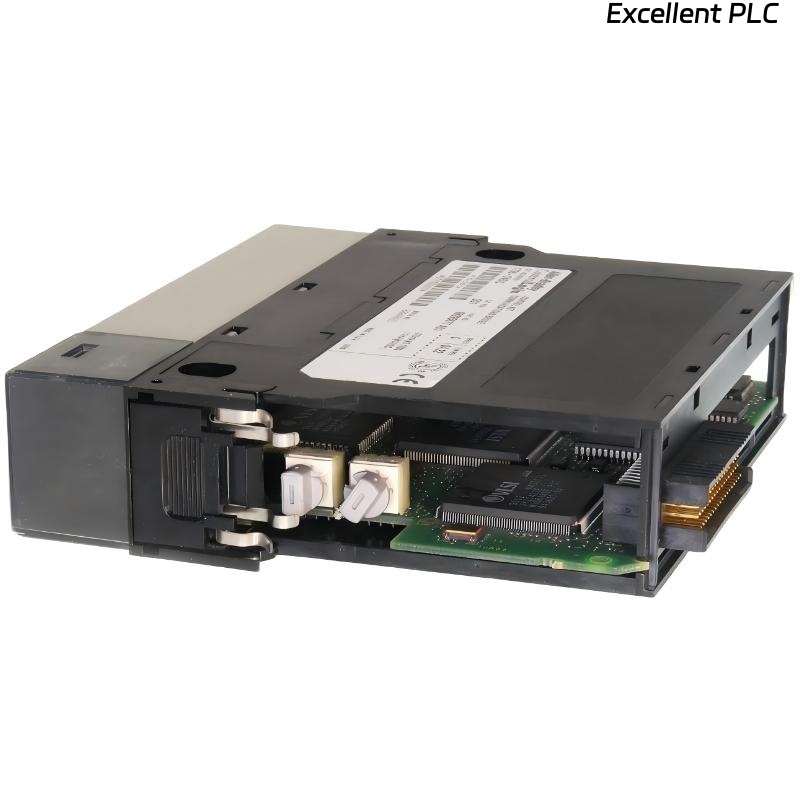

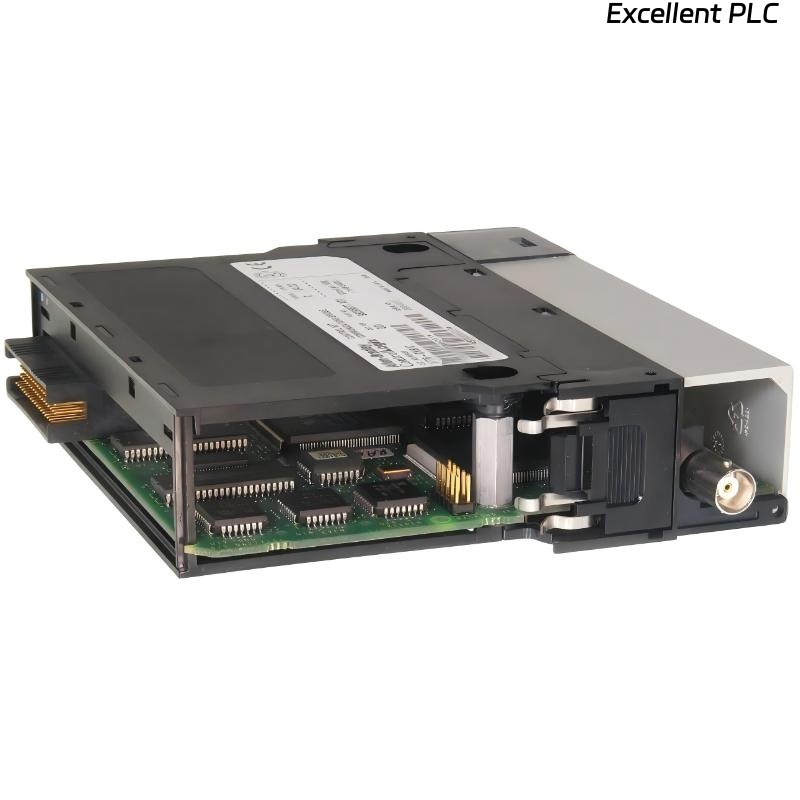

Allen Bradley 1756-CNB ControlLogix Communication Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1756-CNB is a ControlLogix single-channel ControlNet communication module designed for reliable industrial networking. It provides deterministic real-time data communication between ControlLogix controllers, I/O modules, and other ControlNet devices. The module is optimized for mid-scale automation systems that require robust communication with a limited number of nodes.
The 1756-CNB is ideal for applications where simple, efficient, and stable network connectivity is needed, offering a cost-effective solution for standard ControlNet networks while ensuring compatibility with ControlLogix systems and 24 VDC industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | ControlLogix Communication Module |
| Module Performance | Single-channel |
| Communication Protocol | ControlNet |
| Ports | 1 |
| Communication Rate | 5 Mbps |
| Maximum Nodes | 99 |
| Voltage | 24 VDC |
| System Compatibility | ControlLogix chassis and controllers |
| Industrial Rating | Designed for industrial automation networks |
| Power Dissipation | 6.7 W |
| Thermal Dissipation | 22.9 BTU/h |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Enclosure Type Rating | Open-style |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.26 kg |
Applications
• Used for ControlNet communication in small- to mid-sized ControlLogix systems
• Suitable for real-time data transmission between controllers, I/O modules, and networked devices
• Applied in manufacturing, process automation, and discrete production systems
• Enables deterministic communication for distributed control systems
• Ideal for applications requiring stable, single-channel ControlNet connectivity
Advantages
• Single-channel design simplifies installation and configuration
• Supports up to 99 nodes, providing sufficient capacity for medium-sized networks
• Deterministic 5 Mbps communication rate ensures reliable real-time data transfer
• 24 VDC operation is compatible with standard industrial control power supplies
• Compact module design optimizes chassis space and installation flexibility
• Designed for robust performance in industrial environments with standard temperature ranges
FAQ
-
What is the primary function of the 1756-CNB?
It provides single-channel ControlNet communication for ControlLogix systems. -
How many nodes can this module support?
It supports up to 99 nodes on the ControlNet network. -
What is the communication speed?
The module transmits data at 5 Mbps. -
Can it be used with multiple controllers?
Yes, it communicates with multiple ControlLogix controllers, I/O modules, and devices. -
Is the module suitable for open-style panels?
Yes, it has an open-style enclosure rating for industrial panel installation. -
Does it require 24 VDC power?
Yes, the module operates using a 24 VDC power supply. -
Is redundancy supported?
No, this is a single-channel module; redundancy requires a dual-channel or high-performance module. -
What is the operating temperature range?
The module operates from 0 to 60 °C. -
How is it installed in a ControlLogix system?
It is mounted in a ControlLogix chassis and communicates through the backplane. -
What happens if more nodes are added beyond the maximum?
Network performance may degrade, and some nodes may fail to communicate properly.
Related Models
| Model | Description |
|---|---|
| 1756-CN2 | Standard ControlNet communication module |
| 1756-CN2R | Redundant ControlNet module |
| 1756-CN2RK | High-performance dual-channel ControlNet module |
| 1756-EN2TR | EtherNet/IP communication module |
| 1756-CN2E | Enhanced ControlNet communication module |
| 1756-CN2T | ControlNet trunk module |
Popular Models
| Model | Description |
|---|---|
| 1756-L81E | ControlLogix high-performance controller |
| 1756-L83E | Advanced ControlLogix controller |
| 1756-PA75 | ControlLogix AC power supply |
| 1756-A13 | 13-slot ControlLogix chassis |
| 1756-IF16 | 16-channel analog input module |
| 1756-OB16I | 16-channel DC isolated output module |
