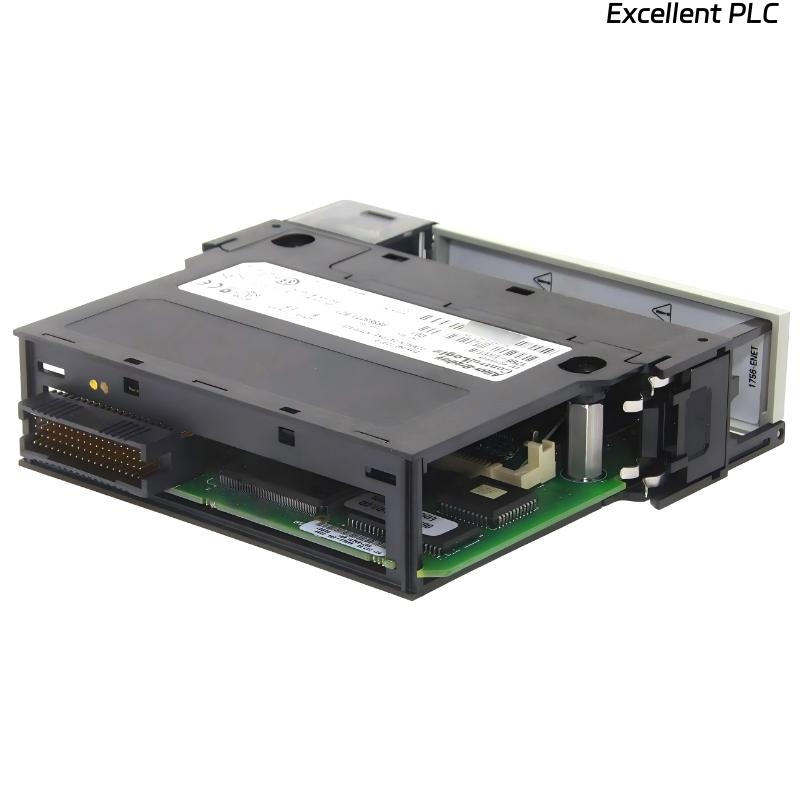

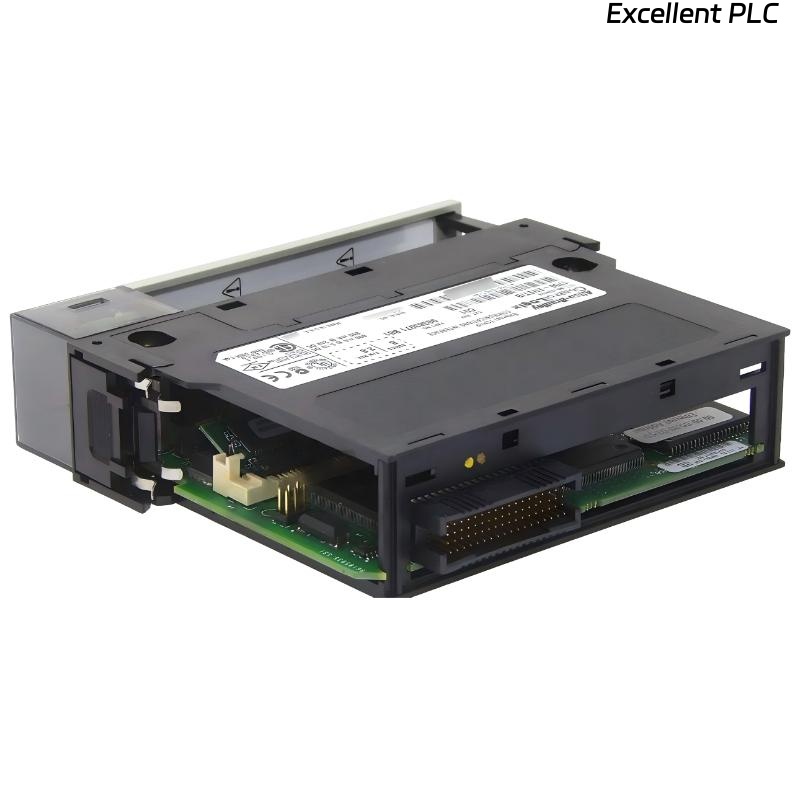

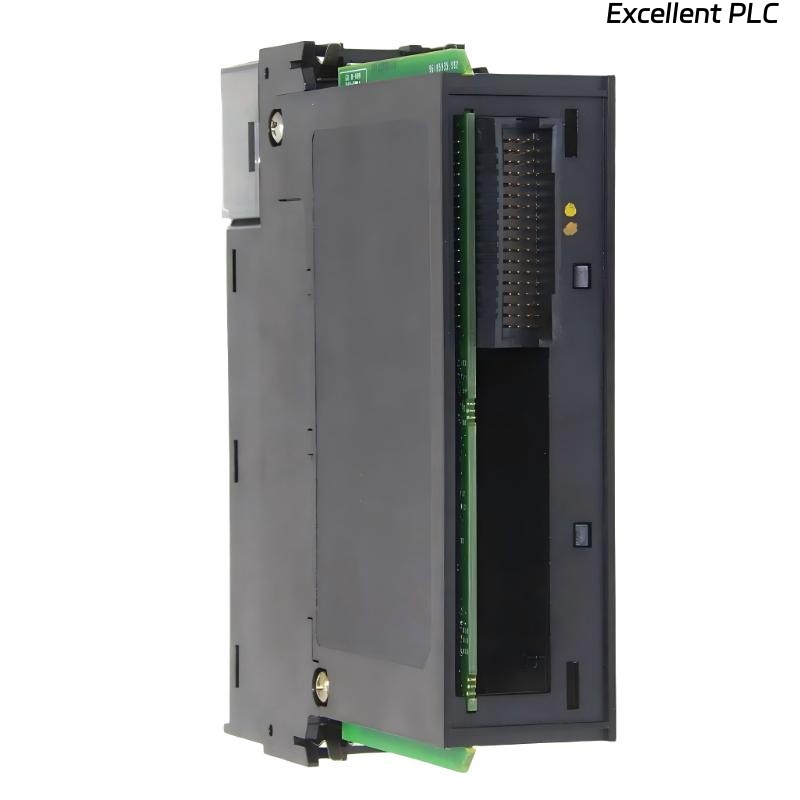

Allen Bradley 1756-ENET ControlLogix EtherNet/IP Bridge Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1756-ENET ControlLogix EtherNet/IP Bridge Module is an early-generation Ethernet communication module designed to provide network connectivity between ControlLogix controllers and Ethernet-based industrial devices. It enables basic EtherNet/IP communication using standard Ethernet infrastructure and supports integration with legacy automation networks.
Equipped with a 10-BASE-T interface and an AUI connector, the module offers flexible physical network connections for traditional Ethernet topologies. It is commonly used in established ControlLogix systems where compatibility with earlier Ethernet hardware and cabling standards is required.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | EtherNet/IP Communication Module |
| Manufacturer | Allen Bradley |
| Series | ControlLogix |
| Model / Part Number | 1756-ENET |
| Network Protocol | EtherNet/IP |
| Ethernet Interface | 10-BASE-T |
| AUI Connector | Supported |
| Controller Communication | ControlLogix backplane |
| Network Topology Support | Legacy Ethernet architectures |
| Installation Method | ControlLogix chassis |
| Operating Mode | Continuous industrial operation |
| Industrial Application Level | Legacy system compatibility |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.25 kg |
Applications
• Legacy ControlLogix Ethernet Systems
Used in existing installations requiring support for early EtherNet/IP communication.
• Industrial Network Integration
Provides Ethernet connectivity between controllers and plant networks.
• HMI and SCADA Communication
Supports data exchange with visualization and supervisory systems using legacy Ethernet interfaces.
• Process Automation Systems
Applied in process control environments with established Ethernet infrastructure.
• Manufacturing Automation
Used in production systems where network upgrades are limited or phased.
• Control System Modernization Projects
Maintains compatibility while migrating from older Ethernet hardware.
Advantages
• Legacy Network Compatibility
Supports 10-BASE-T Ethernet and AUI connections for older network environments.
• Flexible Physical Connectivity
Allows connection through different Ethernet media using the AUI interface.
• Seamless ControlLogix Integration
Installs directly into ControlLogix chassis and communicates via the backplane.
• Proven Industrial Design
Widely used in long-standing ControlLogix installations.
• Stable EtherNet/IP Communication
Provides reliable data exchange for legacy automation systems.
• Simplified System Integration
Enables Ethernet networking without major infrastructure changes.
FAQ
-
What is the primary purpose of the 1756-ENET module?
It provides basic EtherNet/IP communication for ControlLogix systems using legacy Ethernet standards. -
What Ethernet speed does this module support?
It supports 10-BASE-T Ethernet communication. -
Does the module include an AUI connector?
Yes, it includes an AUI connector for flexible physical network connections. -
Is this module suitable for modern high-speed Ethernet networks?
It is primarily intended for legacy networks rather than high-performance Ethernet systems. -
Can it be installed in any ControlLogix chassis slot?
Yes, it can be installed in any available ControlLogix chassis slot. -
Is it compatible with standard ControlLogix controllers?
Yes, it integrates directly with ControlLogix controllers through the backplane. -
Can it communicate with HMIs and SCADA systems?
Yes, it supports Ethernet communication with supervisory and visualization systems. -
Is the module designed for continuous operation?
Yes, it is designed for continuous industrial operation. -
Is this module still used in existing systems?
Yes, it remains in use within many installed legacy ControlLogix systems. -
Is the 1756-ENET suitable for system migration projects?
Yes, it is often used during phased upgrades of older Ethernet-based control systems.
Related Models
| Model Number | Description |
|---|---|
| 1756-ENBT | Standard EtherNet/IP Module |
| 1756-EN2T | High-Performance EtherNet/IP Module |
| 1756-EN2TR | Embedded Switch Ethernet Module |
| 1756-EN2TXT | Extreme Environment Ethernet Module |
| 1756-DNB | DeviceNet Scanner Module |
| 1756-CNB | ControlNet Communication Module |
Popular Models
| Model Number | Description |
|---|---|
| 1756-ENET | Legacy EtherNet/IP Module |
| 1756-ENBT | Standard Ethernet Module |
| 1756-EN2T | High-Performance Ethernet Module |
| 1756-EN2TR | Embedded Switch Ethernet Module |
| 1756-EN3TR | Redundant Ethernet Module |
| 1756-DNB | DeviceNet Scanner Module |
