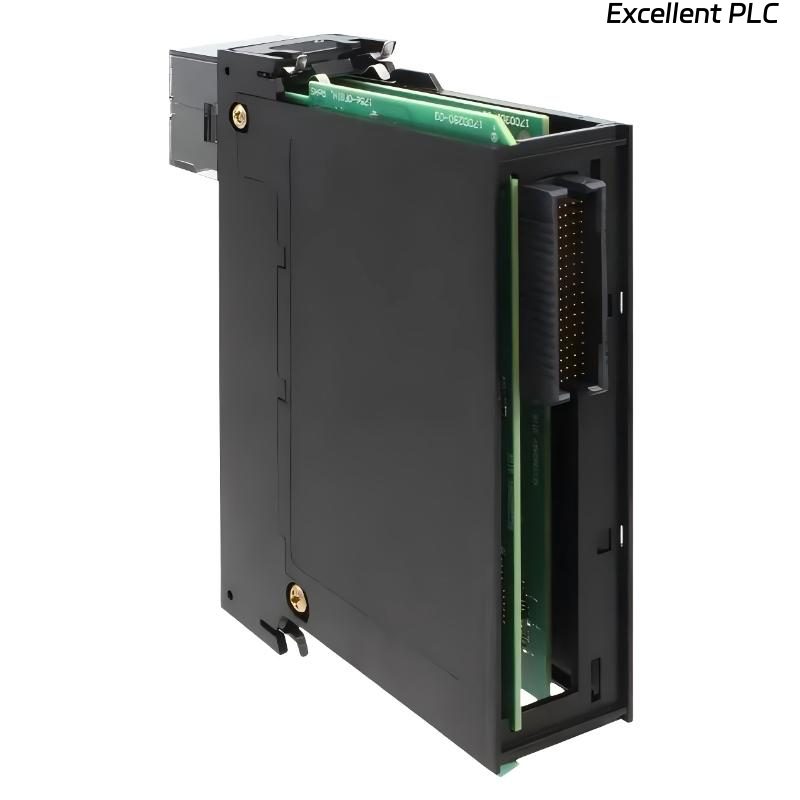

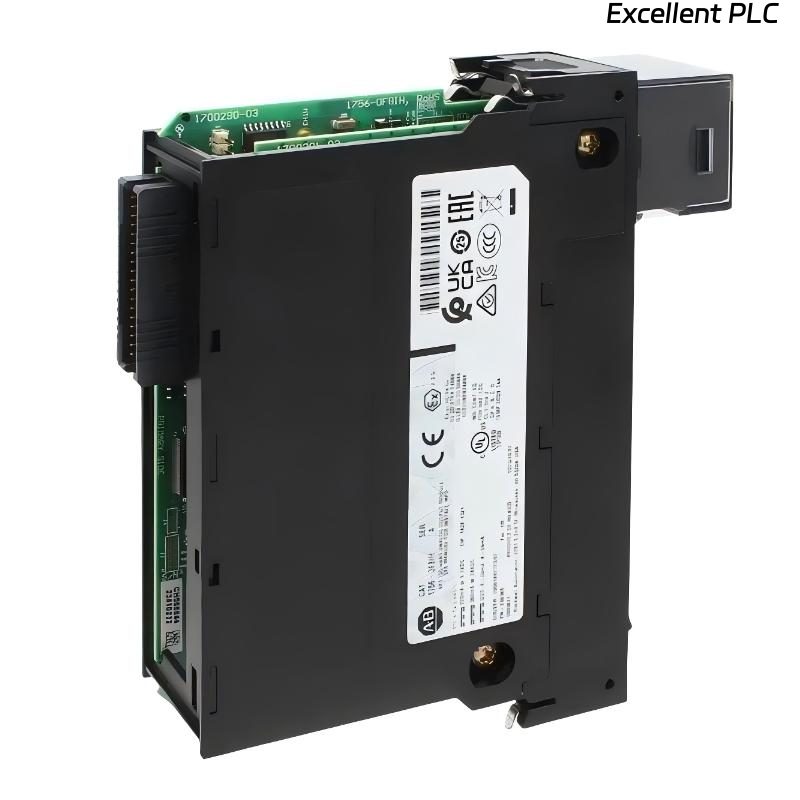

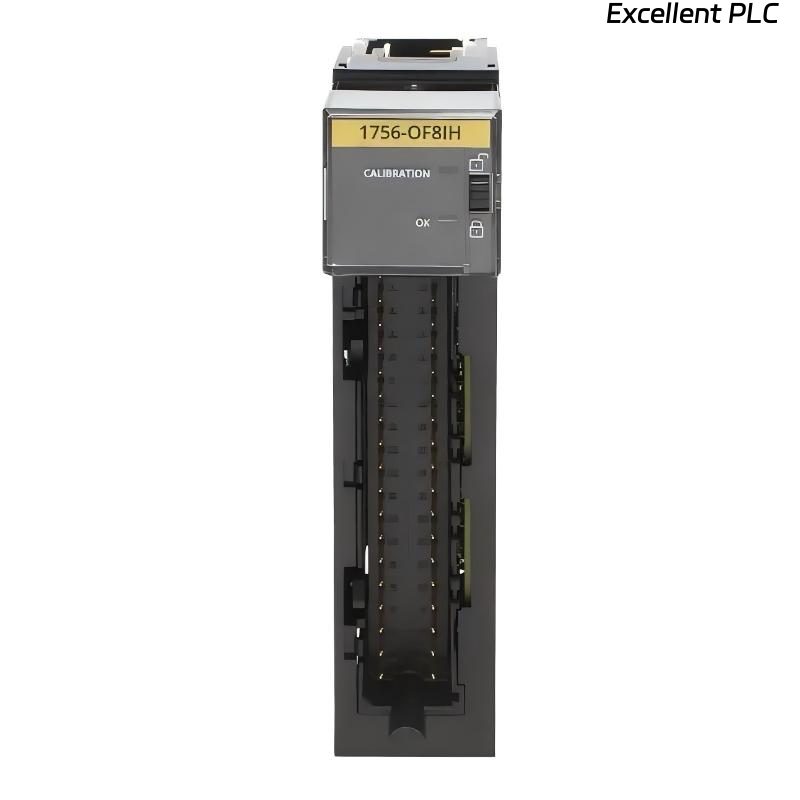

The Allen Bradley 1756-OF8IHK ControlLogix Analog Output Module is a high-performance industrial output module designed for precise analog signal transmission in demanding automation and process control applications. As part of the ControlLogix platform, this module provides reliable analog output functionality for systems requiring accurate process regulation, stable signal handling, and advanced field device communication.
The 1756-OF8IHK module features eight isolated analog output channels and integrated HART communication capability, allowing users to communicate with compatible smart field instruments while maintaining standard analog signal transmission. This dual-function capability improves diagnostics, configuration flexibility, and overall process visibility within industrial control systems.
Designed for critical process industries, the module supports precise control of actuators, valves, drives, positioning devices, and other analog-controlled equipment. Its isolated channel architecture helps minimize electrical interference between channels and enhances overall system reliability in electrically noisy industrial environments. The module is especially suitable for applications where signal integrity and stable operation are essential.
The 1756-OF8IHK is engineered to integrate seamlessly into ControlLogix systems and can be deployed in a wide variety of industries including oil and gas, power generation, chemical processing, water treatment, pharmaceuticals, mining, and large-scale manufacturing operations. Its robust construction and advanced communication capabilities make it an important component for modern industrial automation systems requiring high accuracy and dependable performance.
Product Specifications
| Parameter | Description |
|---|---|
| Model | Allen Bradley 1756-OF8IHK |
| Product Type | ControlLogix Analog Output Module |
| Series | ControlLogix |
| Output Channels | 8 Points |
| Signal Type | Analog Output |
| Communication Capability | HART Communication |
| Channel Isolation | Isolated Channels |
| Connector Type | 36-Pin Connector |
| Mounting Platform | ControlLogix Chassis |
| Application Type | Industrial Process Control |
| Data Transmission | High-Accuracy Analog Signal Output |
| Compatibility | Allen Bradley ControlLogix Systems |
| Industrial Protocol Support | HART Enabled |
| Environmental Suitability | Industrial Automation Environments |
| Dimensions | 144.57 × 22 × 105.42 mm |
| Weight | 0.3 kg |
Applications
• Process Automation Systems – Provides accurate analog output control for industrial process applications requiring stable signal transmission.
• Valve Positioning Control – Supports precise control of smart valves and electro-pneumatic actuators.
• HART Field Device Integration – Enables communication with HART-enabled transmitters and field instruments for diagnostics and configuration.
• Chemical Processing Plants – Used for accurate regulation of flow, pressure, temperature, and level control systems.
• Oil and Gas Facilities – Supports critical analog control applications within refining, production, and transportation systems.
• Power Generation Plants – Controls analog-driven equipment including turbine systems, dampers, and control valves.
• Water and Wastewater Treatment Plants – Provides stable output signals for dosing systems, pumps, and flow control devices.
• Pharmaceutical Manufacturing – Supports high-precision process control applications requiring reliable analog output performance.
• Industrial Manufacturing Systems – Integrates with automated production systems requiring precise analog signal management.
• Distributed Control Systems (DCS) – Enables dependable analog communication between control systems and field equipment.
Advantages
• Integrated HART Communication – Supports advanced diagnostics and configuration of HART-enabled field devices without additional communication hardware.
• Eight Isolated Output Channels – Reduces channel interference and improves signal stability in industrial environments.
• High Signal Accuracy – Provides precise analog output performance for demanding process control applications.
• Reliable Industrial Operation – Designed for continuous operation in harsh industrial conditions.
• Enhanced System Diagnostics – Allows better monitoring and troubleshooting through HART communication capabilities.
• Seamless ControlLogix Integration – Fully compatible with Allen Bradley ControlLogix automation platforms.
• Improved Electrical Noise Immunity – Isolated design helps maintain stable signal integrity in electrically noisy environments.
• Flexible Process Control Capability – Suitable for controlling valves, actuators, drives, and other analog-controlled devices.
• Reduced Maintenance Effort – Advanced diagnostics help simplify troubleshooting and reduce system downtime.
• Industrial-Grade Durability – Engineered for long-term reliability and stable operation in mission-critical applications.
