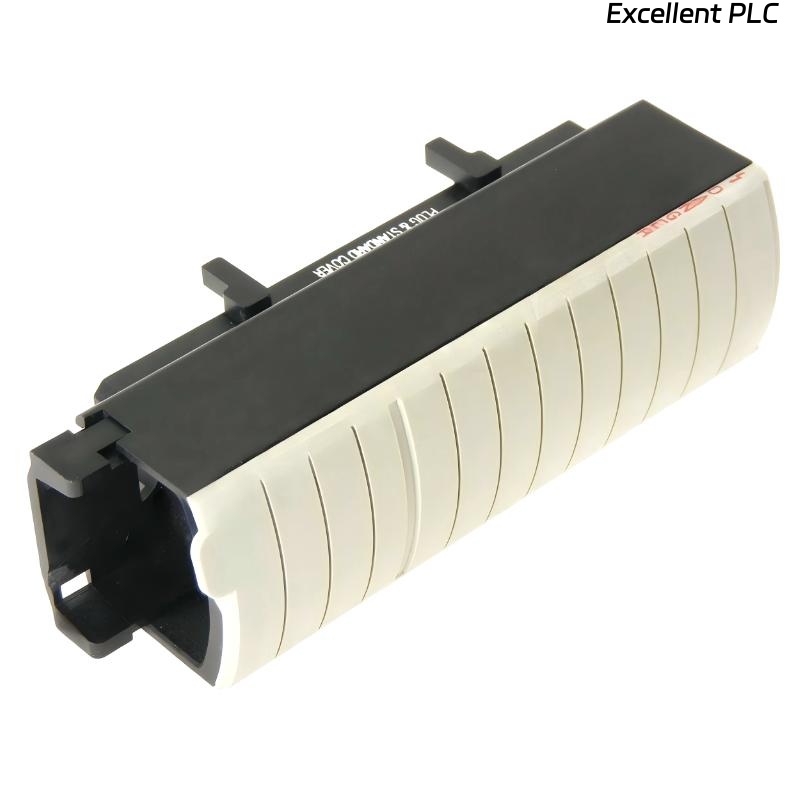

Allen Bradley 1756-TBS6H ControlLogix 36 Pin Spring Clamp Terminal Block
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1756-TBS6H ControlLogix 36 Pin Spring Clamp Terminal Block is a high-quality I/O interface accessory designed for the ControlLogix automation platform. It provides a reliable and secure connection point for field wiring to ControlLogix I/O modules, supporting efficient signal transmission and system integrity.
The 36-position spring clamp design ensures strong electrical contact while simplifying wiring installation and maintenance. It accommodates a wide range of wire types and is ideal for industrial automation environments that require organized, durable, and high-reliability terminal connections.
Engineered for robustness, the 1756-TBS6H is suitable for use in harsh control cabinet environments, providing long-term stability and reliable operation in manufacturing, process control, and automation systems.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 1756-TBS6H |
| Product Type | ControlLogix Terminal Block |
| Function | Provides secure connection for field wiring to I/O modules |
| Number of Positions | 36 |
| Connection Type | Spring clamp terminals |
| System Compatibility | Allen-Bradley ControlLogix I/O systems |
| Diagnostics | Not applicable (passive terminal block) |
| Operating Environment | Industrial control cabinets and PLC racks |
| Housing Type | Rigid modular terminal block |
| Dimensions | 132 × 54 × 110 mm |
| Weight | 0.1 kg |
Applications
● Provides secure and reliable wiring connections for ControlLogix I/O modules.
● Supports organized field wiring in control cabinets and PLC racks.
● Facilitates efficient installation and maintenance with spring clamp technology.
● Used in industrial automation, manufacturing, and process control systems.
● Enables structured I/O signal distribution, reducing wiring errors.
● Enhances electrical contact reliability and system stability.
Advantages
● Spring clamp design offers strong, consistent electrical contact.
● Supports high-density wiring with 36 positions for complex systems.
● Rigid modular construction ensures durable and long-lasting performance.
● Simplifies installation and maintenance, reducing wiring time.
● Compatible with Allen-Bradley ControlLogix I/O modules, ensuring seamless integration.
● Provides organized and structured wiring, improving system reliability.
FAQ
-
How many positions are available on the 1756-TBS6H terminal block?
It provides 36 spring clamp positions for I/O wiring. -
Is the spring clamp design reliable for industrial use?
Yes, it provides consistent and strong electrical contact suitable for industrial environments. -
Can it accommodate multiple wire types?
Yes, the spring clamp design supports a range of wire types compatible with ControlLogix systems. -
Is it compatible with all ControlLogix I/O modules?
It is compatible with I/O modules designed for use with spring clamp terminal blocks. -
Does it improve installation efficiency?
Yes, spring clamps simplify wiring and reduce installation time compared to screw-type terminals. -
Can it be used for both digital and analog I/O wiring?
Yes, it supports both digital and analog connections. -
Is it suitable for use in harsh industrial environments?
Yes, it is designed to operate reliably in control cabinets and PLC racks. -
Can multiple terminal blocks be combined for larger systems?
Yes, multiple blocks can be installed together for expanded I/O systems. -
Does it require any special tools for installation?
No, standard tools are not required; the spring clamps allow easy wire insertion. -
Does it support maintenance and troubleshooting activities?
Yes, the organized terminal layout facilitates easier maintenance and fault diagnosis.
Related Models
| Model | Description |
|---|---|
| 1756-TBS6 | ControlLogix 36 Pin Spring Clamp Terminal Block (standard) |
| 1756-TBNH | 20 Pin Screw Clip Terminal Block |
| 1756-TBCH | 20-Position Clip Terminal Block |
| 1756-TB | Standard ControlLogix Terminal Block |
| 1756-TBL | Terminal Block with larger spacing |
| 1756-TBP | Terminal Block with protective cover |
Popular Models
| Model | Description |
|---|---|
| 1756-TBS6H | 36 Pin Spring Clamp Terminal Block (this module) |
| 1756-TBS6 | 36 Pin Spring Clamp Terminal Block (standard) |
| 1756-TBNH | 20 Pin Screw Clip Terminal Block |
| 1756-TB | Standard ControlLogix Terminal Block |
| 1756-TBL | Terminal Block with larger spacing |
| 1756-TBP | Terminal Block with protective cover |
