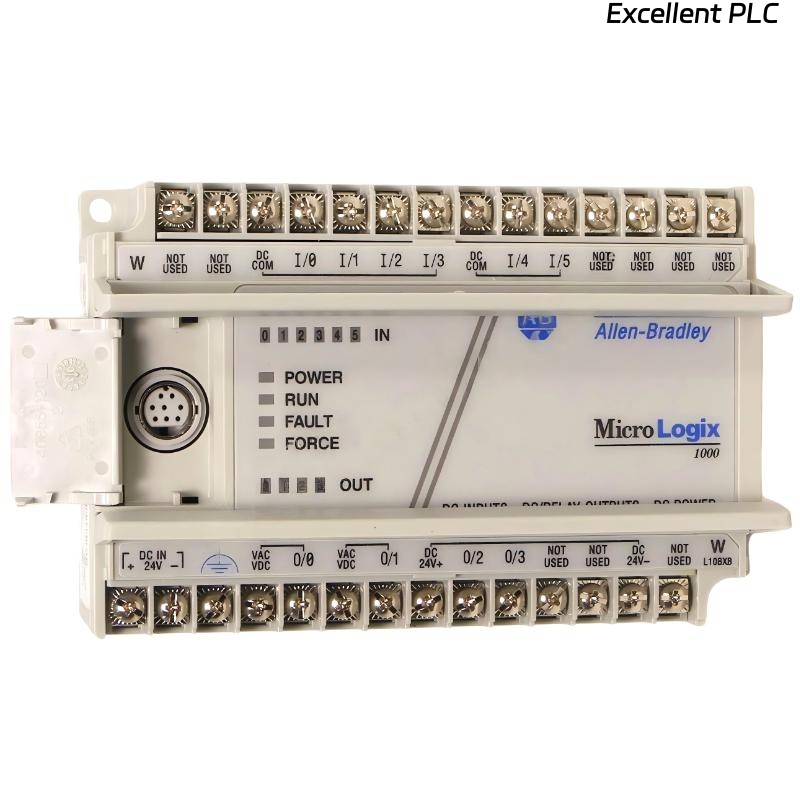

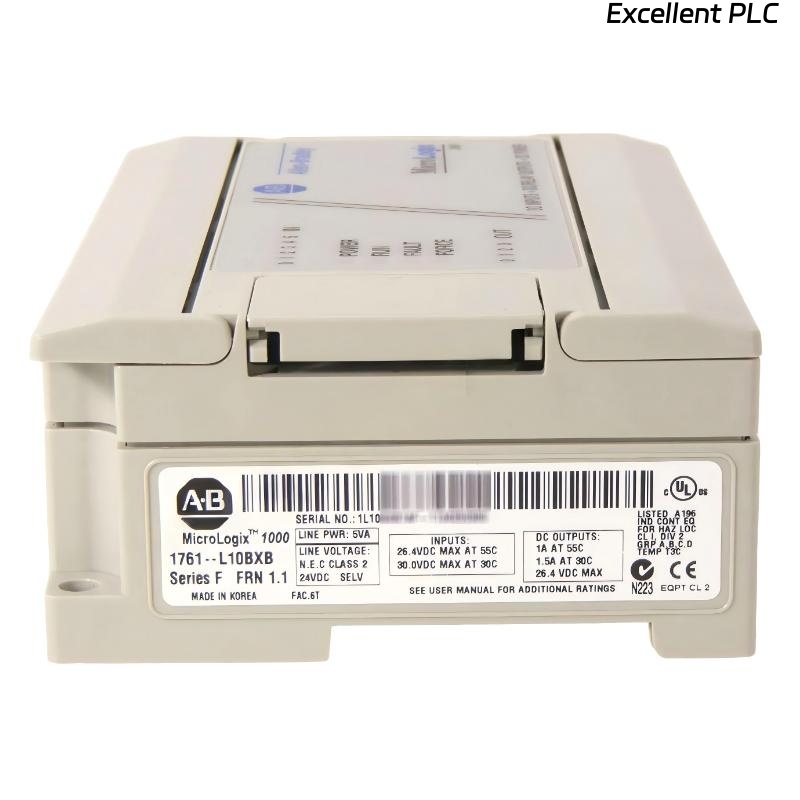

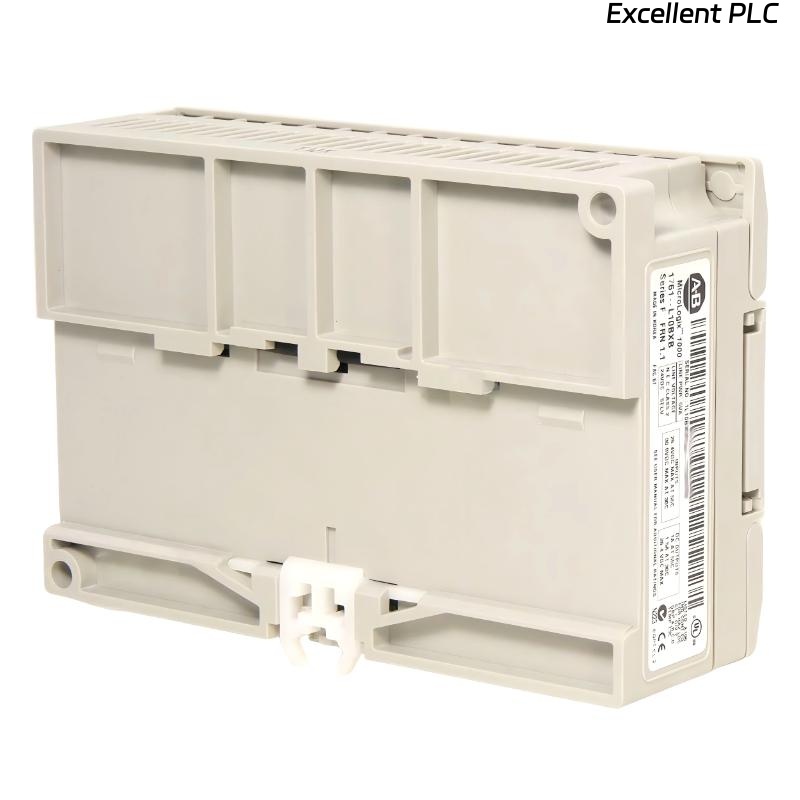

Allen Bradley 1761-L10BXB MicroLogix 1000 Programmable Controller
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1761-L10BXB is a MicroLogix 1000 programmable controller designed for compact automation and standalone machine control applications. It combines integrated 24V DC power, digital inputs, MOSFET sourcing outputs, and relay outputs in a small footprint, providing flexible control options for both AC and DC loads.
With 6 digital inputs, 2 MOSFET sourcing outputs, and 2 relay outputs, the 1761-L10BXB is ideal for applications requiring mixed output types, such as motor control, solenoid actuation, and signal switching. Its compact design and 24V DC operation make it suitable for OEM machines, panel-mounted control systems, and small industrial processes.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 1761-L10BXB |
| Product Series | MicroLogix 1000 |
| Controller Type | Compact PLC |
| Power Supply | 24 VDC |
| Digital Inputs | 6 × 24V DC |
| MOSFET Outputs | 2 × Sourcing DC Outputs |
| Relay Outputs | 2 × Relay Outputs |
| User Memory | 1 KB EEPROM |
| Communication Port | RS-232 Serial Port |
| Programming Software | RSLogix 500 |
| Mounting Type | DIN Rail / Panel Mount |
| Dimensions | 120 × 40 × 80 mm |
| Weight | 0.272 kg |
Applications
● Standalone machine automation for small equipment and OEM systems.
● Motor starter and solenoid control using MOSFET and relay outputs.
● Signal switching and alarm systems in compact control panels.
● Basic sequencing and interlock logic.
● Small-scale process monitoring.
● OEM panel-mounted automation requiring mixed output types.
Advantages
● Mixed output capability with MOSFET and relay outputs for versatile load control.
● Integrated 24V DC power supply simplifies wiring and installation.
● Compact form factor ideal for tight panel spaces.
● EEPROM memory ensures non-volatile program retention.
● Reliable operation for small industrial and OEM applications.
● Programming with RSLogix 500 provides easy configuration and maintenance.
FAQ
-
What power supply does the 1761-L10BXB require?
It operates on a 24 VDC power supply. -
How many digital inputs and outputs are available?
It provides 6 digital inputs, 2 MOSFET sourcing outputs, and 2 relay outputs. -
What types of loads can the outputs switch?
MOSFET outputs are DC sourcing; relay outputs can switch AC or DC loads within rated limits. -
How much user memory is available?
1 KB of EEPROM memory for program storage. -
Which programming software is used?
RSLogix 500 software is used for programming. -
Can it control both motors and solenoids?
Yes, the mixed output types support small motors, solenoids, and signal devices. -
Is external DC power required for the inputs?
No, the integrated 24V DC supply powers the digital inputs. -
Does it support expansion modules?
The MicroLogix 1000 series has fixed I/O with limited expansion capability. -
Can it be mounted on DIN rail or panel?
Yes, it supports both DIN rail and panel mounting. -
What applications is this model best suited for?
Small OEM machines, compact control panels, motor and solenoid control, and simple logic automation.
Related Models
| Model | Description |
|---|---|
| 1761-L10BWB | MicroLogix 1000, 10 I/O DC-powered Controller |
| 1761-L16BWB | MicroLogix 1000, 16 I/O, 24 VDC Power |
| 1761-L10BWA | MicroLogix 1000, AC-powered, 6 I/O Controller |
| 1761-L20BWB | MicroLogix 1000, 20 I/O, 24 VDC Power |
| 1763-L16BWA | MicroLogix 1100 Controller |
| 1766-L32BWA | MicroLogix 1400 Controller |
Popular Models
| Model | Description |
|---|---|
| 1761-L10BXB | MicroLogix 1000, Mixed Output DC/Relay Controller |
| 1761-L10BWB | MicroLogix 1000, 10 I/O DC-powered Controller |
| 1761-L16BWB | MicroLogix 1000, 16 I/O DC-powered Controller |
| 1761-L10BWA | MicroLogix 1000, AC-powered Controller |
| 1763-L16BWA | MicroLogix 1100 Controller |
| 1766-L32BWA | MicroLogix 1400 Controller |
