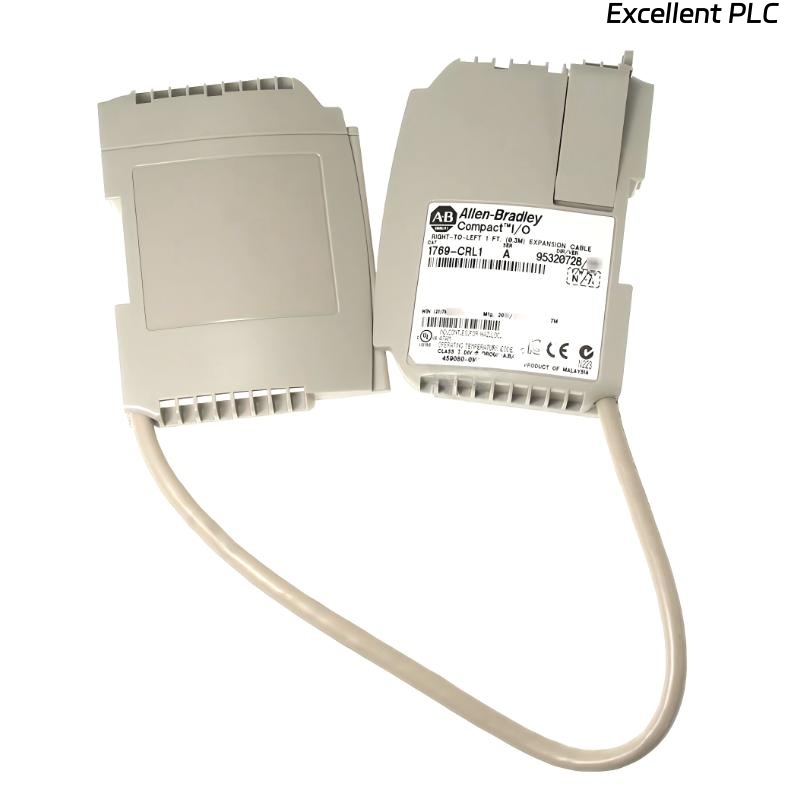

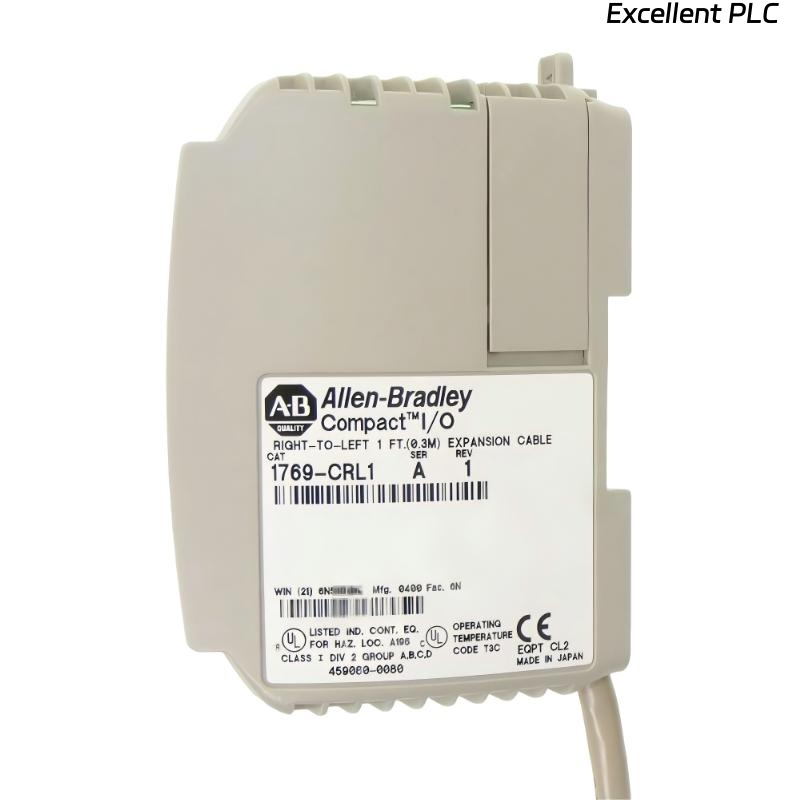

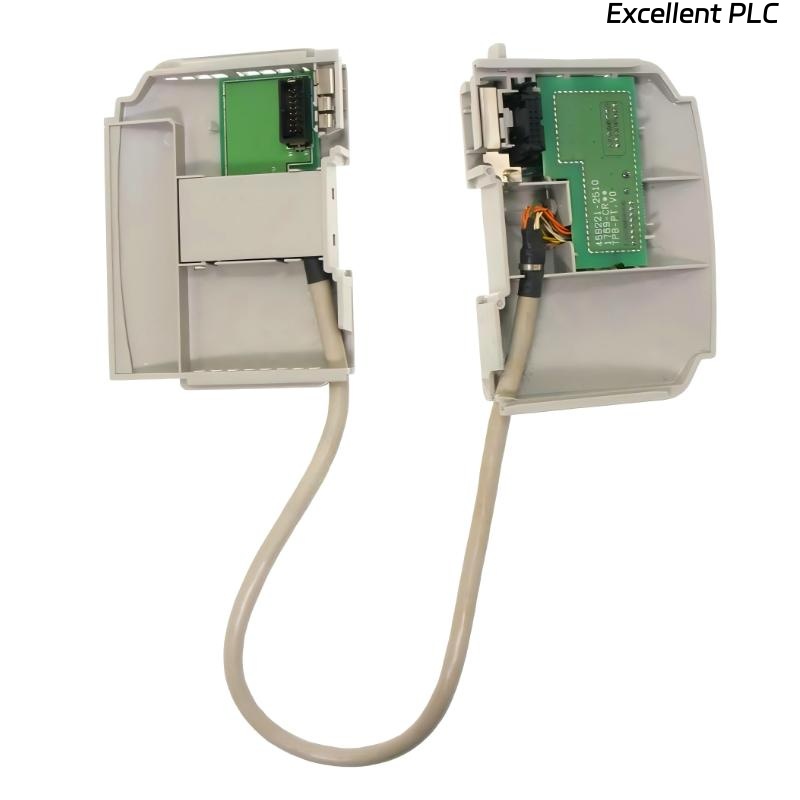

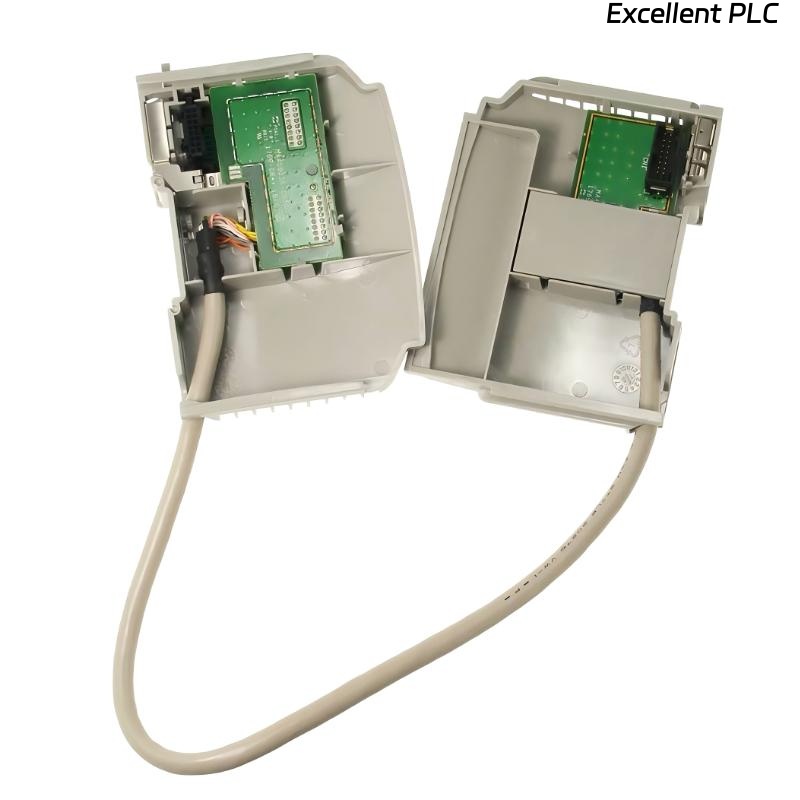

Allen Bradley 1769-CRL1 CompactLogix Compact I/O Right To Left Bus Expansion Cable

Product Introduction

The Allen Bradley 1769-CRL1 is an industrial bus expansion cable designed for CompactLogix and MicroLogix 1500 I/O systems. It allows reliable communication and data transfer between connected I/O modules while supporting flexible system layout configurations inside industrial control panels.

This cable features a right-to-left bus expansion design and includes termination caps for secure system connection and stable communication performance. With a cable length of 1 foot (305 mm), the module is suitable for compact cabinet installations requiring short-distance I/O expansion.

The 1769-CRL1 is commonly used in factory automation systems, machine control panels, packaging equipment, and industrial production lines where flexible Compact I/O expansion is required.

---

Product Specifications

---

Applications

• CompactLogix Expansion Systems
Used for connecting additional Compact I/O modules in CompactLogix control systems.

• MicroLogix 1500 I/O Systems
Supports communication expansion between MicroLogix I/O modules.

• Industrial Control Panels
Suitable for compact automation cabinets requiring organized module expansion.

• Machine Automation Equipment
Commonly used in packaging machines, conveyor systems, and assembly equipment.

• Factory Production Lines
Provides stable I/O communication for industrial manufacturing applications.

---

Advantages

• Reliable Bus Communication
Maintains stable data transfer between connected I/O modules.

• Compact Installation Design
The short cable structure helps reduce panel wiring clutter.

• Flexible System Expansion
Allows convenient expansion of Compact I/O systems.

• Easy Installation
Designed for quick connection and simple integration inside control cabinets.

• Includes Termination Caps
Helps maintain secure communication and system stability.

• Industrial-Grade Construction
Built for continuous operation in demanding industrial environments.

FAQ

1. What is the purpose of the 1769-CRL1 cable?
   The cable is used to connect and expand Compact I/O modules within CompactLogix and MicroLogix 1500 systems.
2. What cable direction does this model support?
   This model is designed for right-to-left bus expansion connections.
3. Which systems are compatible with the cable?
   The cable is compatible with CompactLogix and MicroLogix 1500 I/O systems.
4. Does the cable include termination caps?
   Yes. The package includes termination caps for secure system connection.
5. What is the cable length of the 1769-CRL1?
   The cable length is 1 foot, equivalent to 305 mm.
6. Can the cable be used in industrial automation panels?
   Yes. It is specifically designed for industrial control cabinet installations.
7. Does the cable support reliable module communication?
   Yes. The cable provides stable communication between connected Compact I/O modules.
8. Is the cable suitable for compact control cabinets?
   Yes. Its short length helps maintain organized wiring in limited spaces.
9. Can the cable be used for future system expansion?
   Yes. It is commonly used when adding additional I/O modules to existing systems.
10. What applications commonly use this cable?
    Typical applications include factory automation, machine control systems, packaging equipment, and industrial production lines.
