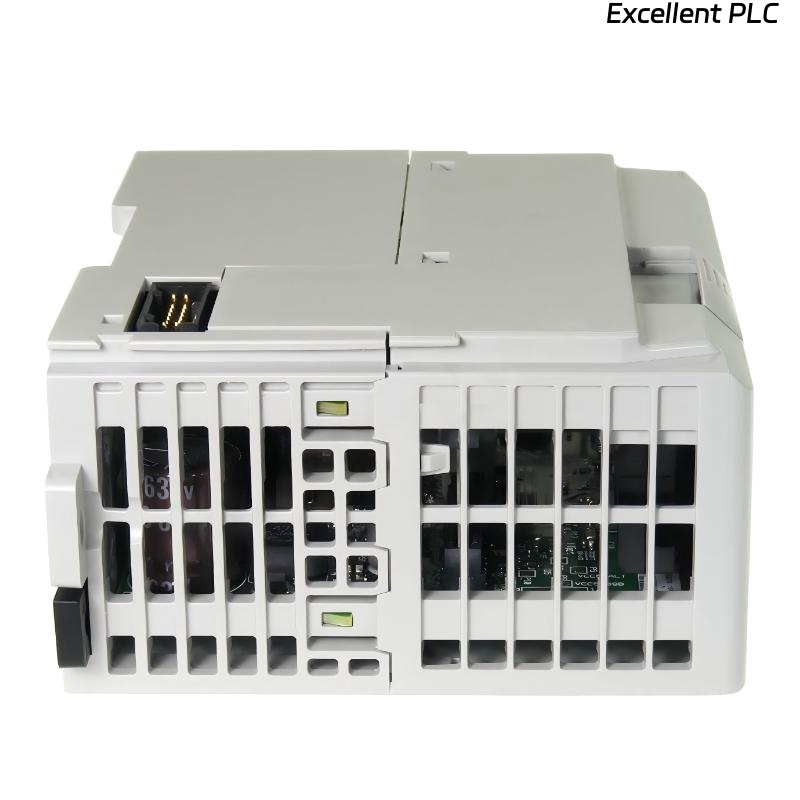

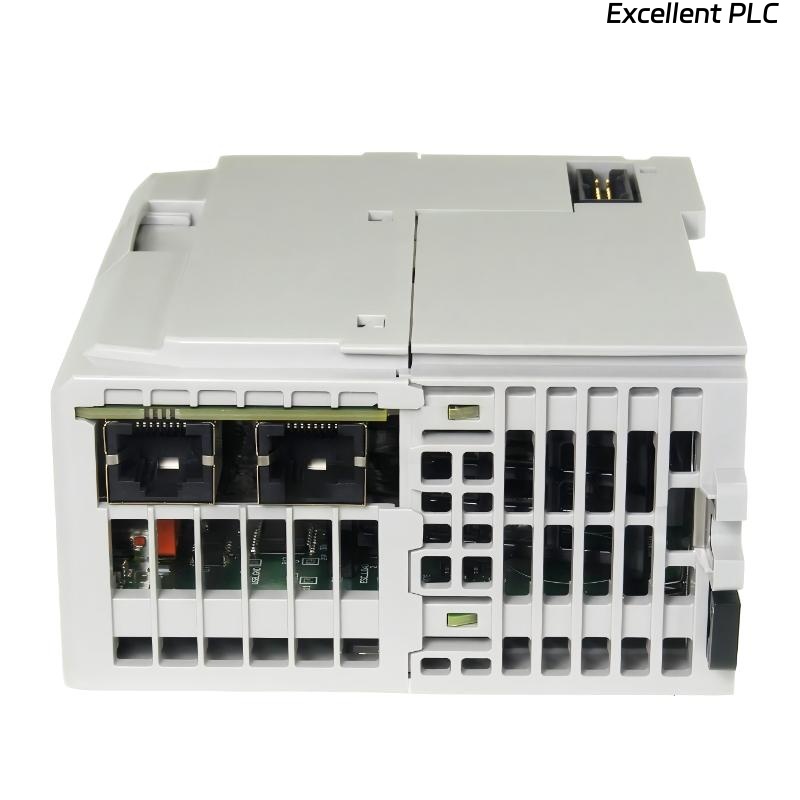

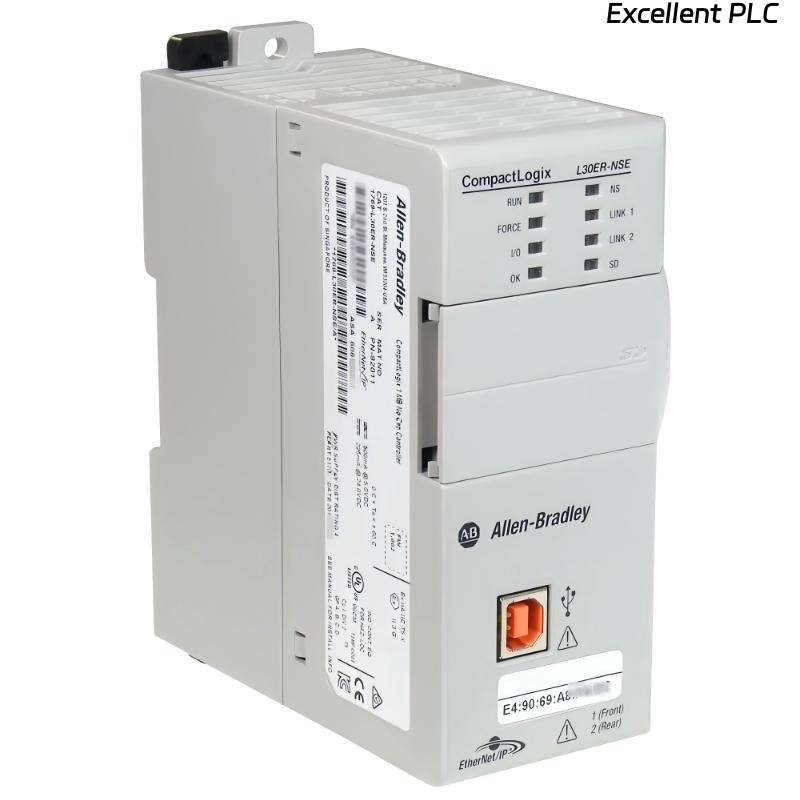

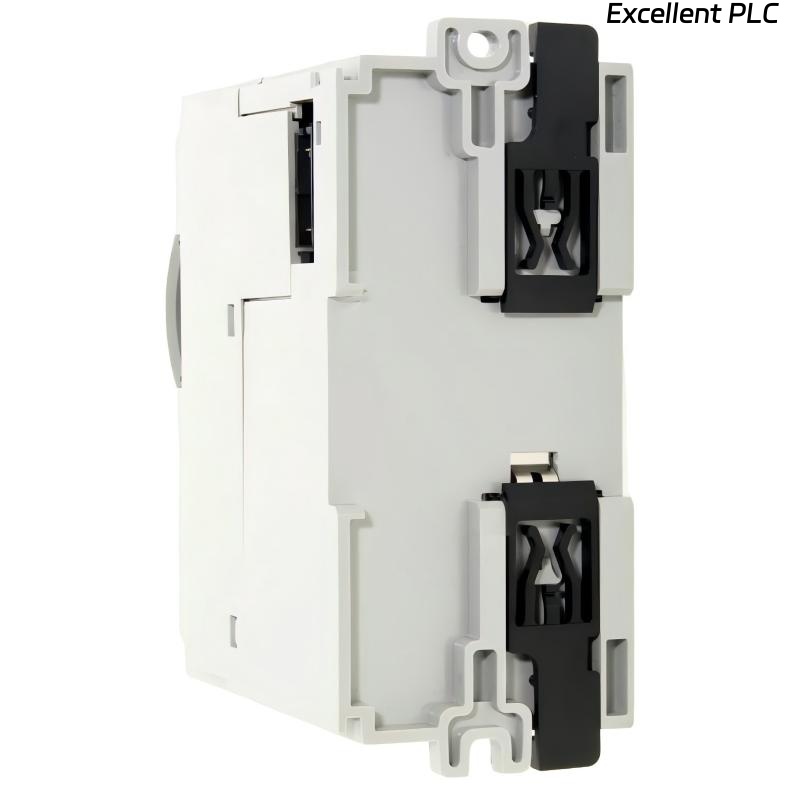

Allen Bradley 1769-L30ER-NSE CompactLogix 5370 L3 Ethernet Controller
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1769-L30ER-NSE is a compact industrial controller designed for mid-range automation systems requiring reliable logic control and integrated Ethernet communication. As part of the CompactLogix 5370 L3 family, this model is optimized for stable machine control, flexible network connectivity, and efficient system expansion.
It features dual EtherNet/IP ports with Device Level Ring (DLR) capability, enabling resilient network architecture and improved communication reliability in industrial environments. With 1 MB of memory and support for multiple Ethernet nodes, the controller is suitable for coordinated machine control and distributed automation systems.
The 1769-L30ER-NSE also includes a USB programming port for fast commissioning and maintenance, along with SD card support for data storage and system backup. It is widely used in packaging machines, conveyor systems, assembly lines, and general factory automation applications.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | Allen Bradley 1769-L30ER-NSE |
| Product Type | CompactLogix 5370 L3 Ethernet Controller |
| Series | CompactLogix 5370 L3 |
| Memory Capacity | 1 MB |
| Ethernet Ports | 2 x EtherNet/IP Ports |
| Network Capability | Dual Ethernet with DLR |
| USB Port | 1 x USB Programming/Downloading Port |
| Ethernet/IP Nodes | Up to 16 Nodes |
| I/O Expansion | Up to 8 Modules |
| SD Card Support | Up to 2 GB |
| RTC Backup | No Supercap for RTC |
| Communication Protocol | EtherNet/IP |
| Installation Type | DIN Rail / Panel Mount |
| Application Type | Industrial Automation Control |
| Dimensions | 132 × 55 × 105 mm |
| Weight | 0.31 kg |
Applications
• Machine Control Systems
Used in packaging machines, production equipment, and automated assembly systems requiring coordinated logic control.
• Material Handling Systems
Suitable for conveyors, sorting systems, and warehouse automation equipment.
• Industrial Network Control
Provides stable EtherNet/IP communication for distributed automation architectures.
• Factory Automation Lines
Applied in production lines requiring synchronized multi-device control.
• General Industrial Machinery
Used in various OEM machines requiring compact PLC control and Ethernet connectivity.
Advantages
• Dual Ethernet with DLR Support
Ensures stable network communication with redundancy capability.
• Compact Controller Design
Saves panel space while delivering strong processing performance.
• Flexible System Expansion
Supports up to 8 I/O modules for scalable automation design.
• Fast USB Programming
Simplifies commissioning and maintenance operations.
• Reliable Industrial Communication
Built-in EtherNet/IP support ensures smooth integration with industrial networks.
• Stable Continuous Operation
Designed for long-term performance in industrial environments.
FAQ
- What is the main function of the 1769-L30ER-NSE controller?
It is used to control industrial automation systems by executing logic programs and managing communication between field devices and networks. - Does the controller support Ethernet communication?
Yes. It includes two EtherNet/IP ports for industrial communication. - What is the benefit of DLR capability?
DLR provides network redundancy, improving communication reliability in case of a network failure. - How much memory does the controller have?
The controller provides 1 MB of program memory. - Can the controller support I/O expansion?
Yes. It supports up to 8 Compact I/O modules. - Does it include a USB port for programming?
Yes. A USB port is available for programming and downloading applications. - What types of systems commonly use this controller?
It is used in packaging systems, conveyor lines, and general industrial automation machines. - Is the controller suitable for networked systems?
Yes. It supports up to 16 EtherNet/IP nodes for distributed control systems. - Does the controller support SD card storage?
Yes. It supports SD cards up to 2 GB for data storage and backup. - Is this controller suitable for industrial environments?
Yes. It is designed for stable operation in industrial automation applications.
