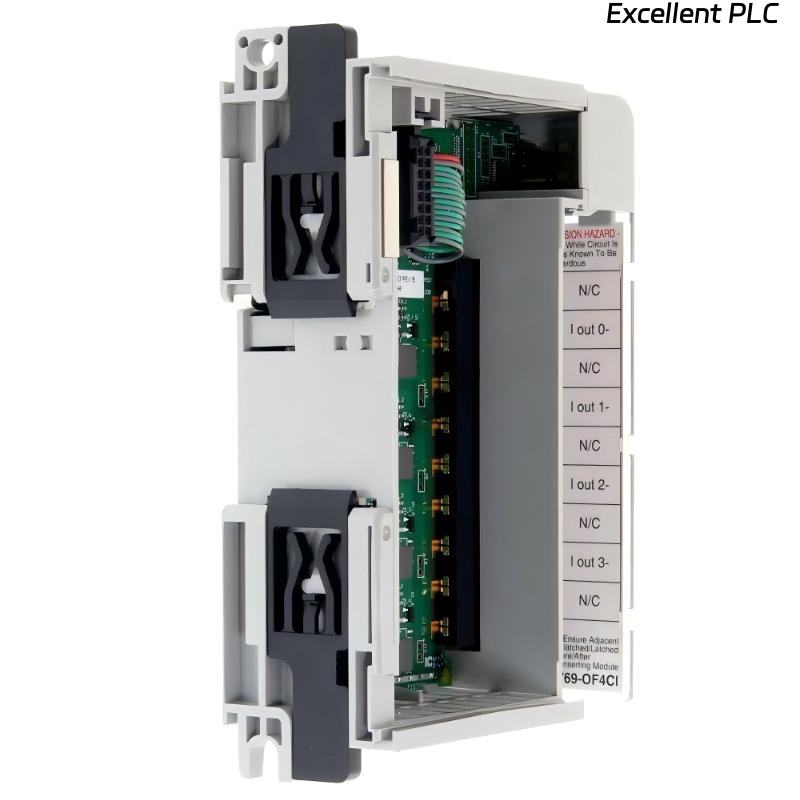

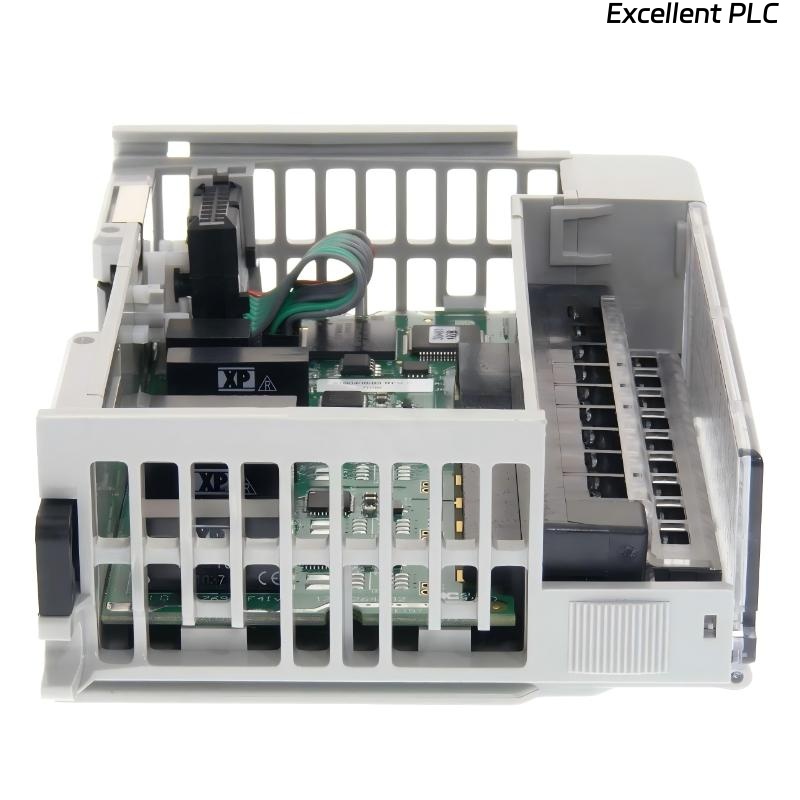

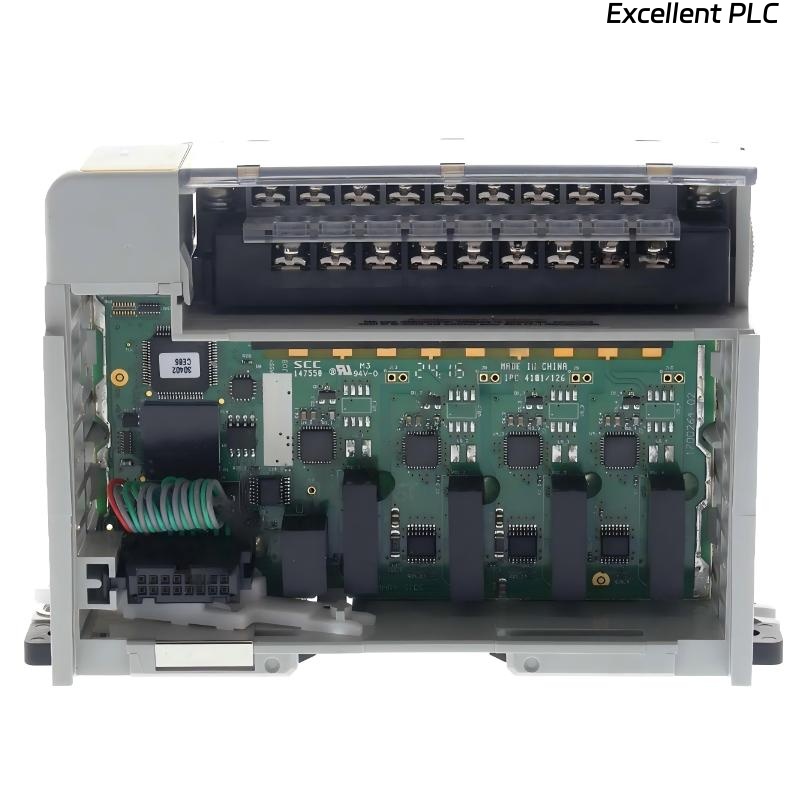

Allen Bradley 1769-OF4CI CompactLogix Compact Isolated Analog Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1769-OF4CI CompactLogix Compact Isolated Analog Output Module is a precision analog output module designed for CompactLogix systems, providing accurate current-based signal control for industrial automation applications. Built with channel isolation, it ensures stable and interference-resistant signal transmission, making it suitable for sensitive process control environments.
This module features 4 isolated analog output channels, each capable of delivering high-resolution current signals to control field devices such as valves, drives, and actuators. Its 16-bit resolution enables fine control and smooth signal output, which is essential in applications requiring precise regulation.
With a compact open-style design and seamless integration into the CompactLogix platform, the module offers reliable performance and easy deployment in modern industrial control systems.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1769-OF4CI |
| Product Series | CompactLogix |
| Module Type | Isolated Analog Output Module |
| Number of Outputs | 4 points |
| Signal Type | Current only |
| Output Resolution | 16 bits |
| Isolation Type | Channel isolation |
| Output Range | Current (typical industrial range) |
| Diagnostics | Status indicators |
| Mounting Type | DIN rail (CompactLogix system) |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.27 kg |
Applications
● Process control systems requiring precise current-based output signals for actuators and control devices
● Industrial automation equipment where stable analog signal transmission is critical
● Flow, pressure, and temperature control systems using analog current loops (e.g., 4–20 mA)
● Manufacturing processes requiring fine control of valves and variable-speed drives
● Noise-sensitive environments where isolated outputs improve signal reliability
Advantages
● Channel isolation design minimizes electrical interference and enhances system reliability
● 16-bit high resolution provides precise and stable analog signal control
● Current-only output optimized for standard industrial control loops
● Compact module size reduces panel space requirements
● Seamless CompactLogix integration ensures compatibility and ease of configuration
● Reliable performance in harsh environments supports continuous industrial operation
● Improved signal accuracy enhances process control quality
FAQ
- What is the benefit of isolated analog outputs?
Isolation prevents electrical noise and interference from affecting signal accuracy, improving system stability. - Why is current output preferred in industrial systems?
Current signals, such as 4–20 mA, are less susceptible to noise and signal loss over long distances. - What devices are typically controlled by this module?
It is used to control valves, variable frequency drives, and other analog-controlled actuators. - What does 16-bit resolution mean for performance?
It allows very fine control of output signals, resulting in smoother and more precise process adjustments. - Can this module output voltage signals?
No, it is designed specifically for current output applications. - Is the module suitable for long-distance signal transmission?
Yes, current signals are ideal for long-distance transmission with minimal signal degradation. - How is the module configured?
Configuration is performed through the PLC programming software, where output ranges and scaling are defined. - What industries commonly use this module?
Industries such as oil & gas, chemical processing, water treatment, and manufacturing. - Does the module support continuous operation?
Yes, it is designed for continuous industrial use under specified conditions. - How does isolation improve system safety?
It protects both the controller and connected devices from electrical faults and voltage spikes.
Related Models
| Model | Description |
|---|---|
| 1769-OF4 | Standard analog output module |
| 1769-IF4 | Analog input module |
| 1769-IF8 | 8-channel analog input module |
| 1769-OF2 | 2-channel analog output module |
| 1769-IF4FXOF2F | High-speed analog combination module |
| 1769-OF8C | 8-channel current output module |
Popular Models
| Model | Description |
|---|---|
| 1769-L33ER | CompactLogix Ethernet controller |
| 1756-L71 | ControlLogix processor |
| 1756-IB16 | Digital input module |
| 1756-OB16E | Digital output module |
| 1763-L16BWA | MicroLogix 1100 controller |
| 1766-L32AWAA | MicroLogix 1400 controller |
