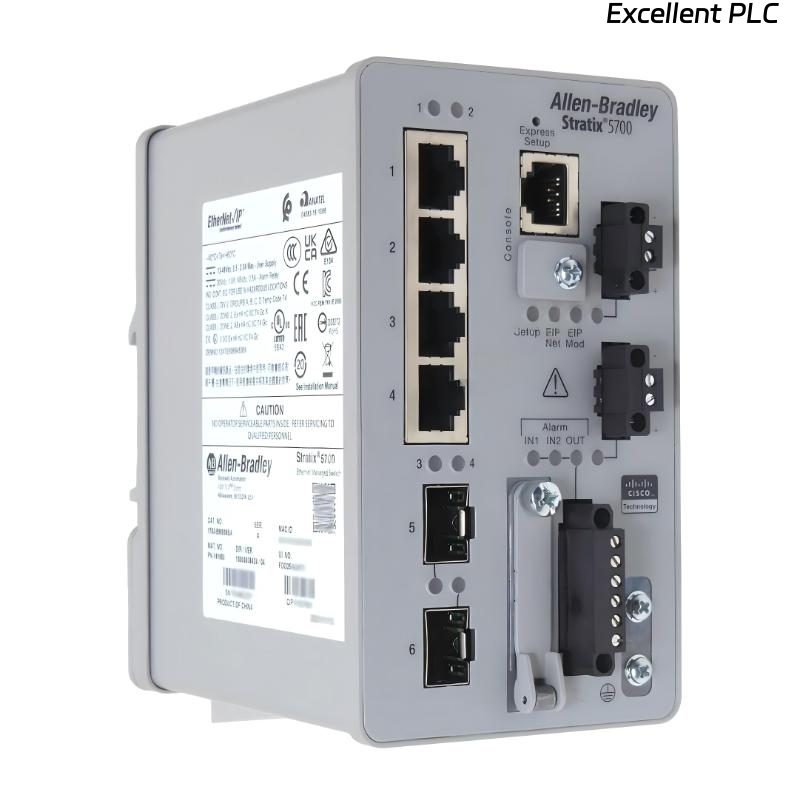

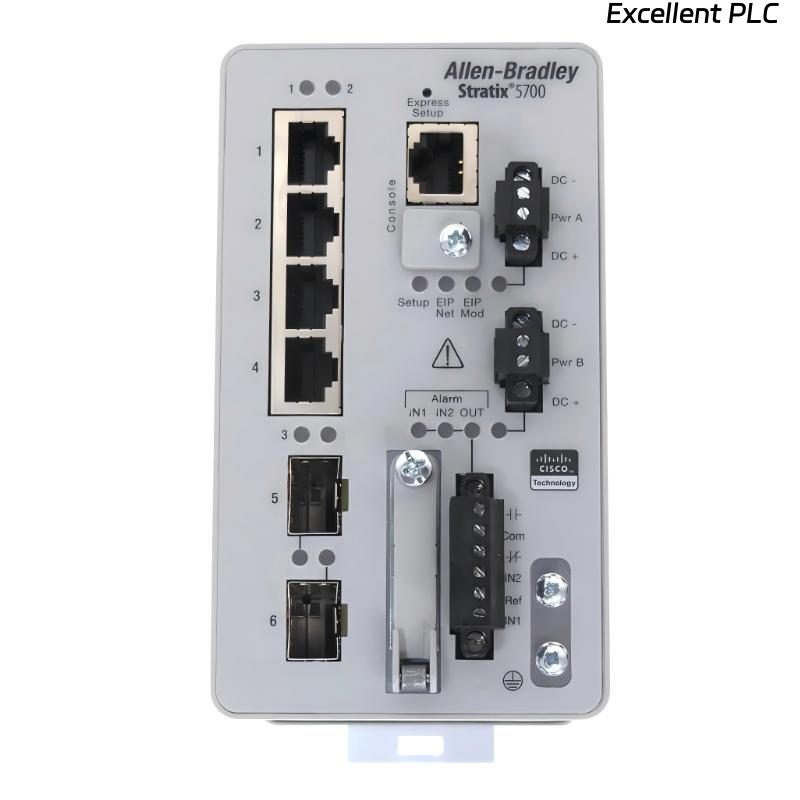

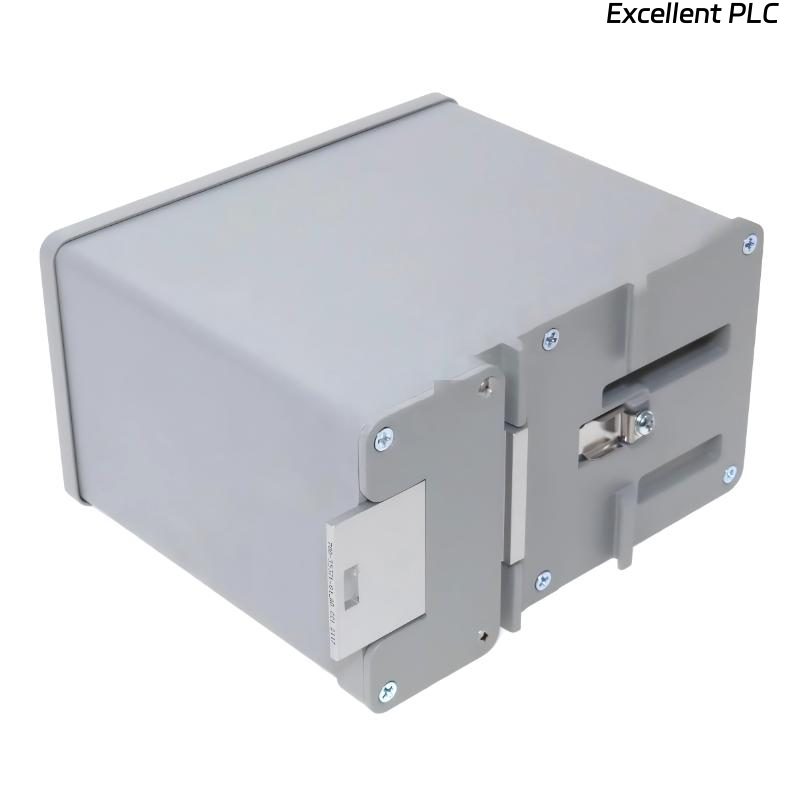

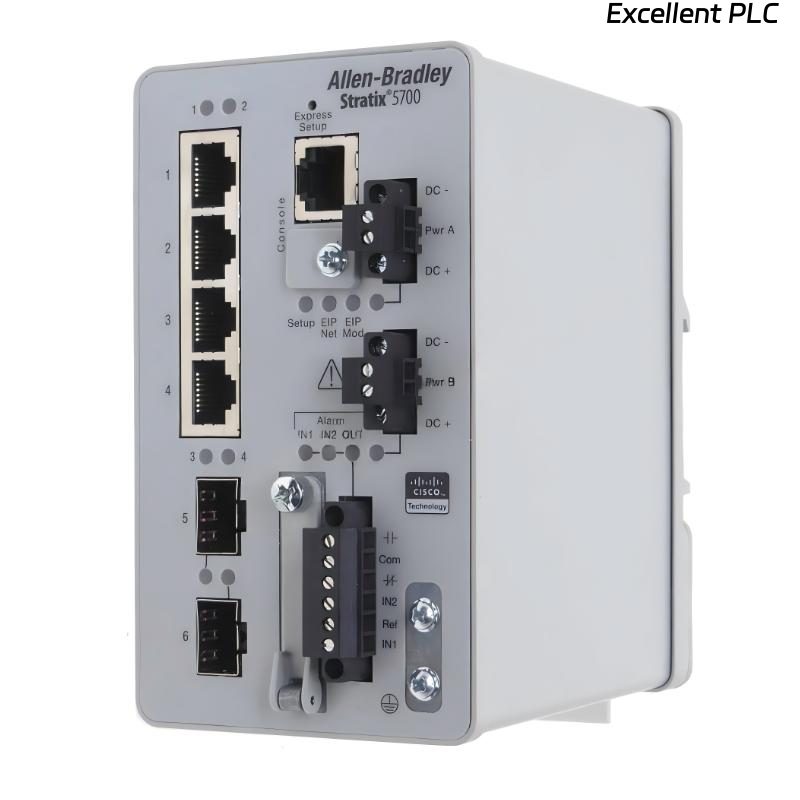

Allen Bradley 1783-BMS06SA Stratix 5700 Ethernet Managed Switch

Product Introduction

The Allen-Bradley 1783-BMS06SA Stratix 5700 Ethernet Managed Switch is an industrial-grade network switch designed for reliable, high-performance communication in automation and control systems. Developed in collaboration with Cisco technology, the Stratix 5700 series is widely used in industrial Ethernet networks where stability, security, and deterministic communication are required.

This model provides a combination of 4 Fast Ethernet 10/100 Mbps copper RJ45 ports and 2 SFP slots, allowing flexible fiber or copper network configurations. It is suitable for applications that require segmentation of control networks, integration of PLCs, HMIs, drives, and remote I/O systems.

The switch supports 24/48 VDC power input (12–60 VDC range) with dual power input capability for redundancy, improving system reliability in critical industrial environments. With DIN rail mounting and IP30 protection, it is designed for installation inside control cabinets in manufacturing and process automation systems.

---

Product Specifications

---

Applications

• Industrial automation networks – provides reliable communication between PLCs, drives, and HMIs

• Manufacturing production lines – ensures stable Ethernet communication for real-time control systems

• Process control systems – supports segmented and secure industrial network architectures

• Machine-level networking – connects controllers, I/O modules, and field devices

• Factory Ethernet infrastructure – enables fiber and copper hybrid network design

---

Advantages

• Cisco-based managed switching platform ensures advanced network control and diagnostics

• Dual SFP slots provide flexible fiber optic communication options for long-distance connectivity

• Redundant power input design improves system reliability and uptime

• Industrial-grade construction ensures stable operation in harsh environments

• Full managed features support VLANs, QoS, and network security functions

• Compact DIN rail design simplifies control cabinet installation

FAQ

1. What is the main function of the 1783-BMS06SA switch?
   It is used to manage and distribute industrial Ethernet communication between automation devices such as PLCs, HMIs, and drives.
2. What type of ports does this switch support?
   It has 4 Fast Ethernet RJ45 ports and 2 SFP slots for fiber or copper uplink connections.
3. What is the advantage of using SFP slots?
   SFP slots allow fiber optic connections, which support longer distances and improved noise immunity in industrial environments.
4. Is this a managed or unmanaged switch?
   It is a fully managed switch with advanced configuration and monitoring capabilities.
5. What power supply does it use?
   It operates on 24/48 VDC with a wide input range of 12–60 VDC and supports dual power inputs.
6. Is it suitable for industrial environments?
   Yes, it is designed for installation inside industrial control cabinets with IP30 protection.
7. Can it be used in redundant network systems?
   Yes, dual power inputs and managed features support redundancy and network reliability.
8. What industries commonly use this switch?
   It is widely used in manufacturing, process automation, and industrial networking systems.
9. Does it support network security features?
   Yes, Stratix 5700 switches support VLANs, QoS, and security configurations.
10. Why choose a Stratix 5700 switch for automation systems?
    Because it provides industrial reliability combined with advanced Cisco networking features for stable and secure communication.
