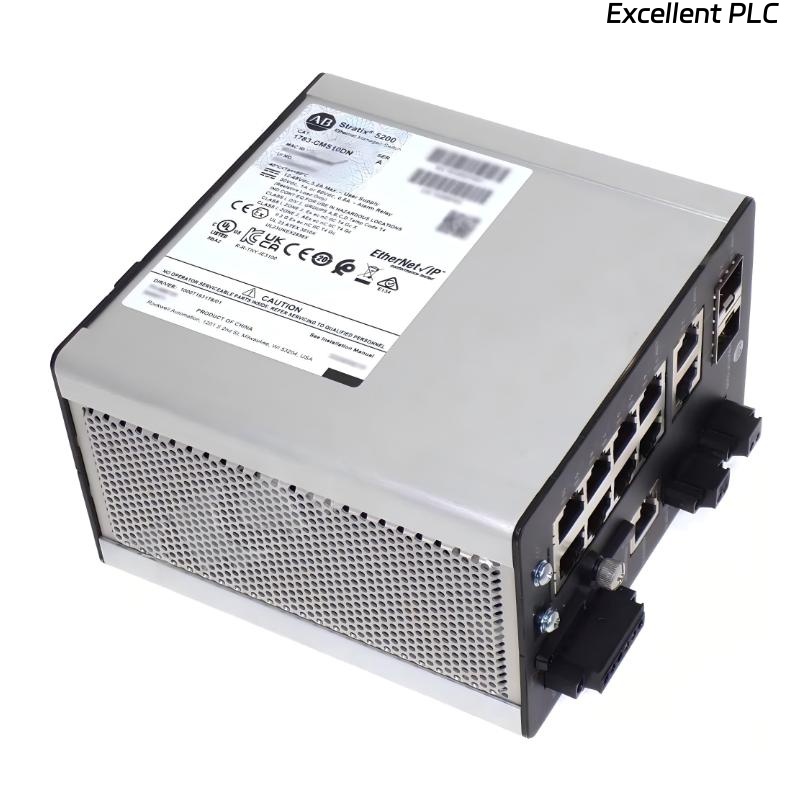

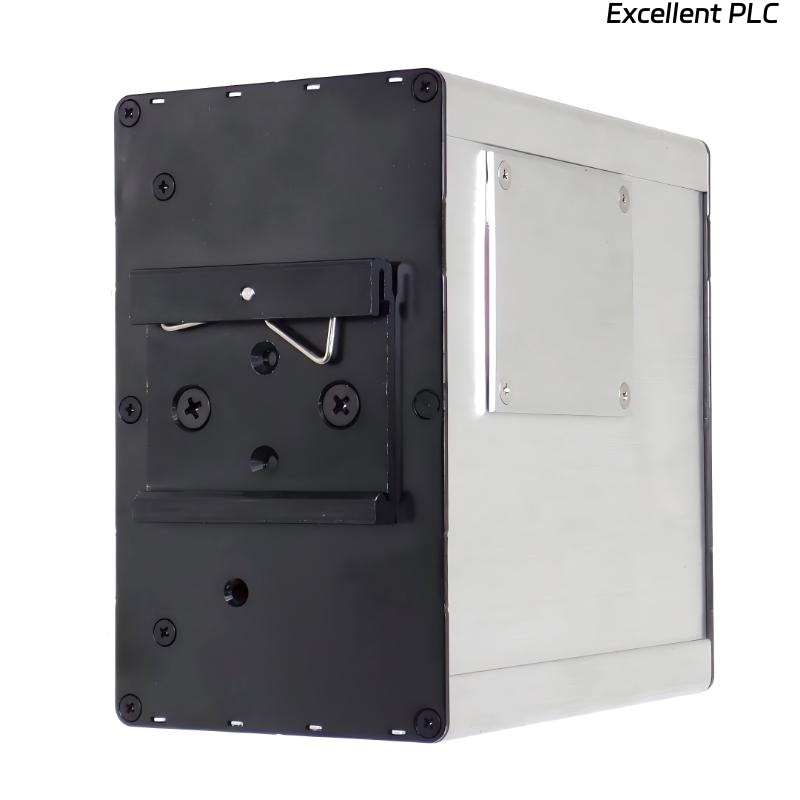

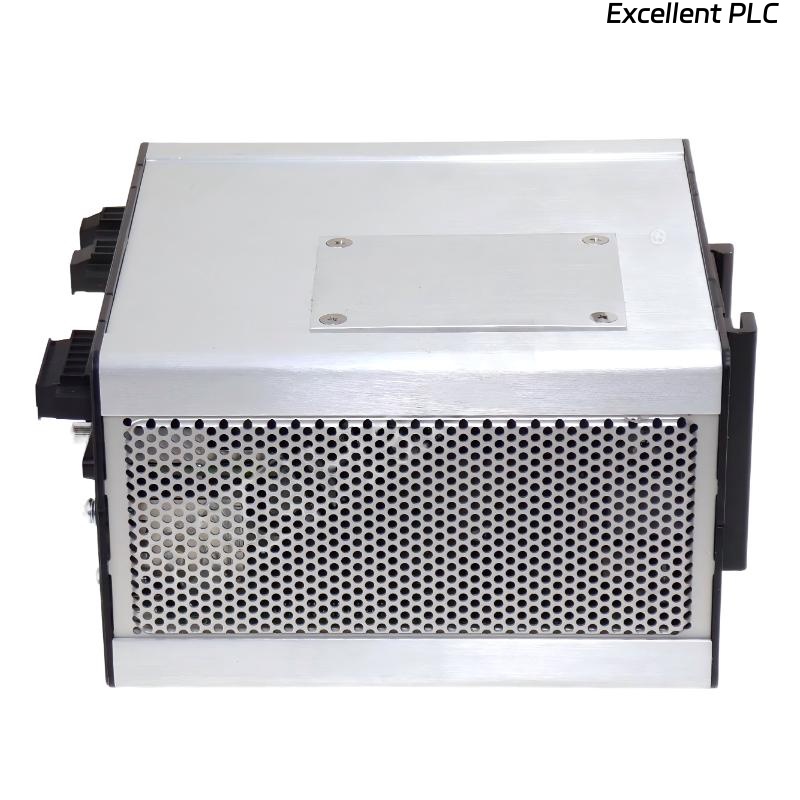

Allen Bradley 1783-CMS10DN Stratix 5200 EtherNet Managed Switch

Product Introduction

The Allen Bradley 1783-CMS10DN is an industrial-grade managed Ethernet switch designed for high-performance network communication in automation and control systems. It is part of the Stratix 5200 series, developed for secure, reliable, and real-time industrial Ethernet networking.

This switch provides advanced network management capabilities including support for DLR (Device Level Ring), PRP (Parallel Redundancy Protocol), and NAT functions, making it suitable for complex industrial network architectures requiring redundancy and deterministic communication. It also supports IEEE 1588 Precision Time Protocol (PTP) for accurate time synchronization across connected devices.

With multiple Gigabit Ethernet ports and industrial rugged design, the 1783-CMS10DN is widely used in manufacturing plants, process industries, power systems, and machine-level networking where network stability and real-time data exchange are critical.

Product Specifications

Applications

• Industrial Automation Networks
Provides stable Ethernet communication for PLCs, I/O systems, and industrial controllers in manufacturing environments.

• Machine-Level Networking
Used for connecting sensors, drives, and controllers within automated machinery systems.

• Process Control Systems
Supports real-time communication in chemical plants, oil & gas facilities, and water treatment systems.

• Redundant Industrial Networks
DLR and PRP support enables high-availability network architectures with minimal downtime risk.

• Power and Utility Systems
Applied in substations and energy distribution systems requiring precise time synchronization and stable communication.

• Factory Backbone Networks
Serves as a core or distribution switch in industrial Ethernet architectures.

Advantages

• High Network Reliability
Supports DLR and PRP redundancy protocols to maintain continuous communication even during network faults.

• Advanced Time Synchronization
IEEE 1588 PTP ensures precise timing across all connected automation devices.

• Industrial-Grade Design
Built for harsh environments with strong resistance to vibration and electrical noise.

• Flexible Network Management
Fully managed switch with advanced configuration and monitoring capabilities.

• Multiple Power Inputs
Dual power source design improves system reliability and reduces downtime risk.

• High-Speed Communication
Gigabit Ethernet support ensures fast and stable data transmission across industrial networks.
