Allen Bradley 1783-CMS10P Stratix 5200 Ethernet Managed Switch

Product Introduction

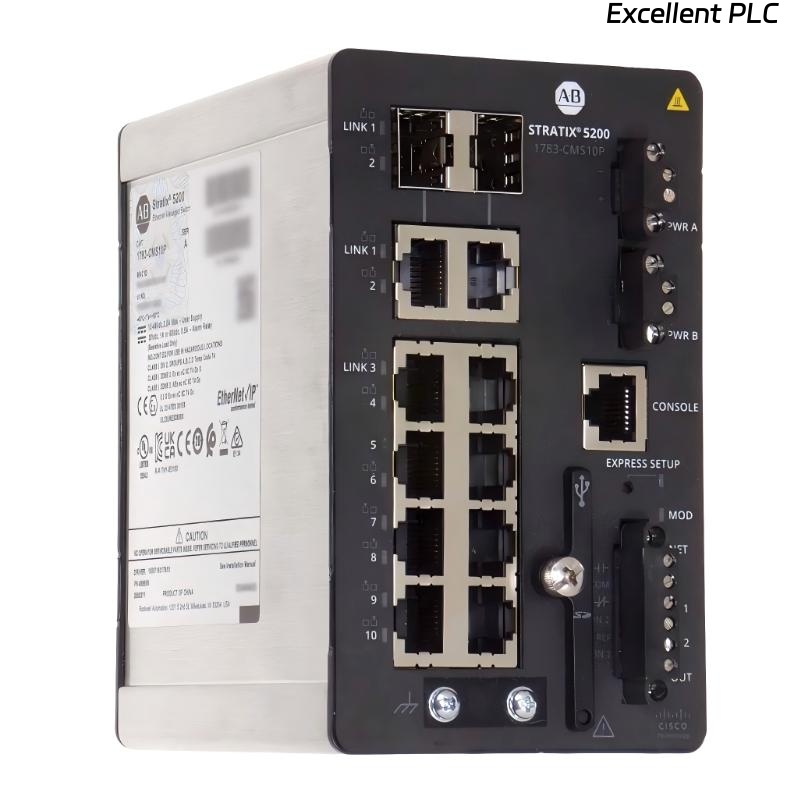

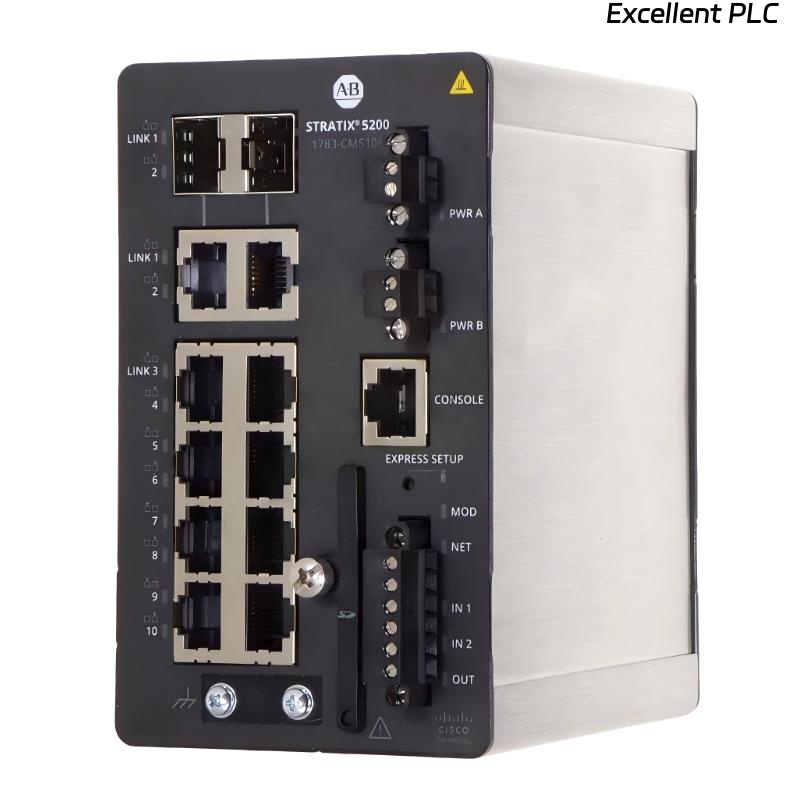

The Allen Bradley 1783-CMS10P is a Stratix 5200 Ethernet Managed Switch designed for high-performance industrial networking. It provides robust connectivity for EtherNet/IP and other industrial protocols, ensuring reliable communication across devices and controllers in manufacturing and automation systems.

Equipped with eight 100/1000 Mbps copper RJ45 ports and two combo 100/1000 Mbps ports, this switch supports high-speed data transfer and network redundancy. It includes dual power source connectors with a 24–48 V DC operating range and complies with IEEE 1588 Precision Time Protocol for accurate time synchronization across the network. The switch is DIN-rail mountable and IP30-rated, making it suitable for industrial control panels and harsh environments.

---

Product Specifications

---

Applications

• Industrial Networking – Provides high-speed connectivity for industrial control systems.

• EtherNet/IP Integration – Connects controllers, HMIs, and devices for efficient data exchange.

• Precision Timing – IEEE 1588 protocol ensures synchronized communication across all networked devices.

• Redundant Power Implementation – Dual power inputs support uninterrupted operation.

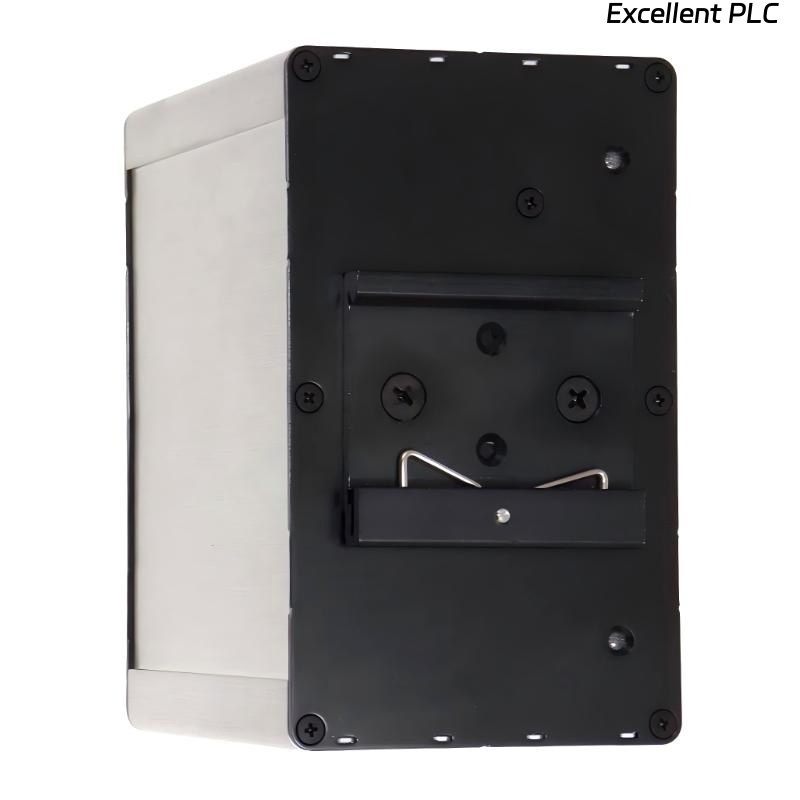

• Panel Mounting – DIN-rail mounting makes it ideal for control cabinets and industrial enclosures.

---

Advantages

• High Port Density – 10 ports allow flexible network expansion.

• Gigabit Ethernet Support – Provides fast data transfer for demanding industrial applications.

• Dual Power Inputs – Ensures reliable and redundant power supply for critical systems.

• Time-Synchronized Networking – Supports IEEE 1588 Precision Time Protocol for accurate event logging and process control.

• Managed Switch Capabilities – Full software allows network configuration, monitoring, and diagnostics.

• Rugged Design – DIN-rail mounting and IP30 rating ensure durability in industrial environments.

FAQ

1. How many network ports does the 1783-CMS10P switch have?
   It has eight 100/1000 Mbps copper RJ45 ports and two combo 100/1000 Mbps ports.
2. What voltage range does it support?
   It operates from 12 to 60 V DC, typically using 24/48 V DC.
3. Does it support time synchronization?
   Yes, it supports IEEE 1588 Precision Time Protocol.
4. Can it be mounted in a control panel?
   Yes, it is DIN-rail mountable.
5. What level of ingress protection does it provide?
   It is rated IP30 for industrial use.
6. Does it support managed switch features?
   Yes, it provides full software for network configuration, monitoring, and diagnostics.
7. Can it provide redundant power supply?
   Yes, it has dual power source connectors for redundancy.
8. Is it suitable for EtherNet/IP networks?
   Yes, it is fully compatible with EtherNet/IP devices and controllers.
9. Can it handle high-speed industrial traffic?
   Yes, all ports support 100/1000 Mbps for fast, reliable data transfer.
10. Is it suitable for panel or cabinet installations?
    Yes, the compact DIN-rail design is ideal for control panels and industrial enclosures.
