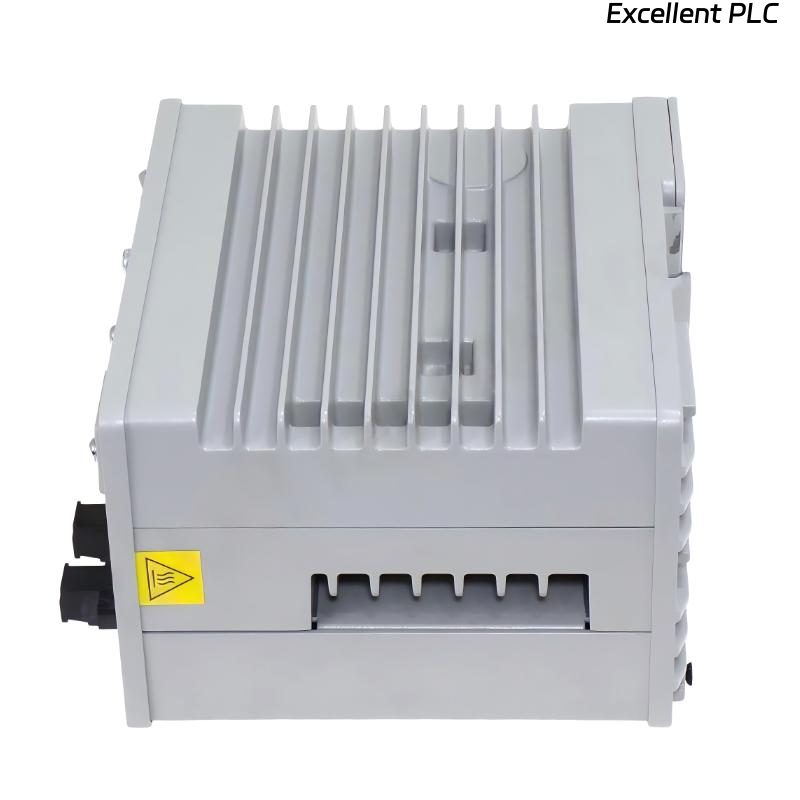

Allen Bradley 1783-MMS10ER Stratix 5800 Ethernet Managed Switch
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1783-MMS10ER Stratix 5800 Ethernet Managed Switch is a high-performance industrial networking device designed to provide secure, reliable, and scalable communication in automation systems. Developed as part of the Stratix 5800 series, this managed switch integrates advanced Layer 3 capabilities, enabling efficient routing, traffic management, and network segmentation for complex industrial environments.

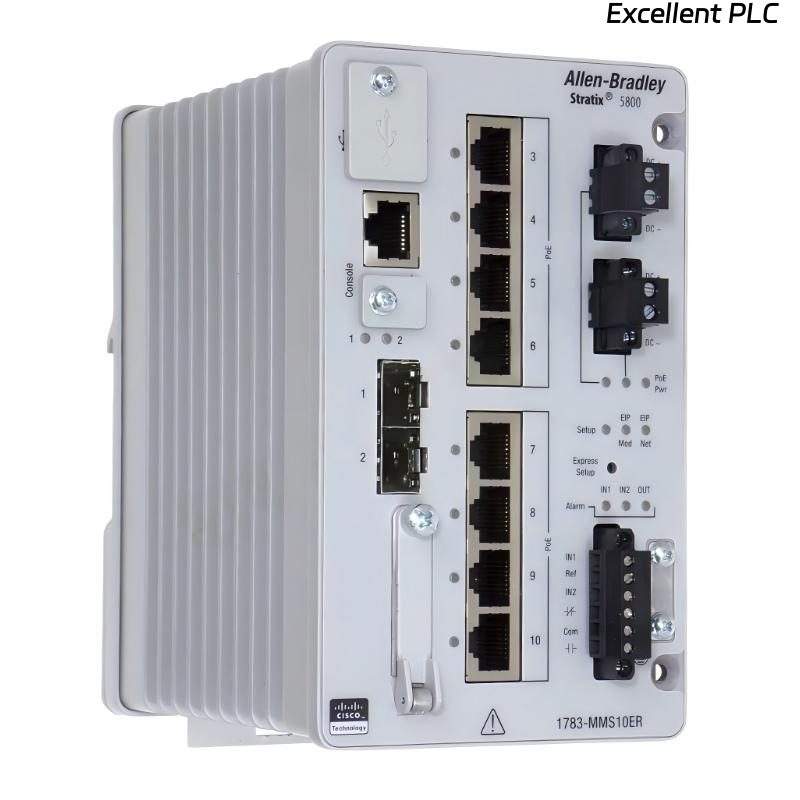

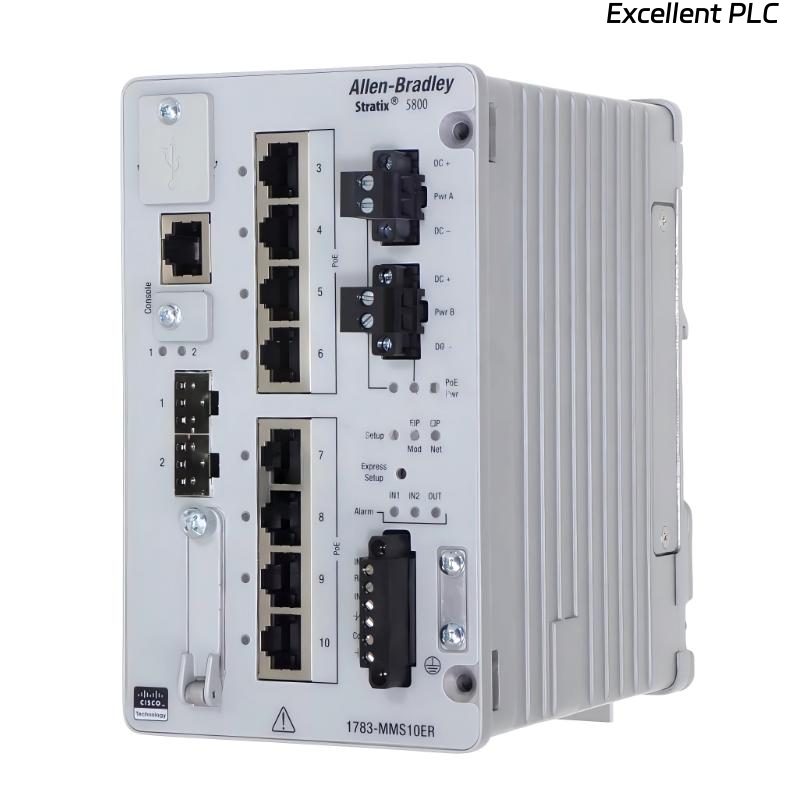

Equipped with 8 PoE (Power over Ethernet) ports and 2 SFP slots, the 1783-MMS10ER supports both copper and fiber-optic connections, allowing flexible network architecture design. It is engineered for seamless integration with industrial control systems, especially those based on EtherNet/IP networks. With its rugged IP30-rated enclosure and DIN rail mounting, this switch is ideal for harsh industrial conditions, ensuring stable and continuous communication.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 1783-MMS10ER |
| Series | Stratix 5800 |
| Product Type | Ethernet Managed Switch |
| Layer Support | Layer 3 Managed Switch |
| Ethernet Ports | 8 × PoE Ports (10/100/1000 Mbps) |
| SFP Slots | 2 × SFP Slots (100/1000 Mbps) |
| PoE Capability | Yes (Power over Ethernet supported) |
| Network Protocols | EtherNet/IP, VLAN, QoS, IGMP, routing protocols |
| Power Supply | Dual input power connectors |
| Input Voltage Range | 12–48 V DC (24/48 V DC nominal) |

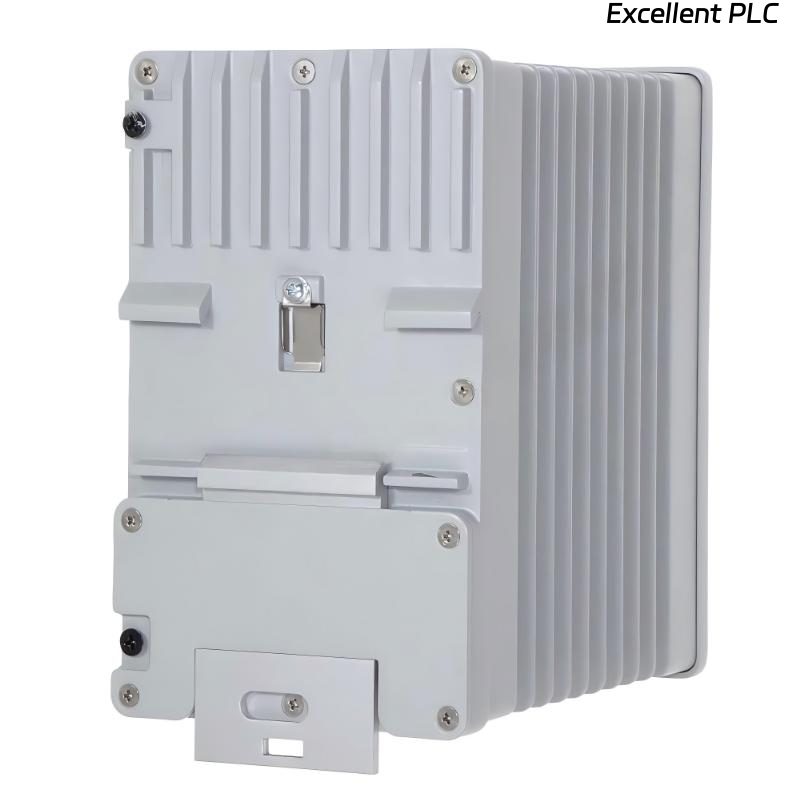

| Mounting Type | DIN Rail Mounting |
| Protection Rating | IP30 |
| Operating Environment | Industrial automation environments |
| Dimensions | 153.23 × 91.4 × 151.6 mm |
| Weight | 0.95 kg |
Applications
• Industrial Automation Networks:
Provides reliable and managed Ethernet connectivity, supporting PLCs, HMIs, and I/O devices.
• Smart Manufacturing Systems:
Enables real-time communication for production lines and automated processes.
• Power and Energy Systems:
Used in substations and power plants for secure and stable data transmission.
• Machine-Level Networking:
Supports communication between sensors, controllers, and industrial equipment.
• Security and Surveillance Systems:
PoE ports allow direct powering of IP cameras and monitoring devices.
Advantages
• Advanced Layer 3 Functionality:
Supports routing and traffic segmentation, improving network performance and scalability.
• Integrated PoE Capability:
Reduces wiring complexity by delivering power and data over a single Ethernet cable.
• Flexible Connectivity:
Combination of copper ports and SFP slots enables versatile network design.
• Industrial-Grade Design:
IP30-rated enclosure ensures durability in harsh environments.
• Dual Power Inputs:
Enhances system reliability with redundant power supply options.
• Seamless Integration:
Optimized for EtherNet/IP and industrial control systems.
FAQ
- What is the main function of the 1783-MMS10ER switch?
It provides managed Ethernet connectivity with advanced Layer 3 routing capabilities for industrial networks. - How many Ethernet ports are available?
It has 8 PoE-enabled Ethernet ports supporting 10/100/1000 Mbps speeds. - What are the SFP slots used for?
They are used for fiber-optic connections, allowing long-distance and high-speed communication. - Does it support Power over Ethernet?
Yes, it provides PoE to power connected devices such as cameras or access points. - Is it suitable for industrial environments?
Yes, it is designed with an IP30-rated enclosure for industrial use. - What is the benefit of Layer 3 functionality?
It enables routing between networks, improving traffic management and scalability. - Does it support redundant power input?
Yes, it has dual power connectors for improved reliability. - Can it be mounted in control panels?
Yes, it supports DIN rail mounting for easy installation. - Is it compatible with EtherNet/IP networks?
Yes, it is optimized for EtherNet/IP industrial communication. - What industries commonly use this switch?
It is widely used in manufacturing, energy, transportation, and industrial automation sectors.
Related Models
| Model | Description |
|---|---|
| 1783-MMS10EA | Stratix 5800 managed switch without PoE |
| 1783-MMS06TGL | Compact Stratix managed switch |
| 1783-BMS10CL | Stratix 5700 Lite managed switch |
| 1783-EMS08T | Stratix 2000 unmanaged switch |
| 1783-ETAP | EtherNet/IP tap module |
| 1783-MMS10R | Stratix managed switch variant |
Popular Models
| Model | Description |
|---|---|
| 1783-MMS10ER | Stratix 5800 managed switch |
| 1756-EN2TR | ControlLogix Ethernet communication module |
| 1734-AENTR | POINT I/O Ethernet adapter |
| 1769-L33ER | CompactLogix controller |
| 2711P-T7C4D8 | PanelView Plus 7 operator terminal |
| 22A-D2P3N104 | PowerFlex 4 AC drive |
