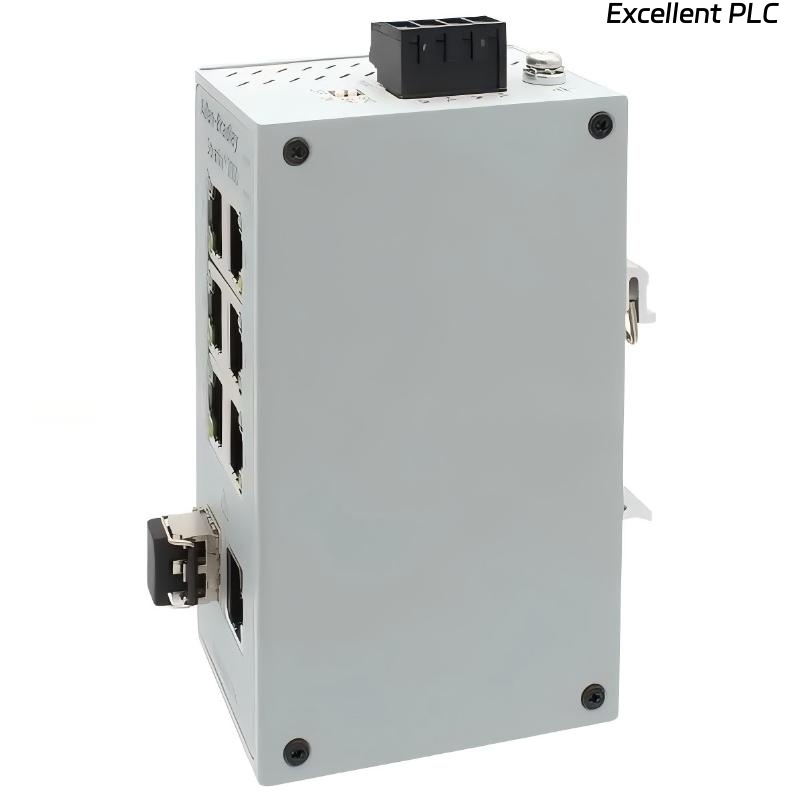

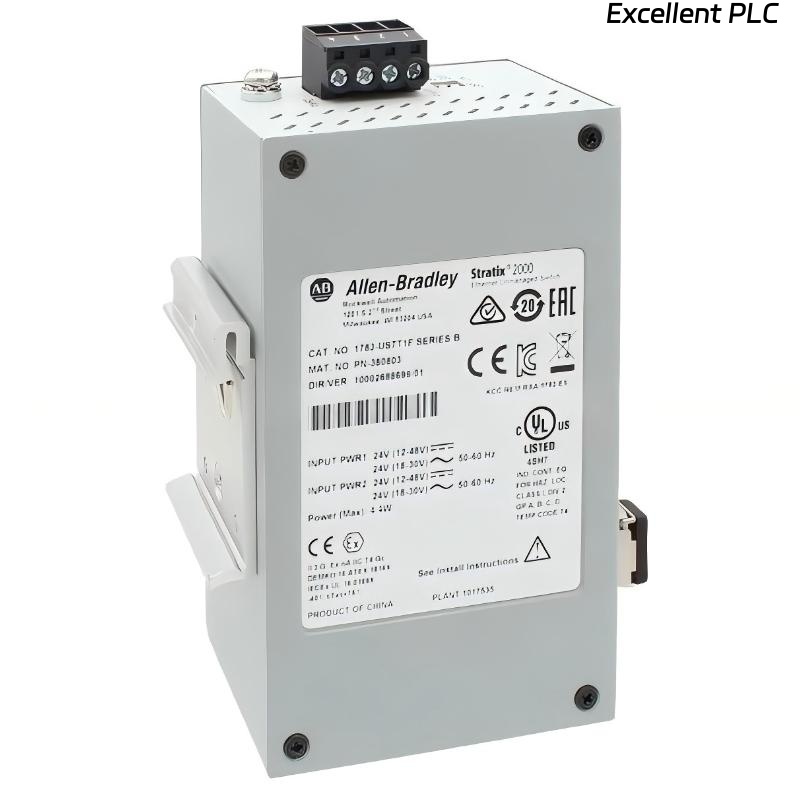

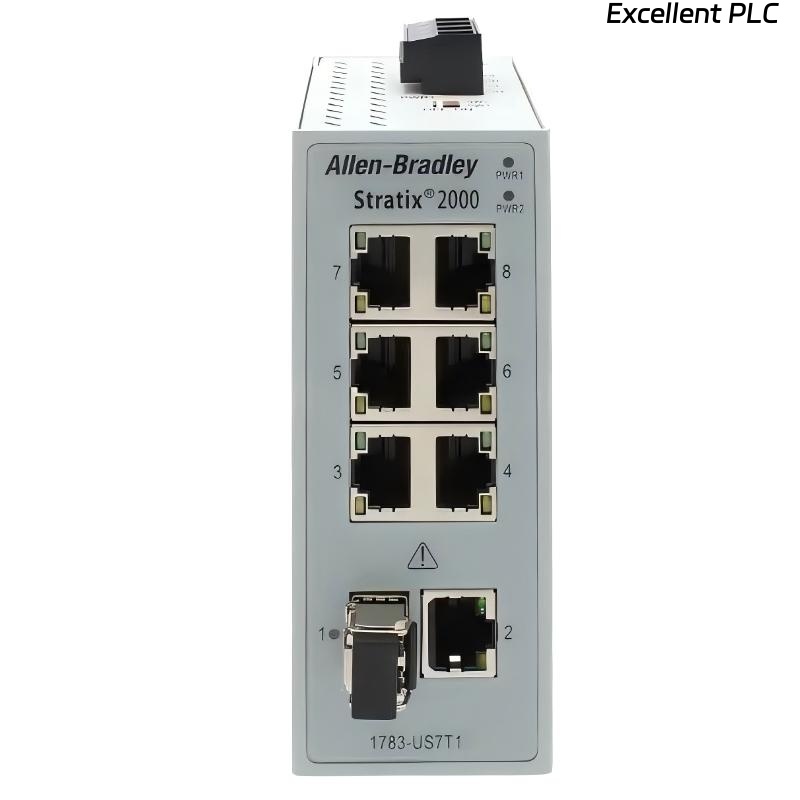

Allen Bradley 1783-US7T1H/B Stratix 2000 Unmanaged EtherNet Switch
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1783-US7T1H/B Stratix 2000 Unmanaged Ethernet Switch is an industrial networking device designed to provide reliable and stable Ethernet communication in automation systems. It is built for plug-and-play operation, allowing fast deployment without any configuration or programming requirements. The switch is intended for industrial environments where consistent data exchange between controllers, field devices, and supervisory systems is critical. It integrates both copper and singlemode fiber connectivity, enabling flexible network design for short-distance machine-level communication as well as long-distance industrial networking. With its rugged industrial construction, it is engineered to operate reliably under conditions such as electrical noise, vibration, and temperature fluctuations, making it suitable for factory automation, process control, and distributed industrial Ethernet applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | 1783-US7T1H/B |
| Series | Stratix 2000 |
| Type | Unmanaged Ethernet Switch |
| Ports per Module | 8 |
| Copper Ports | 7 × 10/100 Mbps Full/Half Duplex |
| Fiber Port | 1 × 100 Mbps Singlemode Fiber |
| Input Power Range | 10–24V AC / 10–35V DC |
| Mounting Type | DIN Rail Mounting |
| Operating Mode | Plug-and-Play (Unmanaged) |
| Network Standard | IEEE 802.3 compliant |
| Dimensions | 114.5 × 45.6 × 76.8 mm |
| Weight | 1.22 kg |
Applications
• Industrial Automation Systems
Used to connect PLCs, HMIs, drives, and distributed control devices for stable Ethernet communication in automation environments
• Machine-Level Networking
Enables reliable communication between machines, sensors, and industrial controllers in production lines
• Factory Communication Networks
Supports Ethernet-based data exchange across manufacturing facilities and control cabinets
• Process Control Systems
Ensures stable communication in industries such as chemical processing, oil & gas, and water treatment
• Extended Industrial Networking
Singlemode fiber port allows long-distance communication between distributed industrial network segments
Advantages
• Easy Installation and Use
No configuration required, enabling immediate operation after installation
• Industrial Reliability
Designed to withstand harsh environments including vibration, electrical interference, and temperature variations
• Flexible Network Design
Combination of copper and fiber ports supports both local and long-distance communication needs
• Stable Ethernet Performance
Provides consistent and reliable data transmission for industrial automation systems
• Low Maintenance Operation
Unmanaged architecture reduces complexity and long-term maintenance requirements
• Compact Industrial Design
Suitable for installation in standard industrial control cabinets
FAQ
- What types of devices can be connected to this switch?
It supports industrial Ethernet devices such as PLCs, HMIs, drives, sensors, and industrial computers used in automation systems. - Does this switch require configuration before use?
No, it is an unmanaged switch and operates automatically once power and network connections are established. - What is the purpose of the singlemode fiber port?
It is used for long-distance communication between industrial network segments and provides strong resistance to electromagnetic interference. - Can this switch operate in harsh industrial environments?
Yes, it is designed for industrial conditions and can withstand vibration, noise, and temperature fluctuations. - What power supply does it require?
It supports 10–24V AC and 10–35V DC input, suitable for industrial power systems. - Is it suitable for real-time communication?
Yes, it provides stable Ethernet performance suitable for typical industrial real-time applications. - What network speeds are supported?
Copper ports support 10/100 Mbps, while the fiber port supports 100 Mbps singlemode transmission. - Can it be used in redundant network systems?
It can be used in simple redundancy configurations but does not support advanced managed redundancy features. - How is it installed?
It is designed for DIN rail mounting in industrial control panels. - What is the main limitation of this device?
It does not support advanced network management features such as VLAN, QoS, or traffic prioritization.
Related Models
| Model | Description |
|---|---|
| 1783-US4T | 4-port unmanaged switch |
| 1783-US5T | 5-port unmanaged switch |
| 1783-US8T | 8-port unmanaged switch |
| 1783-US4T1H | Copper/fiber hybrid model |
| 1783-SFP1GLX | Gigabit fiber module |
| 1783-SFP1GSX | Short-range fiber module |
Popular Models
| Model | Description |
|---|---|
| 1783-ETAP | Industrial Ethernet TAP device |
| 1783-BMS06T | Managed Stratix Ethernet switch |
| 1783-NATR | Network address translation router |
| 1783-US16T | 16-port unmanaged switch |
| 1783-SFP100FX | Fiber communication module |
| 1783-CMS10 | Compact managed industrial switch |
