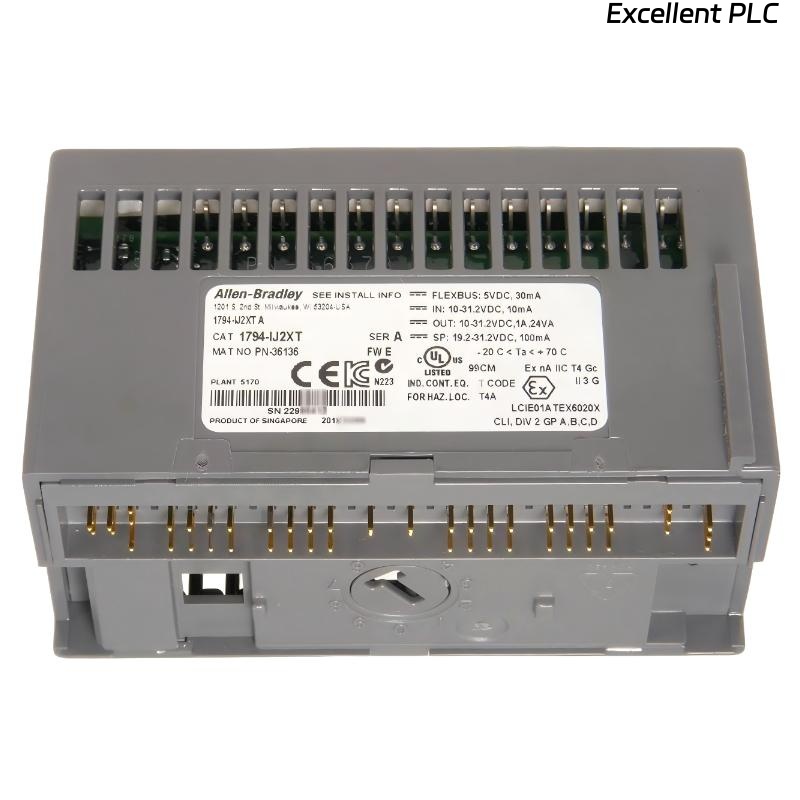

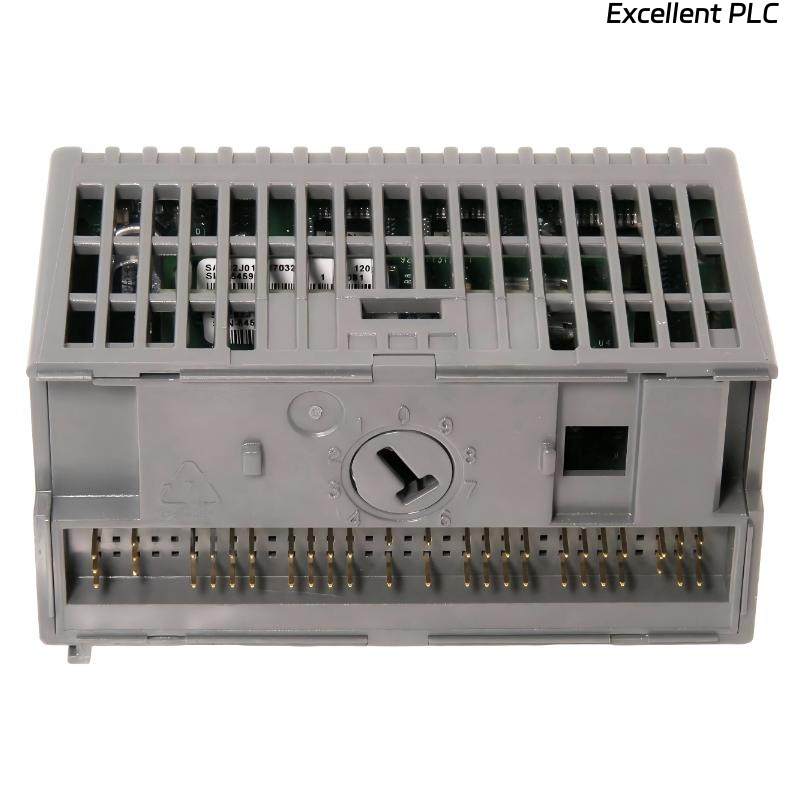

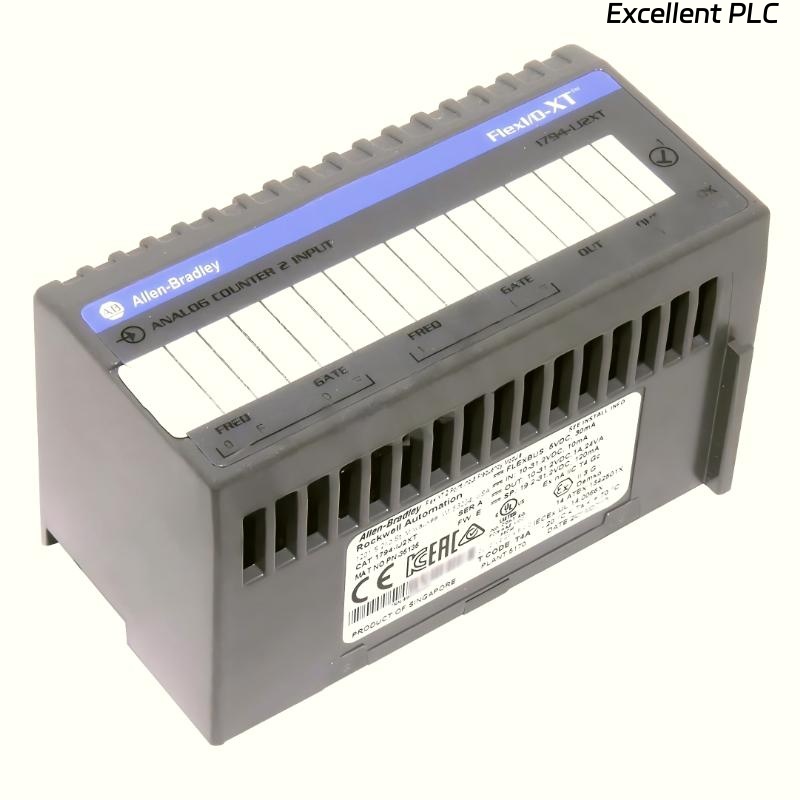

Allen Bradley 1794-IJ2XT Flex I/O-XT Input Frequency Module

Product Introduction

The Allen-Bradley 1794-IJ2XT FLEX I/O-XT Input Frequency Module is an extended temperature, high-performance input module designed for precise frequency and gate signal measurement in demanding industrial environments. As part of the FLEX I/O-XT series, it is engineered to operate reliably in harsh conditions where standard modules may not perform adequately.

This module features 2 independent input channels capable of handling both frequency and gate input signals, making it suitable for applications requiring accurate timing, counting, and speed measurement. Its high-resolution capability ensures precise data acquisition from devices such as encoders, flow meters, and pulse generators.

Designed for distributed control architectures, the 1794-IJ2XT integrates seamlessly into FLEX I/O systems. Its open-style design and DIN rail mounting simplify installation, while its extended temperature range of -20°C to +70°C ensures stable operation in extreme environments.

---

Product Specifications

---

Applications

• Harsh Environment Monitoring
Designed for applications operating in extreme temperature conditions, such as outdoor or heavy industrial sites.

• Speed and Motion Control Systems
Measures signals from encoders and tachometers for accurate speed and position monitoring.

• Flow Measurement Systems
Captures pulse signals from flow meters for precise flow rate calculations.

• Industrial Automation
Integrates frequency-based inputs into distributed control systems for improved monitoring.

• Energy and Utilities
Used in monitoring turbines, generators, and rotating equipment.

• Remote I/O Installations
Ideal for FLEX I/O systems deployed in remote or environmentally challenging locations.

---

Advantages

• Extended Temperature Capability
Operates reliably in environments from -20°C to +70°C, making it suitable for harsh conditions.

• Dual-Channel Input Design
Allows simultaneous measurement of multiple frequency or gate signals.

• High-Resolution Measurement
Ensures accurate detection of frequency changes for precision control applications.

• Flexible Signal Handling
Supports both frequency and gate inputs, increasing application versatility.

• Compact Modular Design
Saves space and integrates easily into distributed FLEX I/O systems.

• Reliable Industrial Performance
Designed for consistent operation in demanding automation environments.

• Easy Installation
DIN rail mounting simplifies deployment and maintenance.

FAQ

1. What is the main function of the 1794-IJ2XT module?
   It measures frequency and gate input signals from field devices and provides accurate data for control systems.
2. What is the advantage of the extended temperature rating?
   It allows the module to operate reliably in environments where temperatures fluctuate significantly or fall outside standard ranges.
3. How many channels does this module support?
   It supports 2 independent input channels.
4. What types of signals can be connected to this module?
   It supports frequency and gate signals from devices such as encoders, flow meters, and pulse generators.
5. Is this module suitable for distributed I/O systems?
   Yes, it is designed for FLEX I/O distributed architectures commonly used in industrial automation.
6. How does high-resolution measurement benefit applications?
   It provides more accurate signal detection, improving control precision and system performance.
7. Can it be used for speed monitoring?
   Yes, it is widely used for monitoring rotational speed in motors and machinery.
8. What is a gate input in this context?
   A gate input is used to control or enable the measurement of frequency signals within a defined time window.
9. How is the module installed?
   It is mounted on a DIN rail and integrated into a FLEX I/O system.
10. What industries commonly use this module?
    It is used in manufacturing, energy, utilities, and process industries where precise frequency measurement is required.
