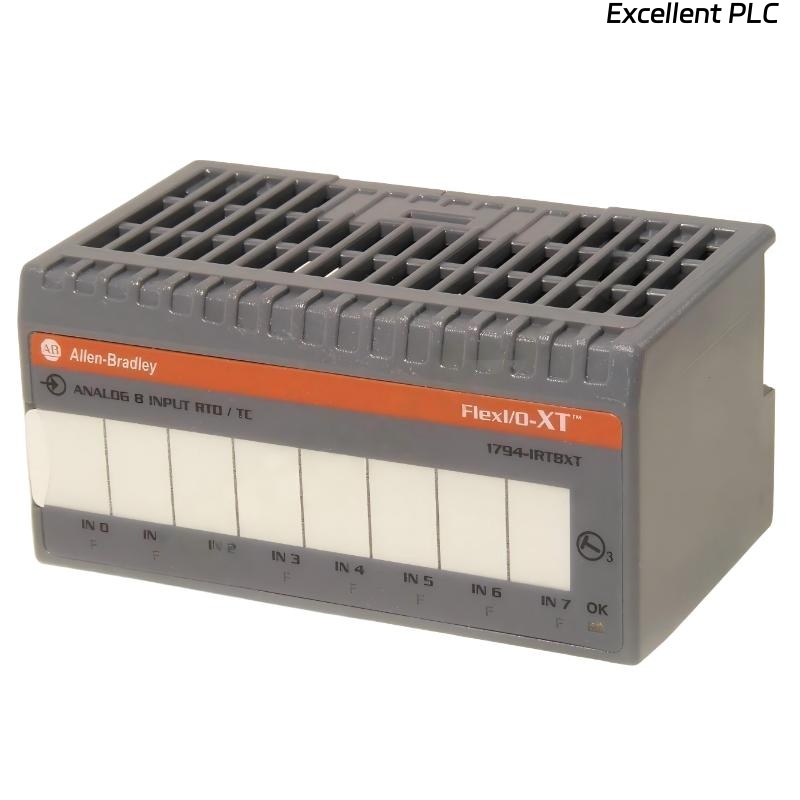

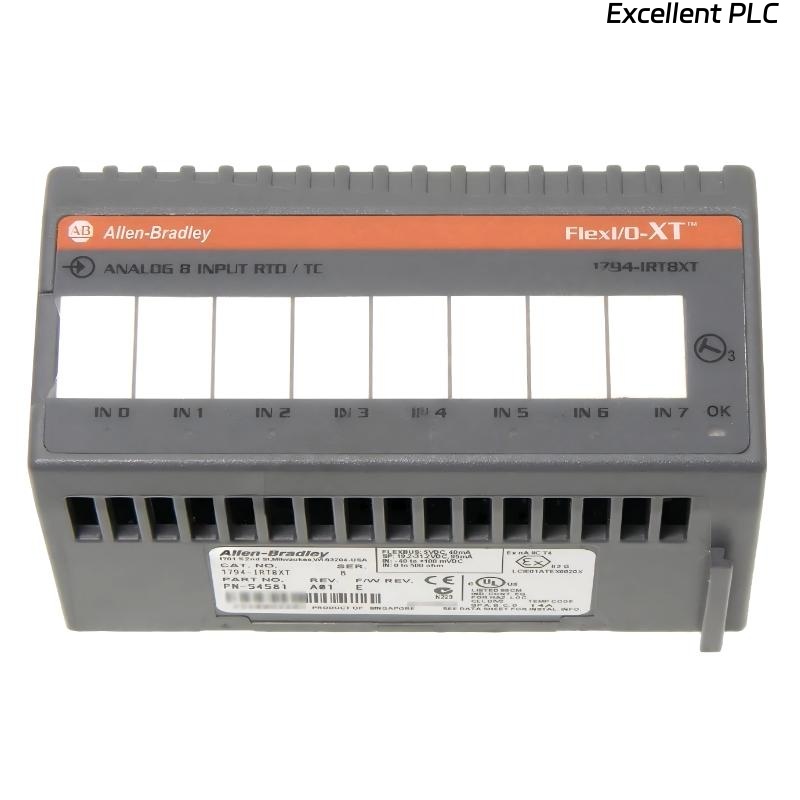

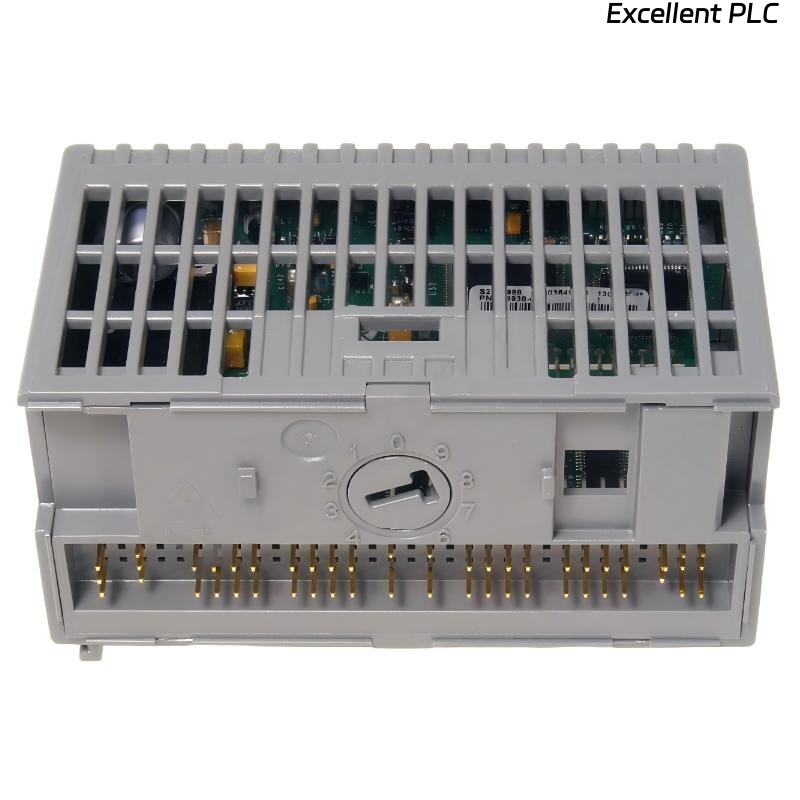

The Allen-Bradley 1794-IRT8XT Flex I/O-XT Thermocouple RTD Input Module is an extended temperature analog input module designed for precise temperature and low-level signal measurement in demanding industrial environments. As part of the FLEX I/O-XT series, it is engineered to perform reliably in harsh and corrosive conditions, making it suitable for applications where environmental resilience is essential.
This module provides 8 non-isolated input channels and supports multiple signal types, including thermocouples, RTDs, millivolt signals, and strain gauges. With 14-bit resolution, it delivers accurate and stable data acquisition, enabling precise monitoring of temperature and process variables.
The conformal coating enhances protection against moisture, dust, and corrosive elements, extending the module’s operational lifespan. Combined with its wide operating temperature range of -20°C to +70°C, the 1794-IRT8XT is well-suited for distributed control systems deployed in extreme industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 1794-IRT8XT |
| Product Type | Flex I/O-XT Thermocouple RTD Input Module |
| Number of Channels | 8 |
| Input Type | Thermocouple / RTD / mV / Strain Gauge |
| Resolution | 14-bit |
| Isolation | Non-Isolated |
| Temperature Range | -20°C to +70°C |
| Coating | Conformally Coated |
| Mounting Type | DIN Rail Mounted |
| Design Type | Open Style |
| Environmental Rating | IP20 |
| System Compatibility | FLEX I/O |
| Application Type | Temperature and Low-Level Signal Measurement |
| Dimensions | 94 × 46 × 53 mm |
| Weight | 0.2 kg |
Applications
• Temperature Monitoring Systems
Used for precise measurement of process temperatures using thermocouples and RTDs.
• Harsh Industrial Environments
Designed for operation in corrosive, humid, or contaminated environments.
• Process Control Industries
Commonly applied in chemical, oil & gas, and power generation systems.
• Strain and Load Measurement
Supports input from strain gauges for mechanical monitoring applications.
• Distributed I/O Systems
Integrates into FLEX I/O architectures for remote temperature data acquisition.
• Environmental and Energy Monitoring
Used in systems requiring accurate monitoring of thermal and process variables.
Advantages
• Multi-Signal Compatibility
Supports thermocouple, RTD, mV, and strain gauge inputs, offering high application flexibility.
• Extended Temperature Operation
Reliable performance across -20°C to +70°C, suitable for extreme conditions.
• Conformal Coating Protection
Provides resistance against moisture, dust, and corrosive environments.
• High Measurement Accuracy
14-bit resolution ensures precise and stable data acquisition.
• Compact Modular Design
Saves space and supports scalable distributed I/O configurations.
• Reliable Industrial Performance
Designed for long-term use in demanding automation environments.
• Easy Installation
DIN rail mounting simplifies integration and maintenance.
