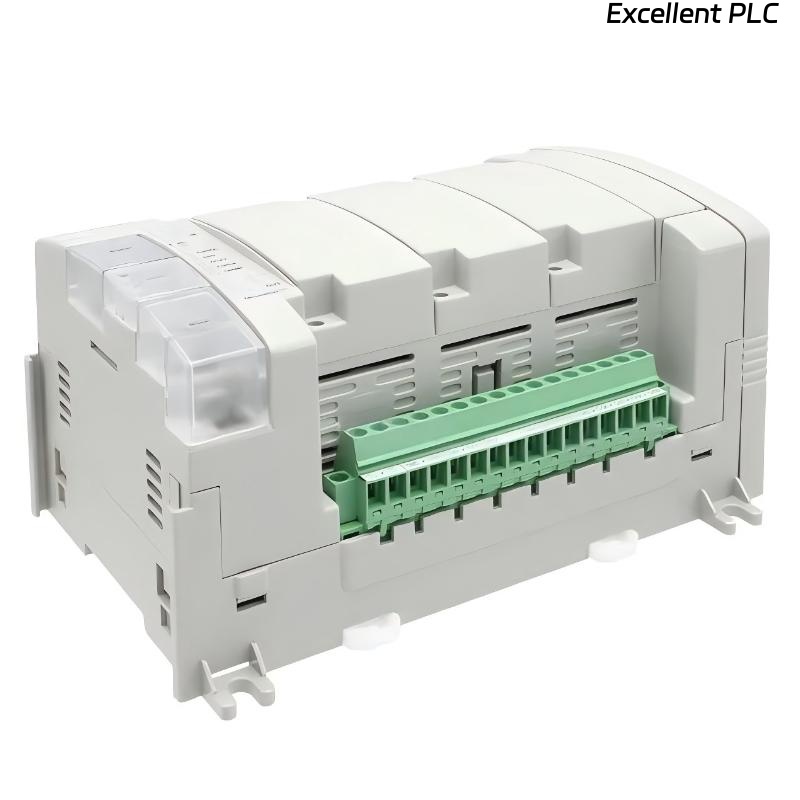

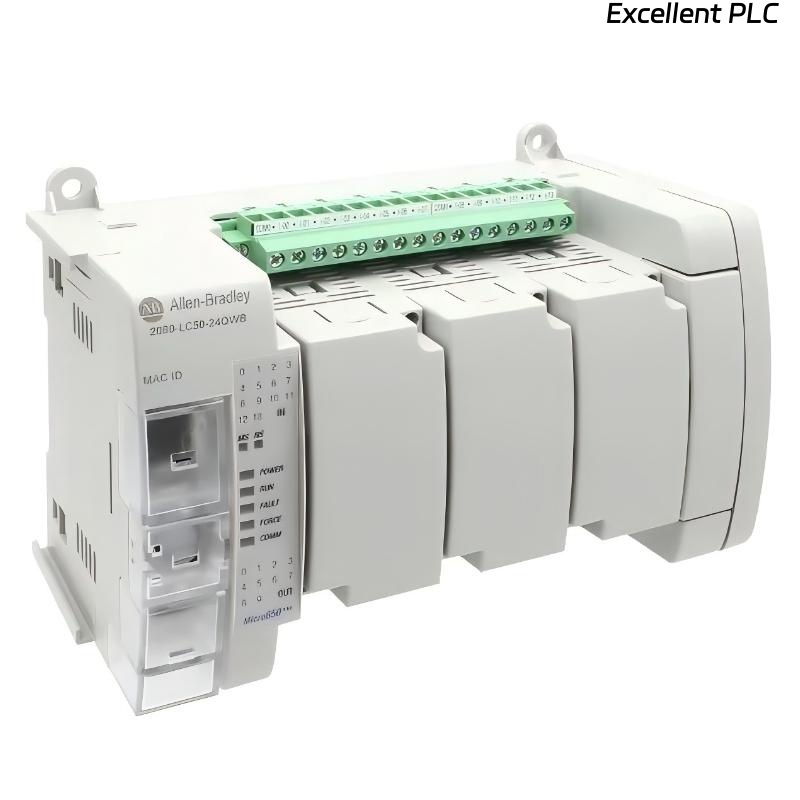

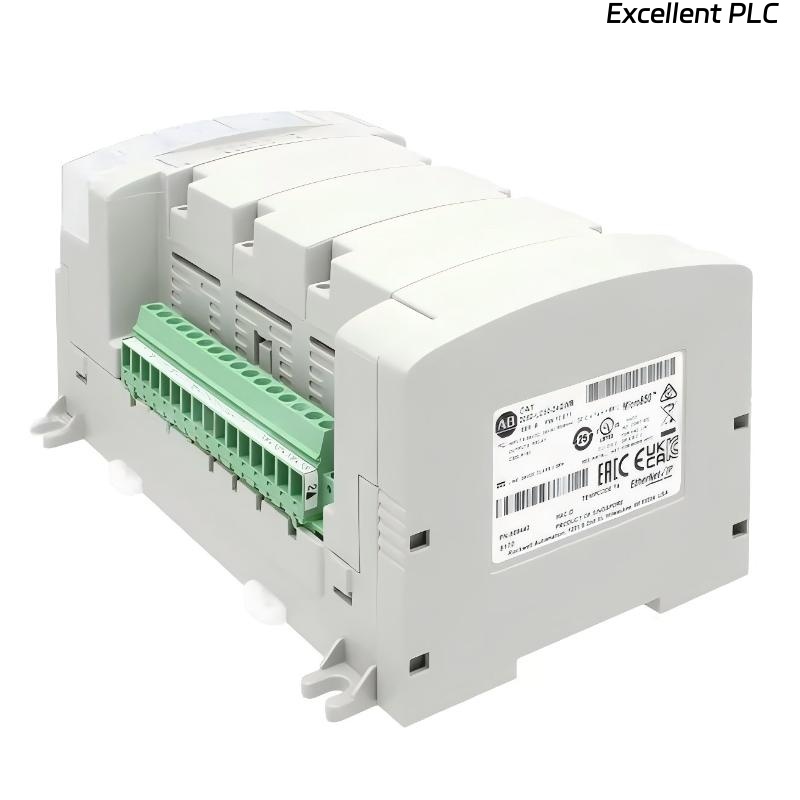

Allen Bradley 2080-LC50-24QWB Micro850 Programmable Controller
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 2080-LC50-24QWB Micro850 Programmable Controller is a high-performance compact PLC from the Micro800 family, designed to handle more demanding standalone and networked automation applications. Compared to entry-level controllers, it offers enhanced processing capability, expanded I/O capacity, and advanced communication features, making it suitable for more complex control tasks.
This controller integrates 14 digital inputs compatible with both 24 V DC and AC signals, along with 10 relay outputs capable of switching a wide range of field devices. It also supports up to four high-speed counter (HSC) channels, enabling precise control in applications such as motion monitoring, encoder feedback, and pulse counting.
Equipped with an embedded USB programming port, Ethernet connectivity, and a non-isolated RS-232/485 serial interface, the Micro850 provides flexible communication options for integration with HMIs, drives, and SCADA systems. With three plug-in expansion ports, it offers strong scalability, allowing users to extend functionality as system requirements grow.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 2080-LC50-24QWB |
| Brand | Allen-Bradley |
| Series | Micro850 (Micro800 Family) |
| Controller Type | Programmable Logic Controller (PLC) |
| Power Supply | 24 V DC |
| Digital Inputs | 14 Inputs (24 V AC/DC Compatible) |
| Digital Outputs | 10 Relay Outputs |
| Output Type | Electromechanical Relay |
| High-Speed Counters (HSC) | Up to 4 Channels |
| Programming Interface | Embedded USB Port |
| Communication Ports | Ethernet Port |
| RS-232/485 Non-isolated Serial Port | |
| Expansion Capability | 3 Plug-In Ports |
| Mounting Type | DIN Rail / Panel Mount |
| Application Scope | Medium Automation Systems |
| Dimensions | 158 × 80 × 90 mm |
| Weight | 0.423 kg |
Applications
• Used in medium-complexity machine automation systems such as packaging lines, material handling equipment, and assembly machinery
• Applicable in motion-related applications where high-speed counter inputs are required for encoder feedback or pulse tracking
• Ideal for networked automation systems utilizing Ethernet communication for integration with HMIs and SCADA platforms
• Suitable for OEM equipment requiring scalable control solutions with flexible I/O and communication options
• Supports mixed signal environments with both AC/DC inputs and relay-based output control
Advantages
• Enhanced processing capability supports more complex logic and control strategies compared to entry-level PLCs
• High-speed counter support enables precise measurement and control in motion and pulse-based applications
• Flexible communication interfaces including Ethernet, USB, and serial ports for easy system integration
• Relay output versatility allows control of a wide range of electrical loads
• Scalable design with plug-in expansion ports supports future system upgrades without hardware replacement
• Compact yet powerful architecture balances performance with space efficiency in control panels
FAQ
- What types of applications is the Micro850 best suited for?
It is designed for medium-complexity automation tasks, including machine control, motion-related applications, and networked systems requiring advanced functionality. - How many high-speed counter channels are available?
The controller supports up to four high-speed counter channels, enabling accurate pulse and encoder signal processing. - What communication interfaces are included?
It features an Ethernet port for network communication, a USB port for programming, and a non-isolated RS-232/485 serial interface for device connectivity. - What is the advantage of relay outputs in this controller?
Relay outputs allow switching of both AC and DC loads and provide electrical isolation, making them suitable for various industrial devices. - Can this controller handle both AC and DC input signals?
Yes, the digital inputs are compatible with both 24 V AC and DC signals, offering flexibility in system design. - How does the USB programming port improve usability?
It allows direct and convenient connection to programming software without requiring additional communication adapters. - Is the controller expandable?
Yes, it includes three plug-in ports that support expansion modules for additional I/O or specialized functions. - What is the role of the Ethernet port in automation systems?
It enables communication with HMIs, SCADA systems, and other networked devices for monitoring and control. - Is the serial port isolated?
No, the RS-232/485 serial port is non-isolated, so proper grounding and system design considerations are important. - What makes this controller suitable for motion-related applications?
Its high-speed counter capability allows accurate tracking of fast signals such as encoder pulses, which are essential in motion control systems.
