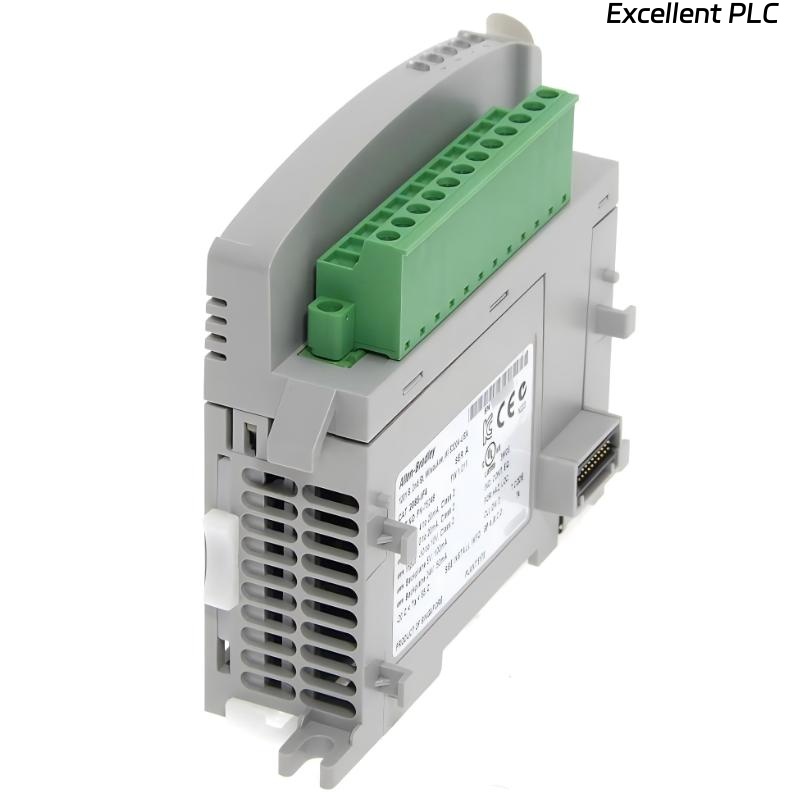

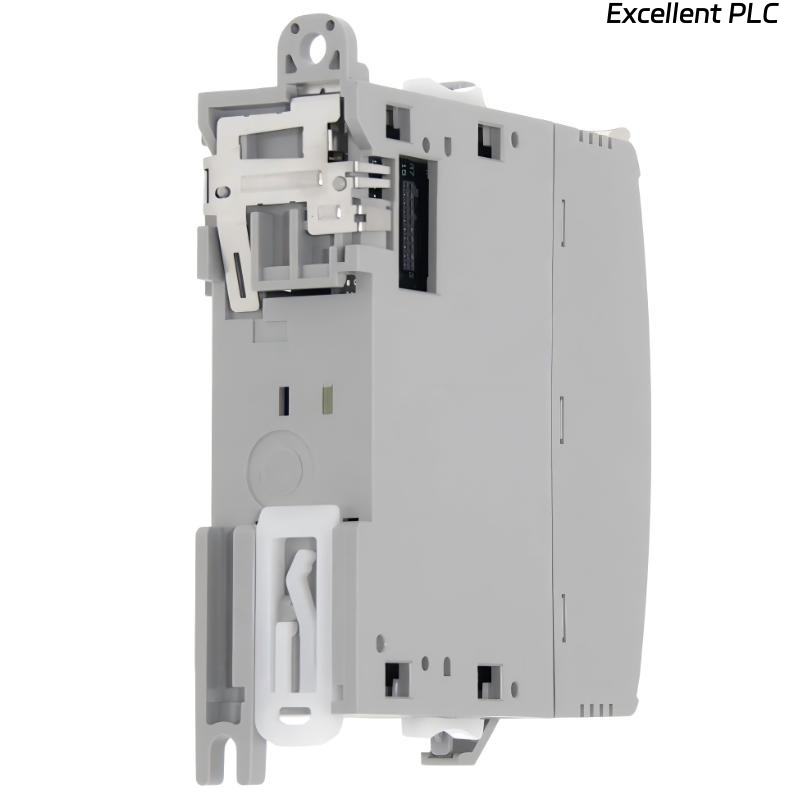

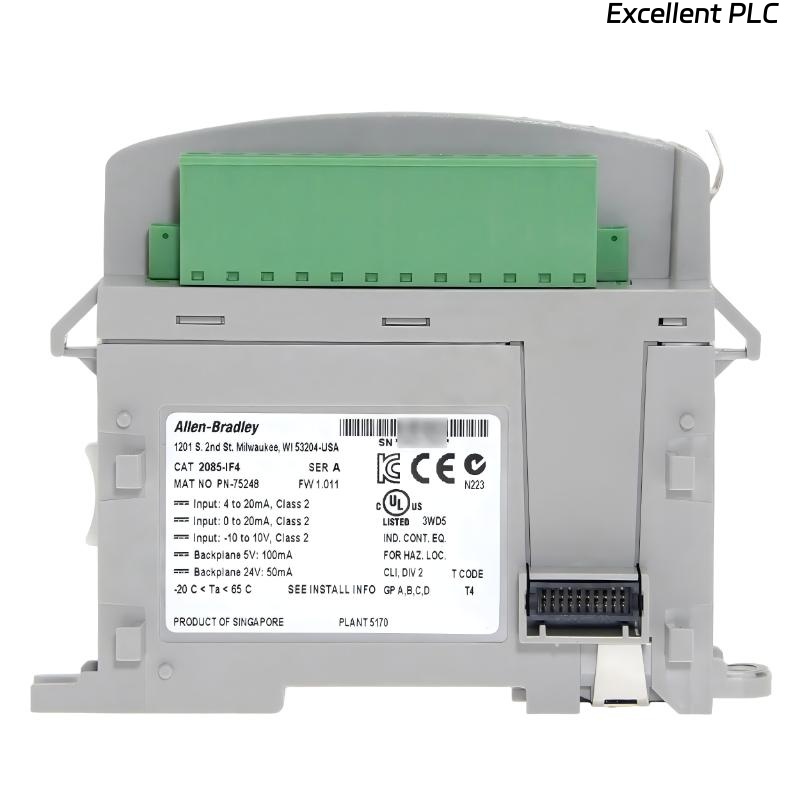

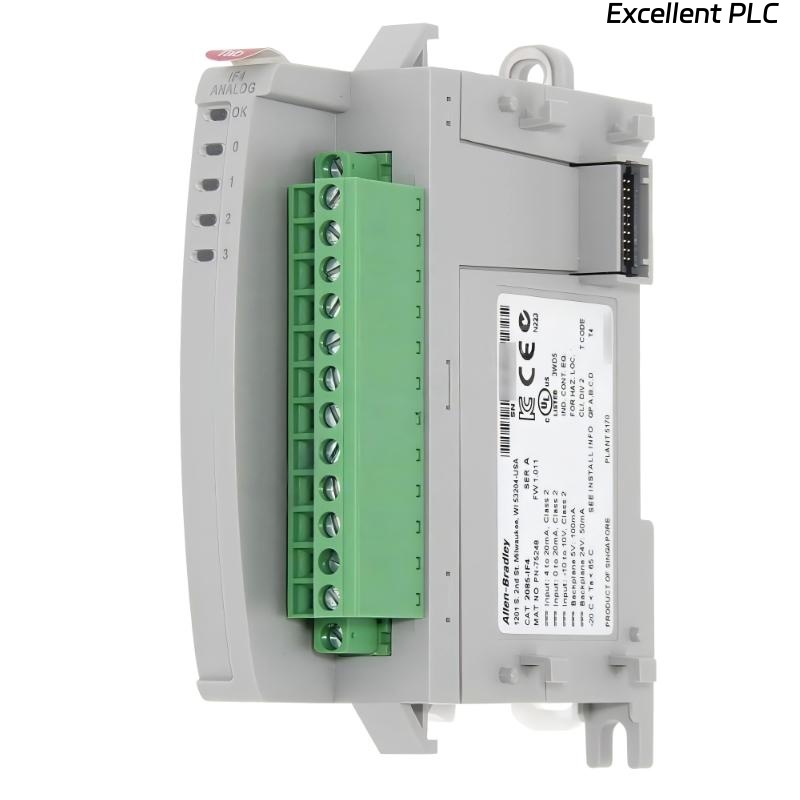

Allen Bradley 2085-IF4 Micro800 Analog Input Module

Product Introduction

The Allen Bradley 2085-IF4 Micro800 Analog Input Module is a versatile analog input expansion module designed for use with Micro800 series programmable controllers. It enables precise acquisition of analog signals from field devices, making it suitable for a wide range of industrial automation and process control applications.

This module provides four input channels capable of handling both voltage and current signals, including bipolar voltage ranges such as ±10 V and standard 0–20 mA current inputs. Its flexible input configuration allows integration with various industrial sensors, including pressure transmitters, flow meters, and temperature measurement devices.

With its compact design and reliable performance, the 2085-IF4 is ideal for expanding the analog input capability of Micro800 controllers. It ensures stable signal conversion and consistent data acquisition, even in demanding industrial environments.

---

Product Specifications

---

Applications

• Used for collecting analog signals from industrial sensors such as pressure, flow, level, and temperature transmitters

• Applicable in process control systems where accurate monitoring of physical parameters is required

• Ideal for mixed signal environments supporting both voltage and current-based measurement devices

• Suitable for OEM equipment requiring reliable analog input expansion

• Integrated into Micro800 control systems for enhanced data acquisition capability

---

Advantages

• Flexible signal compatibility supports both voltage and current input types

• Bipolar voltage input capability allows measurement of signals in both positive and negative ranges

• Compact expansion design integrates easily into Micro800 systems without increasing panel size significantly

• Reliable signal acquisition ensures stable and accurate data for control processes

• Cost-effective solution for expanding analog input capacity

• Simple integration and configuration reduces setup time in industrial applications

FAQ

1. What types of signals can the 2085-IF4 module accept?
   It supports both voltage signals (±10 V) and current signals (0–20 mA), making it compatible with a wide range of industrial sensors.
2. How many input channels are available on this module?
   The module provides four independent analog input channels for simultaneous signal acquisition.
3. What does bipolar input mean in this module?
   Bipolar input means the module can measure both positive and negative voltage signals, which is useful in certain control applications.
4. Can this module be used with Micro800 controllers?
   Yes, it is specifically designed as an expansion module for Micro800 series PLCs.
5. What types of sensors are typically connected to this module?
   Common devices include pressure transmitters, temperature sensors, flow meters, and level sensors with analog outputs.
6. Is the module suitable for high-precision measurements?
   It provides reliable accuracy for standard industrial applications, though extremely high-precision tasks may require specialized modules.
7. How is the module installed in a system?
   It connects directly to the Micro800 controller expansion bus, allowing quick and secure installation.
8. Does the module require complex configuration?
   Configuration is straightforward and performed through the controller’s programming environment.
9. Can voltage and current inputs be used simultaneously?
   Yes, different channels can typically be configured independently for voltage or current input.
10. What should be considered when wiring the module?
    Proper grounding and shielding practices should be followed to minimize noise and ensure accurate signal readings.
