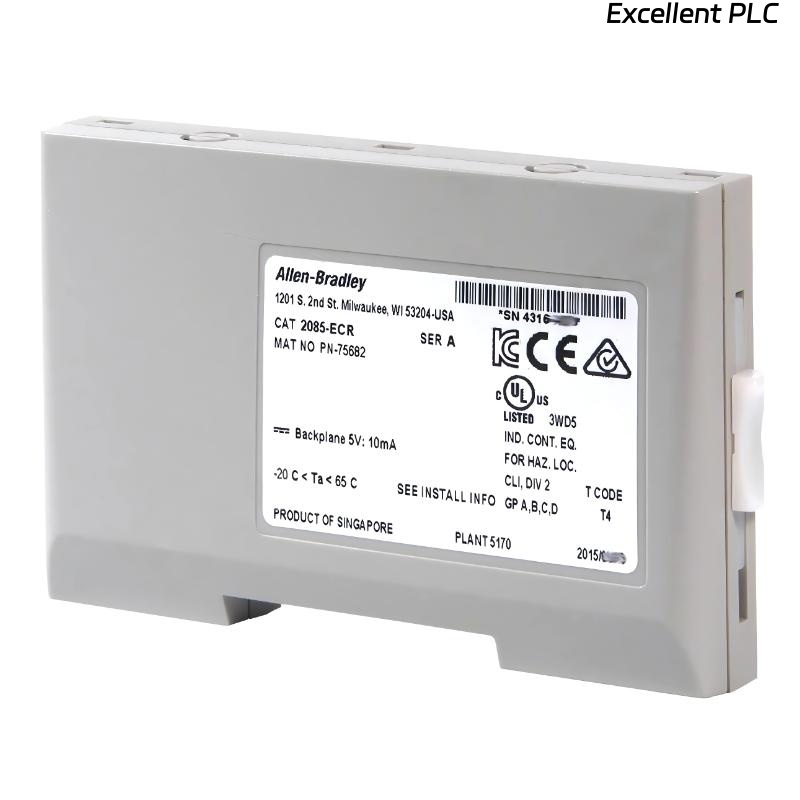

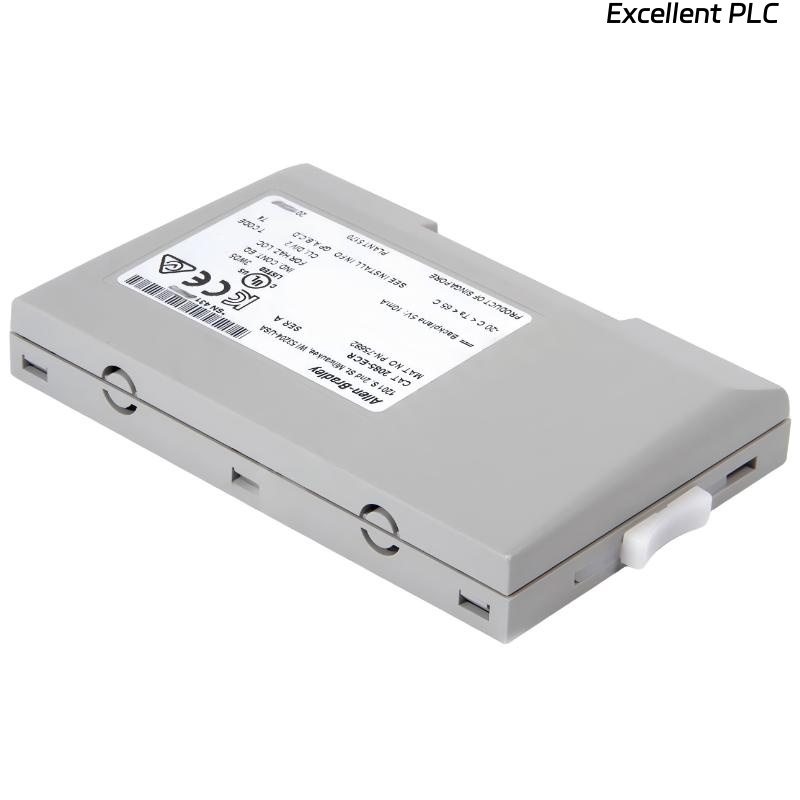

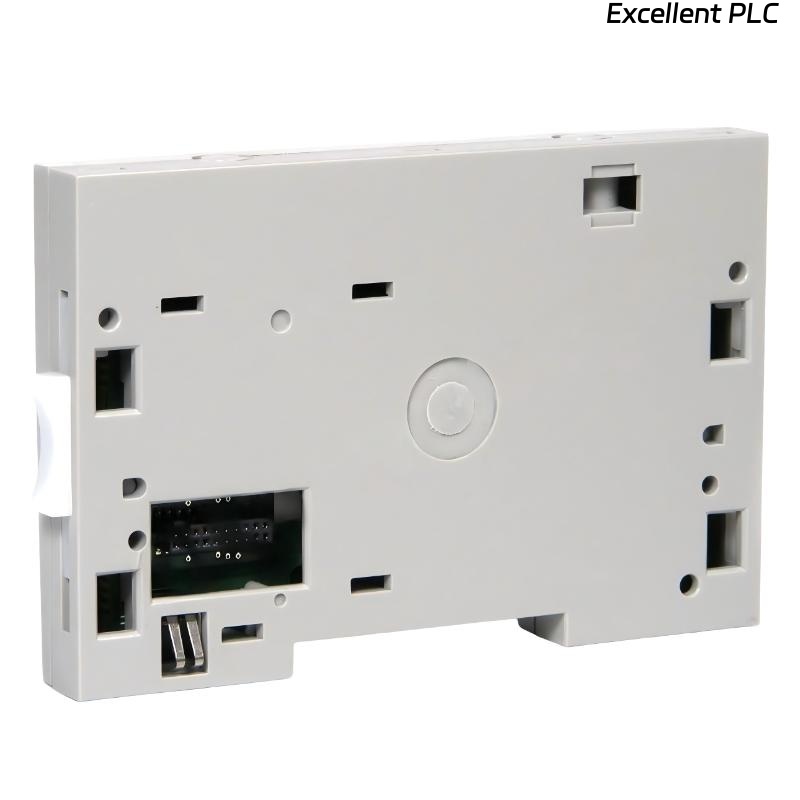

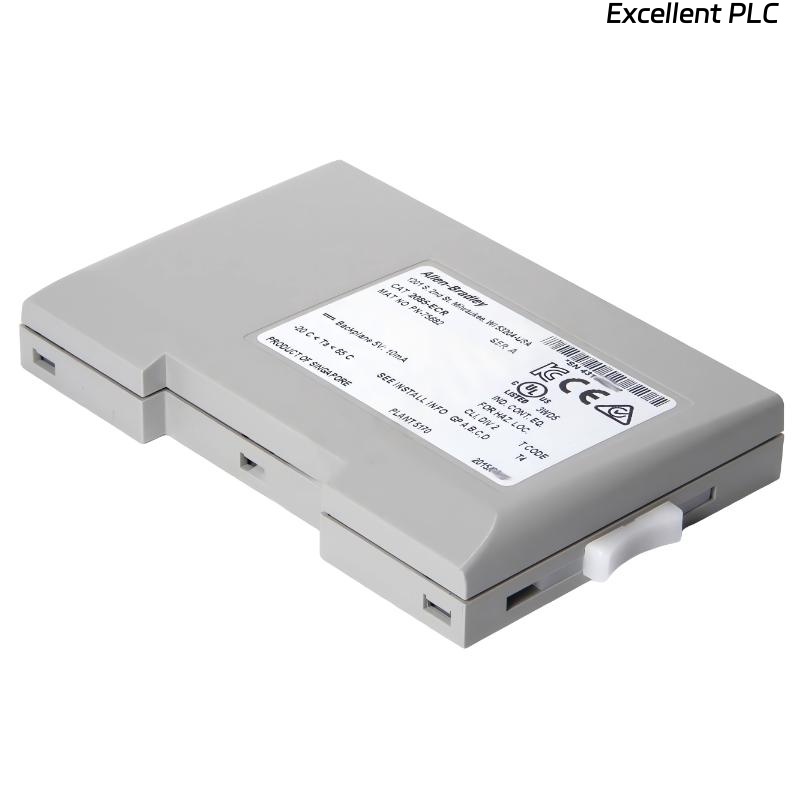

Allen Bradley 2085-ECR Micro800 Expansion Module End Cap
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 2085-ECR Micro800 Expansion Module End Cap is a dedicated end cap module designed for use with Micro800 expansion systems. It serves as a termination component at the end of an expansion I/O assembly, ensuring proper electrical continuity and system stability.
Although it does not provide active control or signal processing functions, the end cap plays a critical role in maintaining the integrity of the expansion bus. By properly terminating the communication path, it helps prevent signal reflections, communication errors, and potential instability within the control system.
Its compact design and simple installation make it an essential accessory for any Micro800 expansion configuration. The 2085-ECR is engineered to operate reliably in industrial environments, supporting consistent performance across a wide temperature range.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 2085-ECR |
| Brand | Allen-Bradley |
| Series | Micro800 |
| Module Type | Expansion End Cap |
| Function | Terminates expansion bus |
| Ingress Protection | IP20 |
| Operating Temperature | -20 to +65 °C |
| Mounting Type | Controller Expansion Assembly |
| Application Scope | Micro800 Expansion Systems |
| Material Type | Industrial-grade housing |
| Dimensions | 96.4 × 15.6 × 59.1 mm |
| Weight | 0.05 kg |
Applications
• Used at the end of Micro800 expansion systems to properly terminate the I/O bus and ensure stable communication
• Applicable in compact automation systems where expansion modules are installed alongside Micro800 controllers
• Required for maintaining system integrity in modular PLC configurations with multiple expansion units
• Suitable for industrial environments where reliable and consistent operation of control systems is critical
• Ensures proper system completion in OEM equipment and control panel assemblies
Advantages
• Ensures stable system operation by properly terminating the expansion bus
• Prevents communication errors caused by signal reflections or incomplete bus structures
• Simple installation process with plug-and-play integration into Micro800 systems
• Compact and lightweight design minimizes space usage within control panels
• Wide operating temperature range supports use in various industrial environments
• Essential system component for reliable and compliant Micro800 expansion configurations
FAQ
- What is the function of the 2085-ECR end cap module?
It is used to terminate the expansion bus in a Micro800 system, ensuring proper communication and system stability. - Does the end cap perform any control or signal processing tasks?
No, it is a passive component and does not process signals or execute control logic. - Why is an end cap required in expansion systems?
Without proper termination, the communication bus may experience signal reflections or instability, which can affect system performance. - Where should the end cap be installed?
It should be installed at the far end of the expansion module chain to complete the system configuration. - Is the end cap necessary for all Micro800 systems?
It is required whenever expansion modules are used to ensure proper system operation. - What happens if the end cap is not installed?
The system may experience communication issues, unreliable performance, or failure to recognize expansion modules. - Can multiple end caps be used in one system?
Typically, only one end cap is required per expansion chain, placed at the terminal end. - Is any configuration required for the end cap?
No configuration is needed; it operates automatically once installed. - What environmental conditions can the module operate in?
It supports operation in temperatures ranging from -20 to +65 °C and is suitable for standard industrial environments. - Does the module require maintenance?
No regular maintenance is required, but it should be checked during system inspections to ensure proper installation.
Related Models
| Model | Description |
|---|---|
| 2085-IF4 | Micro800 Analog Input Module |
| 2085-OF4 | Micro800 Analog Output Module |
| 2085-IQ16 | Micro800 Digital Input Module |
| 2085-OQ16 | Micro800 Digital Output Module |
| 2080-LC20-20QBB | Micro820 Controller |
| 2080-LC30-48QBB | Micro830 Controller |
Popular Models
| Model | Description |
|---|---|
| 1769-L33ER | CompactLogix Controller |
| 1756-L73 | ControlLogix Controller |
| 1734-AENT | POINT I/O Ethernet Adapter |
| 1762-L24BWA | MicroLogix Controller |
| 1756-EN2T | Ethernet/IP Communication Module |
| 1606-XLE120E | Industrial Power Supply |
