Product Introduction

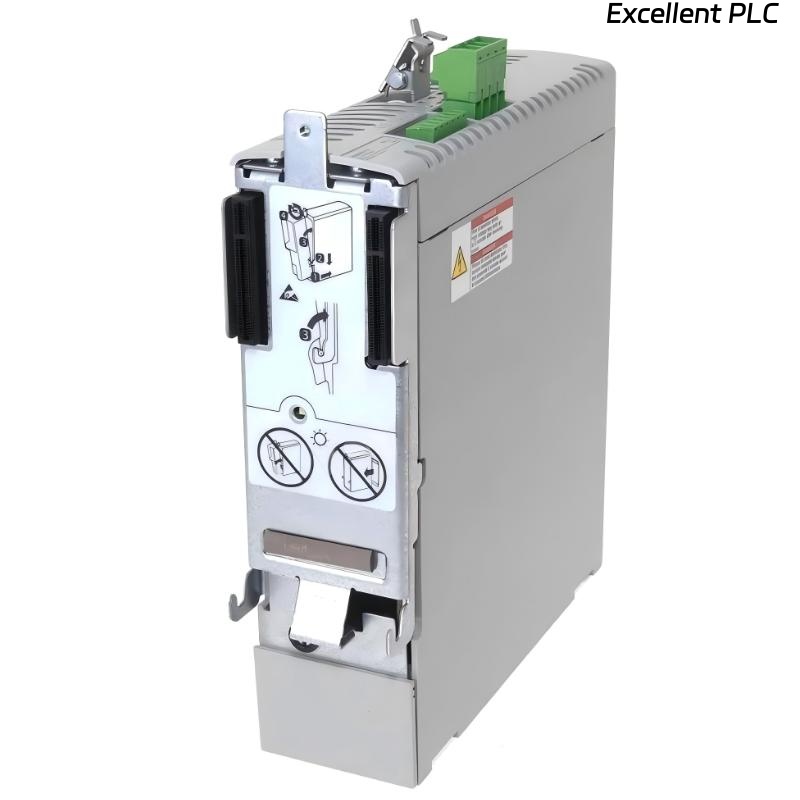

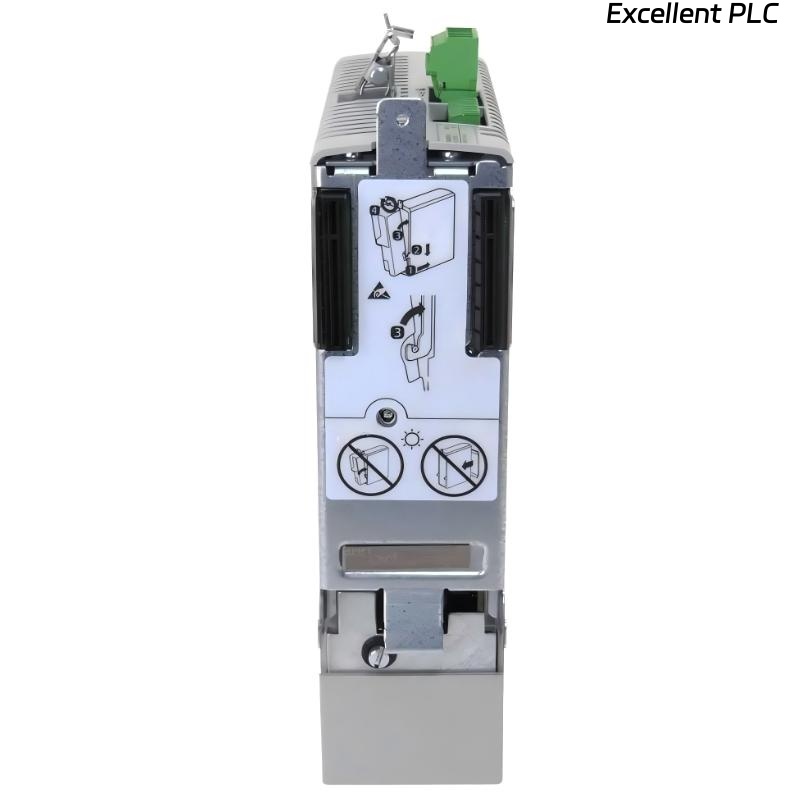

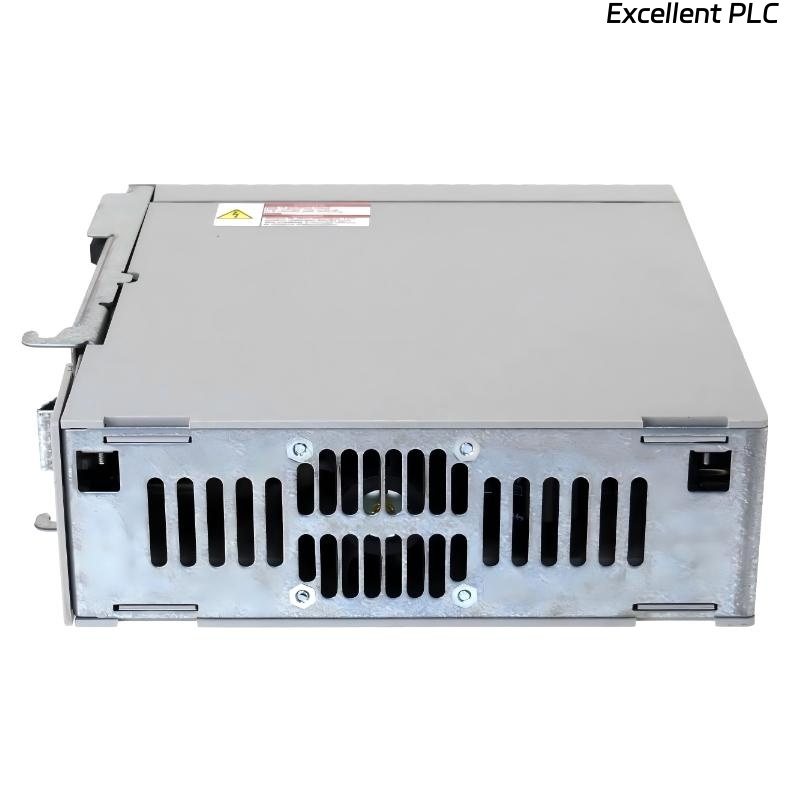

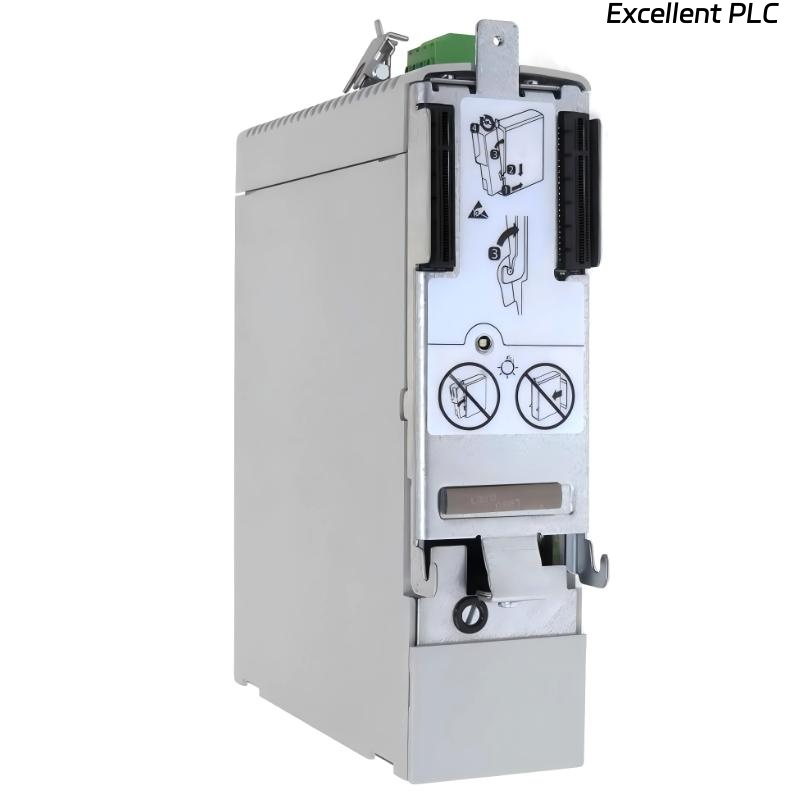

The Allen-Bradley 2094-BM01-M Kinetix 6000 Axis Module is a high-performance servo drive component designed for multi-axis motion control systems. It is part of the Kinetix 6000 series and is used to control servo motors in demanding industrial automation applications requiring precise positioning, speed regulation, and coordinated motion.
This axis module is typically integrated into multi-axis drive configurations where centralized control and modular expansion are required. It operates as part of a shared DC bus architecture, enabling efficient power distribution and improved system scalability.
The 2094-BM01-M is engineered for use with 360/480 VAC input systems and delivers a rated output power of 3.9 kW with an 8.6 A current rating. Its robust design supports high dynamic performance, making it suitable for high-speed and high-precision motion applications.
With its modular construction, the unit can be installed within Kinetix 6000 drive systems to support flexible machine configurations while maintaining stable synchronization across multiple axes.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2094-BM01-M |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Product Series | Kinetix 6000 |
| Product Type | Axis module (servo drive module) |
| Input Voltage | 360 / 480 VAC |
| Output Power | 3.9 kW |
| Current Rating | 8.6 A |
| System Type | Multi-axis servo drive system |
| Architecture | Shared DC bus |
| Function | Servo motor control module |
| Dimensions | 290 × 70 × 285 mm |
| Weight | 3.18 kg |
Applications
● Multi-axis motion control systems
Used in systems requiring synchronized control of multiple servo motors.
● High-precision manufacturing equipment
Common in CNC machinery, packaging systems, and automated production lines.
● Industrial robotics systems
Provides precise motion control for robotic arms and coordinated movement tasks.
● Material handling systems
Supports conveyors and automated transport systems requiring stable motion control.
● High-speed automation machines
Used in applications where fast response and accurate positioning are critical.
Advantages
● High-performance servo control
Delivers precise motion control with stable torque and speed regulation.
● Modular system architecture
Supports flexible expansion within Kinetix 6000 multi-axis systems.
● Efficient power utilization
Shared DC bus design improves energy efficiency and reduces system complexity.
● Strong industrial compatibility
Designed for integration into Rockwell Automation motion control platforms.
● Reliable high-load operation
Supports demanding industrial environments with continuous operation capability.
● Compact axis module design
Enables dense installation in multi-axis drive configurations.
