Product Introduction

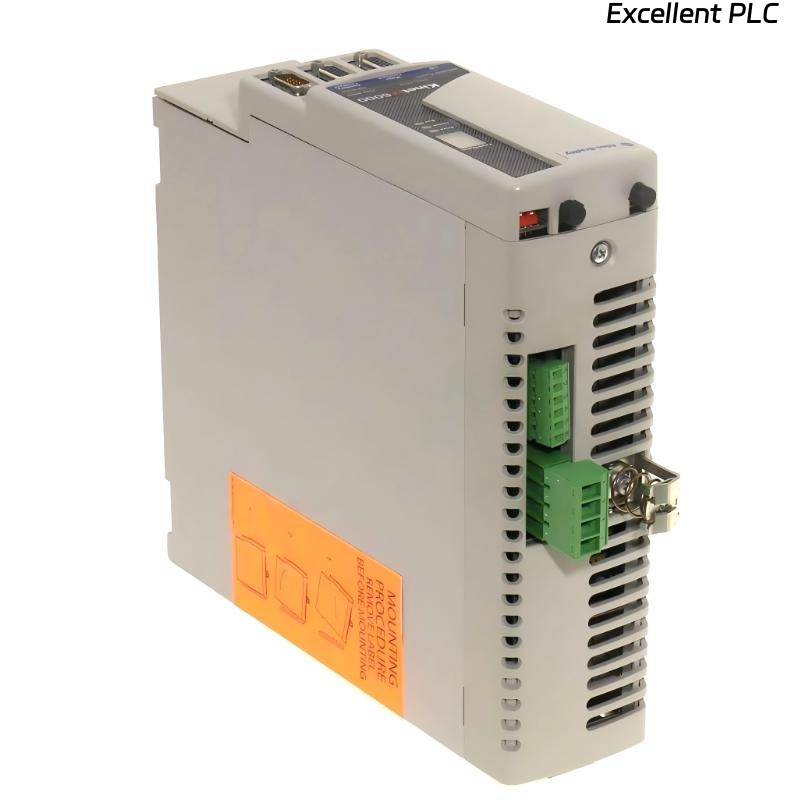

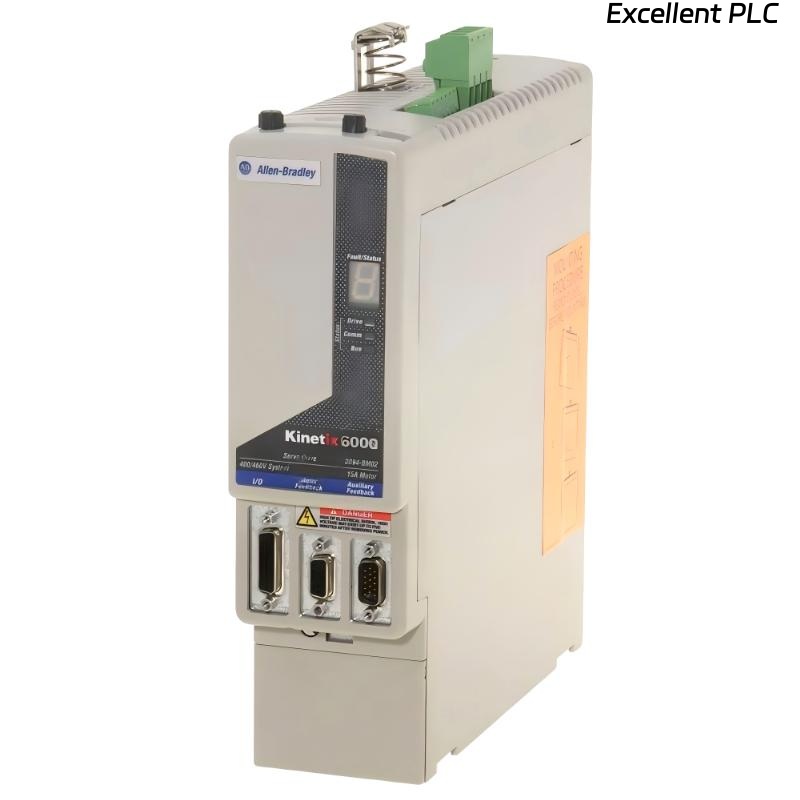

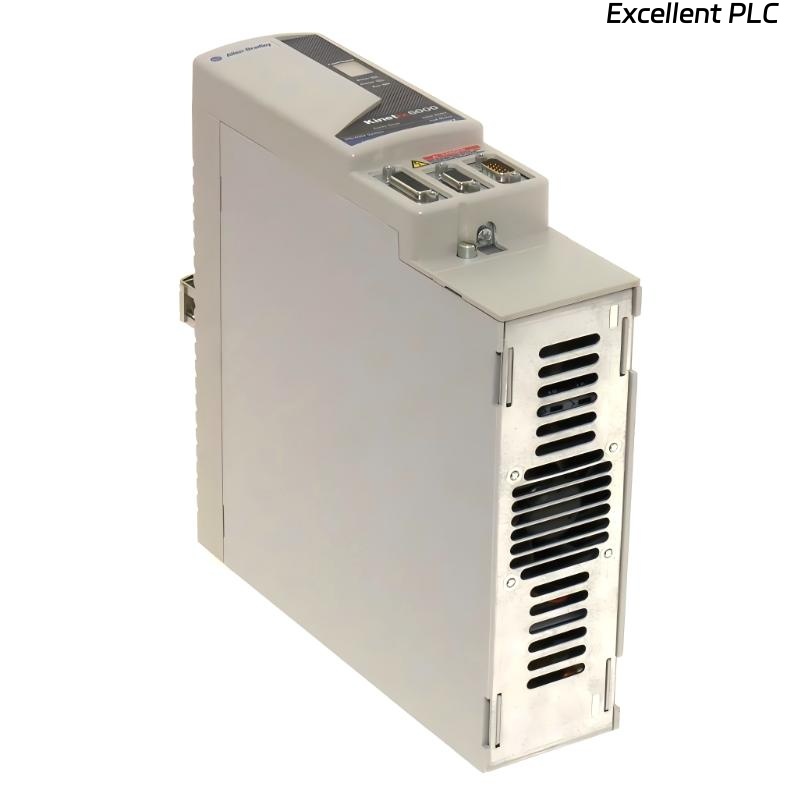

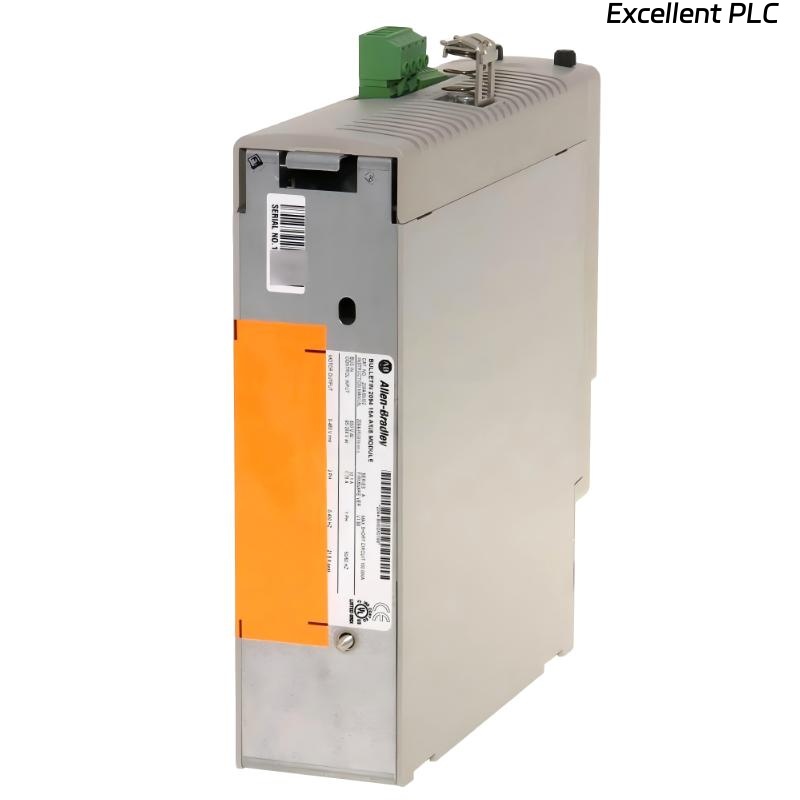

The Allen-Bradley 2094-BM02 Kinetix 6000 Axis Module is a servo drive inverter module designed for high-performance multi-axis motion control systems. It is part of the Kinetix 6000 platform and is used to control servo motors with high precision in demanding industrial automation applications.
This module operates as an individual axis unit within a shared DC bus architecture, allowing multiple axes to be integrated into a single coordinated motion system. It is commonly used in applications requiring synchronized motion, high-speed response, and accurate torque control.
The 2094-BM02 is designed for 360–480 V AC input systems and delivers a rated output power of 6.6 kW with a 14.6 A inverter current rating. It belongs to the 400 V class inverter category and is optimized for medium-to-high power motion applications.
Unlike safety-enhanced versions, this module does not include Safe Torque-Off (STO) functionality, making it suitable for systems where safety functions are handled externally or not required at the drive level.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2094-BM02 |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Product Series | Kinetix 6000 |
| Product Type | Axis module (servo inverter) |
| Input Voltage | 360–480 V AC |
| Voltage Class | 400 V class |
| Output Power | 6.6 kW |
| Current Rating | 14.6 A inverter |
| Inverter Type | Servo drive inverter module |
| Safety Function | Without Safe Torque-Off (STO) |
| System Architecture | Shared DC bus multi-axis system |
| Function | Servo motor motion control |
| Dimensions | 287 × 70 × 249 mm |
| Weight | 2.54 kg |
Applications
● Industrial multi-axis motion systems
Used in coordinated motion control applications requiring multiple servo axes operating together.
● High-power automation machinery
Suitable for machines requiring medium-to-high torque and speed control.
● Packaging and production equipment
Common in automated production lines where precise timing and motion synchronization are required.
● Material handling systems
Used in conveyors and transfer systems requiring stable and continuous motion control.
● General industrial servo applications
Supports a wide range of motion control tasks in manufacturing environments.
Advantages
● High power motion control capability
Delivers 6.6 kW output suitable for demanding industrial servo applications.
● Efficient multi-axis integration
Works within a shared DC bus Kinetix 6000 system, reducing overall system complexity.
● Stable inverter performance
Provides consistent 14.6 A inverter output for reliable motor control.
● Flexible system configuration
Can be integrated into modular multi-axis architectures for scalable machine design.
● Robust industrial design
Built for continuous operation in harsh industrial environments.
● Standard 400 V class compatibility
Easily integrates into common industrial power systems worldwide.
