Product Introduction

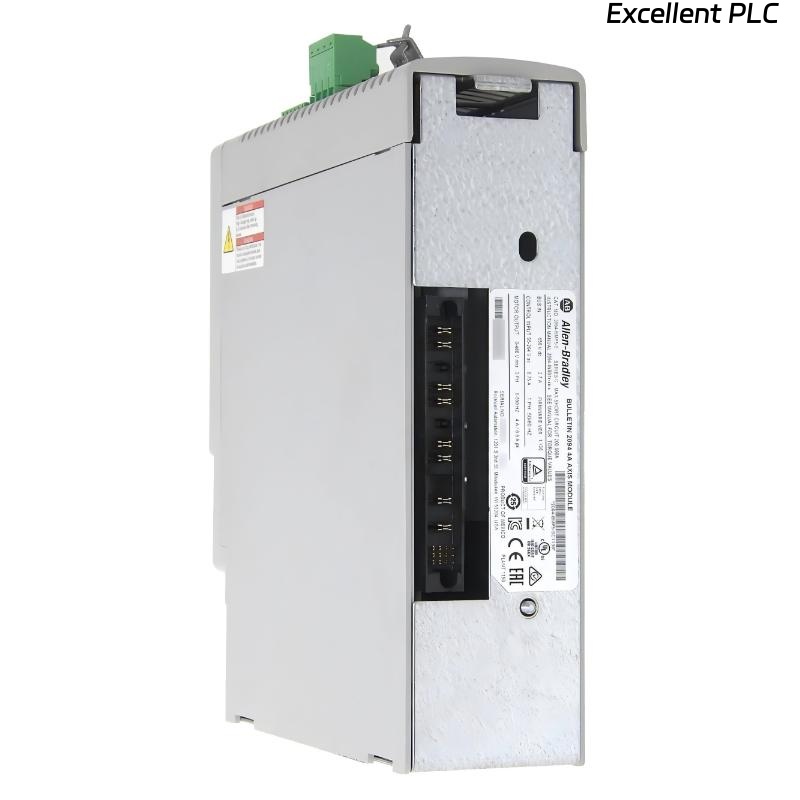

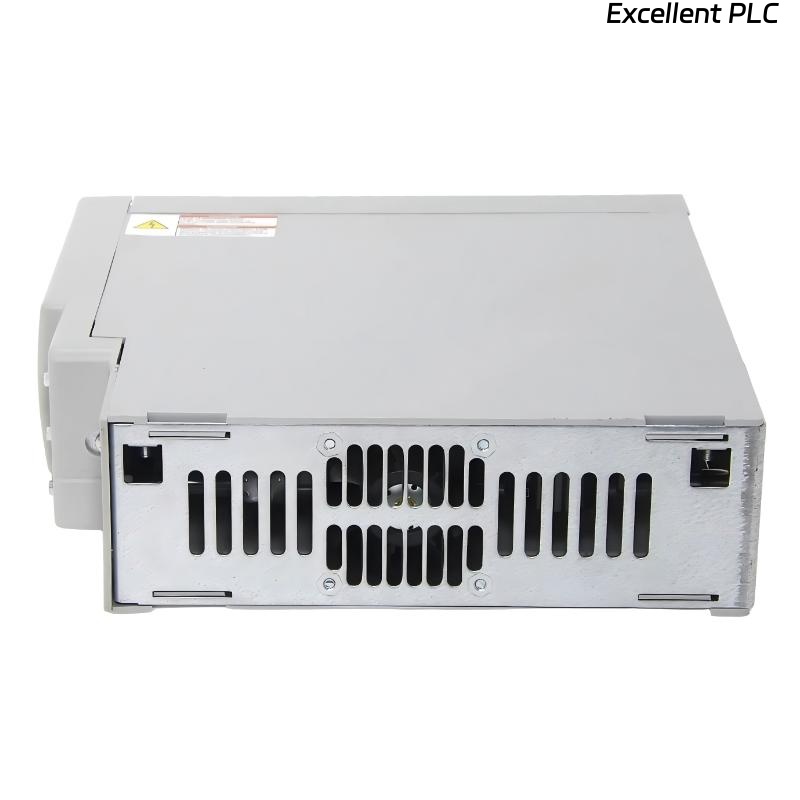

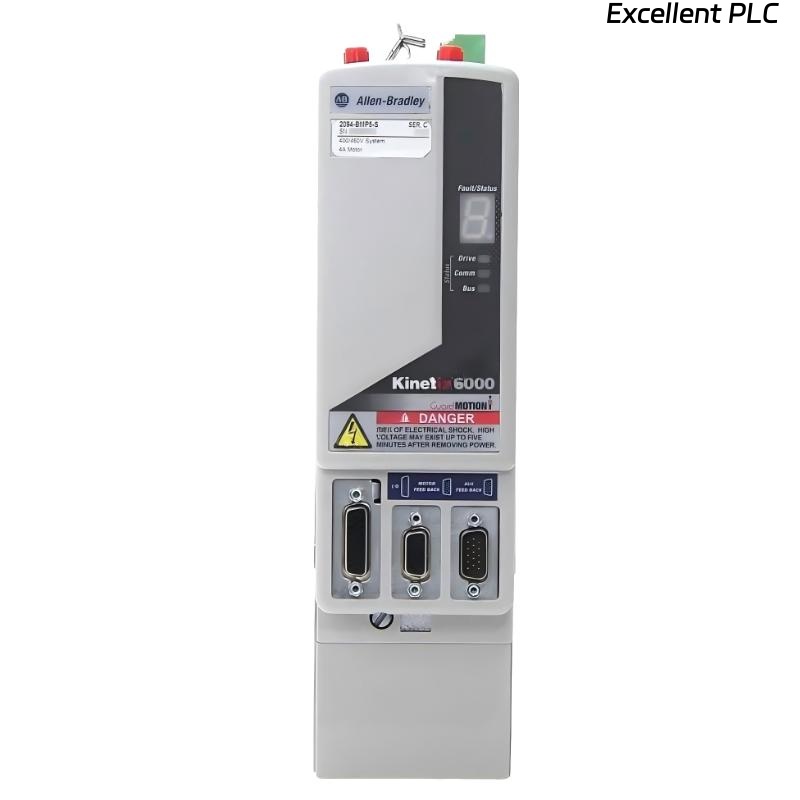

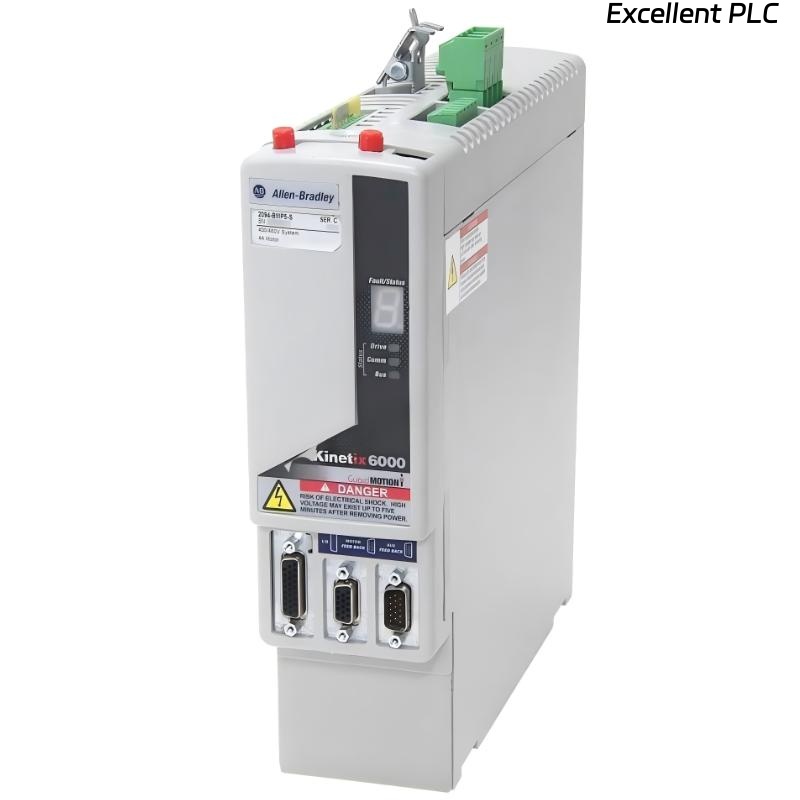

The Allen-Bradley 2094-BMP5-S Kinetix 6000 Axis Module is a compact servo inverter module designed for multi-axis motion control systems requiring precise low-to-medium power motor control. It is part of the Kinetix 6000 platform and is used to drive servo motors in coordinated automation applications.
This module operates within a shared DC bus architecture, allowing multiple axis modules to share power efficiently while maintaining synchronized motion control. It is commonly used in compact machines where space efficiency and precise motion performance are required.
The 2094-BMP5-S supports 400/480 VAC input and delivers a rated output power of 1.8 kW with a 4.0 A inverter current rating (5 A inverter class). Despite its compact size, it provides stable dynamic performance suitable for precision motion applications.
A key feature of this model is the integrated Safe Torque-Off (STO) function, which enhances operational safety by allowing controlled removal of motor torque without shutting down the entire drive system.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2094-BMP5-S |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Product Series | Kinetix 6000 |
| Product Type | Axis module (servo inverter) |
| Input Voltage | 400 / 480 VAC |
| Voltage Class | 400 V class (V Class) |
| Output Power | 1.8 kW |
| Current Rating | 4.0 A (5 A inverter class) |
| Inverter Type | Servo drive inverter module |
| Safety Function | With Safe Torque-Off (STO) |
| System Architecture | Shared DC bus multi-axis system |
| Function | Servo motor motion control |
| Dimensions | 287 × 70 × 249 mm |
| Weight | 2.44 kg |
Applications
● Compact servo motion systems
Used in machines requiring precise motion control with limited installation space.
● Light industrial automation equipment
Suitable for packaging, labeling, and small assembly systems.
● Multi-axis coordinated control systems
Supports synchronized motion in modular Kinetix 6000 architectures.
● Precision positioning applications
Used in systems requiring accurate speed and position control.
● Safety-critical motion systems
Utilizes Safe Torque-Off (STO) for safe motor shutdown in industrial environments.
Advantages
● Compact and efficient design
Provides full servo control capability in a space-saving form factor.
● Integrated safety function (STO)
Ensures safe torque removal without disabling the entire system.
● Reliable low-power motion control
Delivers stable performance at 1.8 kW output level for precision applications.
● Shared DC bus efficiency
Improves energy usage and simplifies multi-axis system design.
● High integration flexibility
Easily integrates into Kinetix 6000 multi-axis systems.
● Stable industrial performance
Designed for continuous operation in automation environments.
