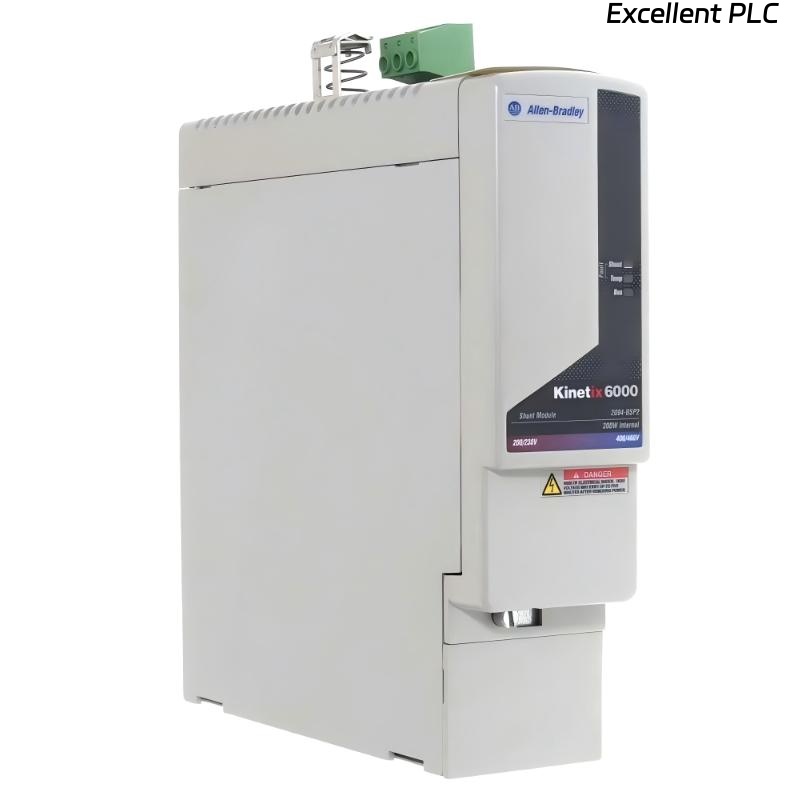

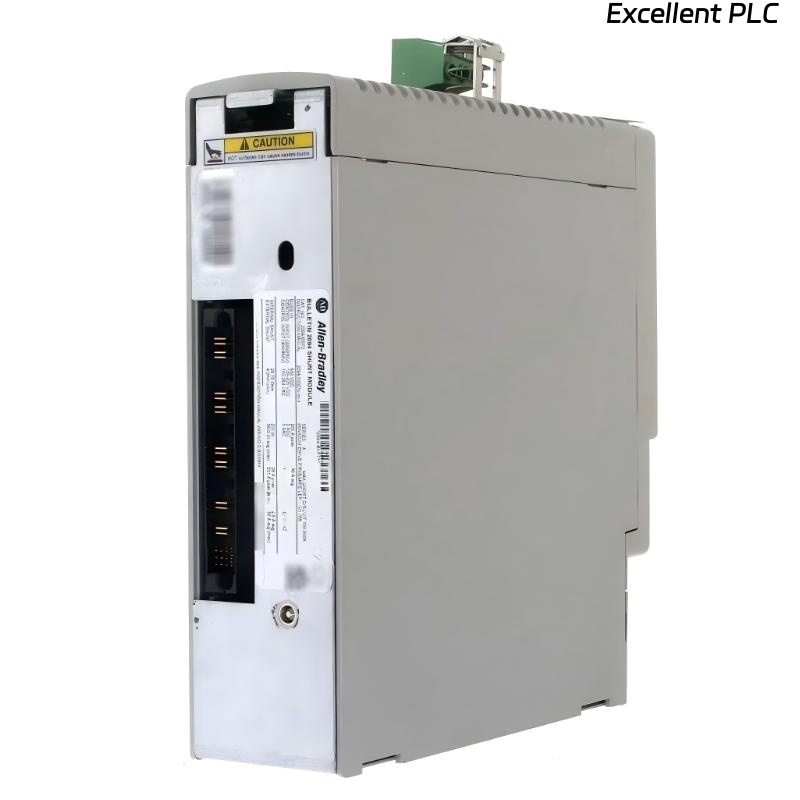

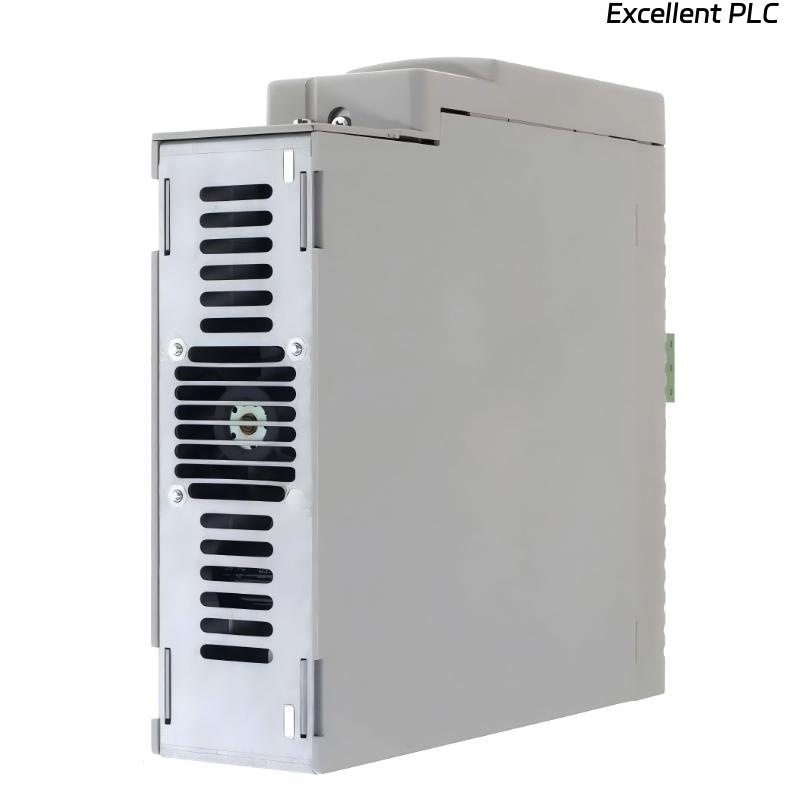

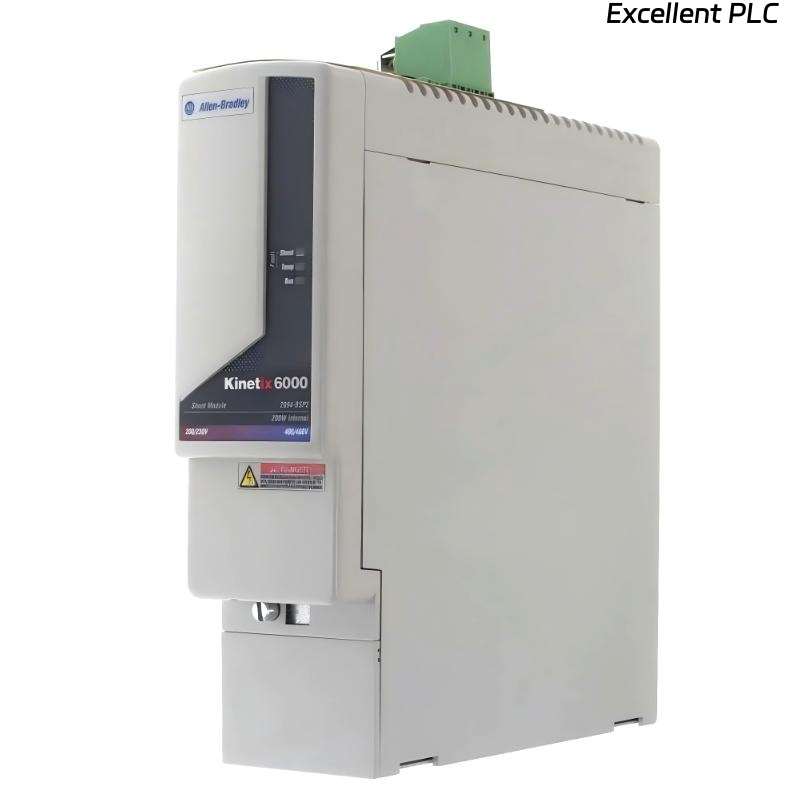

Allen Bradley 2094-BSP2 Kinetix 6000 Shunt Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 2094-BSP2 Kinetix 6000 Shunt Module is an auxiliary power dissipation module designed for use in Kinetix 6000, 6200, and 6500 servo drive systems. Its primary function is to provide additional shunt energy absorption capacity when the internal shunt capability of the Integrated Axis Module (IAM) or Axis Module (AM) is insufficient.
In regenerative braking conditions, servo motors can feed energy back into the DC bus. If this energy is not properly dissipated, it may cause overvoltage faults or system instability. The 2094-BSP2 addresses this issue by safely converting excess regenerative energy into heat through an external shunt resistor assembly.
This module is typically used in high-inertia or high-deceleration applications where frequent braking events generate significant regenerative energy. By adding 200 W of external shunt capacity, it improves system stability and protects drive components from overvoltage conditions.
The unit is designed for integration into Kinetix multi-axis architectures and operates on 400/460 VAC systems.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2094-BSP2 |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Product Series | Kinetix 6000 / 6200 / 6500 |
| Product Type | Shunt module |
| Input Voltage | 400 / 460 VAC |
| Shunt Capacity | 200 W |
| Function | Regenerative energy dissipation |
| Application Role | External shunt energy expansion |
| System Compatibility | Kinetix 6000 / 6200 / 6500 systems |
| Mounting Type | System-mounted module |
| Operating Principle | Braking energy conversion to heat |
| Dimensions | 287 × 70 × 249 mm |
| Weight | 3.1 kg |
Applications
● High-inertia motion systems
Used in applications where large rotating masses generate significant regenerative energy during deceleration.
● Frequent stop-start machinery
Suitable for production systems with repeated braking cycles such as presses and indexing machines.
● Multi-axis servo systems
Supports shared DC bus systems where multiple axes contribute regenerative energy.
● Heavy industrial automation equipment
Used in machines requiring controlled energy dissipation during high-load motion changes.
● Overvoltage protection in servo systems
Prevents DC bus overvoltage faults caused by excessive regenerative energy.
Advantages
● Increases system braking capacity
Adds 200 W additional shunt capability, improving energy handling during deceleration.
● Protects drive components
Reduces risk of DC bus overvoltage faults in high-energy applications.
● Compatible multi-system design
Supports Kinetix 6000, 6200, and 6500 platforms for flexible integration.
● Improves system stability
Ensures consistent operation under heavy regenerative load conditions.
● Simple integration
Designed for direct use within Kinetix servo architectures without complex configuration.
● Reliable energy dissipation
Provides controlled conversion of electrical energy into heat through shunt operation.
FAQ
- What is the main purpose of the 2094-BSP2 shunt module?
It is used to dissipate excess regenerative energy generated by servo motors during braking, preventing DC bus overvoltage conditions in Kinetix systems. - When is an external shunt module required?
It is required when the internal shunt capacity of the Kinetix axis or integrated module is not sufficient to handle the regenerative energy from the application. - What happens if regenerative energy is not dissipated properly?
It can lead to DC bus overvoltage faults, system shutdowns, or potential damage to drive components. - What types of applications typically require this module?
Applications with high inertia loads, frequent stopping cycles, or large deceleration energy such as presses, cranes, and indexing systems. - How does the module dissipate energy?
It converts electrical energy from the DC bus into heat using a shunt resistor system. - Is configuration required for this module?
Generally, it is integrated at the system level and does not require complex programming, but correct sizing and installation are essential. - Can it be used with all Kinetix systems?
It is compatible with Kinetix 6000, 6200, and 6500 platforms, but must be selected based on system energy requirements. - Does it improve motor performance?
It does not directly improve motor output but ensures stable operation by managing excess energy. - What happens if the shunt capacity is still insufficient?
If both internal and external shunt capacities are exceeded, the system may still trigger overvoltage faults. - Why is shunt energy management important in servo systems?
Because uncontrolled regenerative energy can destabilize the DC bus and cause system shutdowns or equipment stress.
Related Models
| Model | Description | Key Feature |
|---|---|---|
| 2094-BSP1 | Shunt module | Lower capacity version |
| 2094-BSP3 | Shunt module | Higher energy dissipation capacity |
| 2094-BM02 | Axis module | Servo inverter module |
| 2094-BM03-S | Axis module | STO-enabled high power |
| 2094-BC04-M | DC bus module | Power distribution unit |
| 2094-SE02-M | Safety module | STO safety function |
