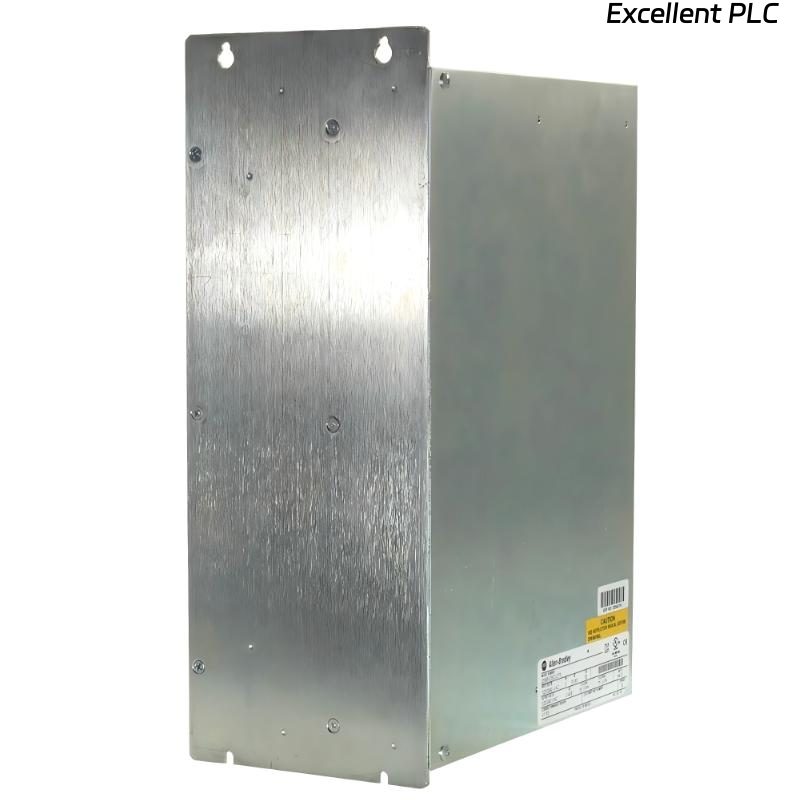

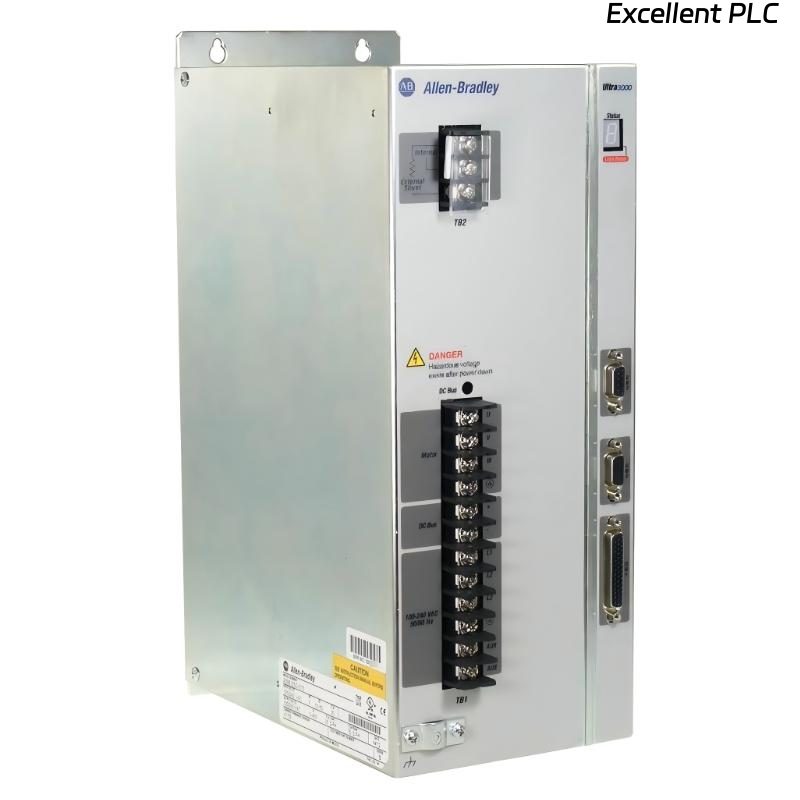

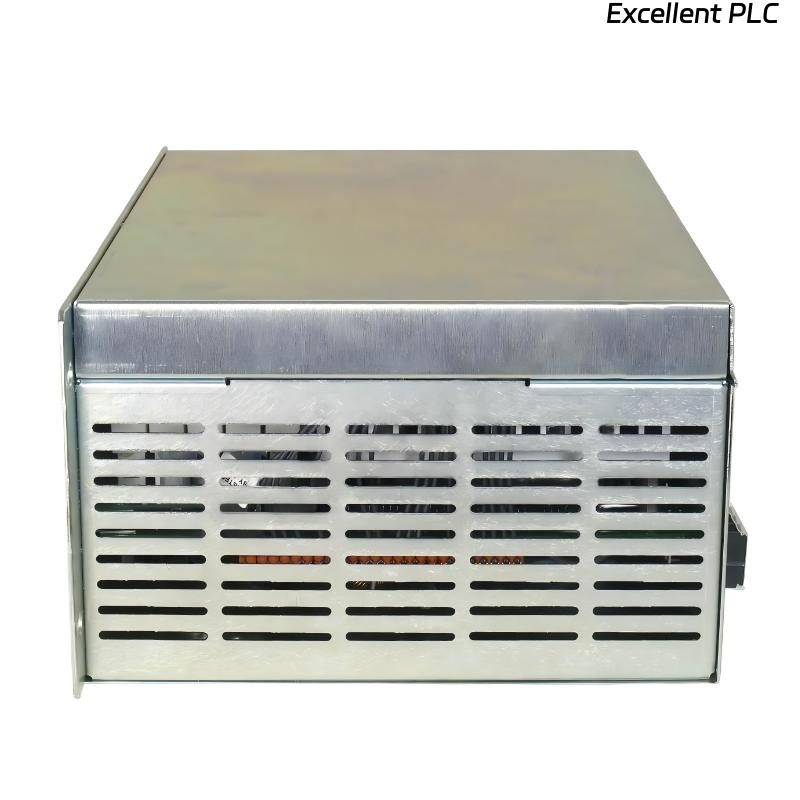

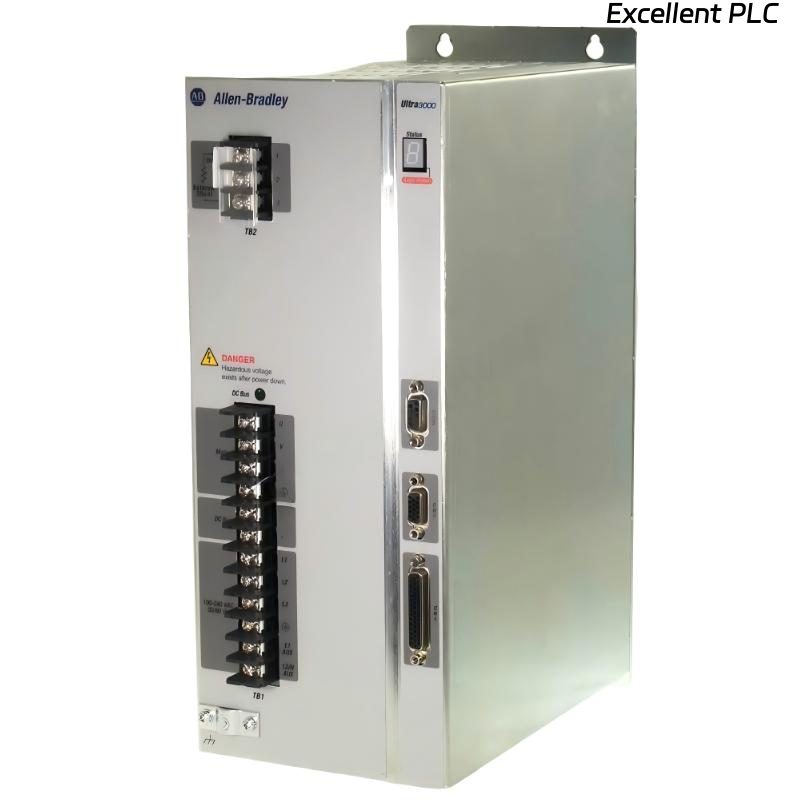

Allen Bradley 2098-DSD-075 Ultra3000 Digital Servo Drive

Product Introduction

The Allen Bradley 2098-DSD-075 Ultra3000 Digital Servo Drive is a high-power motion control solution designed for demanding industrial automation applications requiring precise, stable, and high-torque servo performance. As part of the Ultra3000 series, this drive delivers advanced digital servo control with fast response characteristics, making it suitable for heavy-duty machinery and high-inertia load systems.

With a rated output power of 7.5 kW and a current range of 35–75 AMPS, it is designed for applications where strong dynamic performance and reliable torque control are essential. The drive operates on a 100–240 VAC input with a 12/24 VDC control supply, ensuring stable logic operation and flexible integration into industrial control architectures. It is widely used in CNC systems, heavy packaging equipment, industrial robotics, and material processing machinery requiring high-power servo motion with consistent precision.

---

Product Specifications

---

Applications

• Heavy-duty CNC machining systems, delivering stable torque and precise motion control for cutting and shaping large workpieces.

• Industrial robotics, supporting high-load robotic arms used in welding, assembly, and material transfer operations.

• Packaging and processing equipment, ensuring accurate high-speed motion in demanding production environments.

• Material handling systems, including large conveyors and automated transfer lines requiring strong and stable servo output.

• Metal forming and processing machinery, where high torque and precise control are critical for consistent production quality.

---

Advantages

• High power output (7.5 kW) enables strong torque delivery for heavy industrial applications.

• Wide current range (35–75 AMPS) supports high-load dynamic motion and acceleration control.

• Stable SERCOS communication ensures synchronized multi-axis motion with deterministic performance.

• Flexible power input (100–240 VAC) allows installation in a variety of industrial electrical systems.

• Dual control supply (12/24 VDC) enhances operational stability and control reliability.

• Industrial-grade design ensures durability and long-term performance in harsh manufacturing environments.

FAQ

1. What is the main application of the 2098-DSD-075 servo drive?
   It is mainly used in heavy-duty industrial automation systems requiring high torque and precise motion control, such as CNC machining and metal processing equipment.
2. What communication protocol does this drive use?
   It uses a SERCOS interface, which provides high-speed and deterministic communication for synchronized motion control systems.
3. What is the power rating of this model?
   The drive has a rated output power of 7.5 kW, suitable for high-load industrial applications.
4. What type of input power does it support?
   It supports a wide input voltage range of 100–240 VAC at 50/60 Hz.
5. Why does it require a 12/24 VDC control supply?
   The control supply ensures stable logic operation and reliable communication independent of main power fluctuations.
6. Is this drive suitable for multi-axis systems?
   Yes, when used with SERCOS networks, it can be integrated into multi-axis synchronized motion systems.
7. What types of motors are compatible with this drive?
   It is designed for use with Allen-Bradley servo motors compatible with the Ultra3000 platform.
8. How does the drive handle overload conditions?
   It includes built-in protection such as overcurrent, overvoltage, and thermal monitoring to prevent system damage.
9. Is this drive suitable for continuous operation?
   Yes, it is designed for continuous industrial use in demanding environments with stable performance.
10. What industries commonly use this drive?
    It is commonly used in manufacturing, CNC machining, robotics, packaging, and heavy material processing industries.
