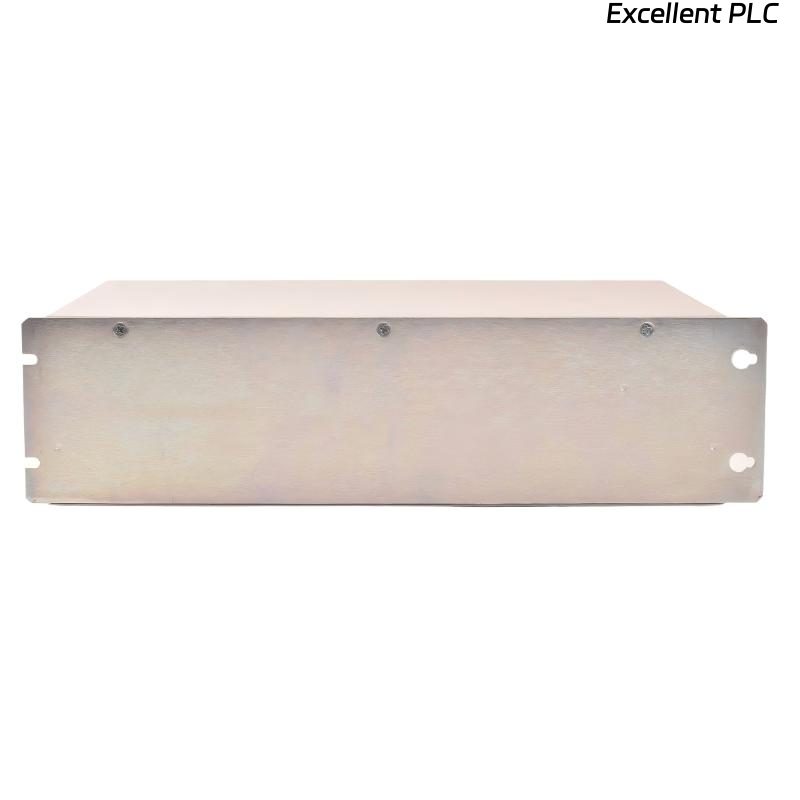

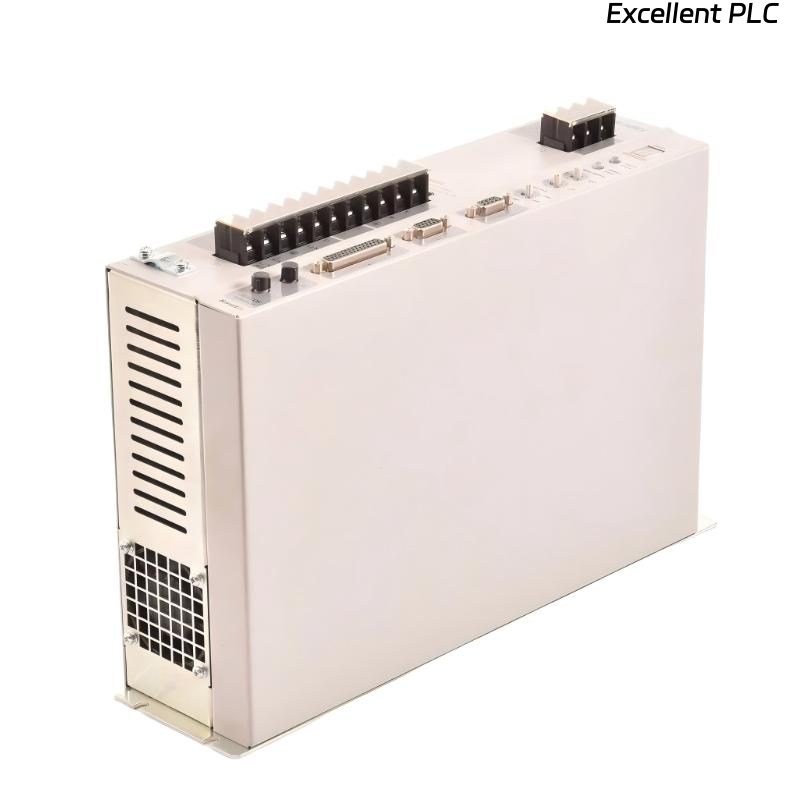

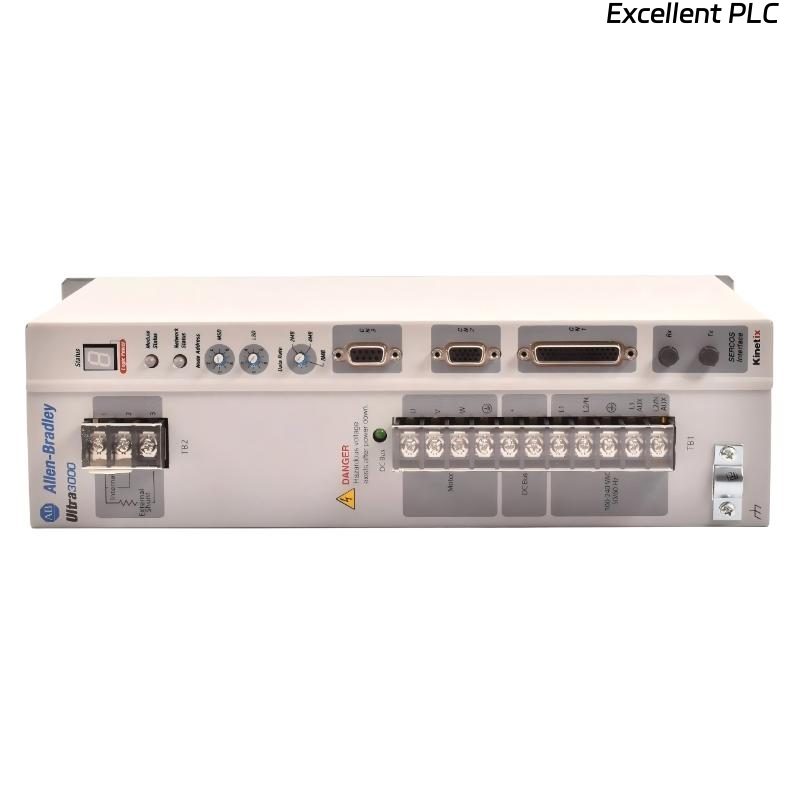

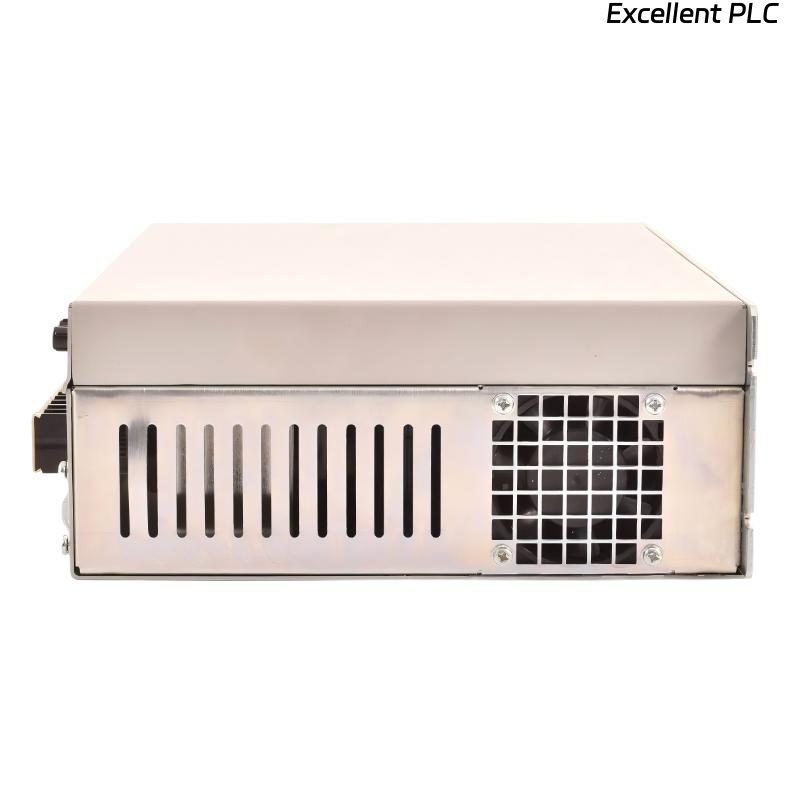

Allen Bradley 2098-DSD-030-SE Ultra3000 Digital Servo Drive

Product Introduction

The Allen Bradley 2098-DSD-030-SE Ultra3000 Digital Servo Drive is a high-performance motion control solution designed for industrial automation systems requiring precise servo control and stable high-speed operation. As part of the Ultra3000 series, this drive integrates advanced digital control technology with SERCOS-based communication to deliver synchronized, deterministic motion performance in multi-axis systems.

With a 3 kW power rating and a 15–30 AMP operating range, the drive is well suited for medium-to-heavy industrial applications. It supports a wide 100–240 VAC input range along with a dedicated 12/24 VDC control supply, ensuring reliable operation under varying electrical conditions. Its robust design, combined with accurate positioning control, makes it ideal for CNC machinery, packaging systems, robotics, and automated production lines where motion precision and repeatability are essential.

---

Product Specifications

---

Applications

• CNC machining systems, providing accurate multi-axis coordination and stable servo performance for cutting and shaping operations.

• Industrial robotics, supporting synchronized motion control for assembly, welding, and pick-and-place systems.

• Packaging machinery, enabling precise speed and position control for filling, sealing, and labeling processes.

• Material handling systems, ensuring smooth and repeatable motion in conveyors and automated transfer systems.

• Printing and converting equipment, maintaining tight registration control and consistent motion accuracy.

---

Advantages

• High power output (3 kW) supports demanding industrial automation and heavy-load applications.

• SERCOS communication interface ensures real-time, deterministic motion synchronization across multiple axes.

• Wide voltage compatibility (100–240 VAC) allows flexible installation in different industrial environments.

• Stable dual control supply (12/24 VDC) improves system reliability and control consistency.

• Advanced digital servo control provides high precision, fast response, and smooth motor operation.

• Robust industrial design ensures reliable performance under continuous operation and harsh factory conditions.

FAQ

1. What communication protocol does the 2098-DSD-030-SE use?
   It uses a SERCOS interface, which provides high-speed, deterministic communication for synchronized motion control systems.
2. What is the power rating of this servo drive?
   The drive delivers 3 kW of output power with a current range of 15–30 AMP.
3. Can this drive operate on standard industrial voltage?
   Yes, it supports a wide input range of 100–240 VAC at 50/60 Hz.
4. What types of control modes are supported?
   It supports position, velocity, and torque control modes for flexible motion applications.
5. Why does it use a 12/24 VDC control supply?
   The separate control supply ensures stable logic operation and reliable communication independent of main power fluctuations.
6. Is this drive suitable for multi-axis systems?
   Yes, when integrated with SERCOS networks, it supports synchronized multi-axis motion control.
7. What industries commonly use this drive?
   It is widely used in CNC machining, robotics, packaging, and automated manufacturing systems.
8. How does the drive handle overload or fault conditions?
   It includes built-in fault diagnostics, overcurrent protection, and thermal monitoring to prevent equipment damage.
9. Is the drive suitable for continuous industrial operation?
   Yes, it is designed for continuous duty in demanding industrial environments with stable performance.
10. What benefits does SERCOS provide in this system?
    SERCOS enables precise real-time communication, improving synchronization, accuracy, and overall system performance.
