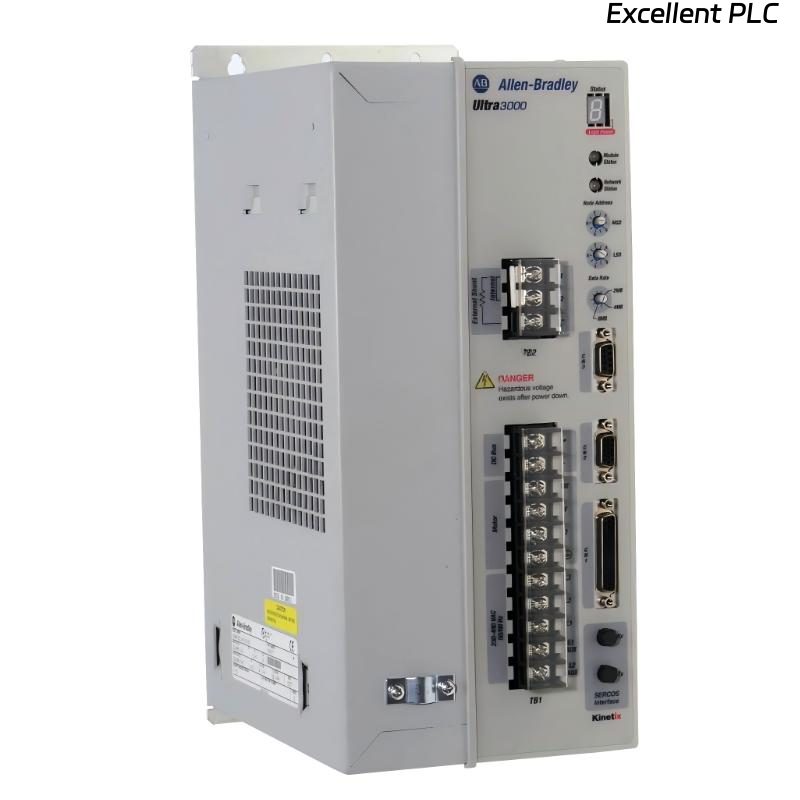

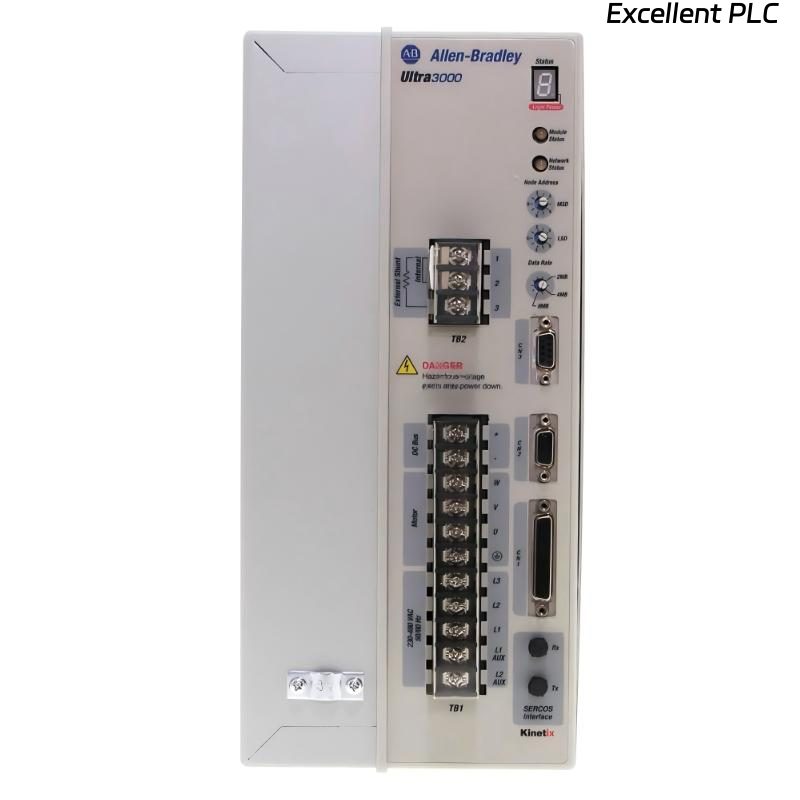

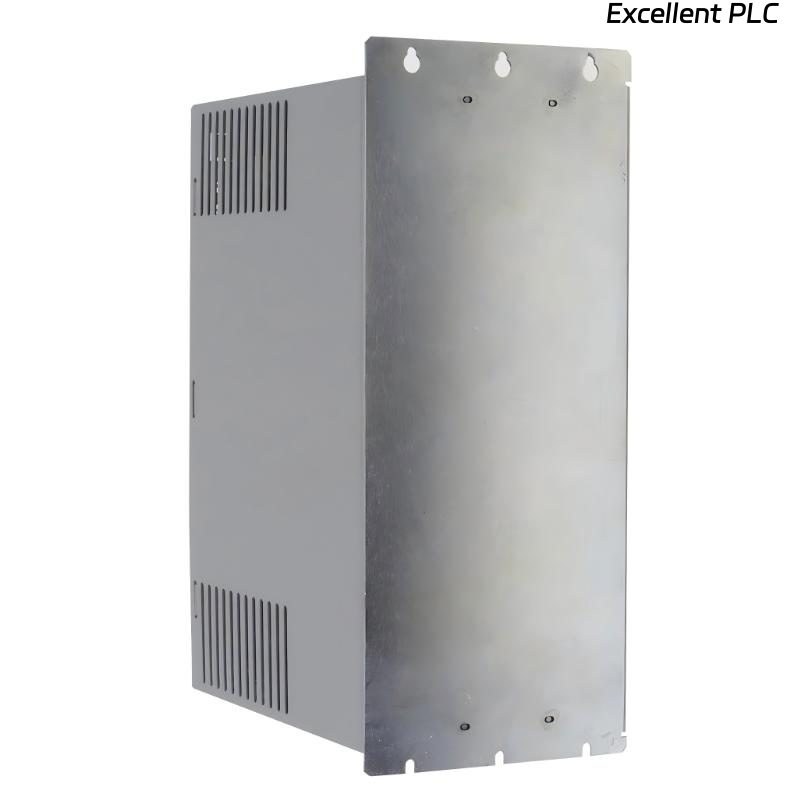

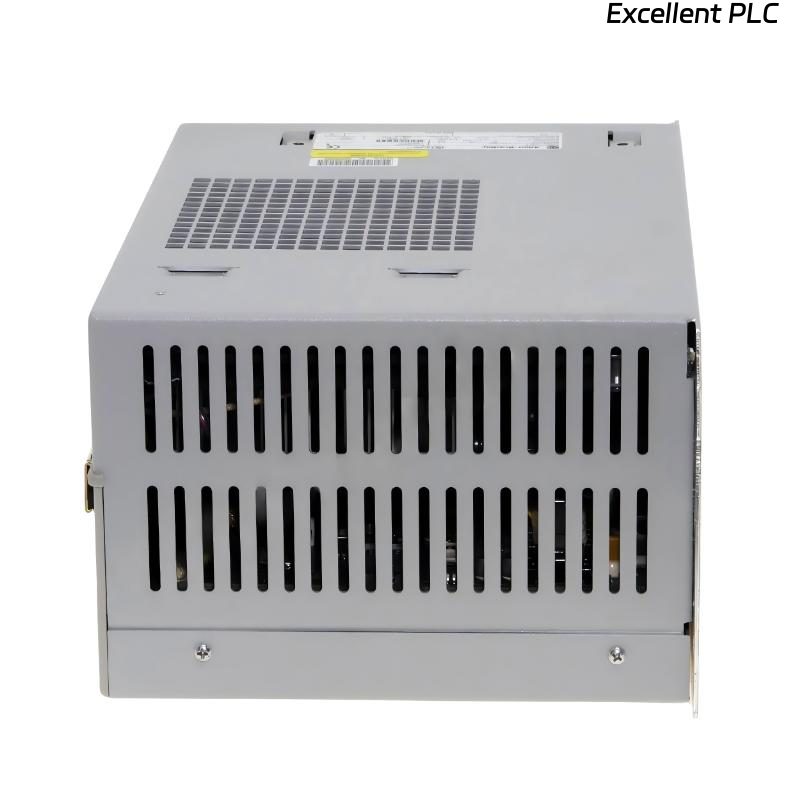

Allen Bradley 2098-DSD-HV150-SE Ultra3000 Digital Servo Drive

Product Introduction

The Allen Bradley 2098-DSD-HV150-SE Ultra3000 Digital Servo Drive is a high-power motion control solution designed for advanced industrial automation systems that require high torque output, precise positioning, and reliable multi-axis synchronization. As part of the Ultra3000 high-voltage series, this drive integrates digital servo control technology with SERCOS communication to achieve deterministic, high-speed motion performance across complex machine architectures.

With a 10 kW-class power platform and enhanced current handling capability, the HV150-SE is engineered for heavy-duty applications such as large CNC machining centers, industrial robotics, metal processing equipment, and high-inertia conveyor systems. It operates on a 230/460V AC input and delivers 34A continuous output current with 68A intermittent capability, ensuring strong dynamic response during acceleration, deceleration, and load variation conditions. Its robust construction and advanced control performance make it suitable for continuous industrial duty in demanding environments.

---

Product Specifications

---

Applications

• Heavy-duty CNC machining systems, supporting high-torque cutting, milling, and precision fabrication processes.

• Large-scale industrial robotics, enabling synchronized motion control for welding, assembly, and material handling tasks.

• High-load automation lines, ensuring stable motion performance under variable load conditions.

• Metal forming and processing equipment, where high intermittent torque is required for demanding production cycles.

• Material handling and conveyor systems, providing reliable servo control for large-scale logistics and transport automation.

---

Advantages

• Very high dynamic torque capability (68A intermittent) supports demanding acceleration and peak load conditions.

• Strong continuous output (34A) ensures stable performance in heavy industrial operations.

• SERCOS communication interface enables precise real-time synchronization in multi-axis systems.

• Flexible 230/460V AC input supports global industrial power infrastructure.

• Robust industrial design ensures durability under continuous high-load operation.

• Advanced digital servo control provides smooth motion, fast response, and high positioning accuracy.

FAQ

1. What is the main function of the 2098-DSD-HV150-SE servo drive?
   It provides high-power digital servo control for industrial automation systems requiring high torque, precise positioning, and strong dynamic response under load variation.
2. What communication protocol does this drive use?
   It uses the SERCOS interface, which enables high-speed and deterministic communication for synchronized multi-axis motion control.
3. What is the difference between continuous and intermittent current?
   The 34A continuous rating supports steady operation, while the 68A intermittent rating allows short bursts of high torque during acceleration or load spikes.
4. What voltage input does this drive support?
   It supports a wide input range of 230/460V AC at 50/60 Hz.
5. Is this drive suitable for multi-axis systems?
   Yes, it can be integrated into SERCOS-based multi-axis systems for coordinated and synchronized motion.
6. What types of motors are compatible?
   It is designed for Allen-Bradley servo motors within the Ultra3000 platform.
7. How does the drive handle overload conditions?
   It includes built-in protection such as overcurrent, overvoltage, and thermal monitoring to prevent damage.
8. Is this drive suitable for continuous industrial operation?
   Yes, it is designed for continuous-duty operation in heavy industrial environments.
9. What industries commonly use this model?
   It is widely used in CNC machining, robotics, metal processing, packaging, and large-scale automation systems.
10. What is the role of SERCOS in this drive?
    SERCOS provides real-time deterministic communication, ensuring precise coordination and improved system performance.
