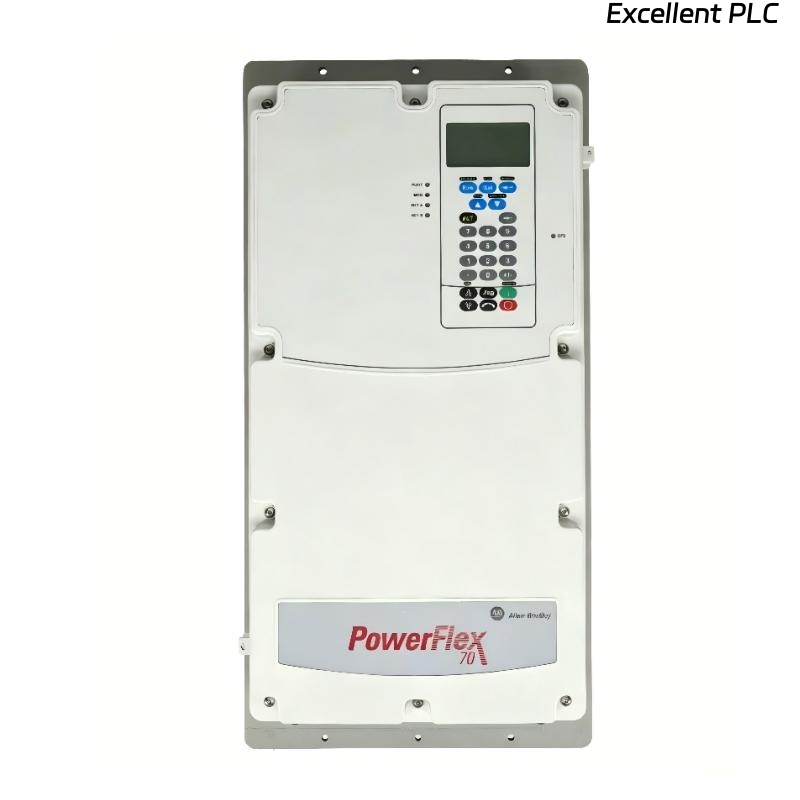

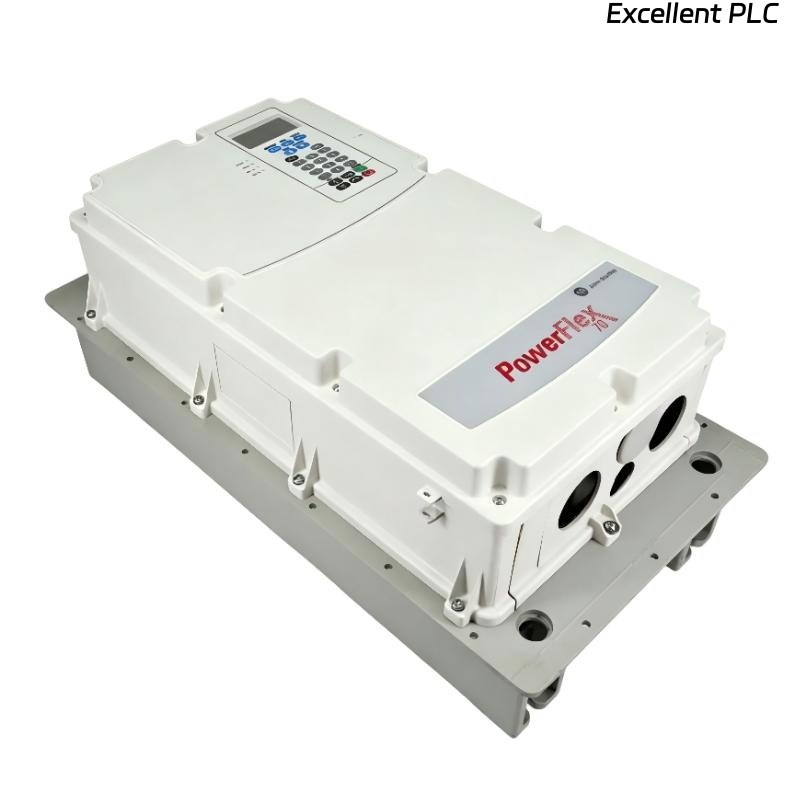

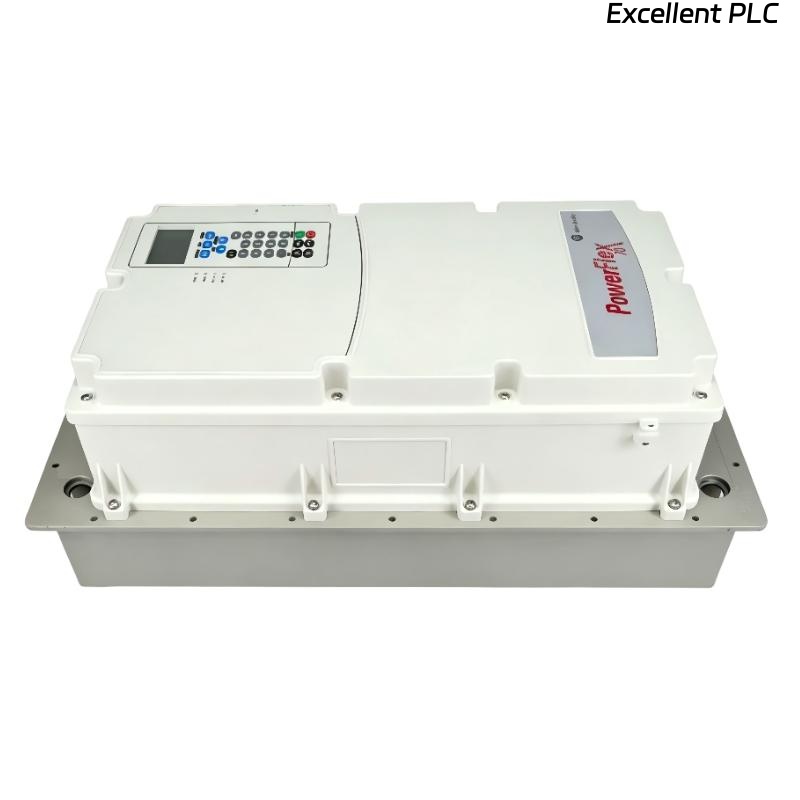

Allen Bradley 20AD052C3AYNANC0 PowerFlex 70 AC Drive

Product Introduction

The Allen Bradley 20AD052C3AYNANC0 PowerFlex 70 AC Drive is a high-performance industrial variable frequency drive (VFD) designed for controlling large AC induction motors in harsh indoor environments. Part of the PowerFlex 70 series, this drive provides precise speed, torque, and braking control while offering enhanced protection against dust, moisture, and industrial contaminants.

This model operates on three-phase power with a 52 Amp rating, supporting 40 HP for normal duty and 30 HP for heavy-duty motor applications. The drive is designed for wall or machine mounting and features a robust IP66/NEMA Type 4X/12 enclosure for indoor use. It includes conformal coating for added protection, a full numeric LCD display with keypad for manual control and configuration, and a pre-installed Brake IGBT for safe and controlled motor stopping. It does not include a drive-mounted brake resistor or communication module, allowing flexible system integration.

The 20AD052C3AYNANC0 is ideal for industrial machinery, pumps, fans, conveyors, and automated production lines that require high-power motor control in environments with higher exposure to dust or moisture.

---

Product Specifications

---

Applications

• Industrial Machinery
Provides precise control for large pumps, fans, mixers, and conveyor systems.

• Material Handling and Conveyor Systems
Supports smooth operation, accurate speed control, and reliable stopping in automated transport systems.

• Packaging and Production Lines
Ensures accurate motor performance for assembly, filling, and packaging machines.

• HVAC and Fluid Handling
Controls industrial fans, pumps, and blowers in indoor environments with dust or moisture exposure.

• Factory Automation
Integrates into production lines requiring high-power, reliable motor control with manual interface.

• Industrial Braking Applications
Built-in Brake IGBT ensures safe and controlled stopping of motors in heavy-duty operations.

---

Advantages

• High-Power Motor Support
Handles 40 HP normal duty and 30 HP heavy-duty motor applications.

• Enhanced Environmental Protection
IP66/NEMA Type 4X/12 enclosure with conformal coating protects against dust, moisture, and contaminants.

• Full Numeric LCD Interface
Simplifies manual setup, monitoring, and parameter configuration.

• Pre-Installed Brake IGBT
Facilitates reliable motor stopping without external braking components.

• Enhanced Motor Control
Offers advanced acceleration, deceleration, and torque regulation.

• Flexible Mounting Options
Suitable for wall or machine mounting in indoor industrial environments.

FAQ

1. What is the main function of the 20AD052C3AYNANC0 drive?
   It regulates speed, torque, and stopping of AC motors for precise industrial control.
2. What motor power and current does it support?
   Supports 40 HP (normal duty) and 30 HP (heavy duty) with a 52 Amp input.
3. Does this drive include a brake module?
   Yes, it comes with a pre-installed Brake IGBT for controlled stopping.
4. What type of mounting is supported?
   Wall or machine mounting suitable for indoor environments.
5. What protection level does the enclosure provide?
   IP66/NEMA Type 4X/12 for indoor use, with conformal coating for dust and moisture protection.
6. Does it have a manual interface for configuration?
   Yes, it features a full numeric LCD display with keypad for manual setup and monitoring.
7. Is a communication module included?
   No, the base model does not include a communication module but can be added separately.
8. Does this drive support enhanced motor control features?
   Yes, it provides advanced acceleration, deceleration, and torque regulation.
9. What industrial applications is it suitable for?
   Heavy-duty machinery, conveyors, pumps, fans, production lines, and indoor environments with dust or moisture.
10. Does it comply with EMC standards?
    Yes, it meets CE EMC directive 89/336/EEC with a second environment filter.
