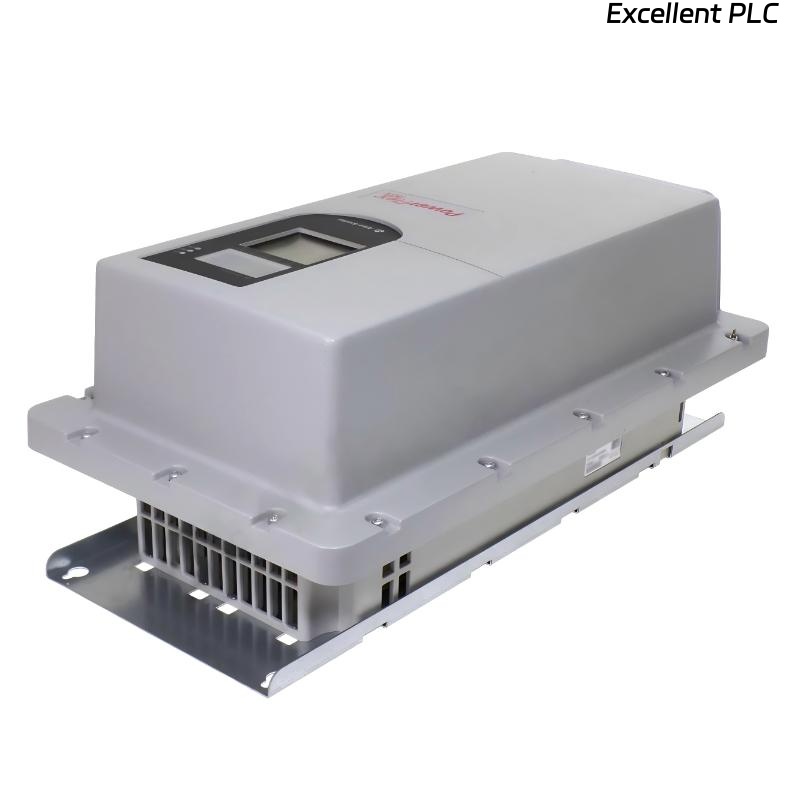

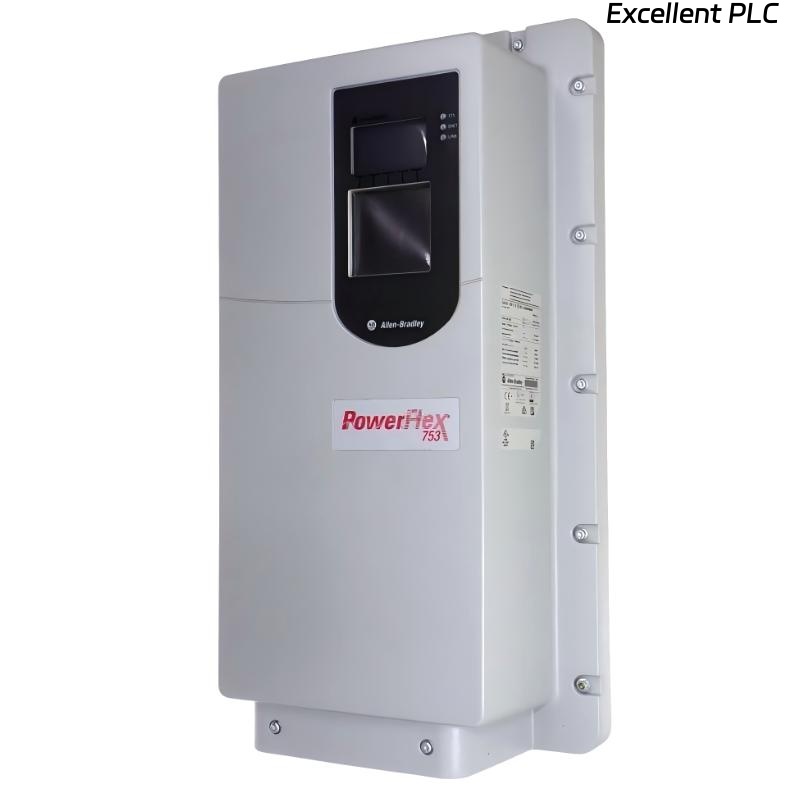

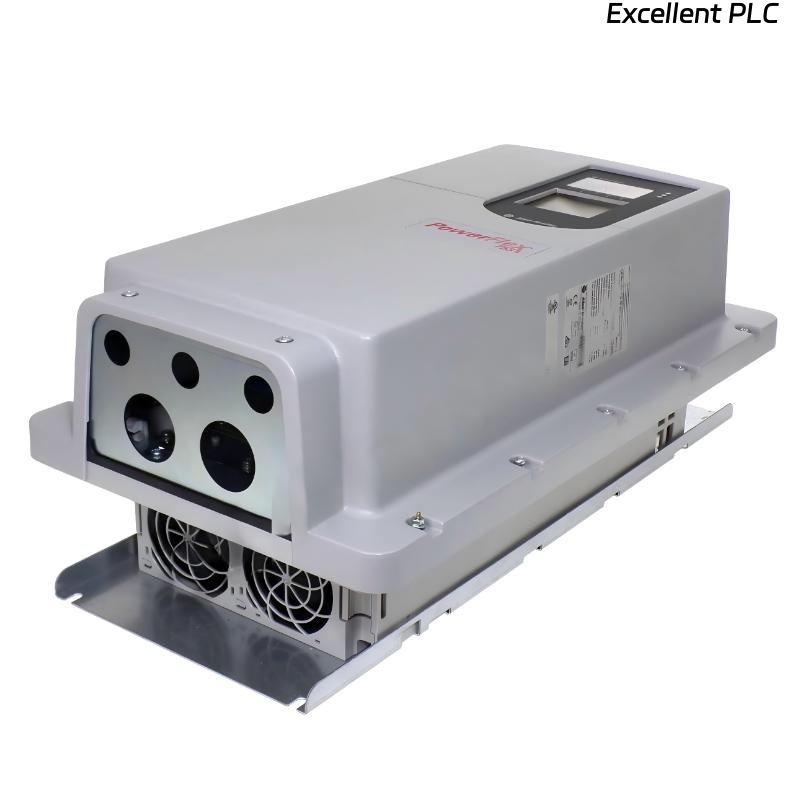

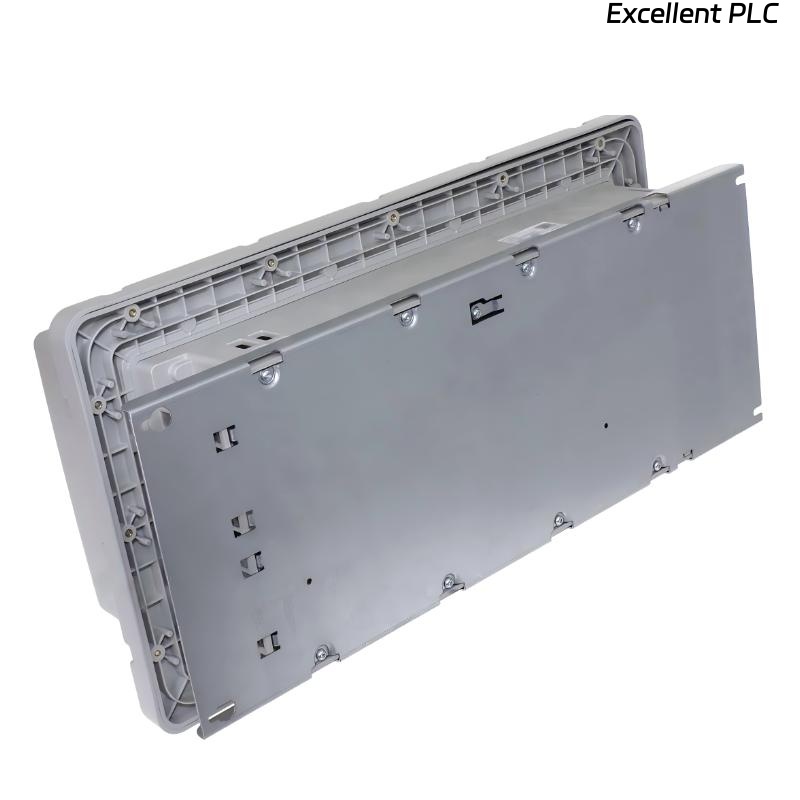

Allen Bradley 20F11GD052AA0NNNNN PowerFlex 753 AC Drive
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 20F11GD052AA0NNNNN PowerFlex 753 AC Drive is a high-performance industrial variable frequency drive (VFD) designed for precise control of AC induction motors in demanding industrial environments. As part of the PowerFlex 753 series, it provides advanced motor speed, torque, and braking control with embedded I/O for flexible automation integration.
This model operates on 480 VAC three-phase input and delivers a 52 Amp current rating, supporting 40 HP for normal duty and 30 HP for heavy-duty applications. The drive features an air-cooled design, Type 12/IP54 protection for indoor use, DC terminals for motor connection, and a filtered input with CM jumper removed. It comes with a built-in DB transistor and does not include a Human Interface Module (HIM), offering streamlined installation for industrial control systems.
The 20F11GD052AA0NNNNN is ideal for large motors in pumps, fans, conveyors, mixers, and factory automation systems where high-power operation, precise control, and embedded I/O are required.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | Allen Bradley 20F11GD052AA0NNNNN |
| Product Type | PowerFlex 753 AC Drive |
| Series | PowerFlex 753 |
| Motor Type | AC Induction Motor |
| Input Voltage | 480 VAC |
| Input Phase | 3 Phase |
| Current Rating | 52 Amps |
| Horsepower / Power Rating | 40 HP Normal Duty / 30 HP Heavy Duty |
| Mounting | Frame 4, Air Cooled |
| Protection | Type 12 / IP54 (Indoor Use) |
| Embedded I/O | Yes |
| DC Terminals | Yes |
| Filter | Yes, input filtered, CM jumper removed |
| DB Transistor | Installed |
| HIM (Human Interface Module) | Not Included |
| Enhanced Control | Yes |
| Feedback | Optional |
| Dimensions | 571 × 220.1 × 300 mm |
| Weight | 14 kg |
Applications
• Heavy Industrial Machinery
Provides precise speed and torque control for pumps, fans, and mixers.
• Conveyors and Material Handling Systems
Supports smooth operation, controlled acceleration, and deceleration in automated transport lines.
• Factory Automation and Production Lines
Delivers reliable motor control for assembly, packaging, and processing equipment.
• HVAC and Fluid Systems
Controls large fans, pumps, and blowers in indoor industrial environments.
• High-Power Braking Applications
DB transistor and embedded I/O allow safe, controlled stopping for heavy-duty motors.
• Flexible Integration
Embedded I/O enables direct interface with control systems for advanced automation.
Advantages
• High-Power Capability
Supports 40 HP normal duty and 30 HP heavy-duty motors for demanding industrial operations.
• Embedded I/O
Provides direct control and monitoring of motor functions without additional modules.
• Air-Cooled with Type 12 / IP54 Protection
Suitable for indoor industrial environments with dust and moisture exposure.
• Filtered AC Input
Enhances EMC compliance and reduces electrical noise interference.
• DB Transistor Installed
Ensures controlled motor braking for safety and precision.
• Frame 4 Mounting
Simplifies installation in standard industrial enclosures.
FAQ
- What is the main purpose of this PowerFlex 753 drive?
It controls AC motor speed, torque, and braking for high-power industrial applications. - What motor power and current can it handle?
Supports 40 HP normal duty and 30 HP heavy duty with a 52 Amp input. - Does it include embedded I/O?
Yes, it comes with built-in embedded I/O for direct integration into control systems. - Is a Human Interface Module (HIM) included?
No, this model does not include a HIM. - What protection level does this drive provide?
Type 12 / IP54, suitable for indoor industrial use. - Does it have AC input filtering?
Yes, the input is filtered and the CM jumper is removed for improved EMC performance. - What cooling method does it use?
Air-cooled design ensures proper heat dissipation in industrial environments. - Does it include braking capability?
Yes, a DB transistor is installed for controlled stopping of motors. - What applications is this drive suitable for?
Industrial pumps, fans, conveyors, mixers, HVAC systems, and factory automation. - Can it be integrated into automated control systems?
Yes, the embedded I/O allows direct interfacing for enhanced automation control.
Related Models
| Model | Description |
|---|---|
| 20F11GD052AA0NNNN1 | PowerFlex 753 AC Drive with optional communication module |
| 20F11GD052AA0NNNN2 | PowerFlex 753 AC Drive with feedback support |
| 20AC072A0AYNANC0 | PowerFlex 70 AC Drive, 37 kW / 30 kW |
| 20AD052C3AYNANC0 | PowerFlex 70 AC Drive, 40 HP / 30 HP, IP66/NEMA 4X |
| 20AC030A3AYNACC0 | PowerFlex 70 AC Drive, 15 kW / 20 HP |
| 20AC015A0AYNANC0 | PowerFlex 70 AC Drive, 7.5 kW / 5.5 kW |
Popular Models
| Model | Description |
|---|---|
| 20F11GD052AA0NNNNN | PowerFlex 753 AC Drive, 40 HP / 30 HP, IP54, Embedded I/O |
| 20AD052C3AYNANC0 | PowerFlex 70 AC Drive, 40 HP / 30 HP, IP66/NEMA 4X |
| 20AC072A0AYNANC0 | PowerFlex 70 AC Drive, 37 kW / 30 kW |
| 20AC030A3AYNACC0 | PowerFlex 70 AC Drive, 15 kW / 20 HP |
| 20AC015A0AYNANC0 | PowerFlex 70 AC Drive, 7.5 kW / 5.5 kW |
| 20AC020A0AYNANC0 | PowerFlex 70 AC Drive, 11 kW / 15 HP |
