Product Introduction

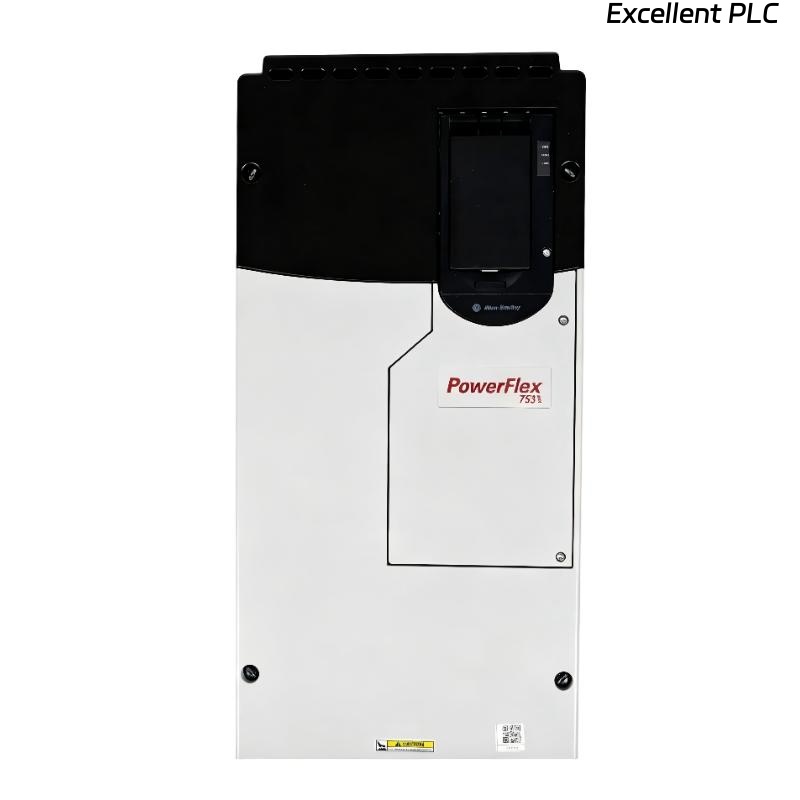

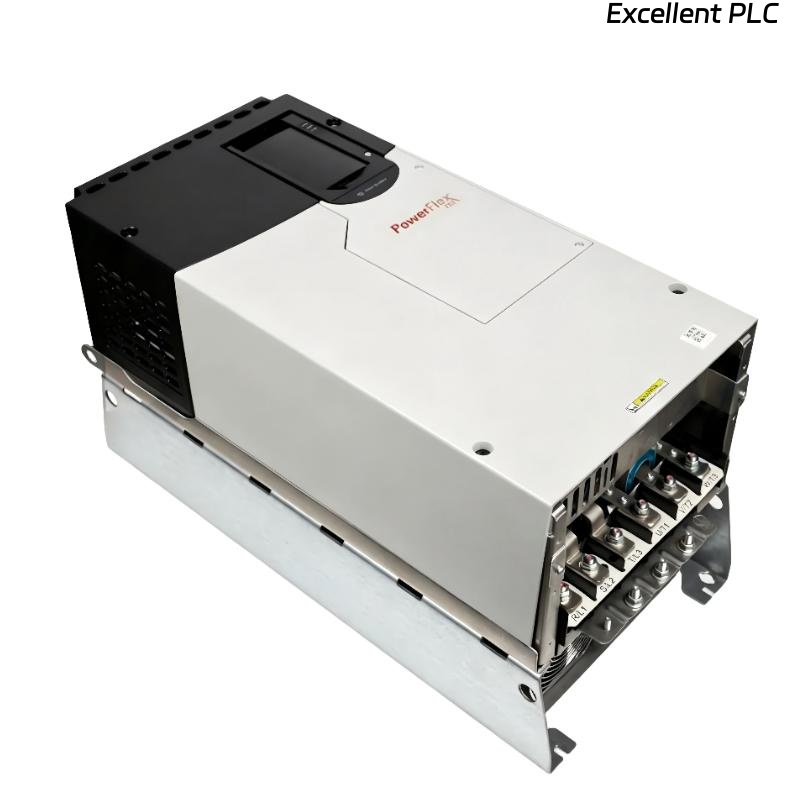

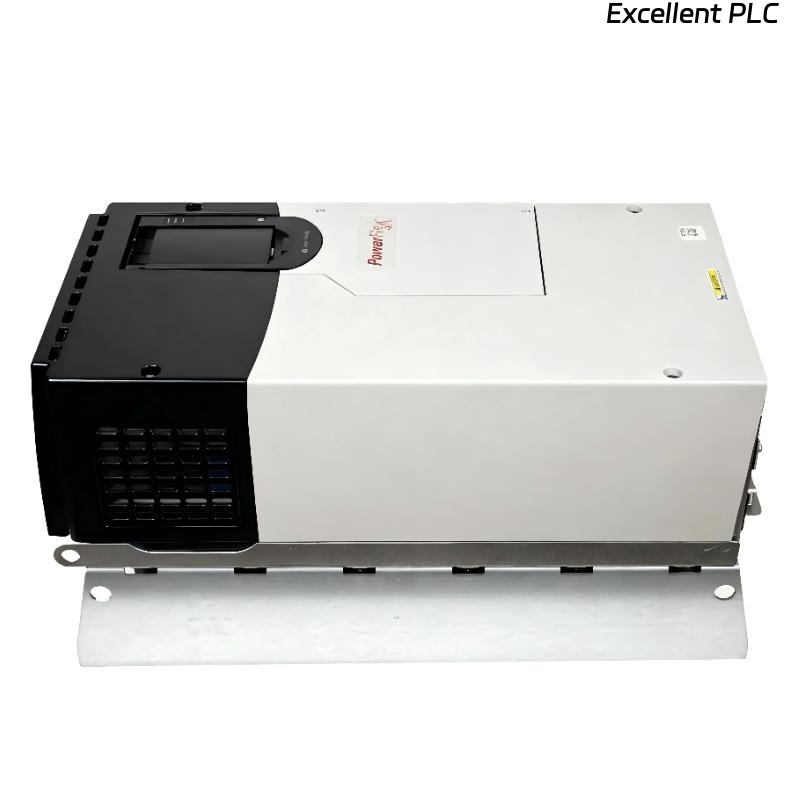

The Allen Bradley 20F1ANC260JA0NNNNN PowerFlex 753 AC Drive is a high-power, industrial-grade variable frequency drive (VFD) designed for controlling large AC induction motors in demanding automation and industrial environments. Part of the PowerFlex 753 series, it is engineered for heavy-duty applications that require precise motor speed, torque, and braking control.
This model operates on 400 VAC AC input and can provide up to 540 VDC, supporting 132 kW (177 HP) output with a 260 Amp rating. The drive is an open-type IP20/IP00 unit, suitable for installation in enclosed industrial panels where it can be integrated with external cooling and control infrastructure. Its robust design ensures reliable operation for large motors in factory automation, pumps, fans, conveyors, and process control applications.
The 20F1ANC260JA0NNNNN is ideal for industries requiring extreme power handling, precise motor regulation, and heavy-duty operation, including steel, cement, chemical, water treatment, and large-scale manufacturing plants.

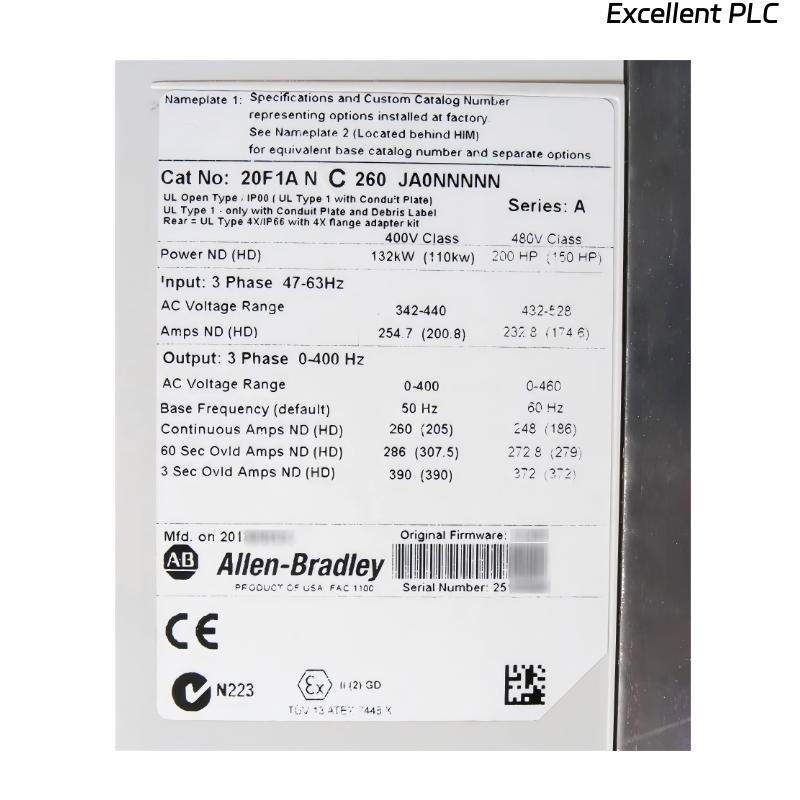

Product Specifications
| Parameter | Value |
|---|---|
| Product Name | Allen Bradley 20F1ANC260JA0NNNNN |
| Product Type | PowerFlex 753 AC Drive |
| Series | PowerFlex 753 |
| Motor Type | AC Induction Motor |
| Input Voltage | 400 VAC |
| DC Bus Voltage | 540 VDC |
| Current Rating | 260 Amps |
| Horsepower / Power Rating | 132 kW / 177 HP |
| Mounting | Open Type |
| Protection | IP20/IP00 |
| Cooling | External or panel cooling required |
| Drive Type | High-Power VFD for industrial motors |
| Enhanced Control | Yes |
| Feedback | Optional |
| Dimensions | 665.5 × 308 × 346.4 mm |
| Weight | 38.6 kg |
Applications
• Heavy Industrial Machinery
Provides reliable speed and torque control for large pumps, fans, mixers, and compressors.
• Large-Scale Conveyors
Handles high-torque material handling systems in mining, steel, and cement operations.
• Water and Wastewater Treatment Plants
Controls high-power pumps and blowers efficiently with energy optimization.
• Factory Automation
Integrates into high-capacity production lines requiring precise motor control and monitoring.
• Process Industries
Ideal for chemical, oil, and gas processing with variable load requirements.
• Power-Intensive Braking Applications
Provides controlled deceleration for heavy motors in industrial processes.
Advantages
• Extreme Power Handling
Supports 132 kW / 177 HP motors with 260 Amp capacity for demanding industrial applications.
• Open-Type Design
Flexible integration into industrial panels with external cooling options.
• Enhanced Motor Control
Advanced speed, torque, and braking control for precise industrial automation.
• High Reliability
Built for continuous heavy-duty operation in harsh industrial environments.
• Flexible Feedback Options
Can be paired with optional feedback devices for closed-loop control.
• Wide Industrial Applications
Suitable for process, factory automation, and heavy-duty power-intensive systems.
