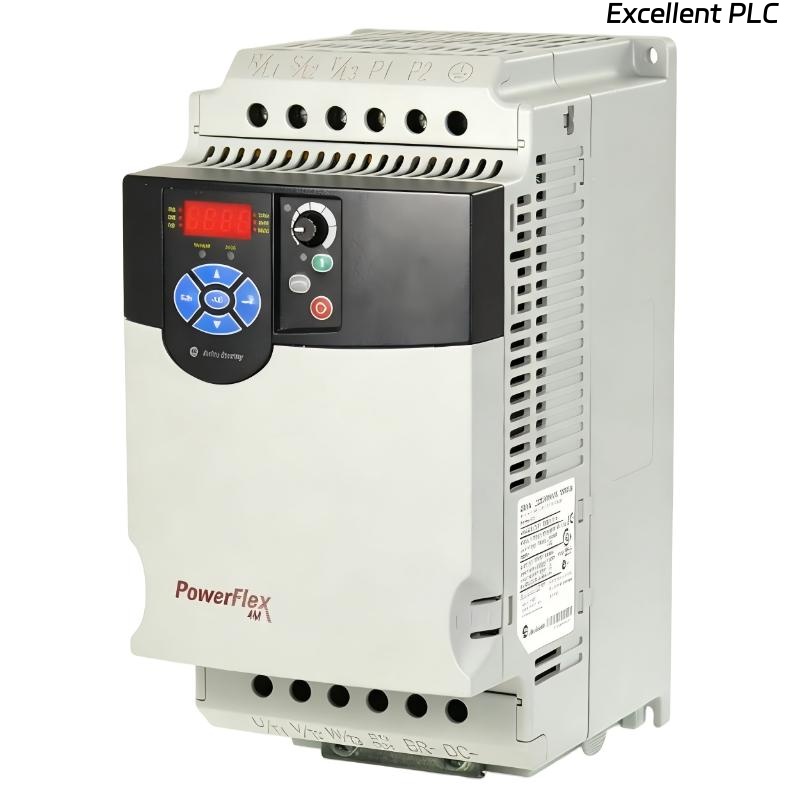

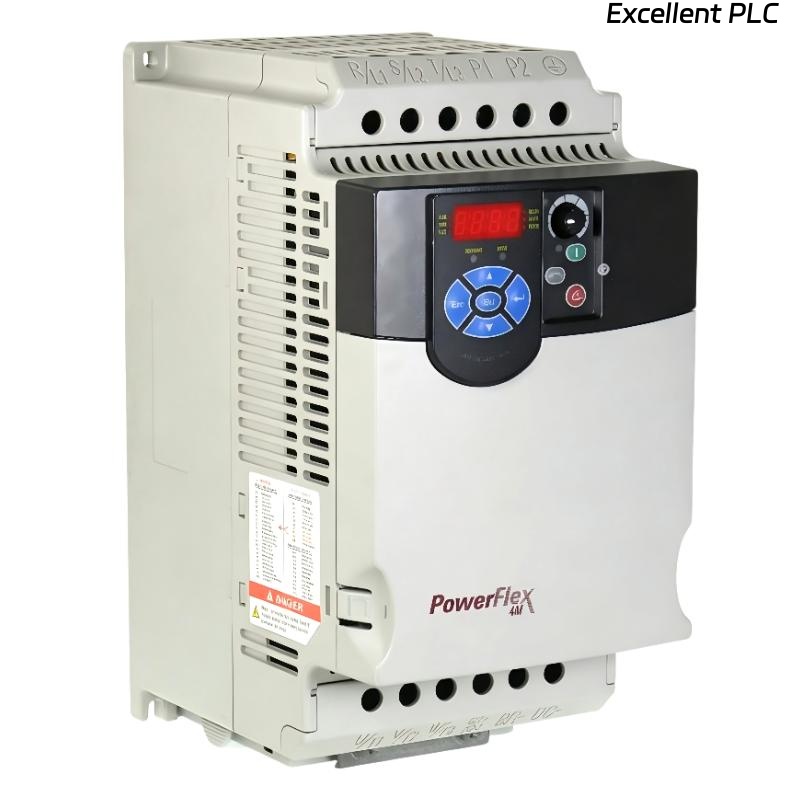

The Allen-Bradley 22F-D013N104 PowerFlex 4M AC Drive is a compact and efficient variable frequency drive designed for general-purpose motor control in industrial environments. As part of the PowerFlex 4M series, it is widely used for applications requiring reliable speed regulation, straightforward setup, and stable operation without unnecessary complexity.
This model operates on a three-phase 480V AC supply and supports motors up to 7.5 HP. It is designed to deliver smooth acceleration, controlled deceleration, and consistent torque performance across a wide range of operating conditions. The drive is optimized for simplicity in commissioning, making it suitable for both OEM equipment and retrofit installations.

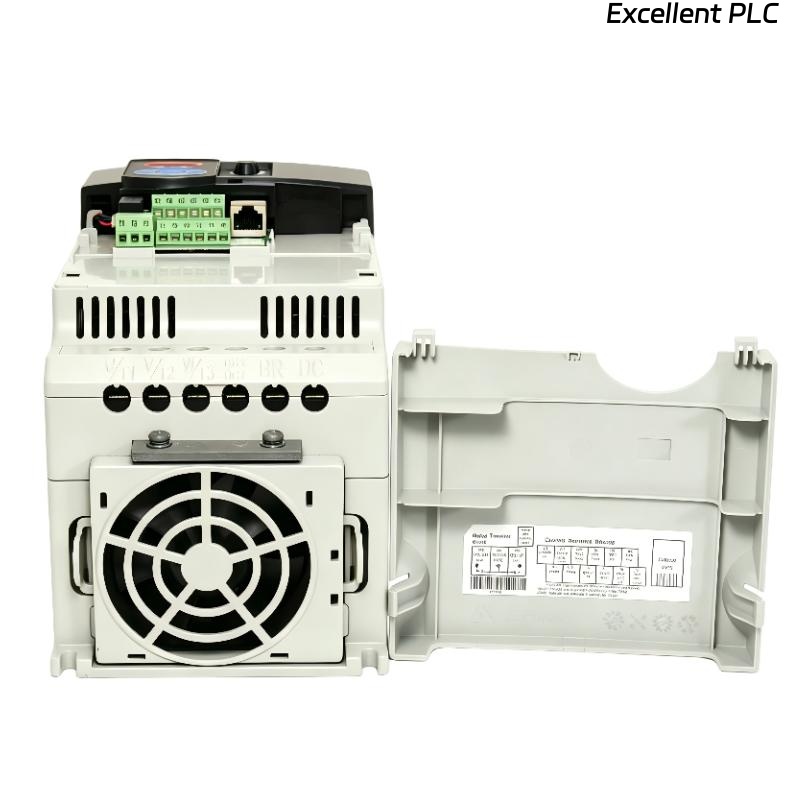

With a Frame Size C panel-mount design, the unit integrates easily into standard control cabinets. The LED display and fixed digital keypad provide direct local control and monitoring, while RS485 communication enables integration into automation and supervisory systems. The IP20 open-type enclosure is intended for protected cabinet installation.
Product Specifications
| Parameter | Value |
|---|---|
| Model | 22F-D013N104 |
| Series | PowerFlex 4M |
| Input Voltage | 480V AC |
| Phase | 3-Phase |
| Output Current | 13 A |
| Power Rating | 5.5 kW / 7.5 HP |
| Frame Size | C |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 (Open) |
| Display Type | LED Display |
| Keypad | Fixed Digital Keypad |
| Communication | RS485 |
| Filter | No CE Compliant Filter |
| Control Method | V/Hz Control |
| Cooling Method | Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical, no derating) |
| Dimensions | 260 × 130 × 180 mm |
| Weight | 4.8 kg |
Applications
● Conveyor Systems
Provides stable speed control for material transport lines, improving smooth operation and reducing mechanical stress.
● Pumping Applications
Ensures consistent flow regulation, enhancing efficiency in water and process systems.
● HVAC Equipment
Supports airflow adjustment, helping optimize energy usage in ventilation and cooling systems.
● Packaging Machinery
Delivers reliable motor synchronization, improving production stability and repeatability.
● Light Industrial Machinery
Suitable for general-purpose machines requiring variable speed control.
● Material Handling Systems
Maintains controlled motion performance in lifting and conveying equipment.
Advantages
● Simplified Commissioning
The fixed digital keypad enables fast setup and reduces configuration complexity.
● Reliable Motor Control
Provides stable V/Hz control performance, ensuring smooth operation under varying loads.
● Compact Cabinet Design
The Frame Size C structure allows efficient installation in standard control panels.
● Flexible Integration Capability
Built-in RS485 communication supports connection with PLC and automation systems.
● Stable Industrial Operation
Designed for continuous-duty environments, ensuring consistent long-term performance.
● Energy-Efficient Operation
Adjusts motor speed according to demand, helping reduce unnecessary power consumption.
