Product Introduction

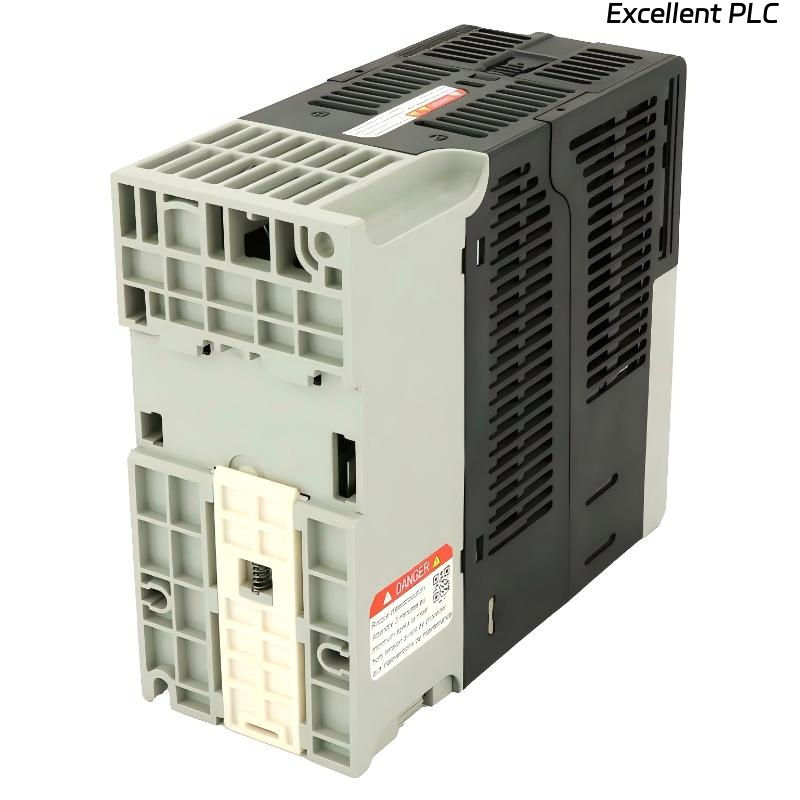

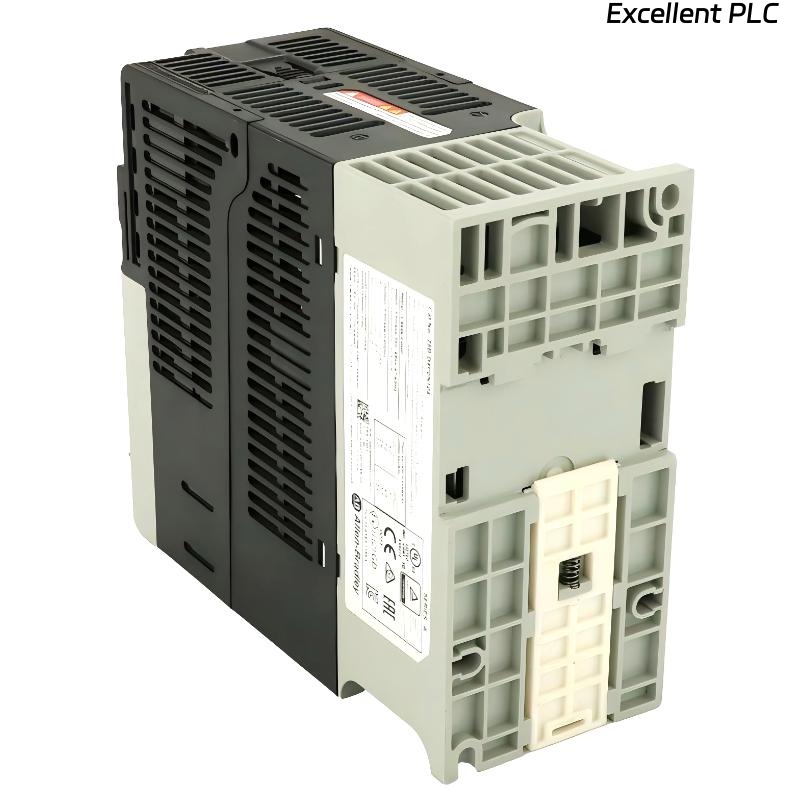

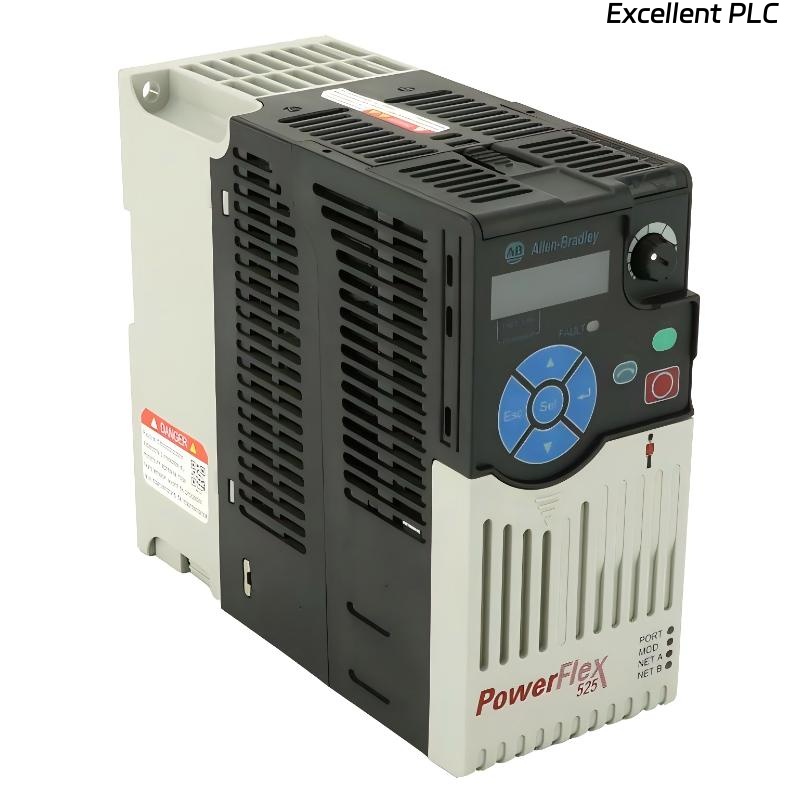

The Allen-Bradley 25B-D4P0N104 PowerFlex 525 AC Drive is a compact and high-performance variable frequency drive designed for precise motor control in modern industrial automation systems. As part of the PowerFlex 525 series, it combines advanced control capabilities, flexible communication options, and efficient design, making it suitable for both standalone machines and integrated production environments.
This model operates on a three-phase 480 VAC power supply and is rated for 2 HP motors. It delivers stable speed regulation, smooth acceleration and deceleration, and reliable torque performance under varying load conditions. The drive supports advanced control methods, allowing it to adapt to a wide range of application requirements.
With its compact Frame Size A structure, the unit is ideal for installations where space is limited. The non-filtered configuration provides flexibility for users to implement external EMC solutions based on system requirements. Built-in communication capabilities enable seamless integration into PLC-controlled and network-based automation systems.
Product Specifications
| Parameter | Value |
|---|---|
| Model | 25B-D4P0N104 |
| Series | PowerFlex 525 |
| Input Voltage | 480 VAC |
| Phase | 3-Phase |
| Output Current | 4 A |
| Power Rating | 1.5 kW / 2 HP |
| Frame Size | A |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 (NEMA Type Open) |
| Filter | No Filter |
| Control Method | V/Hz Control / Sensorless Vector Control |
| Communication | Embedded EtherNet/IP |
| Cooling Method | Natural / Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical) |
| Dimensions | 172 × 72 × 152 mm |
| Weight | 1.1 kg |
Applications
● Small Conveyor Systems
Provides accurate and stable speed control, ensuring smooth material transport.
● Fan and Ventilation Equipment
Enables efficient airflow adjustment, improving HVAC system performance.
● Light-Duty Pump Systems
Supports consistent flow control, enhancing process efficiency.
● Packaging and Assembly Machines
Ensures repeatable and precise motor operation for stable production.
● OEM Equipment
Ideal for compact machinery designs requiring flexible motor control solutions.
● General Industrial Automation
Suitable for various applications where compact size and reliable performance are required.
Advantages
● Compact Frame Size A Design
Allows installation in tight control panels, saving space.
● Advanced Motor Control
Supports sensorless vector and V/Hz control, improving performance under varying loads.
● Seamless Network Integration
Embedded EtherNet/IP communication enables easy connection with PLC systems.
● Flexible EMC Configuration
The non-filtered design allows customized filtering solutions based on installation needs.
● Reliable Continuous Operation
Designed for industrial environments, ensuring stable long-term performance.
● Energy Efficiency Improvement
Adjusts motor speed according to demand, reducing energy consumption.
