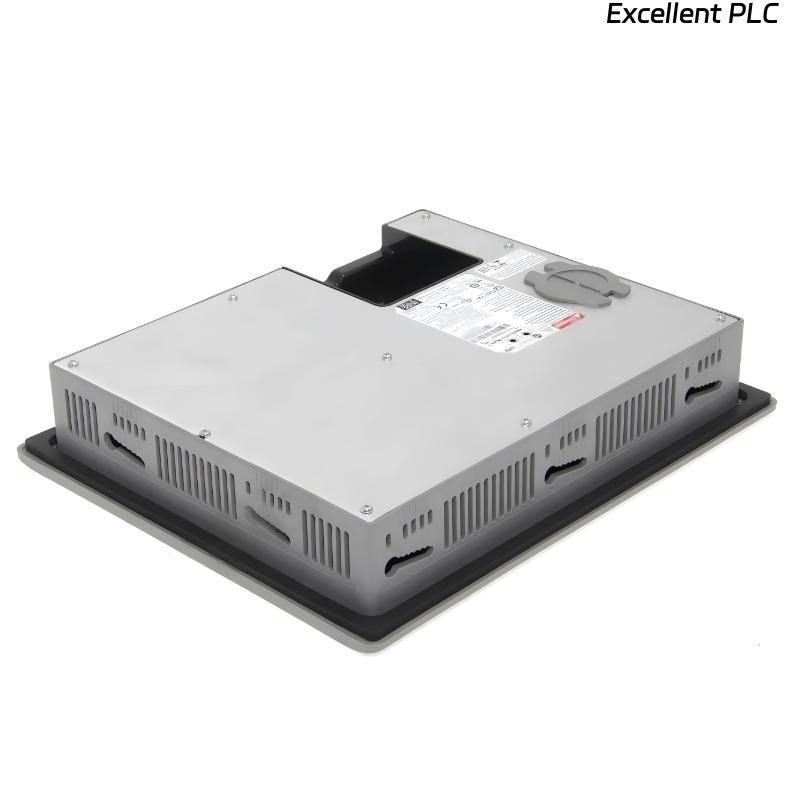

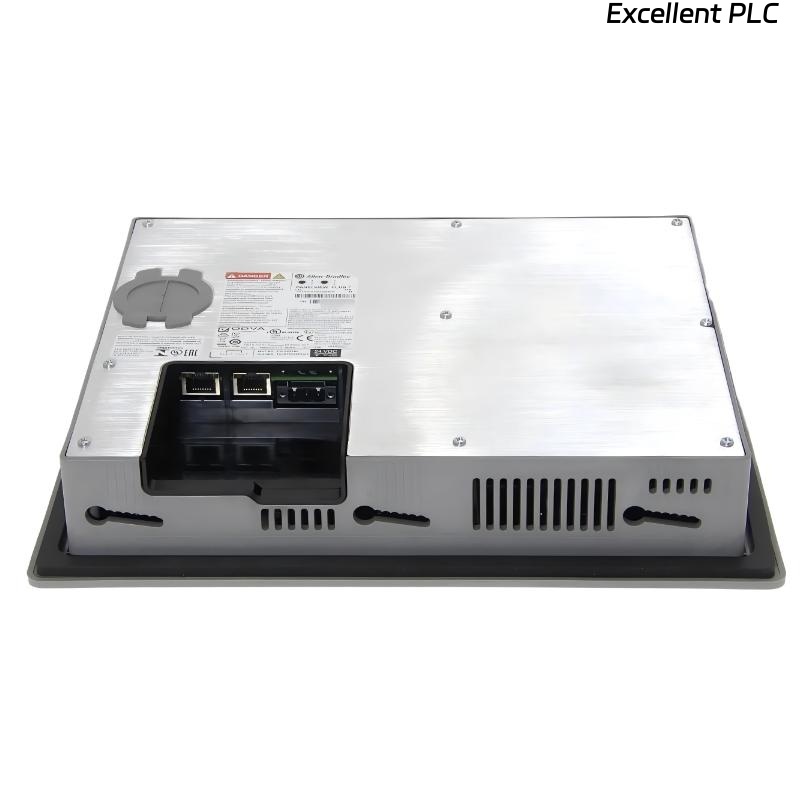

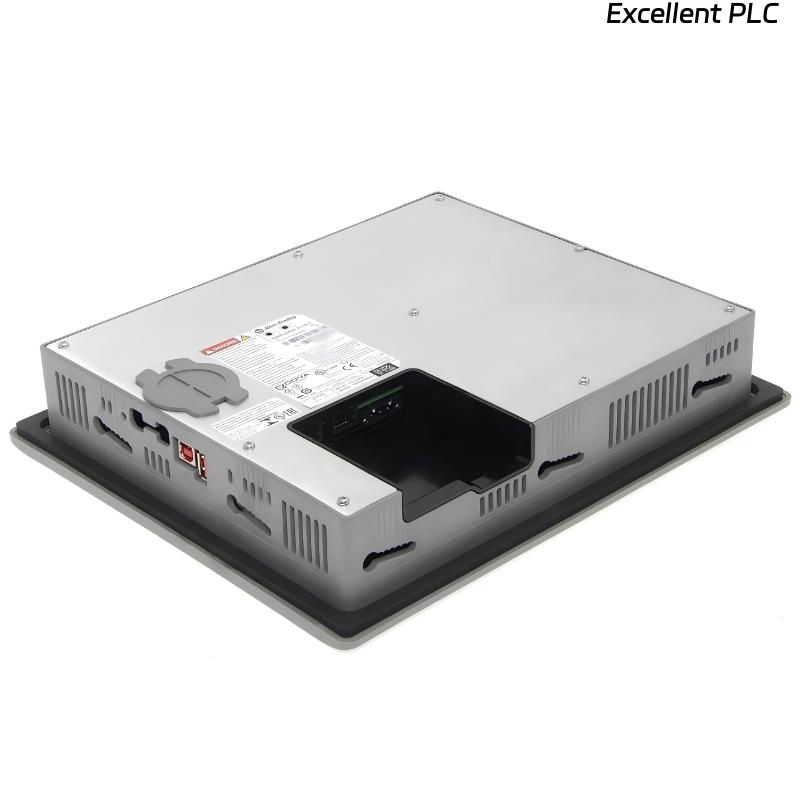

Allen Bradley 2711P-T10C22D8S PanelView Plus 7 Operator Interface
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 2711P-T10C22D8S PanelView Plus 7 Operator Interface is a high-performance human-machine interface (HMI) designed for industrial automation environments requiring reliable visualization and control. As part of the PanelView Plus 7 Standard series, this unit integrates a responsive touchscreen interface with a robust embedded operating system, making it suitable for complex process monitoring and operator interaction.
Built on the Windows CE 6 platform, the terminal supports FactoryTalk View Machine Edition applications, enabling seamless integration with Allen-Bradley PLCs and control systems. The device is engineered to deliver consistent performance in demanding industrial conditions, with a focus on usability, communication flexibility, and long-term stability.
With its 10.4-inch color display and Ethernet capabilities including Device Level Ring (DLR), the unit provides efficient data visualization and network redundancy, ensuring minimal downtime and improved operational continuity.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2711P-T10C22D8S |
| Series | PanelView Plus 7 Standard |
| Display Type | Color TFT LCD |
| Screen Size | 10.4 inches |
| Resolution | 800 × 600 pixels |
| Input Type | Touchscreen |
| Operating System | Windows CE 6 |
| Communication Ports | Ethernet (Embedded Switch with DLR) |
| Network Topology | Device Level Ring (DLR) |
| Power Supply | 24 VDC |
| Software Compatibility | FactoryTalk View ME |
| Mounting Type | Panel Mount |
| Protection Rating | NEMA/UL Type (Industrial grade front panel) |
| Dimensions | 297 × 56.5 × 252 mm |
| Weight | 1.82 kg |
Applications
● Manufacturing Process Control
Used for real-time monitoring and control of automated production lines, allowing operators to interact with PLC systems efficiently.
● Packaging Systems
Provides intuitive control interfaces for packaging machinery, improving operational accuracy and reducing manual intervention.
● Energy and Utilities
Suitable for monitoring power distribution systems, offering clear visualization of system status and alarms.
● Water and Wastewater Treatment
Enables operators to supervise pumps, valves, and treatment processes through a centralized interface.
● Material Handling Systems
Applied in conveyor and logistics systems for status tracking and operational adjustments.
Advantages
● User-Friendly Touch Interface
The responsive touchscreen simplifies navigation and reduces operator training time.
● Reliable Industrial Performance
Designed to operate continuously in harsh industrial environments with stable performance.
● Integrated Network Redundancy
Embedded switch with DLR enhances network reliability and minimizes communication failures.
● Seamless System Integration
Fully compatible with Rockwell Automation ecosystems, ensuring efficient data exchange.
● Compact and Efficient Design
Optimized dimensions allow easy installation in control panels without compromising functionality.
● Flexible Communication Capability
Ethernet connectivity supports modern industrial network architectures.
FAQ
- How is the device configured for communication with PLC systems?
The terminal is typically configured using FactoryTalk View Machine Edition software, where communication drivers such as EtherNet/IP are defined to establish connections with PLC controllers. - What type of network topology does this HMI support?
It supports Device Level Ring (DLR), which provides redundancy in Ethernet networks, allowing communication to continue even if one connection point fails. - Can this unit run custom visualization applications?
Yes, it runs applications developed in FactoryTalk View ME, which can be customized for specific industrial processes and operator requirements. - How is firmware or application data transferred to the device?
Data can be transferred via Ethernet, USB storage devices, or through network-based deployment tools within the FactoryTalk environment. - What are the main considerations when integrating this HMI into an existing system?
Key considerations include network configuration, compatibility with PLC protocols, power supply stability, and proper panel installation. - Does the touchscreen support multi-touch functionality?
No, this model typically supports single-touch input optimized for industrial use with gloves or stylus operation. - How is system security managed on this device?
Security is handled through user authentication, application-level access control, and network segmentation practices. - What communication protocols are supported?
Primarily EtherNet/IP, along with other protocols supported via FactoryTalk configuration. - Is remote access supported for monitoring or diagnostics?
Yes, remote access can be enabled through network configuration and compatible remote monitoring tools. - What happens in case of a network interruption?
With DLR support, the system can automatically maintain communication through an alternate path, minimizing downtime.
Related Models
| Model | Description |
|---|---|
| 2711P-T7C22D8S | 7-inch touchscreen HMI |
| 2711P-T12C22D8S | 12-inch touchscreen version |
| 2711P-K10C22D8S | Keypad + touchscreen variant |
| 2711P-T10C4D8 | Standard Ethernet model |
| 2711P-RP8D | Logic module replacement |
| 2711P-T15C22D8S | 15-inch large display model |
Popular Models
| Model | Description |
|---|---|
| 2711P-T6C20D | Compact PanelView Plus |
| 2711P-K6C20D | Keypad version HMI |
| 2711P-T10C4D1 | Classic 10-inch model |
| 2711P-RDT10C | Display module |
| 2711P-RP7D | Logic module |
| 2711P-T12W22D9P | Wide screen PanelView Plus 7 |
