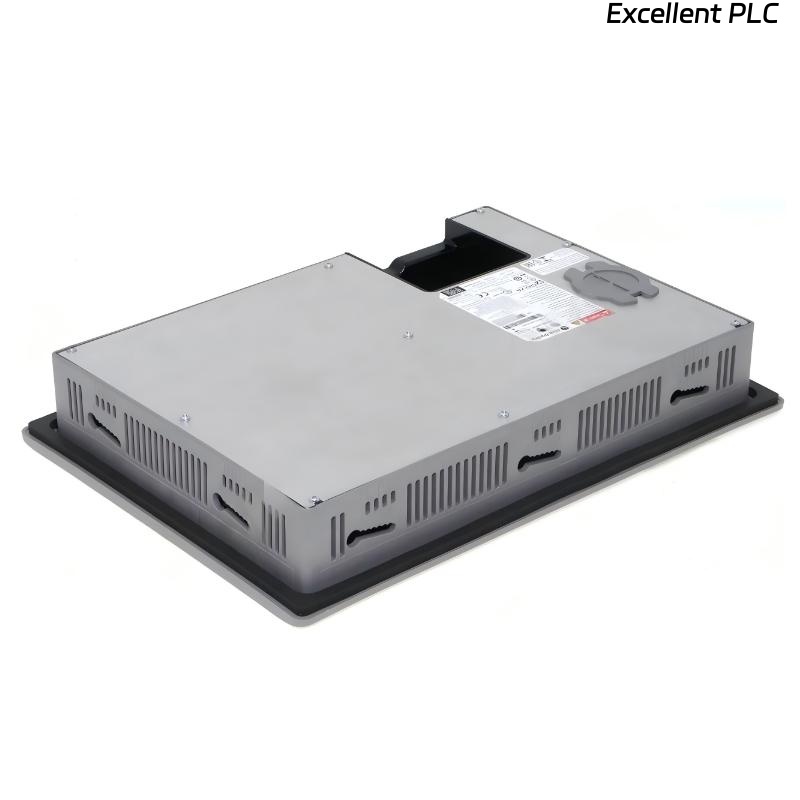

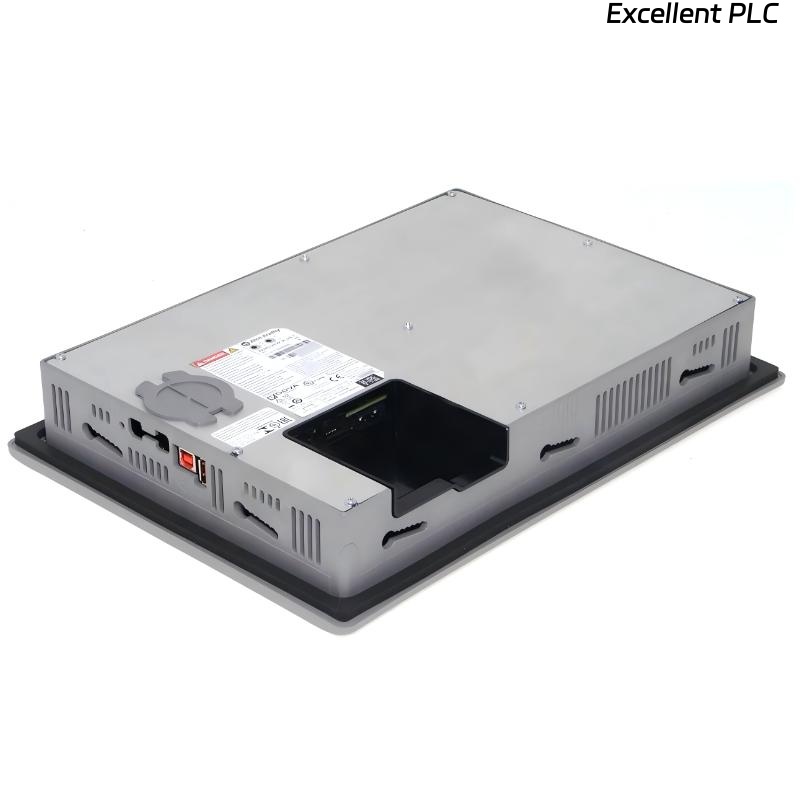

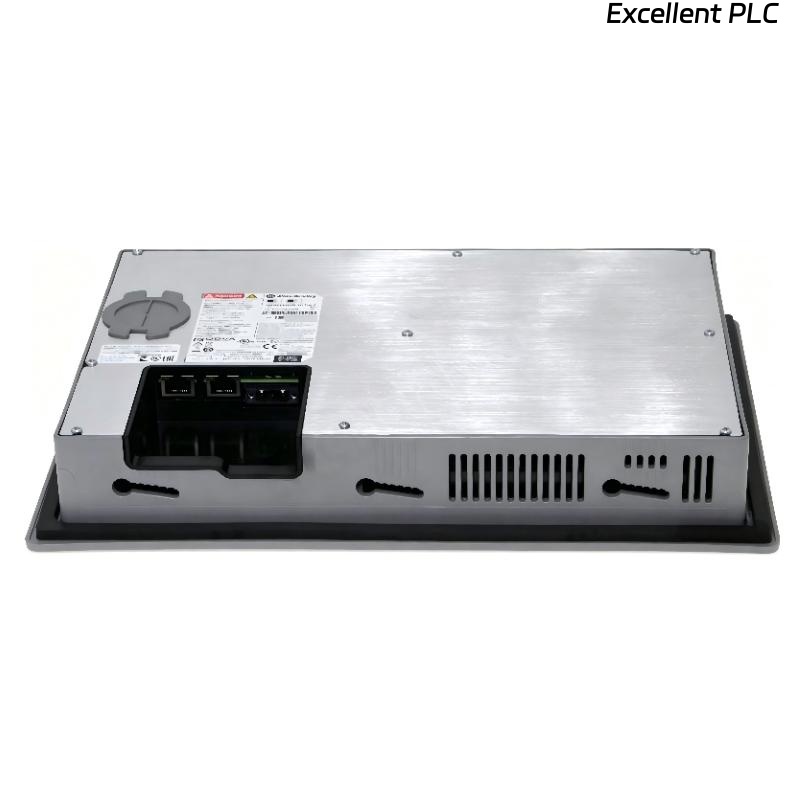

Allen Bradley 2711P-T12W22D8S PanelView Plus 7 Operator Interface
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 2711P-T12W22D8S PanelView Plus 7 Operator Interface is a modern human-machine interface designed for advanced industrial visualization and control. As part of the PanelView Plus 7 Standard series, this model features a wide aspect-ratio display, providing enhanced screen space for improved data presentation and operator interaction.
Built on the Windows CE 6 operating system, the terminal supports FactoryTalk View Machine Edition applications, ensuring seamless integration with Allen-Bradley PLC systems. Its architecture is optimized for reliable performance and efficient communication, making it suitable for a wide range of automation environments.
With a 12.1-inch widescreen color display and embedded Ethernet switch supporting Device Level Ring (DLR), this HMI offers both superior visualization and network redundancy. The 24 VDC power input aligns with standard industrial control panel requirements, enabling straightforward installation and integration.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2711P-T12W22D8S |
| Series | PanelView Plus 7 Standard |
| Display Type | Wide Aspect-Ratio Color TFT LCD |
| Screen Size | 12.1 inches |
| Resolution | 1280 × 800 pixels |
| Input Type | Touchscreen |
| Operating System | Windows CE 6 |
| Communication Ports | Ethernet (Embedded Switch with DLR) |
| Network Topology | Device Level Ring (DLR) |
| Power Supply | 24 VDC |
| Software Compatibility | FactoryTalk View ME |
| Mounting Type | Panel Mount |
| Protection Rating | Industrial front panel protection |
| Dimensions | 340 × 56.5 × 246 mm |
| Weight | 1.95 kg |
Applications
● Advanced Manufacturing Lines
Wide-screen visualization enables operators to monitor multiple processes simultaneously with improved clarity.
● Process Automation Systems
Detailed graphical interfaces enhance monitoring of complex operations in industries such as chemical and energy.
● Water and Wastewater Treatment
Reliable system control for pumps, valves, and treatment processes with clear status visualization.
● Material Handling and Logistics
Enhanced operational visibility improves control of conveyors and automated storage systems.
● Energy and Utilities
Real-time monitoring capabilities support efficient management of power distribution systems.
Advantages
● Wide Aspect-Ratio Display
1280 × 800 resolution provides more usable screen space compared to traditional displays.
● Integrated Network Redundancy
Embedded switch with DLR ensures continuous communication in case of network interruption.
● Stable Operating Platform
Windows CE 6 system delivers reliable and consistent performance.
● Simplified System Integration
FactoryTalk View ME compatibility allows seamless deployment within Rockwell Automation systems.
● Compact and Lightweight Design
Optimized form factor reduces panel space requirements while maintaining functionality.
● Industrial-Grade Reliability
Designed for continuous operation in demanding environments.
FAQ
- What is the advantage of a widescreen display compared to standard formats?
A widescreen display allows more data, graphics, and controls to be shown simultaneously, reducing the need for multiple screens and improving operator efficiency. - How does the embedded Ethernet switch improve network performance?
The embedded switch supports Device Level Ring (DLR), which provides network redundancy and maintains communication even if one connection point fails. - What software is used to configure this HMI?
FactoryTalk View Machine Edition is used to develop and deploy applications for this device. - Can this HMI handle multiple communication tasks simultaneously?
Yes, it is designed to manage multiple data exchanges efficiently within industrial networks. - How are applications transferred to the device?
Applications can be downloaded via Ethernet or transferred using USB storage devices. - Is this unit compatible with legacy systems?
While optimized for Ethernet-based systems, integration with legacy systems may require additional configuration or gateways. - What communication protocol is primarily used?
EtherNet/IP is the main protocol used for communication with PLCs and other automation devices. - How is user access managed?
User access is controlled through configurable security settings, including passwords and user roles. - Is the touchscreen suitable for industrial environments?
Yes, it is designed for reliable use and can typically be operated with gloves or a stylus. - What should be considered during installation?
Proper panel mounting, stable 24 VDC power supply, grounding, and correct network configuration are essential for optimal performance.
