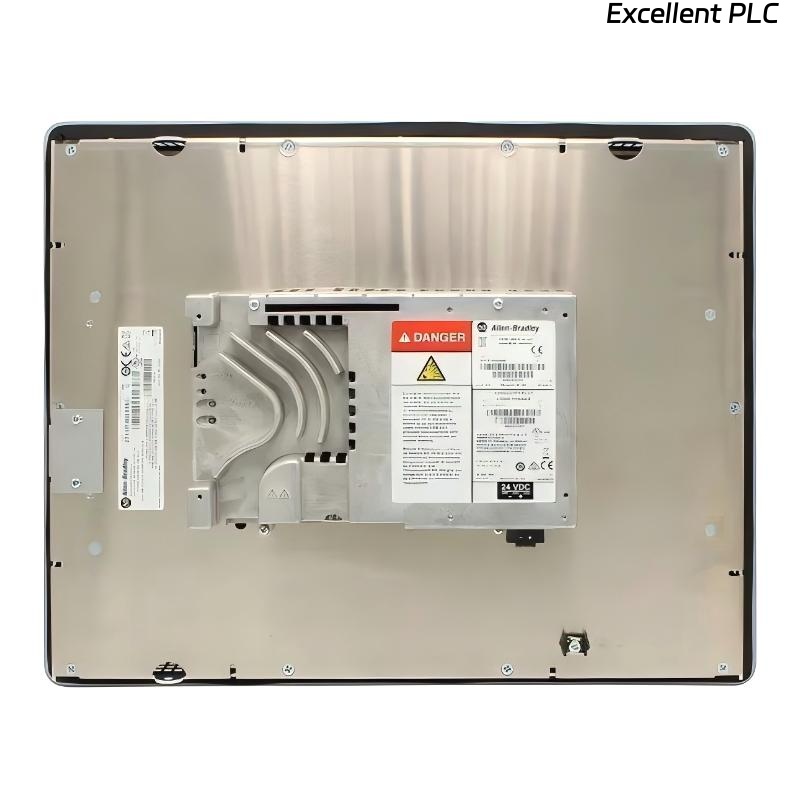

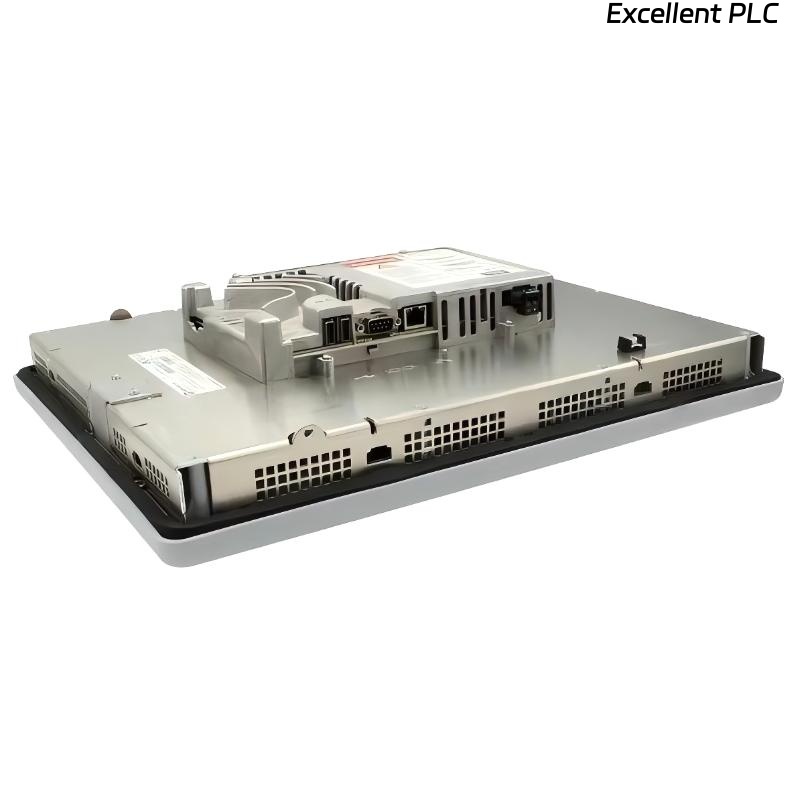

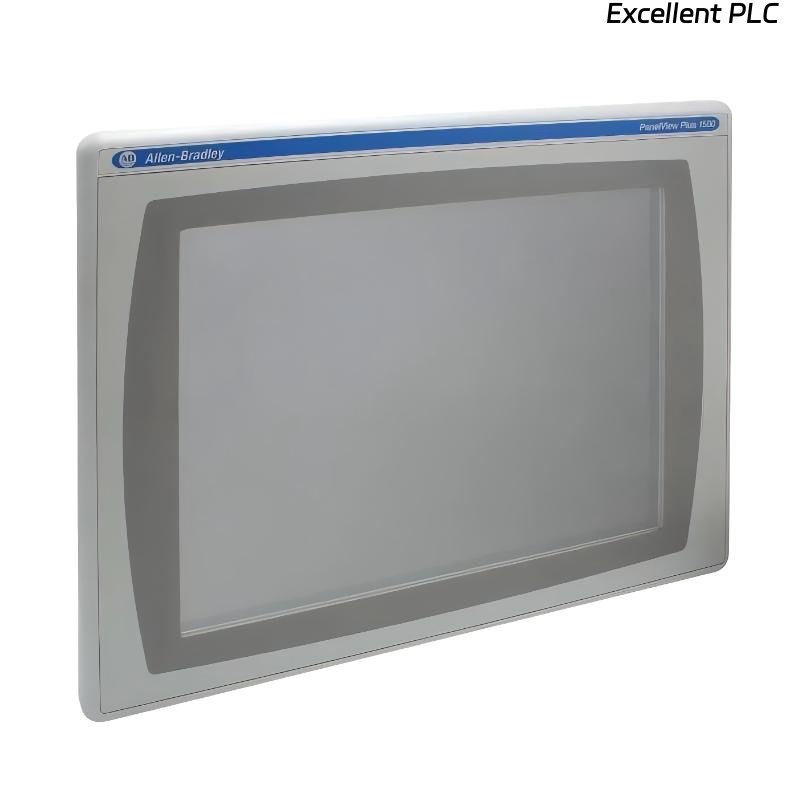

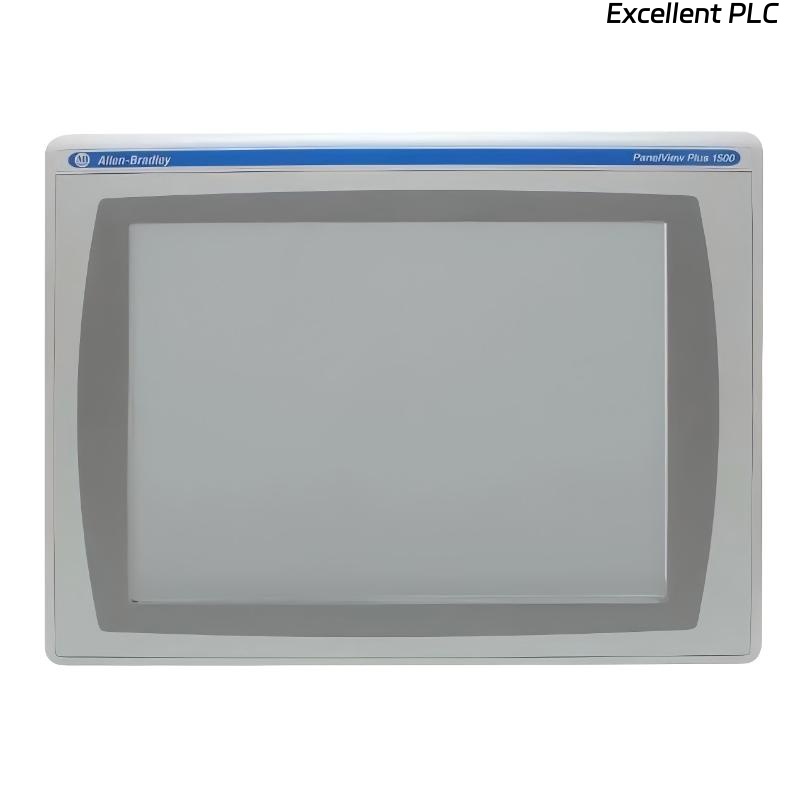

Allen Bradley 2711P-T15C4D8 PanelView Plus 6 1500 Operator Interface
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 2711P-T15C4D8 PanelView Plus 6 1500 Operator Interface is a large-format human-machine interface designed for demanding industrial environments where extensive visualization and operator interaction are required. As part of the PanelView Plus 6 1500 series, this model offers a powerful combination of a spacious display, reliable hardware, and flexible communication capabilities.
Running on the Windows CE 6 operating system, the terminal supports FactoryTalk View Machine Edition applications, ensuring seamless integration with Allen-Bradley PLC systems. It is optimized for stable, long-term operation and is well-suited for applications that require clear visualization of complex processes.
With a 15-inch color touchscreen and multiple communication interfaces including Ethernet, RS-232, and USB, this HMI provides excellent connectivity and usability. The 24 VDC power input aligns with standard industrial control panel configurations, making installation straightforward.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2711P-T15C4D8 |
| Series | PanelView Plus 6 1500 |
| Display Type | Color TFT LCD |
| Screen Size | 15 inches |
| Resolution | 1024 × 768 pixels |
| Input Type | Touchscreen |
| Operating System | Windows CE 6 |
| Communication Ports | Ethernet, RS-232, (2) USB |
| Ethernet Protocol | EtherNet/IP |
| Serial Communication | RS-232 |
| USB Ports | 2 × USB Host |
| Power Supply | 24 VDC |
| Software Compatibility | FactoryTalk View ME |
| Mounting Type | Panel Mount |
| Protection Rating | Industrial front panel protection |
| Dimensions | 416 × 65 × 330 mm |
| Weight | 4.2 kg |
Applications
● Large-Scale Manufacturing Systems
Extensive visualization area allows operators to monitor multiple processes and data points simultaneously.
● Process Industries (Oil, Gas, Chemical)
Clear and detailed interface display enhances operational control in continuous production environments.
● Power and Energy Systems
Reliable monitoring and control of electrical distribution and energy management systems.
● Water and Wastewater Treatment
Comprehensive process visualization ensures accurate control of treatment operations.
● Material Handling and Logistics
Improved system coordination supports conveyor systems and automated storage solutions.
Advantages
● Large Display for Enhanced Visibility
15-inch screen with high resolution provides clear and detailed process visualization.
● Stable and Proven Platform
Windows CE 6 operating system ensures reliable long-term performance.
● Flexible Communication Interfaces
Ethernet, RS-232, and USB connectivity supports integration with diverse industrial systems.
● Standard 24 VDC Power Input
Simplifies installation within modern industrial control panels.
● User-Friendly Touchscreen Interface
Responsive and intuitive operation improves operator efficiency.
● Seamless Integration with FactoryTalk
Compatible with FactoryTalk View ME, enabling efficient system deployment.
FAQ
- What type of applications is this 15-inch HMI best suited for?
It is ideal for large-scale or complex systems where multiple data points, graphics, and controls need to be displayed simultaneously. - How does this device communicate with PLC systems?
It primarily uses EtherNet/IP over Ethernet, with RS-232 available for serial communication in legacy or specific configurations. - What are the benefits of a larger display in industrial environments?
A larger display improves visibility, reduces the need for screen navigation, and enhances operator efficiency. - How are applications transferred to the device?
Applications can be downloaded via Ethernet or transferred using USB storage devices. - Can this HMI be integrated with older systems?
Yes, the RS-232 interface allows communication with legacy equipment while still supporting modern Ethernet networks. - What communication protocol is used over Ethernet?
EtherNet/IP is the primary protocol used for communication with controllers and automation systems. - Is the touchscreen suitable for industrial use?
Yes, it is designed for reliable operation and can typically be used with gloves or a stylus. - How is system security managed?
Security is handled through user authentication, password protection, and configurable access levels within the application. - Is this device suitable for continuous operation?
Yes, it is built for long-term, stable operation in demanding industrial environments. - What should be considered during installation?
Proper panel mounting, stable 24 VDC power supply, grounding, and correct network configuration are essential for optimal performance.
Related Models
| Model | Description |
|---|---|
| 2711P-T12C4D8 | 12.1-inch model |
| 2711P-T15C4A8 | AC power version |
| 2711P-T10C4D8 | 10.4-inch model |
| 2711P-K15C4D8 | Keypad + touchscreen variant |
| 2711P-RP6 | Logic module |
| 2711P-RDT15C | Display module |
Popular Models
| Model | Description |
|---|---|
| 2711P-T6C20D | Compact PanelView Plus |
| 2711P-K6C20D | Keypad compact model |
| 2711P-T10C4D1 | Standard 10-inch HMI |
| 2711P-RDT7C | Display module |
| 2711P-RP7D | Logic module |
| 2711P-T12W22D9P | PanelView Plus 7 Performance widescreen |
