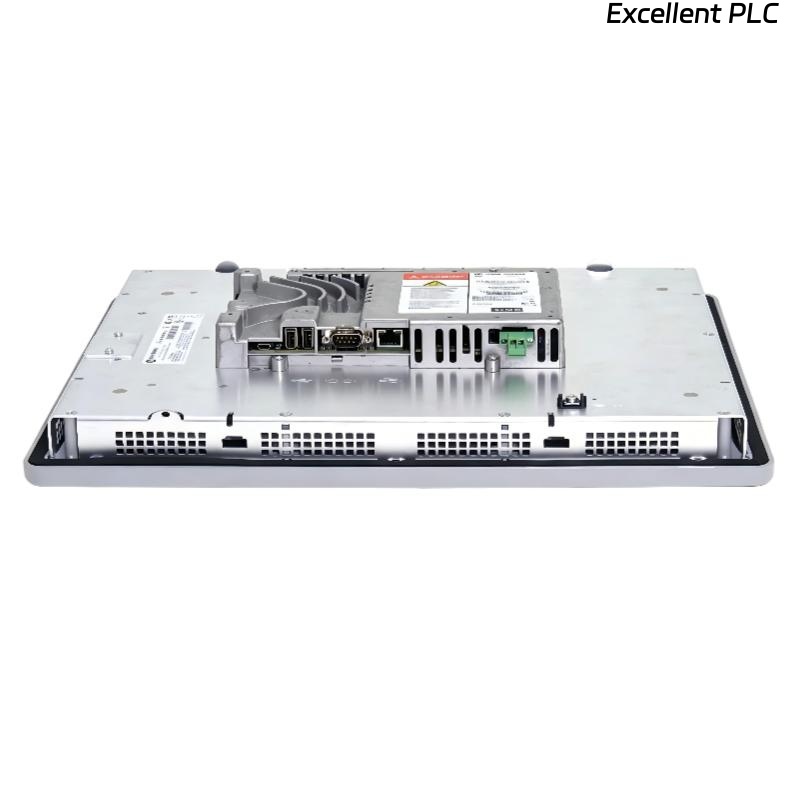

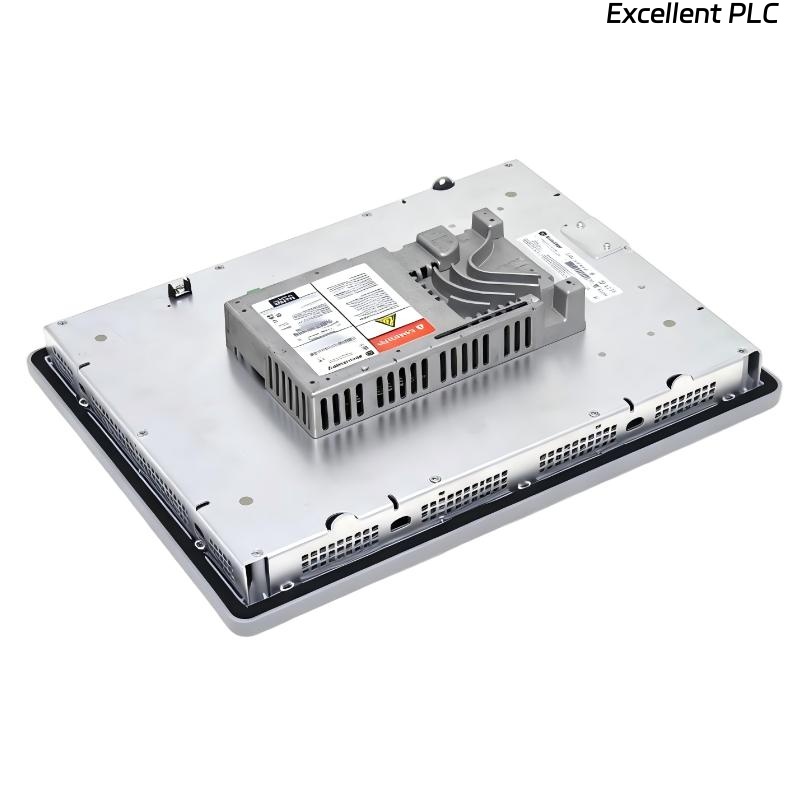

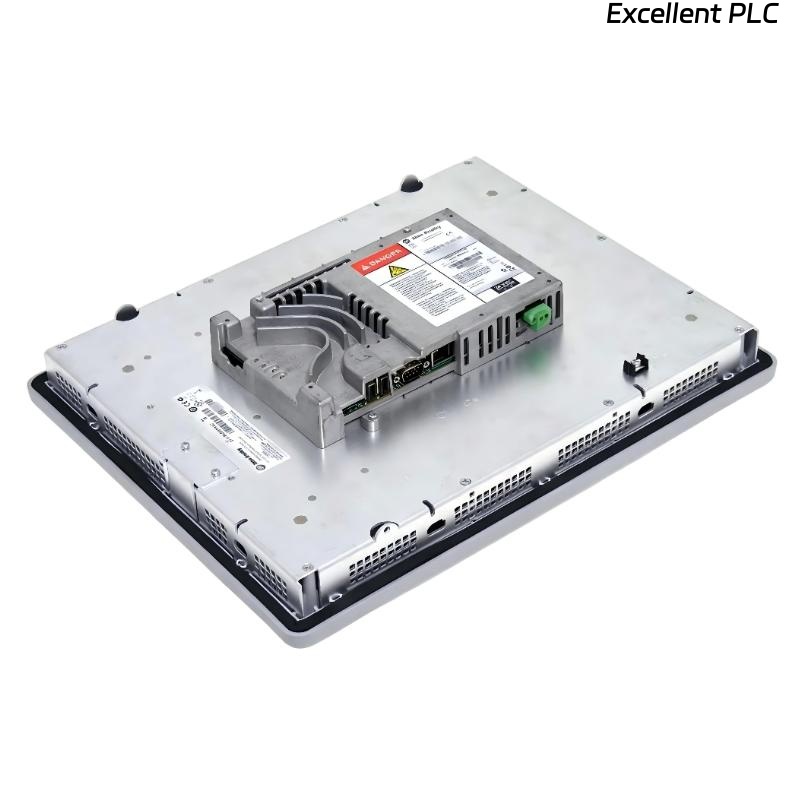

Allen Bradley 2711P-T15C4D9 PanelView Plus 6 1500 Operator Interface

Product Introduction

The Allen Bradley 2711P-T15C4D9 PanelView Plus 6 1500 Operator Interface is a large-format human-machine interface designed for demanding industrial applications requiring enhanced visualization and stable system performance. As part of the PanelView Plus 6 1500 series, this model offers a spacious 15-inch display combined with flexible communication capabilities, making it suitable for complex control and monitoring environments.

This unit operates on the Windows CE 6 Extended platform, providing additional system features and improved flexibility compared to standard versions. It supports FactoryTalk View Machine Edition applications, ensuring seamless integration with Allen-Bradley PLC systems and automation architectures.

With its high-resolution color touchscreen and multiple communication interfaces—including Ethernet, RS-232, and USB—the device delivers reliable connectivity. The 24 VDC power input makes it compatible with modern industrial control panels, ensuring straightforward installation and operation.

---

Product Specifications

---

Applications

● Large-Scale Automation Systems
Expanded visualization capability enables monitoring of complex processes with multiple data points.

● Process Industries (Oil, Gas, Chemical)
Stable and reliable interface supports continuous production environments requiring precise control.

● Power and Energy Management
Real-time monitoring and control improves operational efficiency and system reliability.

● Water and Wastewater Treatment
Comprehensive system visualization ensures accurate management of treatment processes.

● Material Handling and Logistics
Enhanced operational visibility supports coordination of conveyors and automated systems.

---

Advantages

● Extended Operating System Capability
Windows CE 6 Extended provides additional features and improved flexibility for application development.

● Large Display for Improved Visibility
15-inch screen with high resolution allows clear presentation of complex data and graphics.

● Flexible Communication Options
Ethernet, RS-232, and USB interfaces support integration with both modern and legacy systems.

● Standard 24 VDC Power Input
Simplifies installation within industrial control panels.

● User-Friendly Touch Interface
Responsive touchscreen design improves operator interaction and efficiency.

● Reliable Industrial Performance
Designed for continuous operation in demanding environments.

FAQ

1. What is the benefit of Windows CE 6 Extended compared to the standard version?
   The Extended version includes additional system components and features, allowing more flexibility in application development and improved functionality.
2. How does this HMI communicate with PLC systems?
   It primarily uses EtherNet/IP over Ethernet, with RS-232 available for serial communication when needed.
3. What type of applications is this model best suited for?
   It is ideal for large-scale applications requiring detailed visualization and control of multiple processes.
4. How are applications transferred to the device?
   Applications can be downloaded via Ethernet or transferred using USB storage devices.
5. Can this device integrate with legacy equipment?
   Yes, the RS-232 interface allows communication with older systems while maintaining support for modern networks.
6. What communication protocol is used over Ethernet?
   EtherNet/IP is the primary protocol used for communication with controllers and automation systems.
7. Is the touchscreen suitable for industrial environments?
   Yes, it is designed for reliable operation and can typically be used with gloves or a stylus.
8. How is system security managed?
   Security is handled through user authentication, password protection, and configurable access levels within the application.
9. Is this device suitable for continuous operation?
   Yes, it is built for stable, long-term use in demanding industrial environments.
10. What should be considered during installation?
    Proper panel mounting, stable 24 VDC power supply, grounding, and correct network configuration are essential for optimal performance.
